Grinders

IR AG3-53-4A

ROTOR ASSEMBLY

IR AG3-A53-4A

G3 ROTOR ASSEMBLY

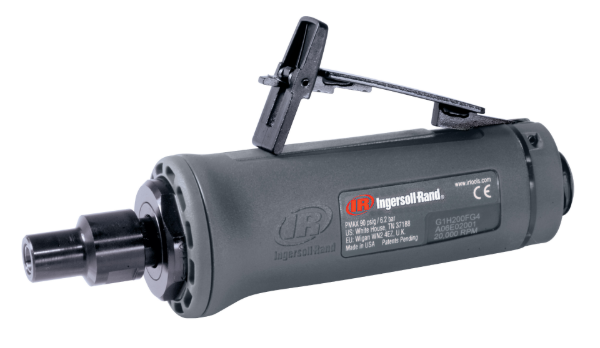

IR G1H200FG4

Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Front Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks for applications such as shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 19
Air Consumption @ Load (l/min): 538
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Front
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 82.1 / 93.1
Speed Setting: Variable Speed
Vibration Level (m/s2): 2.9
Warranty: 1-year

Similar IR

• G1H200RG4

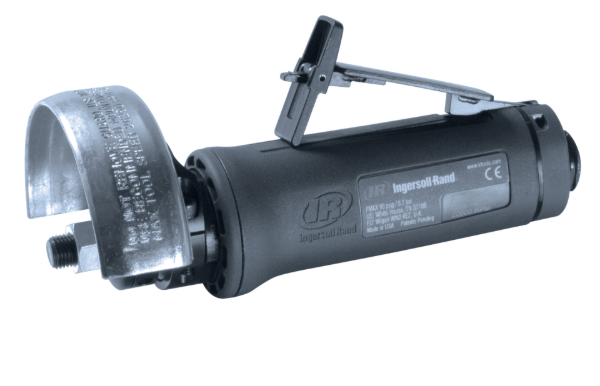

IR G1H200RH63

Air Grinder, 3" Type 1 Wheel, 20,000 RPM, 0.4 HP, 3/8"-24 Thread, Rear Exhaust

The G1 Series Type 1 Grinders come equipped with powerful 0.4HP vane motors and adjustable front, rear and dual exhaust options. A motor controller helps maintain tool speed to maximize removal rate and increase operator safety by preventing overspeeding.

Features And Benefits

• Power: At 0.4 HP and 20,000 RPM, the G1 Series packs a lot of power in a small package.
• Comfort: At home, in industrial, heavy machinery, construction environments and more, this lightweight tool features an ergonomic design and low vibrations that make even the toughest jobs a little bit easier.
• Reduced Vibration: Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.

Product Application and Uses: Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Rear
Grinder Type: Horizontal Grinder
Guard Material: Steel
Handle Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 83.0 / 94.0
Vibration Level (m/s2): 10.7
Vibration Uncertainy K* (m/s2): 3.3
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/4
Wheel Type: Type 1

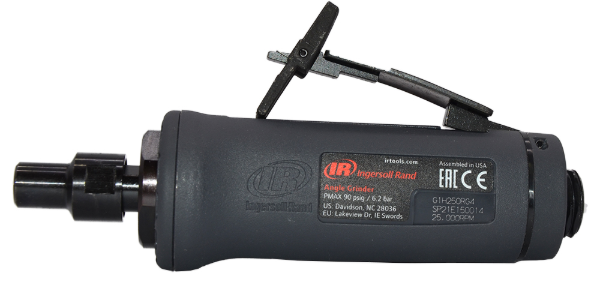

IR G1H250RG4

Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it’s right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you’re repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you’ll get more done with less fatigue.
• At .4 hp, the G1 Series packs a lot of power in a small package
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
• Ergonomically designed D-shaped grip
• One-nut access for all motor servicing
• Patent-pending soft-mount system reduces vibration for extended motor and switch life

Includes: Tool, (2) Collet Wrenches, Manuals
Product Application and Uses: Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal
Actuation/Throttle Type/Switch Location: Top;Bottom (straight tool)
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 20
Air Consumption @ Load (l/min): 566
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Handle Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Width (in): 6.5
Product Height (in): 2.75
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Side to Center Distance (in): 0.87
Side to Center Distance (mm): 22
Sound Pressure/Power Db(A): 82.9 / 93.9
Speed Setting: Variable Speed
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 2.5
Warranty: 1-year
Wheel Type: Burr

Similar IR

• M2H250RG4
• G1H250FG4
• G1H200RG4
• 5108MAX

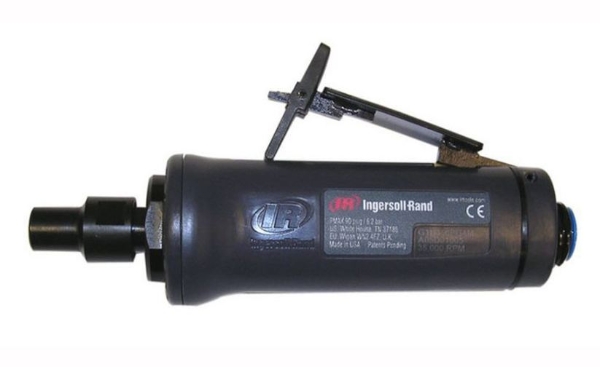

IR G1H350RG4

Air Die Grinder, 32,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• One-nut access for all motor servicing.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks for applications such as shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 32000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 84.2 / 95.2
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1H250RG4

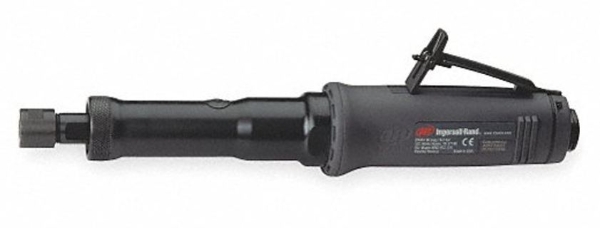

IR G1X200RG4

Extended Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.13
Product Weight (lb): 1.3
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 82.3 / 93.2
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1X250RG4

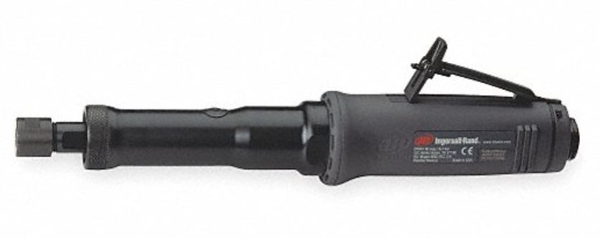

IR G1X250RG4

Extended Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 25000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.13
Product Weight (lb): 1.3
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 83.1 / 94.1
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1X200RG4
• 5208MAX

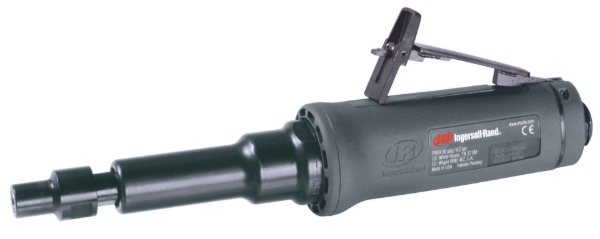

IR G1X350RG4

Extended Air Die Grinder, 35,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.

Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 35000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 9.13
Product Weight (lb): 1.3
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 84.1 / 95.1
Vibration Level (m/s2): <2.5
Warranty: 1-year

Similar IR

• G1X250RG4

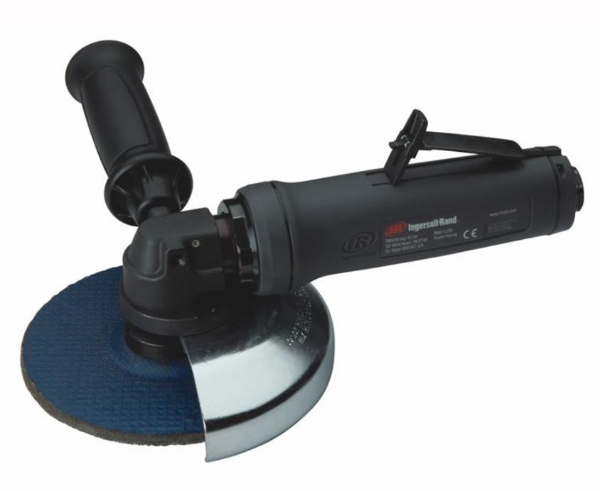

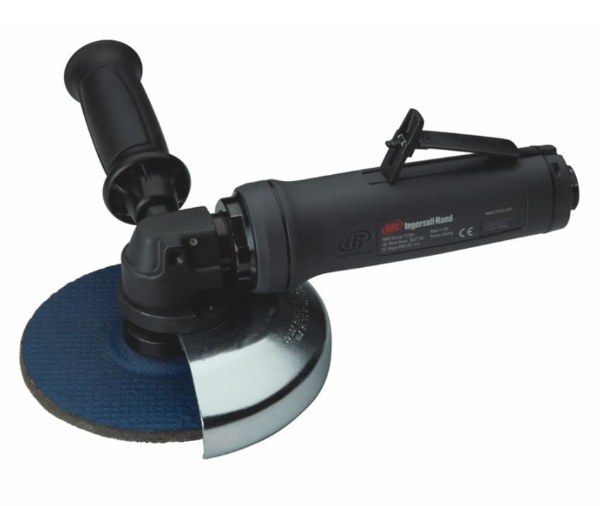

IR G3A120PP945AV

G3 ANGLE GRINDER M14 ARBOR 4.5" GUARD AUTO BAL

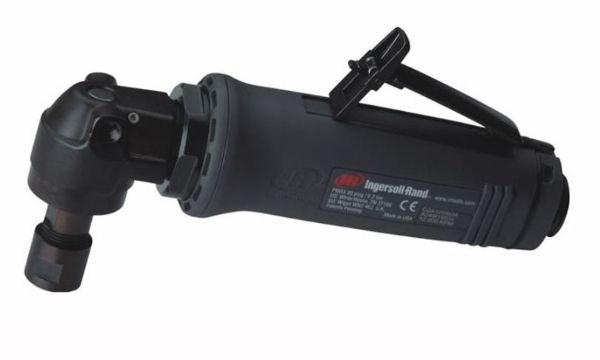

IR G3A120RG4

Air Angle Die Grinder, 12,000 RPM, 1.35 HP, 1/4" Collet, Rear Exhaust

The G3 Series die Grinders are backed by Ingersoll Rand’s longstanding history of delivering strong, powerful tools that make your life easier.

Features And Benefits

• Power: Powerful 1.35 12,000 RPM vane motor that won’t let you down on job that call for maximum power.
• Comfort: With a lightweight composite housing and ergonomic body design, the tools of the G3 Series are easy to hold and easy to use, even on the longest jobs.
• Vibration dampening for ease-of-use.

Product Application and Uses: Ideal for industrial-duty material removal with burrs, grinding wheels, and coated abrasives. Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Color: Black
Grinder Type: Die Grinder
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Sound Pressure/Power Db(A): 86.4 / 97.4
Vibration Level (m/s2): 5.5
Vibration Uncertainy K* (m/s2): 0.9
Warranty: 1-year

IR G3A120RP105

Air Angle Grinder, 5" Type 27 Wheel, 12,000 RPM, 1.35 HP, 5/8"-11 Thread, Rear Exhaust

The MAX Series family of angle grinders has a tool to meet your needs, whether you’re looking for a 4.5 or 5-inch option. The built-in lubricating wick optimizes the life of your angle gear set, while the safety guard protects you from debris, sparks and abrasives while you work.

Features And Benefits

• Comfort: With a lightweight composite housing and ergonomic design, the Max Series Angle Grinders are easier to work with for long periods of time.
• Power: With an ideal power-to-weight ratio, the Max Series Angle Grinders are great for high-performance material removal.
• Versatile: The Max Series Angle Grinders are a versatile set of tools you can use in most major markets, from vehicle repair and body work to construction and metal fabrication.

Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Arbor/Collet: 5/8"-11 Thread
Color: Black
Configuration/Handle Type: Right Angle
Exhaust Location: Rear
Max Free Speed (rpm): 12000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/2
Power Source: Air Powered
Rated Power (hp): 1.35
Rated Power (kW): 1
Sound Pressure/Power Db(A): 87.6
Warranty: 1-year
Wheel Diameter (in): 5
Wheel Thickness (in): 1/4
Wheel Type: Type 27

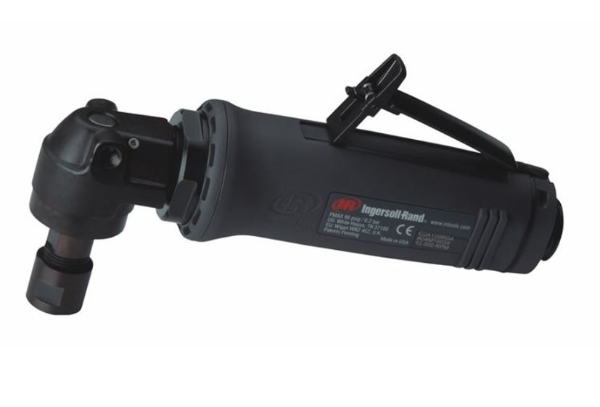

IR G3H180PG4M

G3 HOR DIE GRINDER-6MM COLLET

IR G3L120RP1045

G3 EXTENDED ANGLE GRINDER

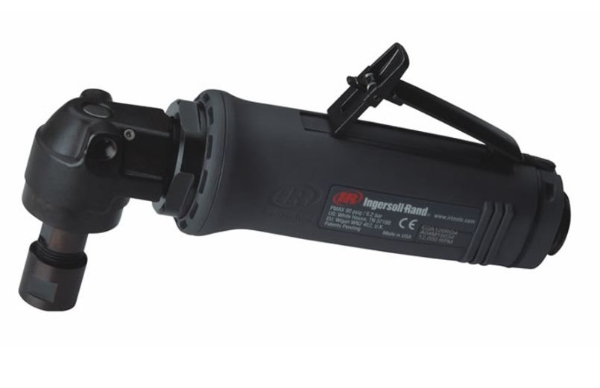

IR G3X150PG4M

G3 HOR EXT DIE GRINDER, 6MM COLLET

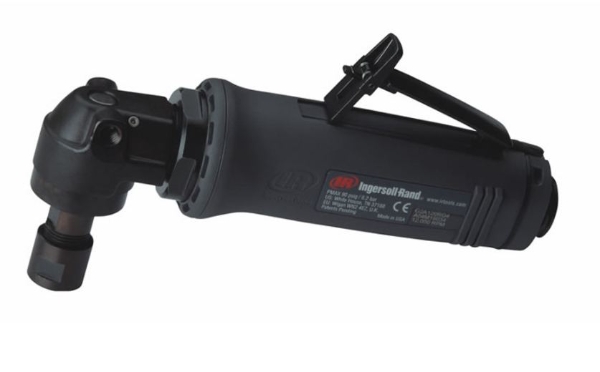

IR G3X180PG4M

G3 HOR EXT DIE GRINDER, 6MM COLLET

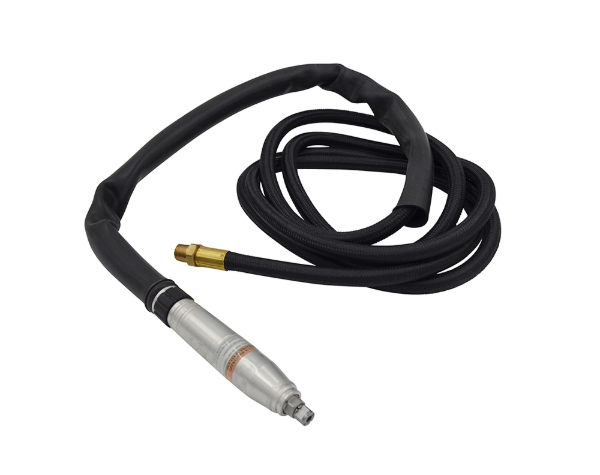

IR GH011A-600-1

Air Pencil Grinder, 60,000 RPM, 0.1 HP, 1/8" Collet

A durable metal housing and powerful vane motor give the Ingersoll Rand Pencil Grinders the ability to succeed in a variety of projects, from general repair work to precision aerospace projects. Slide throttle and twist throttle actuation bring added flexibility to any job.

Features And Benefits

• Comfort: Lightweight at 2.6 lbs. with a rubber grip, this tool’s ease of use makes longer jobs easier.
• Access: True to its name, this pencil-thin grinder can reach the tightest of spaces, leaving no work left undone.
• Versatile: A durable metal housing and powerful vane motor give this pencil grinder the ability to succeed in a variety of projects, from general repair work to precision aerospace projects. Slide throttle and twist throttle actuation bring added flexibility to any job.

Includes: (1) Tool; (2) Wrench; (1) Hose Assy; (1) Sleeve Exhaust
Product Application and Uses: Final Cleaning And Polishing Of Dies, Mold Finishing, Intricate Grinding Applications, Light Deburring And Flash Removal
Actuation/Throttle Type/Switch Type: Twist
Air Consumption @ Load (cfm): 7
Air Consumption @ Load (l/min): 198
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/8"
Average Air Consumption (cfm): 7
Average Air Consumption (l/min): 3.3
Bearing Type: Ball Bearing
Color: Silver
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Pencil Grinder
Gripping Length (in): 2.4
Housing Material: Steel
Max Free Speed (rpm): 60000
Max Pressure (bar): 6.2
Min Hose Size (in): 1/4
Pencil Diameter (in): 0.68
Power Source: Air Powered
Product Length (in): 5.3
Product Width (in): 6.5
Product Height (in): 2.3
Product Weight (lb): 2.6
Rated Power (hp): 0.1
Side to Center Distance (in): 0.34
Side to Center Distance (mm): 9
Sound Pressure/Power Db(A): 76
Speed Setting: Variable Speed
Spindle Offset (in): 0.34
Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744
Vibration Level (m/s2): 3.2
Warranty: 1-year
Wheel Type: Burr
Whip Hose (in): 7/32

Similar IR

• 7978
• 320PG
• 320PGK

IR HG1-338

Raised Hub Wheel Flange

IR HG1-4-P6

ARBOR, 3/8 - 24

IR HG2-A106-45

GUARD AND LABEL ASSEMBLY

IR HG2-A552-1.3

BEVEL PINION ASSEMBLY

IR HG2-A552-2.4

BEVEL PINION ASSEMBLY

IR LG1-11

END PLATE (49440-14)

IR LG1-23

FLANGE (49440-113)

IR LG1-A400

LEVER ASSEMBLY (49440-117)
