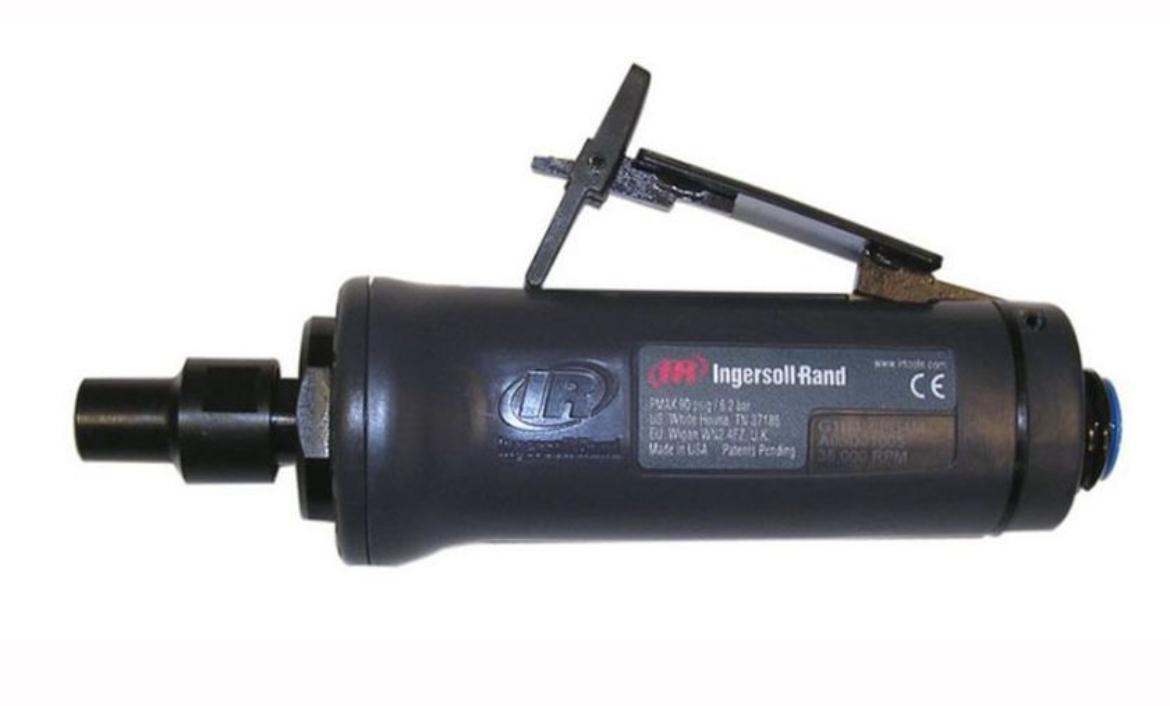

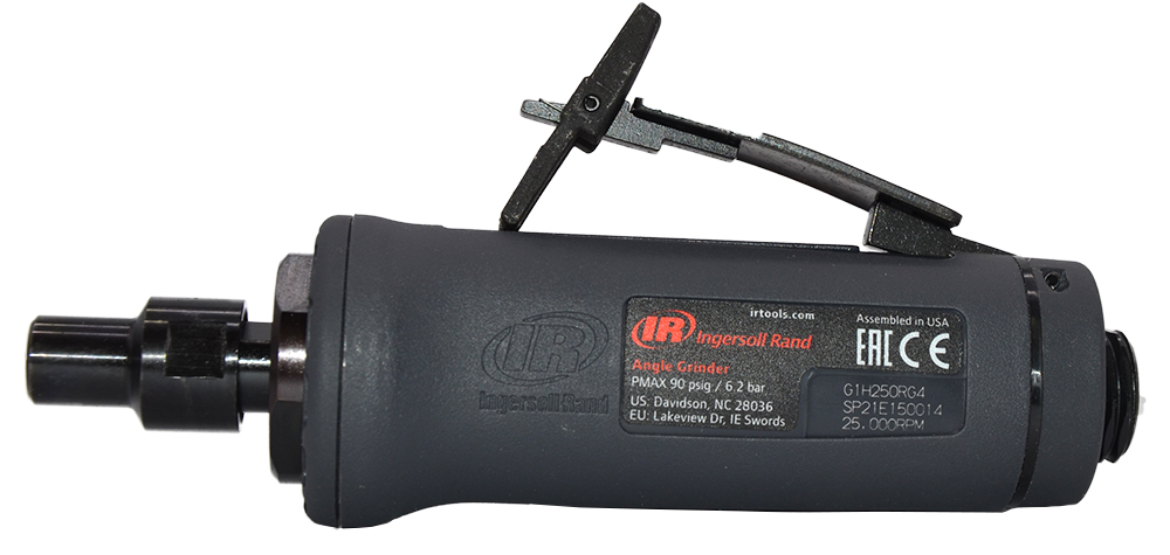

G1 Die Grinder, 1/4" Collet

IR G1H250RG4

Air Die Grinder, 25,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust

Description: The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits:

• Durability: Made to withstand repeated drops, harsh chemicals and tough work environments, this tool is ready to work whenever, wherever.
• Reliability: Built to last, this tool performs well job after job, which is why it's right at home in shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic body shape that ensures you'll get more done with less fatigue.
• At .4 hp, the G1 Series packs a lot of power in a small package
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks
• Ergonomically designed D-shaped grip
• One-nut access for all motor servicing
• Patent-pending soft-mount system reduces vibration for extended motor and switch life

Product Application and Uses:

Cleaning Rough Castings, Cleaning Up Welds, Deburring Parts, Finishing Tasks, Ideal For Light Material Removal

• Includes: Tool, (2) Collet Wrenches, Manuals
• Actuation/Throttle Type/Switch Location: Top, Bottom (straight tool)
• Actuation/Throttle Type/Switch Type: Lever
• Air Consumption @ Load (cfm): 20
• Air Consumption @ Load (l/min): 566
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"

• Bearing Type: Ball Bearing

• Color: Black
• Configuration/Handle Type: Straight
• Duty Rating: Heavy Duty

• Exhaust Location: Rear

• Grinder Type: Die Grinder
• Handle Material: Composite
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 25000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 6.13

• Product Width (in): 6.5
• Product Height (in): 2.75
• Product Weight (lb): 0.9
• Rated Power (hp): 0.4

• Side to Center Distance (in): 0.87
• Side to Center Distance (mm): 22

• Sound Pressure/Power Db(A): 82.9 / 93.9
• Speed Setting: Variable Speed
• Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744

• Vibration Level (m/s2): 2.5
• Warranty: 1-year
• Wheel Type: Burr

• Accessories: DG110-700-G2

• Lubrication: 10G
• Lubrication: 10P
• Parts: AG1-TK1
• Parts: LG1-K284
