Grinder

IR GH011A-600-1

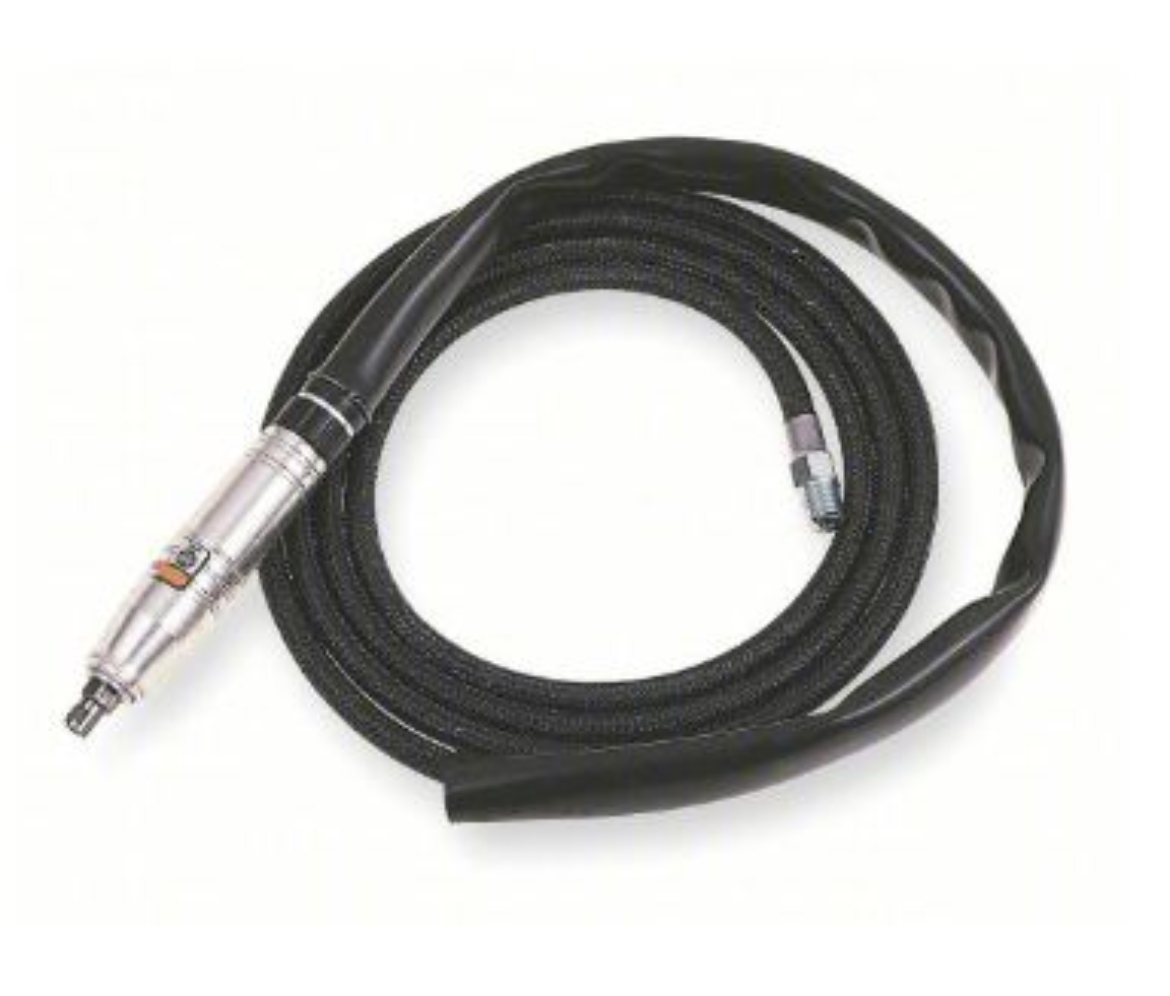

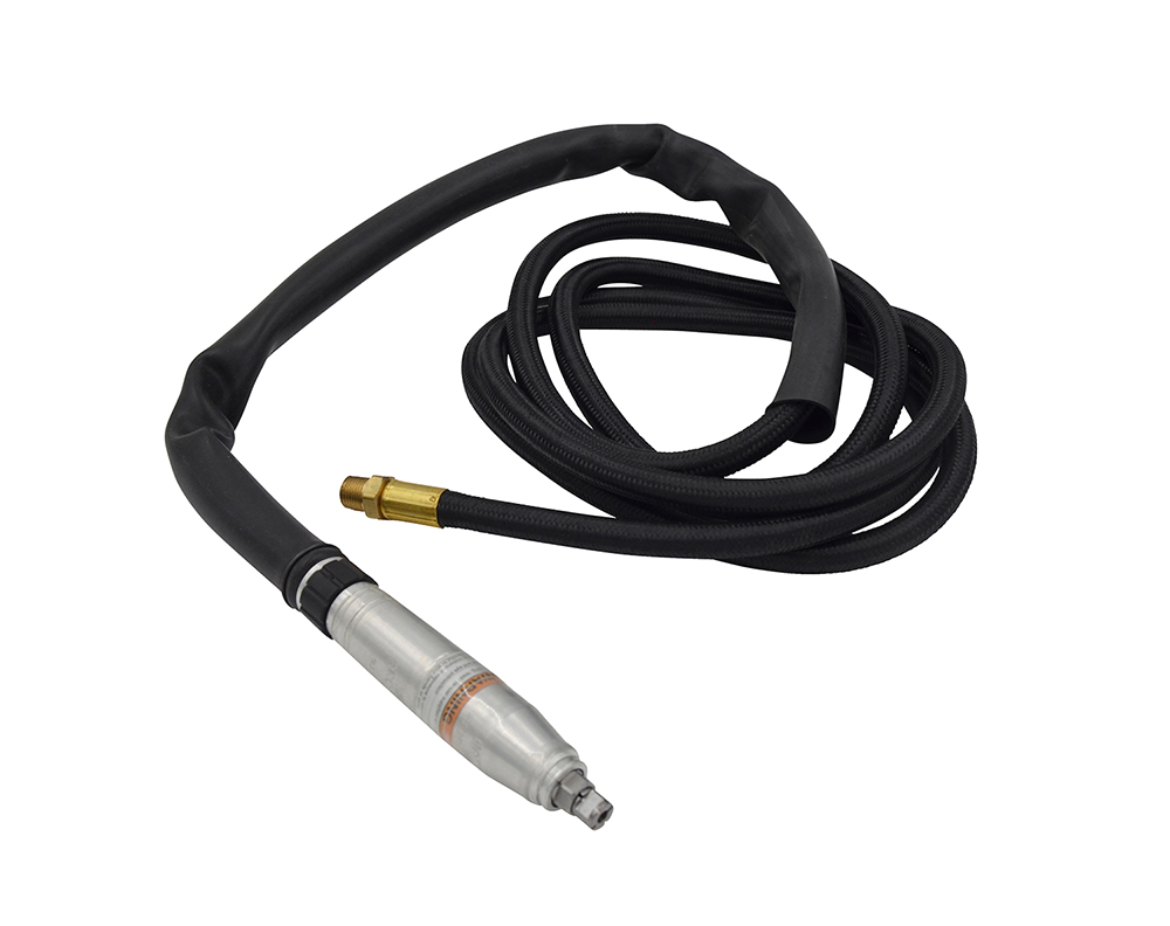

Air Pencil Grinder, 60,000 RPM, 0.1 HP, 1/8" Collet

Description: A durable metal housing and powerful vane motor give the Ingersoll Rand Pencil Grinders the ability to succeed in a variety of projects, from general repair work to precision aerospace projects. Slide throttle and twist throttle actuation bring added flexibility to any job.

Features And Benefits:

• Comfort: Lightweight at 2.6 lbs. with a rubber grip, this tool's ease of use makes longer jobs easier.
• Access: True to its name, this pencil-thin grinder can reach the tightest of spaces, leaving no work left undone.
• Versatile: A durable metal housing and powerful vane motor give this pencil grinder the ability to succeed in a variety of projects, from general repair work to precision aerospace projects. Slide throttle and twist throttle actuation bring added flexibility to any job.

Product Application and Uses:

Final Cleaning And Polishing Of Dies, Mold Finishing, Intricate Grinding Applications, Light Deburring And Flash Removal

• Includes: (1) Tool, (2) Wrench, (1) Hose Assy, (1) Sleeve Exhaust
• Actuation/Throttle Type/Switch Type: Twist
• Air Consumption @ Load (cfm): 7
• Air Consumption @ Load (l/min): 198
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/8"
• Average Air Consumption (cfm): 7
• Average Air Consumption (l/min): 3.3

• Bearing Type: Ball Bearing

• Color: Silver
• Configuration/Handle Type: Straight
• Duty Rating: Heavy Duty

• Exhaust Location: Rear

• Grinder Type: Pencil Grinder
• Gripping Length (in): 2.4
• Housing Material: Steel

• Max Free Speed (rpm): 60000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 1/4

• Pencil Diameter (in): 0.68
• Power Source: Air Powered
• Product Length (in): 5.3

• Product Width (in): 6.5
• Product Height (in): 2.3
• Product Weight (lb): 2.6
• Rated Power (hp): 0.1

• Side to Center Distance (in): 0.34
• Side to Center Distance (mm): 9

• Sound Pressure/Power Db(A): 76
• Speed Setting: Variable Speed
• Spindle Offset (in): 0.34
• Standards/Certifications: 2006/42/Ec, En Iso 28927-12, En Iso 15744

• Vibration Level (m/s2): 3.2
• Warranty: 1-year
• Wheel Type: Burr
• Whip Hose (in): 7/32

• Lubrication: 10G
• Lubrication: 10P
