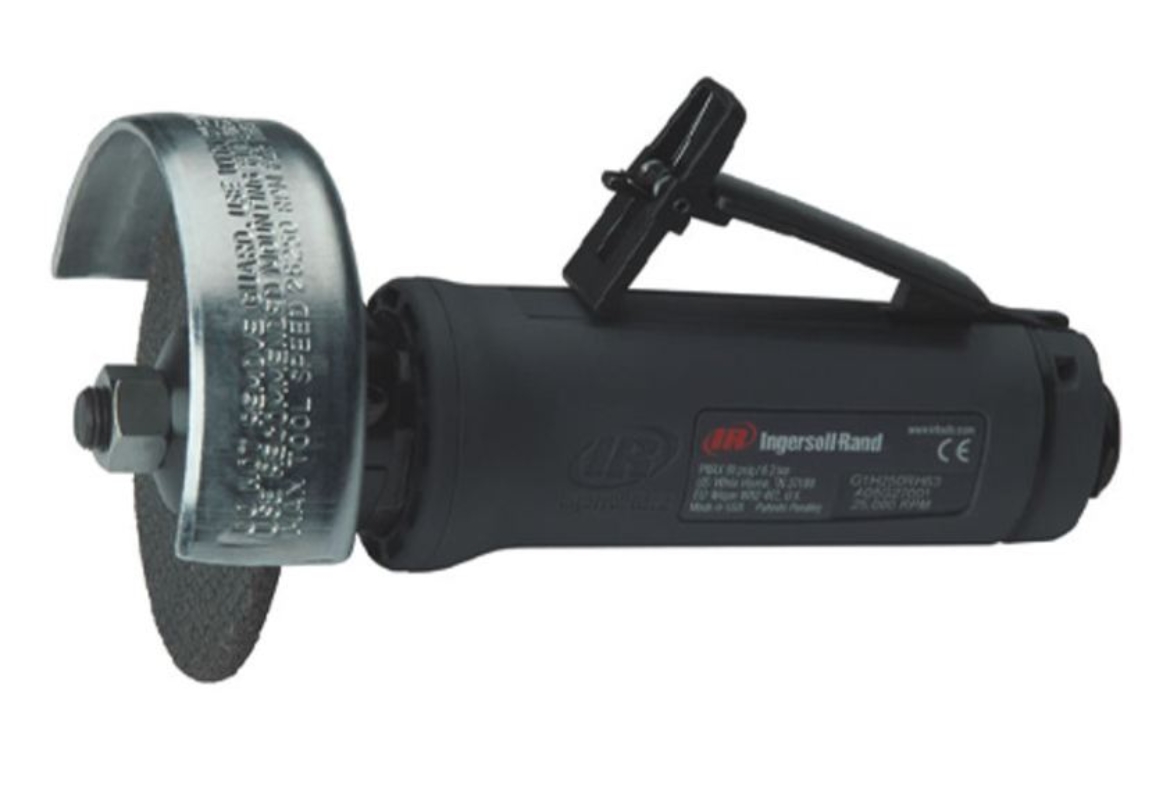

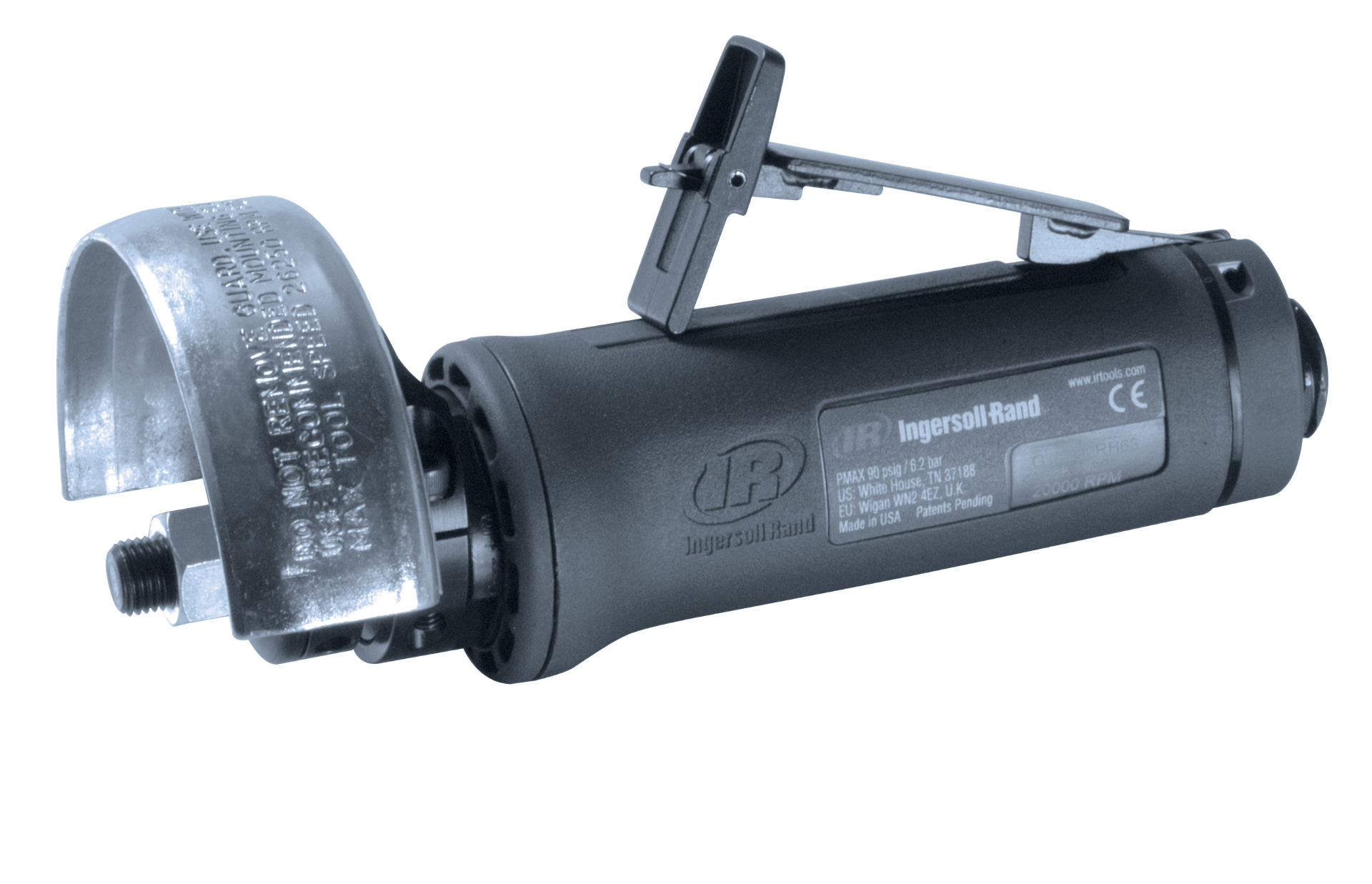

IR G1H200RH63
Air Grinder, 3" Type 1 Wheel, 20,000 RPM, 0.4 HP, 3/8"-24 Thread, Rear Exhaust
The G1 Series Type 1 Grinders come equipped with powerful 0.4HP vane motors and adjustable front, rear and dual exhaust options. A motor controller helps maintain tool speed to maximize removal rate and increase operator safety by preventing overspeeding.
Features And Benefits
- Power: At 0.4 HP and 20,000 RPM, the G1 Series packs a lot of power in a small package.
- Comfort: At home, in industrial, heavy machinery, construction environments and more, this lightweight tool features an ergonomic design and low vibrations that make even the toughest jobs a little bit easier.
- Reduced Vibration: Patent-pending soft-mount system reduces vibration for extended motor and switch life.
- Optimized for general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, construction, aerospace, and metal fabrication.
Product Application and Uses: Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
Actuation/Throttle Type/Switch Type: Safety Lever
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 3/8"-24 Thread
Color: Black
Configuration/Handle Type: Straight
Exhaust Location: Rear
Grinder Type: Horizontal Grinder
Guard Material: Steel
Handle Material: Composite
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 20000
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 83.0 / 94.0
Vibration Level (m/s2): 10.7
Vibration Uncertainy K* (m/s2): 3.3
Warranty: 1-year
Wheel Diameter (in): 3
Wheel Thickness (in): 1/4
Wheel Type: Type 1
