G1 Die Grinder, 1/4in Collet

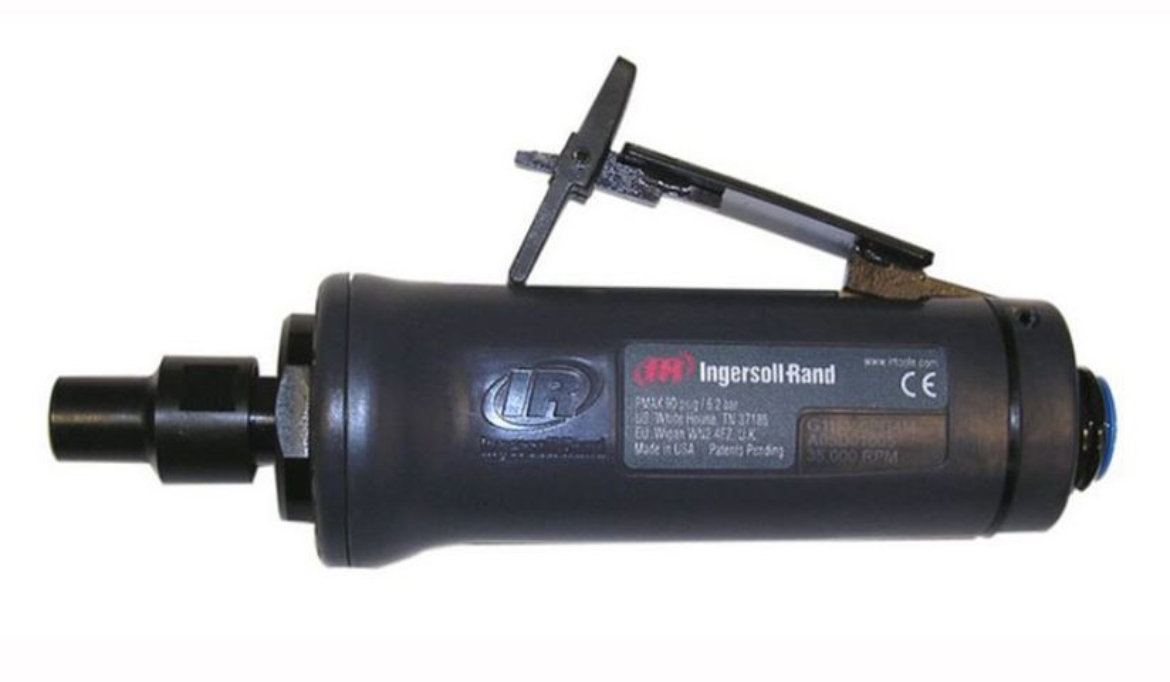

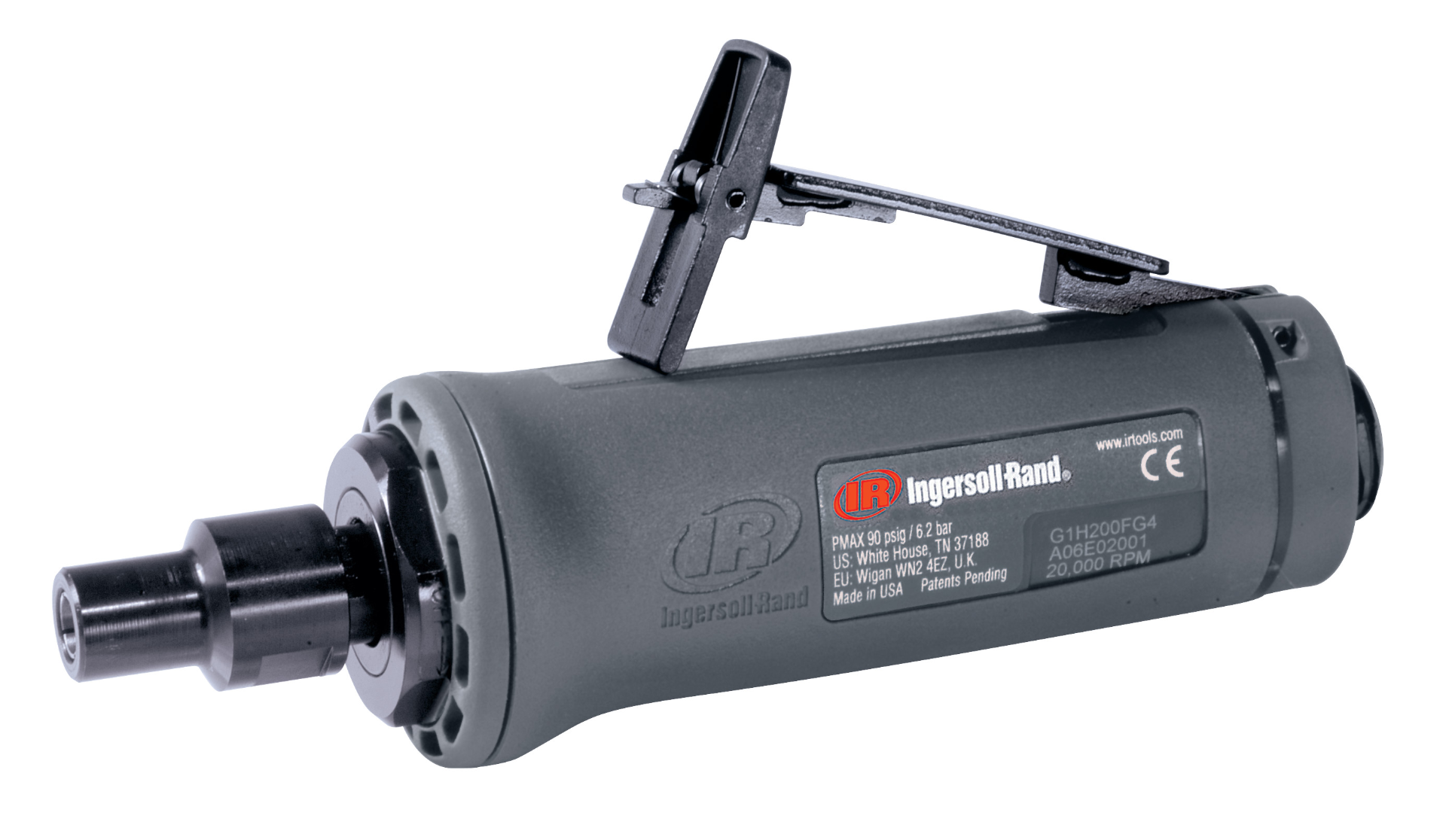

IR G1H200FG4

Air Die Grinder, 20,000 RPM, 0.4 HP, 1/4" Collet, Front Exhaust

Description: The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Features And Benefits:

• Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
• Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
• Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
• One-nut access for all motor servicing.
• Patent-pending soft-mount system reduces vibration for extended motor and switch life.
• Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.

Product Application and Uses:

Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks for applications such as shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.

• Includes: Tools, Large Wrench, Small Wrench
• Actuation/Throttle Type/Switch Location: Handle
• Actuation/Throttle Type/Switch Type: Safety Lever
• Air Consumption @ Load (cfm): 19
• Air Consumption @ Load (l/min): 538
• Air Inlet: 1/4" NPT
• Air Pressure (psi): 90
• Arbor/Collet: 1/4"

• Bearing Type: Ball Bearing

• Color: Black
• Configuration/Handle Type: Straight
• Duty Rating: Heavy Duty

• Exhaust Location: Front

• Grinder Type: Die Grinder
• Guard Material: Steel
• Handle Material: Composite
• Height Over Spindle (in): 1.73
• Housing Material: Composite
• Lock Mechanism: Lever lock in off position

• Max Free Speed (rpm): 20000
• Max Pressure (bar): 6.2
• Min Hose Size (in): 3/8

• Power Source: Air Powered
• Product Length (in): 6.13

• Product Weight (lb): 0.9
• Rated Power (hp): 0.4

• Sound Pressure/Power Db(A): 82.1 / 93.1
• Speed Setting: Variable Speed

• Vibration Level (m/s2): 2.9
• Warranty: 1-year

• Lubrication: 10P
• Parts: LG1-K284
