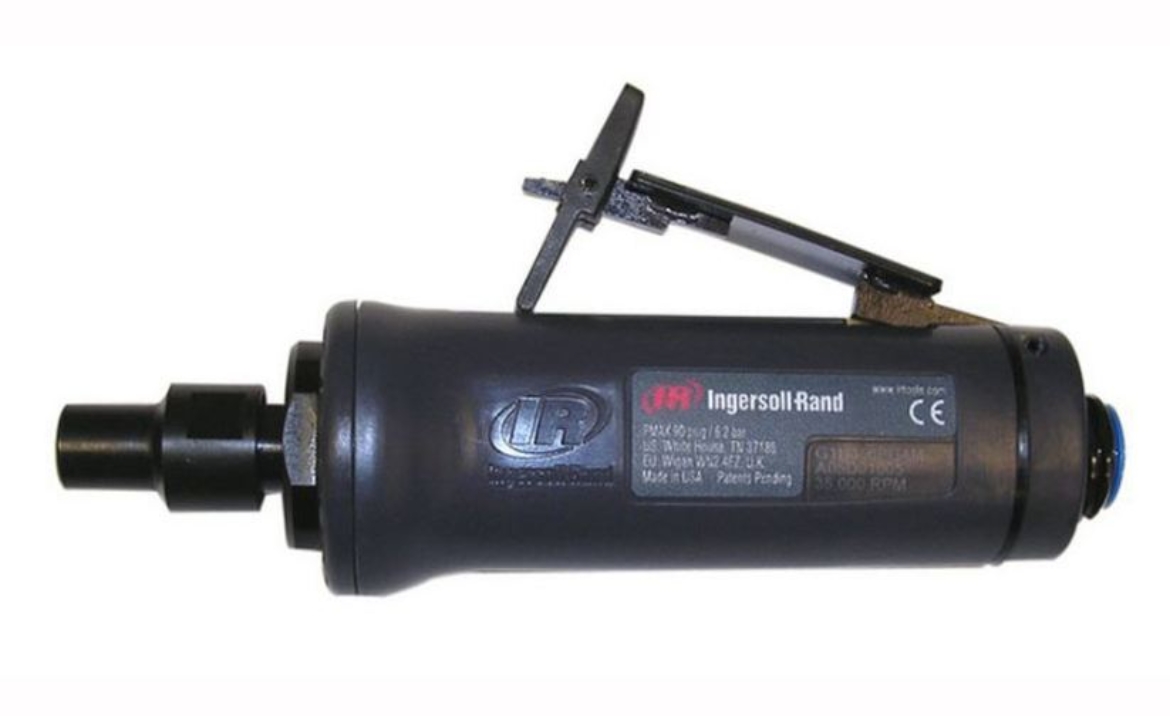

IR G1H350RG4
Air Die Grinder, 32,000 RPM, 0.4 HP, 1/4" Collet, Rear Exhaust
The G1 Series Die Grinders feature a vane motor and a lightweight, composite housing that can stand up to harsh temperature changes. Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.
Features And Benefits
- Durability: Features a vane motor and a lightweight, composite housing made to withstand repeated drops, harsh chemicals and tough work environments.
- Ideal for light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks.
- Comfort: Whether you're repairing a car or building a house, these die grinders have a comfortable, ergonomic D-shaped grip shape that ensures you'll get more done with less fatigue.
- One-nut access for all motor servicing.
- Patent-pending soft-mount system reduces vibration for extended motor and switch life.
- Compatible with piped-away exhaust kits, this powerful tool allows you to switch between front, rear and dual exhaust options.
Includes: Tools, Large Wrench, Small Wrench
Product Application and Uses: Light material removal, cleaning rough castings, deburring parts, cleaning up welds, and other finishing tasks for applications such as shipbuilding, heavy machinery, railroad, oil and gas, body shops and even aerospace environments.
Actuation/Throttle Type/Switch Location: Handle
Actuation/Throttle Type/Switch Type: Safety Lever
Air Consumption @ Load (cfm): 25
Air Consumption @ Load (l/min): 708
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Arbor/Collet: 1/4"
Bearing Type: Ball Bearing
Color: Black
Configuration/Handle Type: Straight
Duty Rating: Heavy Duty
Exhaust Location: Rear
Grinder Type: Die Grinder
Guard Material: Steel
Handle Material: Composite
Height Over Spindle (in): 1.73
Housing Material: Steel
Lock Mechanism: Lever lock in off position
Max Free Speed (rpm): 32000
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Power Source: Air Powered
Product Length (in): 6.13
Product Weight (lb): 0.9
Rated Power (hp): 0.4
Sound Pressure/Power Db(A): 84.2 / 95.2
Vibration Level (m/s2): <2.5
Warranty: 1-year
