GRACO INC. S10595
KIT, REPAIR, PUMP
GG 255204
KIT, REPAIR, PUMP
Graco 255204 210ES Pump Repair Kit
All packing&prime, s should be replaced at one time to keep wear even. For use with Graco models 190ES, 210ES or other Graco 200 series sprayers. Kit includes all components to replace the packing set for the pump
Application: The Graco Endurance Pump Repair Kit extends the life of your sprayer. Preventive maintenance lowers ownership costs and reduces downtime. Replace the wear parts in the pump when there is noticeable loss of pressure or if fluid is leaking out of the front of the sprayer.- All packing&prime, s should be replaced at one time to keep wear even
- For use with Graco models 190ES, 210ES or other Graco 200 series sprayers
- Keep a spare kit on hand to minimize sprayer downtime
- For Use With: Pro190ES Cart, Pro190ES Stand, Pro210ES Cart, Pro210ES Stand, Pro230ES Stand, Pro230ES Cart, Pro270ES Stand, Pro270ES Cart, Pro270GS
HANDLE, 2K DISP. VALVE, ELEC.
GG 255208
HANDLE, 2K DISP. VALVE, ELEC.
Graco 255208 MD2 Valve Electric Switch Handle
Convert any MD2 valve to a hand held valve with an internal normally open switch
Kit, Seal, Cylinder, Air, Valve
GG 255217
KIT, SEAL,CYLINDER,AIR,VALVE
KIT INCLUDES: PACKING, O-RING [QTY. 3], PACKING, O-RING [QTY. 2], PACKING, O-RING, BUNA-N [QTY. 2], BEARING, SLEEVE 1/4, 3/8, 1/4NYL [QTY. 2], LUBRICANT, GREASE [QTY. 1]
Kit, Seal, Lube, Valve
GG 255218
KIT, SEAL,LUBE,VALVE
KIT INCLUDES: PACKING, O-RING [QTY. 2], O-RING, [QTY. 2], SEAL, POSIPAK [QTY. 2], PACKING, O-RING, BUNA-N [QTY. 2], SHAFT, PRIMARY [QTY. 2], PACKING, U-CUP URT 1/4, 1/2, 1/8 UR [QTY. 2]
Kit, Seal, Nose, Glc, Valve
GG 255219
KIT, SEAL,NOSE,GLC,VALVE
KIT INCLUDES: O-RING, [QTY. 2], SEAL, POSIPAK [QTY. 2], NEEDLE, SNUFFBACK [QTY. 2], SEAT, NEEDLE [QTY. 2]
Kit, Seal, Nose, Ul2K
GG 255220
KIT, SEAL,NOSE,UL2K
KIT INCLUDES: O-RING, [QTY. 2], GASKET, SEAT [QTY. 2], SEAT, VALVE [QTY. 2], INSERT, SUFF-BACK, 2K2 [QTY. 2], NEEDLE, 2K2 SST HARDENED [QTY. 2]
Adapter, 1:1 Ratio Check
GG 255247
ADAPTER,1:1 RATIO CHECK
Graco 255247 1:1 Ratio Check MD2 Adapter
Use this adapter to independently dispense the A and B materials in order to perform a ratio check
- Model: MD2
LEVER, 2K DISPENSE VALVE
GG 255249
LEVER, 2K DISPENSE VALVE
Graco 255249 2K Dispense Valve Lever
- Model: PR70
- For Use With: MD2 Valve Handle
- Product Type: Actuated Lever
LDP5 VALVE, METERED, FLEX EXT
GG 255277
LDP5 VALVE, METERED, FLEX EXT
LDP5 Electronic Preset Meter - Flexible Extension - 1/2 in. (13 mm) Inlet - Trigger Guard and Swivel Cover Not Included - NPTGraco's LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).
Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, and In-plant.
Easy to read LCD screen keeps dispenses precise. Inlet 1/2 in. NPT with swivel. Rugged meter body is impact resistant for long life. Ergonomically-design, comfortable handle with two-finger trigger. Preset meter automatically shuts-off flow when preset quantity has been dispensed. 5 year warranty. See manufacturers website for details.
8 L Twin Polyethylene Tanks and Lids with Shut-Off Valves
GG 255281
8 L Twin Polyethylene Tanks and Lids with Shut-Off Valves

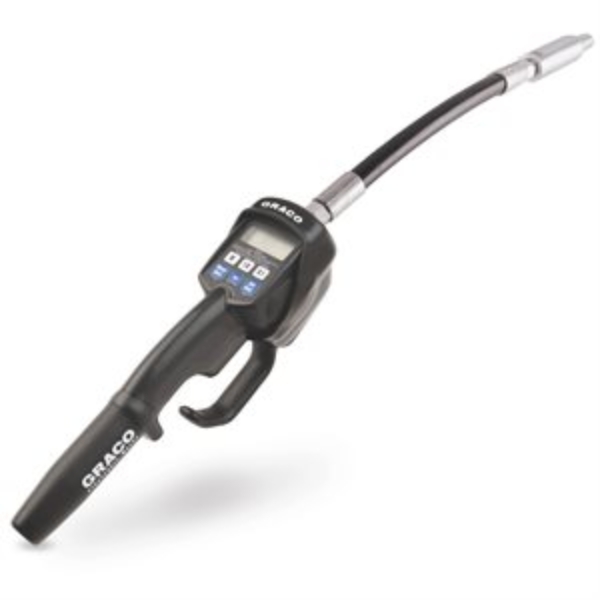

LDP5 VALVE, METERED, FLEX EXT
GG 258694
LDP5 VALVE, METERED, FLEX EXT
Graco 258694 LDP5 Electronic Preset Meter - Flexible Extension - 1/2 in. (13 mm) Inlet - Trigger Guard and Swivel Cover Included - NPT
Graco&prime, s LDP5 meters are perfect for lower-volume service application in small service shops, fast lube centers and automotive dealerships. These meters are capable of metering petroleum, synthetic based oil and anti-freeze up to 5 gpm (19 lpm).
Application: Typical applications include Automotive dealerships, Heavy-duty dealerships, Fast lube centers, Fleet service facilities, Service shops, and In-plant.- Easy to read LCD screen keeps dispenses precise.
- Inlet 1/2 in. NPT with swivel.
- Rugged meter body is impact resistant for long life.
- Preset meter automatically shuts-off flow when preset quantity has been dispensed.
- 5 year warranty. See manufacturers website for details.
- Model: LDP5
- Approvals: CE
- Compatible Material: Oil, Antifreeze
- Dispense Type: Preset
- Display Type: Electronic
- Extension Type: Flexible
- Fluid Inlet Thread Gender: Female
- Fluid Outlet Thread Gender: Female
- Includes: Nozzle, Extension, Trigger Guard, Swivel Cover
- Inlet Size (cm): 1.27
- Inlet Size (in): 1/2
- Inlet Size (mm): 12.7
- Inlet Thread Type: NPT
- Maximum Operating Temperature (°C): 49
- Maximum Operating Temperature (°F): 120
- Maximum Storage Temperature (°C): 49
- Maximum Storage Temperature (°F): 120
- Maximum Working Pressure (bar): 69
- Maximum Working Pressure (kPa): 6900
- Maximum Working Pressure (MPa): 6.9
- Maximum Working Pressure (psi): 1000
- Meter Accuracy (%): ±0.5
- Meter Technology: Oval Gear
- Metering Gun Weight (kg): 1.36
- Metering Gun Weight (lb): 3
- Minimum Operating Temperature (°C): 0
- Minimum Operating Temperature (°F): 32
- Nozzle Type: Automatic
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Type: NPT
- Overall Height (cm): 8.3
- Overall Height (in): 3.25
- Overall Height (mm): 83
- Overall Length (cm): 28
- Overall Length (in): 11
- Overall Length (mm): 280
- Overall Width (cm): 8.3
- Overall Width (in): 3.25
- Overall Width (mm): 83
- Recommended Environment: Indoor
Kit, fts, Rtd, Dual Hose, Sst
GG 258756
KIT, FTS,RTD,DUAL HOSE,SST
KIT INCLUDES: SENSOR, FLUID TEMP RTD [QTY. 2], ADAPTER, 5/16 JIC X 1/4 NPT [QTY. 1], ADAPTER, 3/8 JIC X 1/4 NPT [QTY. 1], ADAPTER, 1/2 JIC X 1/4 NPT [QTY. 1], ADAPTER, 5/8 JIC X 1/4 NPT [QTY. 1], FITTING, SWIVEL, NPT X JIC [QTY. 1], FITTING, SWIVEL, 1/4NPT X 6 JIC [QTY. 1], FITTING, SWIVEL, 1/4NPT X 8 JIC [QTY. 1], FITTING, SWIVEL, 1/4NPT X 10 JIC [QTY. 1]
Meter, Solvent, Low Flow, Assy
GG 258718
METER, SOLVENT, LOW FLOW, ASSY
Graco 258718 High Pressure Solvent Meter, 3000 psi max fluid working pressure, Series B
- Accuracy (%): +/- 2.5
Kit, Housing, Hyd Rod Seals
GG 258768
KIT,HOUSING,HYD ROD SEALS
KIT INCLUDES: HOUSING, ROD SEALS, HYD, ASSEMBLY [QTY. 1], KIT INCLUDES: ROD, PISTON, HYD, ASSEMBLY [QTY. 1],
Kit, FTS, RTD, Single Hose
GG 258758
KIT, FTS,RTD,SINGLE HOSE
KIT INCLUDES: SENSOR, FLUID TEMP RTD [QTY. 1], FITTING, COUPLER [QTY. 1], ADAPTER, 3/4-16 JIC X 1/4 NPT [QTY. 1], ADAPTER, 9/16-18 JIC X 1/4 NPT [QTY. 1], FITTING, SWIVEL, 1/4 NPT X #6 JIC [QTY. 1], FITTING, SWIVEL, 1/4 NPT X #5 JIC [QTY. 1], ADAPTER, 1/2-20 JIC X 1/4 NPT [QTY. 1], FITTING, SWIVEL, 1/4NPT X 3/4-16 [QTY. 1], FITTING, SWIVEL, 1/4NPT X 7/8-14 [QTY. 1]
Kit, Replacement Driver
GG 258771
KIT, REPLACEMENT DRIVER
KIT INCLUDES: DRIVER, HYD, HORZ, 3.0 in.STROKE [QTY. 1], KIT INCLUDES: PACKING, O-RING [QTY. 2], PACKING, O-RING, SEAT [QTY. 2]
- Compatible Material: Waterborne, Solventborne, High Solids, Xirallic, CARC, Metallics, Topcoats, Stains, Varnish, UV Coating
Kit, Ball and Seat, Repair
GG 258783
KIT,BALL AND SEAT,REPAIR
KIT INCLUDES: SEAT, CARBIDE [QTY. 2], BALL, SST [QTY. 2], KIT, INLET, O-RING, 4 PACK [QTY. 1]
Kit U Cup, Repair, 120
GG 258823
KIT,U-CUP REPAIR 120
KIT INCLUDES: KIT, CYLINDER, O-RING, 100-160 [QTY. 1], SEAL, PISTON/THROAT, 120 PUMP [QTY. 2], BEARING, PISTON/THROAT, 120 PUMP [QTY. 2], TOOL, BULLET, PISTON, 120 [QTY. 1], TOOL, BULLET, THROAT, 100-160 [QTY. 1], ADHESIVE, ANAEROBIC [QTY. 1], KIT, INLET, O-RING, 4 PACK [QTY. 1]
- Ball Check Size (in): 1
- Ball Material: Silicon Nitride
- Coating Type: Severe Duty
Kit, Displace Rod Repair 120
GG 258824
KIT,DISPLACE ROD REPAIR 120
KIT INCLUDES: ROD, DISPLACEMENT, 120 [QTY. 1], RETAINER, PISTON, 120 PUMP [QTY. 1], SEAL, PISTON/THROAT, 120 PUMP [QTY. 2], BEARING, PISTON/THROAT, 120 PUMP [QTY. 2], KIT, CYLINDER, O-RING, 100-160 [QTY. 1], TOOL, BULLET, THROAT, 100-160 [QTY. 1], PACKING, O-RING [QTY. 1], ADHESIVE, ANAEROBIC [QTY. 1], PRIMER, SEALER [QTY. 1]
- Ball Check Size (in): 1
- Ball Material: Silicon Nitride
- Coating Type: Severe Duty

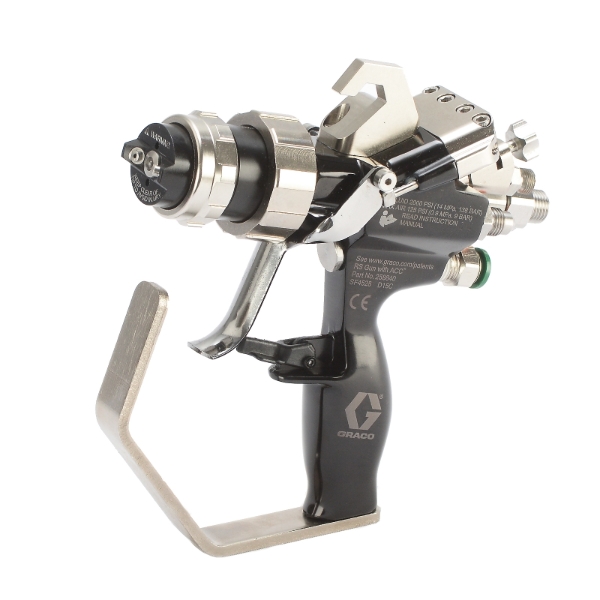

RS GUN, ASM, EXT MIX, GEL
GG 258840
RS GUN, ASM, EXT MIX, GEL
Graco 258840 RS External Mix Gel Coat Gun with Tip
Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It&prime, s lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.
- Makes production easier
- Improves product quality
- Improves operator comfort for increased job satisfaction
Lighter, ergonomic gun reduces fatigue
Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
No problems soaking the RS Gun in solvents overnight
- Model: RS
- Chop Gun Type: Without Cutter
- Compatible Material: Polyester Resin, Gel-Coat
- For Use With: FRP System
- Gun Type: Gel Coat
- Gun Weight (g): 940
- Gun Weight (kg): 0.94
- Gun Weight (lb): 2.08
- Gun Weight (oz): 33.16
- Includes: CST521 Tip
- Maximum Air Pressure (bar): 8.6
- Maximum Air Pressure (kg/cm²): 8.79
- Maximum Air Pressure (kPa): 860
- Maximum Air Pressure (psi): 125
- Maximum Fluid Pressure (bar): 138
- Maximum Fluid Pressure (kg/cm²): 141
- Maximum Fluid Pressure (kPa): 13800
- Maximum Fluid Pressure (psi): 2000
- Maximum Fluid Temperature (°C): 38
- Maximum Fluid Temperature (°F): 100
- Maximum Fluid Pressure (bar): 138
- Maximum Fluid Pressure (kg/cm²): 141
- Maximum Fluid Pressure (kPa): 13800
- Maximum Fluid Pressure (psi): 2000
- Maximum Fluid Temperature (°C): 38
- Maximum Fluid Temperature (°F): 100
- Minimum Air Flow Rate (SCFM): 2.0
- Minimum Air Inlet Pressure (bar): 0
- Minimum Air Inlet Pressure (kPa): 0
- Minimum Air Inlet Pressure (psi): 0
- Mix Type: External Mix
Lightweight cutter gives better chopping control
Easy one-hand cutter speed control
Superior spray pattern
- Improves operator comfort for increased job satisfaction
Simple, quick start up and shut down
Quick tool-less blade change
No need to adjust needle settings after maintenance
- Improves product quality

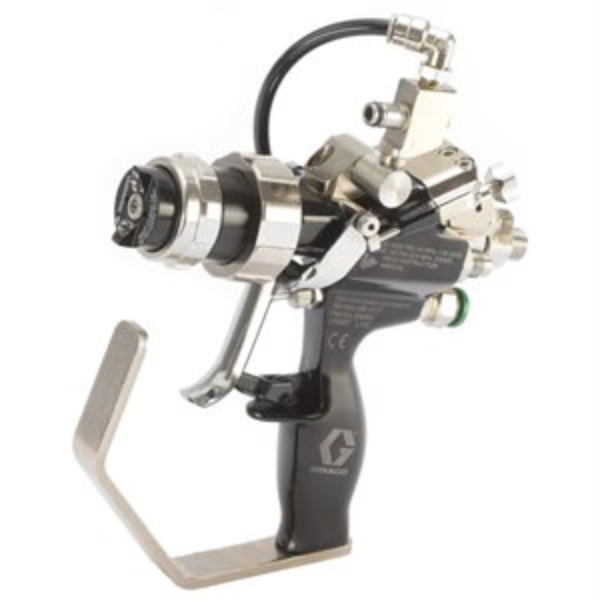

RS GUN, ASM, EXT MIX, CHOP
GG 258852
RS GUN, ASM, EXT MIX, CHOP
RS External Mix Chop Gun with TipInnovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.
Makes production easier
- Simple, quick start up and shut down
- Quick tool-less blade change
- No need to adjust needle settings after maintenance
Improves product quality
- Lightweight cutter gives better chopping control
- Easy one-hand cutter speed control
- Superior spray pattern
Improves operator comfort for increased job satisfaction
- Lighter, ergonomic gun reduces fatigue
- Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
- No problems soaking the RS Gun in solvents overnight
Saves material costs
- Air Assist Containment (AAC®) standard on all RS Guns
- Lower pressure reduces overspray

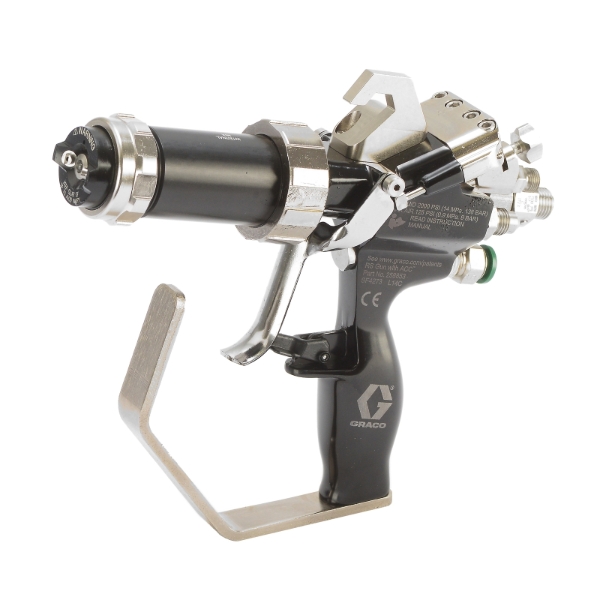

RS GUN, ASM, INT MIX, GEL
GG 258853
RS GUN, ASM, INT MIX, GEL
RS Internal Mix Gel Coat Gun with TipInnovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.
Makes production easier
- Simple, quick start up and shut down
- Quick tool-less blade change
- No need to adjust needle settings after maintenance
Improves product quality
- Lightweight cutter gives better chopping control
- Easy one-hand cutter speed control
- Superior spray pattern
Improves operator comfort for increased job satisfaction
- Lighter, ergonomic gun reduces fatigue
- Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
- No problems soaking the RS Gun in solvents overnight
Saves material costs
- Air Assist Containment (AAC®) standard on all RS Guns
- Lower pressure reduces overspray

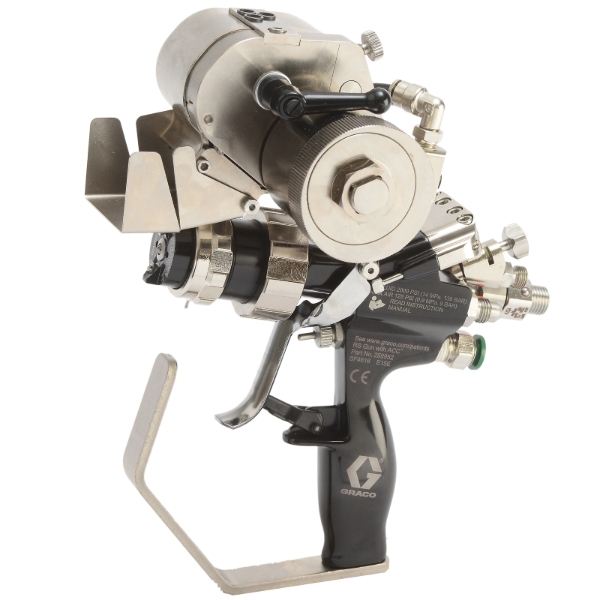

RS GUN, ASM, EXT MIX, CHOP
GG 258970
RS GUN, ASM, EXT MIX, CHOP
Graco 258970 RS External Mix Chop Gun with Cutter and Tip
Innovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It&prime, s lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.
- Makes production easier
- Improves product quality
- Improves operator comfort for increased job satisfaction
Lighter, ergonomic gun reduces fatigue
Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
No problems soaking the RS Gun in solvents overnight
- Model: RS
- Chop Gun Type: With Cutter
- Compatible Material: Polyester Resin, Gel-Coat
- For Use With: FRP System
- Gun Type: Chop Gun
- Gun Weight (g): 1057
- Gun Weight (kg): 1.06
- Gun Weight (lb): 2.33
- Gun Weight (oz): 37.28
- Includes: CST443 Tip, Cutter
- Maximum Air Pressure (bar): 8.6
- Maximum Air Pressure (kg/cm²): 8.79
- Maximum Air Pressure (kPa): 860
- Maximum Air Pressure (psi): 125
- Maximum Fluid Pressure (bar): 138
- Maximum Fluid Pressure (kg/cm²): 141
- Maximum Fluid Pressure (kPa): 13800
- Maximum Fluid Pressure (psi): 2000
- Maximum Fluid Temperature (°C): 38
- Maximum Fluid Temperature (°F): 100
- Maximum Fluid Pressure (bar): 138
- Maximum Fluid Pressure (kg/cm²): 141
- Maximum Fluid Pressure (kPa): 13800
- Maximum Fluid Pressure (psi): 2000
- Maximum Fluid Temperature (°C): 38
- Maximum Fluid Temperature (°F): 100
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (psi): 80
- Mix Type: External Mix
Lightweight cutter gives better chopping control
Easy one-hand cutter speed control
Superior spray pattern
- Improves operator comfort for increased job satisfaction
Simple, quick start up and shut down
Quick tool-less blade change
No need to adjust needle settings after maintenance
- Improves product quality

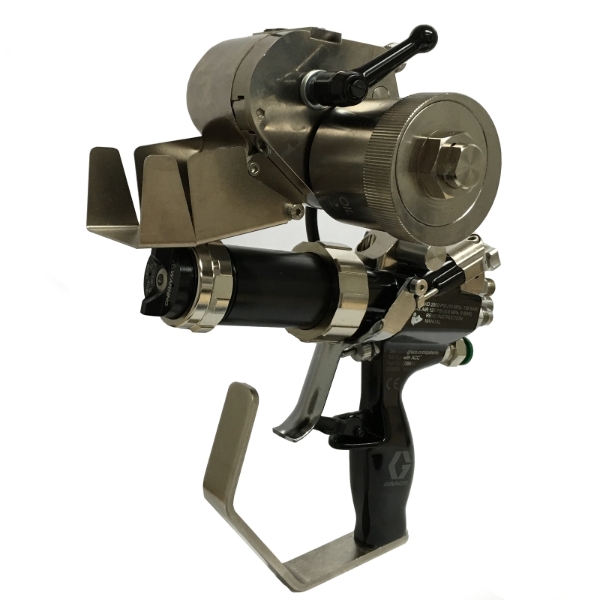

RS GUN, ASM, INT MIX, CHOP
GG 258971
RS GUN, ASM, INT MIX, CHOP
RS Internal Mix Chop Gun with Cutter and TipInnovations engineered into the Graco RS Gel Coat Gun are sure to make a difference in your production uptime. It's lightweight, ergonomic, designed for tool-less operation and fast, easy maintenance as well. It’s available in internal and external mixing gelcoat spray guns. Discover how the Graco RS Resin Spray Gun’s revolutionary design and industry-first features can help boost your company’s bottom line.
Fiberglass chopper System for Open Molding Handle fiberglass and catalyzed resin with ease with Graco spray-up laminating components and systems. The FRP system can be used to apply chopped fiberglass on your open mold applications. It offers precise on-ratio dispensing with easy transition from wet-out to chop.Makes production easier
- Simple, quick start up and shut down
- Quick tool-less blade change
- No need to adjust needle settings after maintenance
Improves product quality
- Lightweight cutter gives better chopping control
- Easy one-hand cutter speed control
- Superior spray pattern
Improves operator comfort for increased job satisfaction
- Lighter, ergonomic gun reduces fatigue
- Lets you quickly adjust anvil tension to correct cut variations due to anvil and blade wear
- No problems soaking the RS Gun in solvents overnight
Saves material costs
- Air Assist Containment (AAC®) standard on all RS Guns
- Lower pressure reduces overspray
Kit, Tank, Color, 3L
GG 25A104
KIT,TANK,COLOR,3L
Graco 25A104 3 L Colorant Tank Kit
KIT INCLUDES: TANK, 3-QUART, FEED, CS, NKL-PLT [QTY. 1], FITTING, ELBOW, STREET [QTY. 1], ADAPTER, JIC06X1/4, MM, SS, 6K, 316 [QTY. 1], FITTING, T, 1/4TUBE, PRESTOLOCK, BRS [QTY. 1], TUBE, 250OD, POLY [QTY. 10 ], FITTING, REDUCER, TUBE, 3/8 X 1/4TUBE [QTY. 1], TAPE, SEALANT, CERAMIC, .50 in.X50 ft. [QTY. 1], SCREW, MACH, HEX FLANGE, HD [QTY. 2], BRACKET, TANK, 3L [QTY. 1], SCREW, CAP, FLNGHD [QTY. 1], NUT, LOCK, HEX [QTY. 1]
- Model: LSR
Kit, Injector, Color
GG 25A108
KIT,INJECTOR,COLOR
Graco 25A108 Color Injector Kit
KIT INCLUDES: INJECTOR, ASSY, COLOR [QTY. 1], HOUSING, BODY, QD, 1/4NPTM, CRPLT, BRS [QTY. 1], FITTING, ELBOW, 90, JIC06X1/4NPT, MF [QTY. 1], TAPE, SEALANT, CERAMIC, .50 in.X50 ft. [QTY. 1], CABLE, 5PIN, MALE/FEMALE, 4.0 M [QTY. 1], CORD SET, EURO/MALE, DIN/FEMALE, REV [QTY. 1]
- Model: LSR
Straight Thread Multi-Pass Mixing Stack Manifold
GG 25A918
Straight Thread Multi-Pass Mixing Stack Manifold
Valve, Check, 1/8 NPT, Reverse, 5000
GG 25A689
Valve, Check, 1/8 NPT, Reverse, 5000
Regulator, Assy
GG 25A899
REGULATOR,ASSY,STACK,W/GUAGE
Graco 25A899 Material Regulator with Gauge
- Model: LSR
Complete Fluid Repair Kit, 1050M Ind Ss, Pt, Pt, Pt
GG 25A856
Kit,1050M Ind Ss,Pt,Pt,Pt
MODULE, STACK, LG MXR, VLV
GG 25A997
MODULE, STACK, LG MXR, VLV
Graco 25A997 Straight Thread Single Pass Mixing Stack with Material Valves
Straight Thread Single-Pass Mixing Stack designed for Graco F-5 two-component LSR equipment.
Application: Reduce downtime and increase production with mixing stacks.- Reduce pressure drops
- Easier to clean + assemble- No tapered national pipe thread (NPT) threads and regulator and mixer enhancements for greater clearance. Reduces cleaning time by 50 percent so you can spend more time producing parts.
High-flow material passages on the regulator are 225% larger which reduces pressure drops through the barrel stack.
- Model: LSR
- Air Line Tube Length (ft): 3
- Air Line Tube Length (m): 0.915
- Air Line Tube Outside Diameter (cm): 0.8
- Air Line Tube Outside Diameter (in): 5/16
- Air Line Tube Outside Diameter (mm): 8
- For Use With: Fluid Automation F4 Series
- Includes: Manifold, Mixer and Regulator, Manifold On/Off Valves, Solenoid Block With Two Solenoids
- Number of Pieces: 12
Box, Control, Touch Screen
GG 25A693
BOX,CONTROL, TOUCH SCREEN
Graco 25A693 Touchscreen Box for Intelligent Paint Kitchen
Box, Supervisor
GG 25A830
BOX, SUPERVISOR
Graco 25A830 Supervisor Box, to communicate between the Pump Control Module, Tank Control Module, Variable Frequency Drives, and Touchscreen Box
REACTOR HEATED HOSE, 3500, W/SCUFF, 1/4X3/8
GG 25A481
REACTOR HEATED HOSE, 3500, W/SCUFF, 1/4X3/8
50 ft (15 m) Custom Application 2 Component Hose with 1/4 in (6.3 mm) and 3/8 in (9.5 mm) Inside DiameterGraco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
Silicone Base Proportioner With Boom-Less One Lower Wiper
GG 25A476
EXACTABLEND AGP SYSTEM,100CC/100CC,BOOM
Graco 25A476 Silicone ExactaBlend AGP Base Proportioner with Boom-Less One Lower Wiper
The Graco ExactaBlend AGP (Advanced Glazing Proportioner) provides on-ratio dispensing of two-component sealants and adhesives for curtainwall, insulating glass and other applications. The variable ratio ExactaBlend AGP offers advanced technologies at an affordable price.
Application: Precise application of silicone materials in insulating glass or structural glazing applications is critical for delivering superior adhesion, durability and leak-free performance.Advanced pumping technology creates a better, more consistent bead – which results in reduced rework and less wasted material.
- Superior mixing and ratio assurance for the glass industry
- Optimal mixing and on-ratio proportioning capabilities for quality assurance
- Quick and easy base purge reduces material waste Optional data download provides reports on ratio, flow rate and material usage
- Angle adapter kit makes work easier and more comfortable
- Easy to operate
- Series: AGP
- Amperage (A): 4
- Compatible Material: Solventborne, High Solids, Xirallic, Metallics, Varnish, CARC
MODULE, STACK, LG MXR, VLV, CLR
GG 25A998
MODULE, STACK, LG MXR, VLV, CLR
Straight Thread Single Pass Mixing Stack with A/B Material Valves and Color InjectorStraight Thread Single-Pass Mixing Stack designed for Graco F-5 two-component LSR equipment.
Reduce downtime and increase production with mixing stacks.
Reduce pressure drops
- High-flow material passages on the regulator are 225% larger which reduces pressure drops through the barrel stack.
APPLICATOR, GM100, SINGLE, 24VDC, PT100
GG 25B021
APPLICATOR, GM100, SINGLE, 24VDC, PT100
GM100 Single Slim 24 VDC Applicator with Pt 100 RTDWith the InvisiPac Hot Melt Adhesive Applicator, you’ll experience a new era in hassle-free operation with improved uptime. With its innovative free-flow manifold design and integrated applicator filtering – when used with the InvisiPac System – you can eliminate nozzle plugs. You’ll finally have a hot melt system that runs reliably, unnoticed and invisible.
GM100 plug-free hot melt adhesive dispensing nozzle for case and carton sealingAdhesive is processed in a better way
- The applicator's free-flow manifold design is engineered to eliminate dead zones where char will build up
- Module includes an integrated filter assembly near the ball and seat junction that eliminates nozzle plugging
- Adhesive spends less time at high temperature, resulting in less char
- Changes in the heated hose construction significantly reduce the formation of char in the hose itself
- Less char allows you to use lower cost adhesives and save money
Valve Check Kit
GG 25B123
KIT,CHECK VALVE,EFR
KIT INCLUDES: HOUSING, CHECK VALVE [QTY. 2], RETAINER, CHECK VALVE [QTY. 2], RETAINER, HOUSING, BALL [QTY. 2], SPRING, CONICAL, 1X.85X.281, SST [QTY. 2], BALL, .500, SILICON-NITRIDE, BLK [QTY. 2], SEAT, LAPPED [QTY. 2], O-RING, [QTY. 2], RETAINER, SPRING, PUMP [QTY. 2], PACKING, O-RING [QTY. 3], LUBRICANT, ANTI-SEIZE [QTY. 1], CAP, INLET VALVE [QTY. 1]
KIT, INLET TRANSDUCER, EFR
GG 25B128
KIT,INLET TRANSDUCER,EFR
KIT INCLUDES: BRACKET, SHELF, CONTROLS [QTY. 1], MODULE, GCA, CUBE, FCM [QTY. 1], MODULE, GCA, CUBE, BASE [QTY. 1], CABLE, CAN, FEMALE/FEMALE 1.0M [QTY. 1], SCREW, CAP, SOCKET HD [QTY. 4 ], WASHER, RETAINING [QTY. 2], SENSOR, PRESSURE, FLUID OUTLET [QTY. 2], ADAPTER, FITTING, PRESSURE SENSOR [QTY. 2], SCREW, CAP, SOCKET HEAD [QTY. 2], STRAP, TIE [QTY. 12 ], PACKING, O-RING 012 FX75 [QTY. 2]
