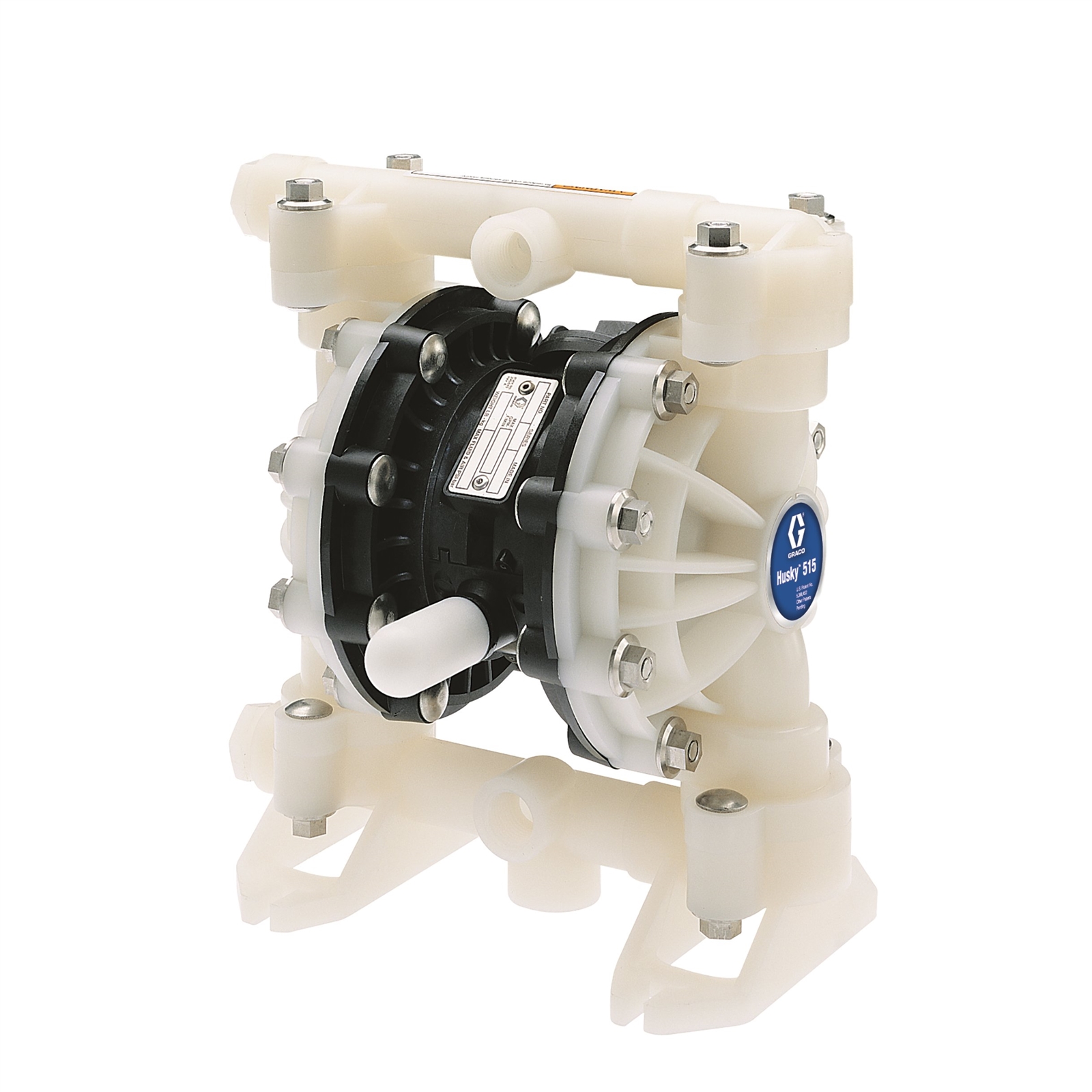

Husky 515 1/2 in. (13 mm) BSP AC Pump, PP Center Section, AC Seats, PTFE Balls & PO Diaphragm

GG 24N098

HUSKY PUMP, 515AC-PP01AAC4ACPTPOPT

Graco 24N098 Husky 515 1/2 in. (13 mm) BSP AC Pump, PP Center Section, AC Seats, PTFE Balls & PO Diaphragm

Our Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money. The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover. The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

• Rugged construction
  • Resists corrosion for reliable performance and long life
• Heavy-duty design
  • Offers long life, increased productivity and lower overall cost of ownership
• Benefits of the Husky 515 double diaphragm pump
  • Center and end porting options.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
  • Easy-to-service air valve and ball checks
  • Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
  • Split manifold option to pump multiple fluids without mixing
• Delivery up to 15 gpm (56.7 lpm)
• Easy-to-service air valve and ball checks
• Reliable air valve for years of dependable performance
• Lube-free for cleaner operation
• DataTrak available to prevent pump runaway and track material usage

• Model: Husky
• Series: 515

• Air Exhaust Port Size (in): 3/8
• Air Exhaust Port Thread Gender: Female
• Air Exhaust Port Thread Type: NPT
• Air Inlet Size (in): 1/4
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Ball Material: PTFE

• Center Section Material: Polypropylene

• Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink

• Compressor Required: Yes
• Connection Type: Threaded

• Diaphragm Compatible Material: PTFE
• Diaphragm Material: PTFE Overmold

• Fluid Inlet Size (cm): 1.27
• Fluid Inlet Size (in): 1/2
• Fluid Inlet Size (mm): 12.7
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: BSPT

• Fluid Outlet Size (cm): 1.27
• Fluid Outlet Size (in): 1/2
• Fluid Outlet Size (mm): 12.7
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: BSPT
• Fluid Section Material: Acetal

• Manifold Configuration: Center Port
• Manifold O-Ring Material: PTFE
• Material: Acetal

• Maximum Air Consumption (SCFM): 28
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Cycle Rate (CPM): 400

• Maximum Flow Rate (GPM): 15
• Maximum Flow Rate (L/min): 57

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
