GRACO INC. S10595

GG HFRB-21ASAAANN

HFR System - Fixed Ratio, SS, FR Power 230-1

GG K30PH1

King PC 30:1 Sprayer, Heavy Duty Cart, Complete

GG LCB260

Pr70 Piston, S, 260, Nyl

GG SA914-3AK

Kit, Seal, Manifold, Assy.

GG AEM525

AEM Fine Finish Spray Tips, 0.025in (0.635 mm) Orifice Size, 10-12in (250-300 mm) Fan Width

GG C24036

Packing, O-Ring

GG C52375

Seal, Shaft

FX FX42RD

Kit, Mix Chamber, Fusion FX, 42

GG FX47RD

Kit, Mix Chamber, Fusion FX, 47

GG FX37RD

Kit, Mix Chamber, Fusion FX, 37

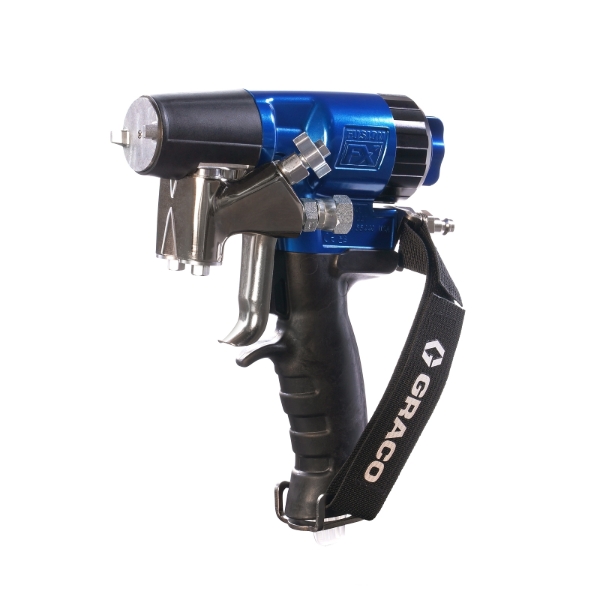

GG FX9001

GUN, FOAM, FUSION FX

Fusion FX Gun with Round Mix Chamber Sizes 0.037, 0.042, & 0.047 Introducing the Fusion FX, the industry's smallest, lightest, best balanced gun ever built. Featuring all new spray technology that will change the way you spray. Graco’s new Fusion FX gun is designed from the ground up. Every feature thought out to make it the easiest to maintain and most comfortable gun on the market. Built for spray foam and polyurea applications. Smallest, Lightest, & Most Balanced Gun On The Market

• 30% lighter compared to Fusion PC
• 9X better balanced compared to Fusion PC
• Narrow gun design allows for easy spraying to small areas

Fast and Simple Rebuilds with FX Cartridges

• Fusion FX Cartridges utilize ProConnect technology for a perfect rebuild in seconds
• DuoFlo Valving technology eliminates the need for side seals and provided precision control and mixing
• No side seals means no wear on the mix chamber which provides longer mix chamber life

RapidSwap Mix Chamber for Quick Access

• Mix chamber can be accessed in seconds by just removing the air cap
• Easily swap your mix chamber size to best match your spray application
• Keep a perfect spray pattern by being able to maintain your impingement ports
• Maximize your productivity with the additional output you get through the FX mix chambers due to less pressure drop through the gun

QuickFlex Spray Technology for Easy Conversion

• Users can quickly change between spraying as a ClearShot or Air Purge gun by simply swapping the air piston
• Handle is designed for both Clear Shot or Air Purge use
• Utilizes existing CS Fluid Tubes

Improved Trigger Responsiveness

• Over 30% shorter trigger pull compared to Fusion AP and Fusion PC guns for improved responsiveness and less fatigue

Tool-Less Manual Valves

• Wing nut design allows valves to be open and closed by hand or with a standard nut driver

Hand Straps For an Easier Hold

• Designed to reduce sprayer fatigue from required grip strength when holding the gun
• Easily adjusted or removed by the sprayer

Lightweight Hose Manifold and Easy Access Gun Filters

• Easy access to gun filters without removing hose manifold from the gun
• Lightweight aluminum hose manifold
• Ball checks included to prevent chemical leakage from manifold

Ergonomic Handle for Sprayer's Comfort

• Temperature stable, great strength and heat resistant
• Larger, ergomomic design for improved comfort and reduced fatigue
• Easily removable from the gun body with one screw for simple repair and replacement

GG 00080V

O-Ring, 131, Vit

GG 00095B

O-Ring, Packing, Oring, Buna

GG 00120B

O-Ring, 3/32InC/S, 8.000InId, Buna

GG 01/0012-1/98

Body, Valve, Non Drip, 5/8

GG 01/0017/98

Pin, Quick Rel, 1/4Diax1.25, Ss

GG 01/0038/98

Tube, Pump, 10.000, 50Ser, 1/4Npt, Ss

GG 15G923

Coupler, Piston Rod

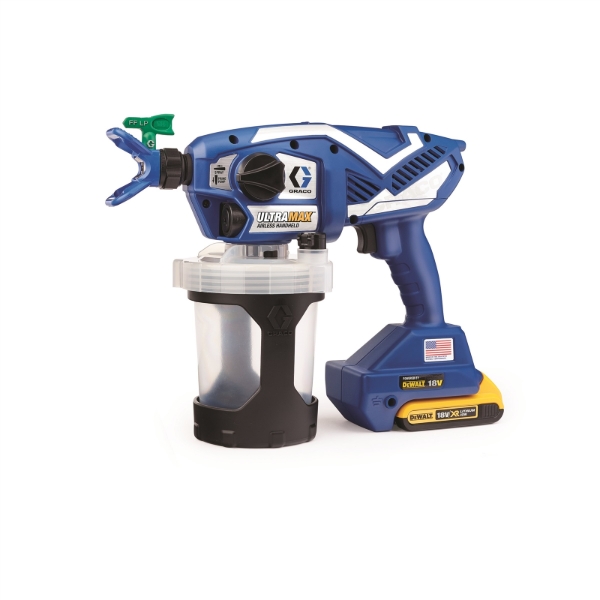

GG 17P258

ULTRAMAX DCHH SPRAYER, 240V, 2B

UltraMAX Cordless Handheld Airless Sprayer, 230V Tested by Pros, the UltraMAX Cordless is the ONLY Handheld sprayer capable of spraying water-based, solvent and flammable architectural coatings. Static shock protection eliminates the potential for sparks while SmartControl technology delivers a flawless finish with no thinning required. Ultra airless handheld sprayers are designed specifically for small interior, exterior and specialty projects with extreme portability and the ability to spray in seconds. Easily spray those small jobs without having to start-up your larger airless sprayer. Triax Triple Piston Pump

• Durable carbide piston built to deliver extended reliability and full tip support
• The most durable, lightest weight pump
• Fast, on-the-job pump replacement with ProConnect

DEWALT® Lithium Ion Battery System

• Spray up to 1 gallon with each charge
• Compatible with any DEWALT 18V Lithium Ion battery
• Comes standard with 2 batteries
• Lightweight design and 30% faster charge time (35 minutes)

ProConnect

• On-The-Job Pump Replacement System
• One Tool Replacement - Replace the pump in 3 steps using only a screwdriver

SmartControl

• Spray at any hand speed with professional finish every time
• Precision pressure control delivers a consistent spray fan without pressure fluctuations

ProControl II

• Adjust motor speed to spray at any speed the job demands
• More control to deliver a professional finish – every job, every time

Hot Solvent Compatible

• Sprays hot solvents such as solvent-based lacquer
• Sprays water, solvent and flammable based materials

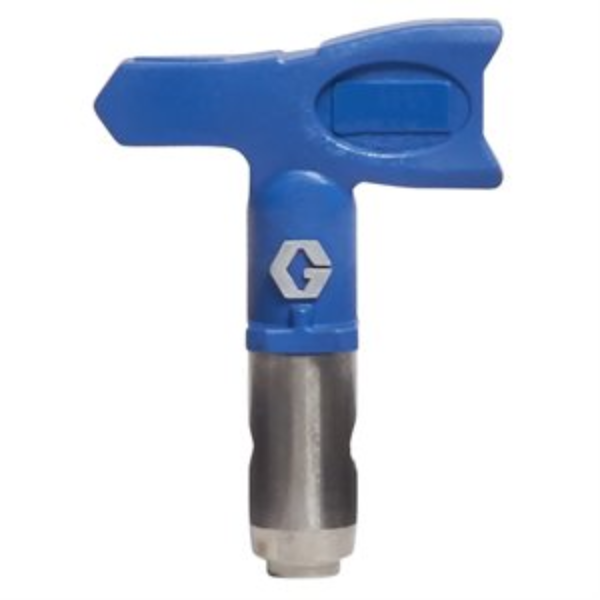

RAC X FF LP Tips

• Provides superior finish at low pressure
• Reverse-A-Clean (RAC) SwitchTips make cleaning tip clogs simple
• Large range of sizes available to meet the job requirements
• Works on all Graco Airless Sprayers – handhelds to large airless

1 liter FlexLiner Paint Bags

• Fast cleanup with disposable liners and no suction tube to clean
• Easy Setup

GG 17P557

KIT, BATTERY, DEWALT, DCB183-XJ

DEWALT 18V XR 2.0 Ah Lithium Ion Battery Pack DEWALT XR 2.0Ah Li-Ion Battery Technology offers extended runtime and optimized power to complete applications quickly. Lightweight design provides the user with upgraded runtime No memory effect LED State of Charge Indicator helps manage pack charging Compatible with all DEWALT XR Li-Ion 18V Tools

GG 181142

Shaft, Piston

GG 18B940

O-Ring

GG 18F418

Fitting, Grease, 10-32

GG 198031

Coupler, Pump

GG 19A534

Token, GCA, MAP, EFR

GG 2000980

Kit, Spool, Fusion FX

GG 2003984

Tube, Ratio Check, A=2Mm

GG 2000788

Kit, Air Cap, Fusion FX

GG 2003987

Tube, Ratio Check, A=3.5Mm

GG 2003985

Tube, Ratio Check, A=2.5Mm

GG 2005366

Kit, MC Seal, Fusion FX

GG 2003986

Tube, Ratio Check, A=3Mm

GG 2009316

PUMP, SST FAST-BALL 100, EXTENSION

Fast-Ball 100 SST 55 Gallon Drum, Universal Pump, Stainless Steel Tube Designed for enhanced quality, durability and reliability, the Fast-Ball Stainless Steel 100 air-operated piston pump is easy to install, easy to operate, and simple design allows for efficient serviceability when necessary to minimize downtime and keep your operations running. Ideal for low-volume transfer of general light viscosity fluids with a continuous duty flow rate of up to 5gpm (19 lpm). In-line design with fewer parts for less pump wear Double-acting pump provides reliable fluid flow Differential air motor ensures smooth pumping Pump comes with a 34.5" downtube designed to fit a 55 gallon drum

GG 2007313

PUMP, 1:1 RATION, UNIVERSAL, STAINLESS STEEL

Fast-Ball 100 SST Universal Pump Designed for enhanced quality, durability and reliability, the Fast-Ball Stainless Steel 100 air-operated piston pump is easy to install, easy to operate, and simple design allows for efficient serviceability when necessary to minimize downtime and keep your operations running. Ideal for low-volume transfer of general light viscosity fluids with a continuous duty flow rate of up to 5gpm (19 lpm). In-line design with fewer parts for less pump wear Double-acting pump provides reliable fluid flow Differential air motor ensures smooth pumping Pump can be upfitted with downtube to fite a drum or bulk tank

GG 2010711

STELLAIR ACE GUN, .055 (1.4) WITH HVLP/LVMP CAP, GRACO CUP

Stellair ACE Air Spray Gravity Feed Gun, LVMP, 0.055 in (1.4 mm) Nozzle, Plastic Gravity Cup The Stellair ACE Gravity Gun couples the same lightweight, ergonomically designed body of the Stellair ACE line of guns with gravity-fed technology. This makes the ACE Gravity Gun ideal for small-batch coating that requires minimal material use. It’s designed to deliver high quality finish for low volume color production, touch up applications, and material spray testing. The Stellair ACE Gravity Gun benefits end users by reducing maintenance-related downtime, limiting user fatigue with enhanced ergonomics, and fulfills the need for small-batch customization. No tools are needed to maintain gun, with manually removable trigger that doubles as a service tool. Carbon-reinforced polymer construction reduces gun weight by 50%. One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime. The Stellair ACE line is the industry’s only gun to earn the Ergonomics Performance Certification from United States Ergonomics. Available with 2 air cap technologies, HVLP/LVMP and Conventional. Cup options include no cup, Plastic Gravity cup, and 3M™ PPS™ cup with adapter. Air cap stays clean while delivering atomization that results in industry leading finish quality.

GG 2010715

STELLAIR ACE GUN, .055 (1.4) WITH HVLP/LVMP CAP, PPS CUP/ADAPTER

Stellair ACE Air Spray Gravity Feed Gun, LVMP, 0.055 in (1.4 mm) Nozzle, 3M™ PPS™ Cup The Stellair ACE Gravity Gun couples the same lightweight, ergonomically designed body of the Stellair ACE line of guns with gravity-fed technology. This makes the ACE Gravity Gun ideal for small-batch coating that requires minimal material use. It’s designed to deliver high quality finish for low volume color production, touch up applications, and material spray testing. The Stellair ACE Gravity Gun benefits end users by reducing maintenance-related downtime, limiting user fatigue with enhanced ergonomics, and fulfills the need for small-batch customization. No tools are needed to maintain gun, with manually removable trigger that doubles as a service tool. Carbon-reinforced polymer construction reduces gun weight by 50%. One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime. The Stellair ACE line is the industry’s only gun to earn the Ergonomics Performance Certification from United States Ergonomics. Available with 2 air cap technologies, HVLP/LVMP and Conventional. Cup options include no cup, Plastic Gravity cup, and 3M™ PPS™ cup with adapter. Air cap stays clean while delivering atomization that results in industry leading finish quality.

GG 2010714

STELLAIR ACE GUN, .070 (1.8) WITH CONVENTIONAL CAP, GRACO CUP

Stellair ACE Air Spray Gravity Feed Gun, Conventional, 0.070 in (1.8 mm) Nozzle, Plastic Gravity Cup The Stellair ACE Gravity Gun couples the same lightweight, ergonomically designed body of the Stellair ACE line of guns with gravity-fed technology. This makes the ACE Gravity Gun ideal for small-batch coating that requires minimal material use. It’s designed to deliver high quality finish for low volume color production, touch up applications, and material spray testing. The Stellair ACE Gravity Gun benefits end users by reducing maintenance-related downtime, limiting user fatigue with enhanced ergonomics, and fulfills the need for small-batch customization. No tools are needed to maintain gun, with manually removable trigger that doubles as a service tool. Carbon-reinforced polymer construction reduces gun weight by 50%. One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime. The Stellair ACE line is the industry’s only gun to earn the Ergonomics Performance Certification from United States Ergonomics. Available with 2 air cap technologies, HVLP/LVMP and Conventional. Cup options include no cup, Plastic Gravity cup, and 3M™ PPS™ cup with adapter. Air cap stays clean while delivering atomization that results in industry leading finish quality.

GG 2011619

IQ Dispense Valve, Tip-Seal, Heated. 0.067 Inch Tip, 7.87 Inch Nozzle, Direct Mount Solenoid

GG 2010717

STELLAIR ACE GUN, .055 (1.4) WITH CONVENTIONAL CAP, PPS CUP/ADAPTER

Stellair ACE Air Spray Gravity Feed Gun, Conventional, 0.055 in (1.4 mm) Nozzle, 3M™ PPS™ Cup The Stellair ACE Gravity Gun couples the same lightweight, ergonomically designed body of the Stellair ACE line of guns with gravity-fed technology. This makes the ACE Gravity Gun ideal for small-batch coating that requires minimal material use. It’s designed to deliver high quality finish for low volume color production, touch up applications, and material spray testing. The Stellair ACE Gravity Gun benefits end users by reducing maintenance-related downtime, limiting user fatigue with enhanced ergonomics, and fulfills the need for small-batch customization. No tools are needed to maintain gun, with manually removable trigger that doubles as a service tool. Carbon-reinforced polymer construction reduces gun weight by 50%. One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime. The Stellair ACE line is the industry’s only gun to earn the Ergonomics Performance Certification from United States Ergonomics. Available with 2 air cap technologies, HVLP/LVMP and Conventional. Cup options include no cup, Plastic Gravity cup, and 3M™ PPS™ cup with adapter. Air cap stays clean while delivering atomization that results in industry leading finish quality.

GG 2011770

IQ BALL SEAT VALVE, B, NPT, 000, RM, AMB, 5K

iQ Dispense Valve, Ball Seal, High Pressure, Ambient, NPT Tip, 0in (000mm) Nozzle, Remote Mount Solenoid The iQ Ball and Seat Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications. Higher pressure rating Maximize dispense time while minimizing maintenance costs and effort Perfect for standard on/off applications Ideal for low to high viscosity materials Wear-resistant seals and hardened components for long life Easy repeatable mounting for robotic and automated applications.

GG 2014266

Stellair ACE Air Spray Gravity Feed Gun, HVLP, 0.055 in (1.4 mm) Nozzle, 3M™ PPS™ Cup

Stellair ACE Air Spray Gravity Feed Gun, HVLP, 0.055 in (1.4 mm) Nozzle, 3M™ PPS™ Cup The Stellair ACE Gravity Gun couples the same lightweight, ergonomically designed body of the Stellair ACE line of guns with gravity-fed technology. This makes the ACE Gravity Gun ideal for small-batch coating that requires minimal material use. It’s designed to deliver high quality finish for low volume color production, touch up applications, and material spray testing. The Stellair ACE Gravity Gun benefits end users by reducing maintenance-related downtime, limiting user fatigue with enhanced ergonomics, and fulfills the need for small-batch customization. No tools are needed to maintain gun, with manually removable trigger that doubles as a service tool. Carbon-reinforced polymer construction reduces gun weight by 50%. One piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime. The Stellair ACE line is the industry’s only gun to earn the Ergonomics Performance Certification from United States Ergonomics. Available with 2 air cap technologies, HVLP/LVMP and Conventional. Cup options include no cup, Plastic Gravity cup, and 3M™ PPS™ cup with adapter. Air cap stays clean while delivering atomization that results in industry leading finish quality.

GG 2012484

IQ SNUFF BACK VALVE, S, NPT, 060, RM, AMB

iQ Dispense Valve, Snuff Back, Ambient, NPT Tip, 2.36in (60mm) Nozzle, Remote Mount Solenoid The iQ Snuff Back Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications. Maximize dispense time while minimizing maintenance costs and effort Delivers reliable and consistent performance with snuff back action to prevent dripping Ideal for low to high viscosity materials Wear-resistant seals and hardened components for long life Easy repeatable mounting for robotic and automated applications. 60mm nozzle is compatible with 60mm focal length vision systems

GG 2015242

Kit, Repair, Cable Coupler Hood, Strain Relief

GG 24P761

Kit, Rod, Displacement, B442, B443

GG 24P927

AGP Pump, 61

GG 24R662

AGP Hose, Assembly, HV

GG 24V573

Therm-O-Flow Pump, MKR, 3400, 36

GG 24X183

Kit, ADM Membrane

GG 256210

Valve, Dispense, Hp

GG 255503

240 V Electric Tank Agitator Assy. with Polyethylene Tank Lid for use with 8L Polyethylene Tank

GG 258795

Kit, Cylinder Repair 40

GG 25R237

Ball Screw Assy

GG 25R589

Kit, Rod

GG 26B450

Axial Dispense Valve, Ambient, Direct Mount Solenoid

GG 949632

Kit, Conv., Handle, 2k-Ul Valve

GG HE80-1217

QUANTM PUMP, QHD-HSFFASSPTPOEPSSA0021

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 32 Ra surface finish, the groundbreaking new QUANTM high-sanitation pumps offer a higher level of cleanability and protection against bacteria compared to other food-grade pumps. This polished design provides the ideal solution for many food and beverage applications that require higher levels of care or CIP options, as well as personal care and pharmaceutical applications. With a rotating stand for easy cleaning and draining, These electric pumps are ideal for applications involving materials such as tomato puree, diced tomato, general food ingredients, creams, lotions and medicated ingredients. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1218

QUANTM PUMP, QHD-HSFFASSPTPSEPSSA0021

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 32 Ra surface finish, the groundbreaking new QUANTM high-sanitation pumps offer a higher level of cleanability and protection against bacteria compared to other food-grade pumps. This polished design provides the ideal solution for many food and beverage applications that require higher levels of care or CIP options, as well as personal care and pharmaceutical applications. With a rotating stand for easy cleaning and draining, These electric pumps are ideal for applications involving materials such as tomato puree, diced tomato, general food ingredients, creams, lotions and medicated ingredients. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE/Santoprene 2-Piece diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1219

QUANTM PUMP, QHD-HSFFASSSPSPEPSSA0021

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 32 Ra surface finish, the groundbreaking new QUANTM high-sanitation pumps offer a higher level of cleanability and protection against bacteria compared to other food-grade pumps. This polished design provides the ideal solution for many food and beverage applications that require higher levels of care or CIP options, as well as personal care and pharmaceutical applications. With a rotating stand for easy cleaning and draining, These electric pumps are ideal for applications involving materials such as tomato puree, diced tomato, general food ingredients, creams, lotions and medicated ingredients. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, Santoprene balls, Santoprene diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1301

QUANTM PUMP, QHD-3AFF7SSPTPOEPSSA0021

QUANTM h80, 1.5"Tri-clamp, 3A SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM 3A hygienic electric pumps rival our high sanitary pumps from a build construction standpoint as they are outfitted with all stainless steel 316L construction with 32 Ra surface finish. These electric pumps come equipped with a leak sensor and are approved and certified by an outside agency for use in 3A applications. From yogurts to ice cream bases and cottage or ricotta cheese to other dairy ingredients, QUANTM 3A hygienic electric pumps are ideal for dairy applications requiring this approval certification. They also are ideal for handling other ingredients that go into those processes like fruit variegates, chocolate syrups, and other flavorings that make your favorite ice creams. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1300

QUANTM PUMP, QHD-3AFF7SSPTEOEPSSA0021

QUANTM h80, 1.5"Tri-clamp, 3A SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, EO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM 3A hygienic electric pumps rival our high sanitary pumps from a build construction standpoint as they are outfitted with all stainless steel 316L construction with 32 Ra surface finish. These electric pumps come equipped with a leak sensor and are approved and certified by an outside agency for use in 3A applications. From yogurts to ice cream bases and cottage or ricotta cheese to other dairy ingredients, QUANTM 3A hygienic electric pumps are ideal for dairy applications requiring this approval certification. They also are ideal for handling other ingredients that go into those processes like fruit variegates, chocolate syrups, and other flavorings that make your favorite ice creams. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, EPDM Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1302

QUANTM PUMP, QHD-3AFF8SSPTEOEPSSA0021

QUANTM h80, 1.5"Tri-clamp, 3A SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, EO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM 3A hygienic electric pumps rival our high sanitary pumps from a build construction standpoint as they are outfitted with all stainless steel 316L construction with 32 Ra surface finish. These electric pumps come equipped with a leak sensor and are approved and certified by an outside agency for use in 3A applications. From yogurts to ice cream bases and cottage or ricotta cheese to other dairy ingredients, QUANTM 3A hygienic electric pumps are ideal for dairy applications requiring this approval certification. They also are ideal for handling other ingredients that go into those processes like fruit variegates, chocolate syrups, and other flavorings that make your favorite ice creams. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, EPDM Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1303

QUANTM PUMP, QHD-3AFF8SSPTPOEPSSA0021

QUANTM h80, 1.5"Tri-clamp, 3A SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM 3A hygienic electric pumps rival our high sanitary pumps from a build construction standpoint as they are outfitted with all stainless steel 316L construction with 32 Ra surface finish. These electric pumps come equipped with a leak sensor and are approved and certified by an outside agency for use in 3A applications. From yogurts to ice cream bases and cottage or ricotta cheese to other dairy ingredients, QUANTM 3A hygienic electric pumps are ideal for dairy applications requiring this approval certification. They also are ideal for handling other ingredients that go into those processes like fruit variegates, chocolate syrups, and other flavorings that make your favorite ice creams. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1400

QUANTM PUMP, QHD-PHFF7SSPTPOEPSSA0021

QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 20 Ra surface finish and 316L construction, the groundbreaking new QUANTM electric-operated double diaphragm (EODD) pumps are the ideal solution for pharmaceutical-grade manufacturing facilities focused on meeting sustainability goals. These pharma-grade pumps offer a full electropolished finish and can be configured with USP Class VI approval to meet certification requirements for pharmaceutical applications such as bio pharmaceuticals, medical lotions and creams, organic reagent, blood products as well as alcohol and solvent transfer. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 20 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1401

QUANTM PUMP, QHD-PHFF7SSPTPSEPSSA0021

QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 20 Ra surface finish and 316L construction, the groundbreaking new QUANTM electric-operated double diaphragm (EODD) pumps are the ideal solution for pharmaceutical-grade manufacturing facilities focused on meeting sustainability goals. These pharma-grade pumps offer a full electropolished finish and can be configured with USP Class VI approval to meet certification requirements for pharmaceutical applications such as bio pharmaceuticals, medical lotions and creams, organic reagent, blood products as well as alcohol and solvent transfer. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 20 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE/Santoprene 2-Piece diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1402

QUANTM PUMP, QHD-PHFF8SSPTPOEPSSA0021

QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 20 Ra surface finish and 316L construction, the groundbreaking new QUANTM electric-operated double diaphragm (EODD) pumps are the ideal solution for pharmaceutical-grade manufacturing facilities focused on meeting sustainability goals. These pharma-grade pumps offer a full electropolished finish and can be configured with USP Class VI approval to meet certification requirements for pharmaceutical applications such as bio pharmaceuticals, medical lotions and creams, organic reagent, blood products as well as alcohol and solvent transfer. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 20 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1403

QUANTM PUMP, QHD-PHFF8SSPTPSEPSSA0021

QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 20 Ra surface finish and 316L construction, the groundbreaking new QUANTM electric-operated double diaphragm (EODD) pumps are the ideal solution for pharmaceutical-grade manufacturing facilities focused on meeting sustainability goals. These pharma-grade pumps offer a full electropolished finish and can be configured with USP Class VI approval to meet certification requirements for pharmaceutical applications such as bio pharmaceuticals, medical lotions and creams, organic reagent, blood products as well as alcohol and solvent transfer. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 20 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE/Santoprene 2-Piece diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1404

QUANTM PUMP, QHD-PHFF9SSPTPOEPSSA0021

QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 20 Ra surface finish and 316L construction, the groundbreaking new QUANTM electric-operated double diaphragm (EODD) pumps are the ideal solution for pharmaceutical-grade manufacturing facilities focused on meeting sustainability goals. These pharma-grade pumps offer a full electropolished finish and can be configured with USP Class VI approval to meet certification requirements for pharmaceutical applications such as bio pharmaceuticals, medical lotions and creams, organic reagent, blood products as well as alcohol and solvent transfer. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval

Materials of Construction

• 20 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1405

QUANTM PUMP, QHD-PHFF9SSPTPSEPSSA0021

QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 20 Ra surface finish and 316L construction, the groundbreaking new QUANTM electric-operated double diaphragm (EODD) pumps are the ideal solution for pharmaceutical-grade manufacturing facilities focused on meeting sustainability goals. These pharma-grade pumps offer a full electropolished finish and can be configured with USP Class VI approval to meet certification requirements for pharmaceutical applications such as bio pharmaceuticals, medical lotions and creams, organic reagent, blood products as well as alcohol and solvent transfer. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval

Materials of Construction

• 20 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE/Santoprene 2-Piece diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1406

QUANTM PUMP, QHD-PHFFASSPTPOEPSSA0021

QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 20 Ra surface finish and 316L construction, the groundbreaking new QUANTM electric-operated double diaphragm (EODD) pumps are the ideal solution for pharmaceutical-grade manufacturing facilities focused on meeting sustainability goals. These pharma-grade pumps offer a full electropolished finish and can be configured with USP Class VI approval to meet certification requirements for pharmaceutical applications such as bio pharmaceuticals, medical lotions and creams, organic reagent, blood products as well as alcohol and solvent transfer. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval

Materials of Construction

• 20 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1407

QUANTM ADAPTER, QHD-PHFFASSPTPSEPSSA0021

QUANTM h80, 1.5"Tri-clamp, PH SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, SS Seat, PT Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. With a 20 Ra surface finish and 316L construction, the groundbreaking new QUANTM electric-operated double diaphragm (EODD) pumps are the ideal solution for pharmaceutical-grade manufacturing facilities focused on meeting sustainability goals. These pharma-grade pumps offer a full electropolished finish and can be configured with USP Class VI approval to meet certification requirements for pharmaceutical applications such as bio pharmaceuticals, medical lotions and creams, organic reagent, blood products as well as alcohol and solvent transfer. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval

Materials of Construction

• 20 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, PTFE balls, PTFE/Santoprene 2-Piece diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1500

QUANTM PUMP, QHD-HSFF7FL--POEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1501

QUANTM PUMP, QHD-HSFF7FL--PSEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, PTFE/Santoprene 2-Piece diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1502

QUANTM PUMP, QHD-HSFF7FL--SPEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, Santoprene diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1503

QUANTM PUMP, QHD-HSFF7FL--BNEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, BN Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, Buna-N diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1504

QUANTM PUMP, QHD-HSFF8FL--POEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1505

QUANTM PUMP, QHD-HSFF8FL--PSEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, PTFE/Santoprene 2-Piece diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1506

QUANTM PUMP, QHD-HSFF8FL--SPEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, Santoprene diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1507

QUANTM PUMP, QHD-HSFF8FL--BNEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, BN Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• Non-hazardous

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, Buna-N diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1508

QUANTM PUMP, QHD-HSFF9FL--POEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1509

QUANTM PUMP, QHD-HSFF9FL--PSEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, PTFE/Santoprene 2-Piece diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1510

QUANTM PUMP, QHD-HSFF9FL--SPEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, Santoprene diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1511

QUANTM PUMP, QHD-HSFF9FL--BNEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, BN Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• CID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, Buna-N diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1512

QUANTM PUMP, QHD-HSFFAFL--POEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, PTFE Overmold diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1513

QUANTM PUMP, QHD-HSFFAFL--PSEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, PTFE/Santoprene 2-Piece diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1514

QUANTM PUMP, QHD-HSFFAFL--SPEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, Santoprene diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HE80-1515

QUANTM PUMP, QHD-HSFFAFL--BNEPSSASF21

QUANTM h80, 1.5"Tri-clamp, HS SST Electric Diaphragm Pump, 380-480 VAC 3Ph, FEP AL Center, FL Check, BN Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The groundbreaking new QUANTM electric pumps for large particle applications feature a stainless-steel flapper check design that removes the traditional ball and seat check valve in a normal diaphragm pump. This is critical for applications that involve larger pieces of meat and poultry pieces, pieces of fruit for bakery fillings and jarred fruit, as well as whole vegetables for soups or prepackaged meals. QUANTM electric pumps feature a powerful new electric motor that delivers up to 8x more continuous torque at low speeds than conventional motors. Plus, the fast, easy plug-and-play installation allows you to easily replace your existing pumps without additional investment or infrastructure rework. Revolutionary Design

• Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
• Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
• Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
• Quiet operation reduces plant noise and improves employee safety and health
• Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

• FEP coated aluminum electric drive
• 380-480 VAC 3 Ph motor with 15 ft flying leads
• ATEX Ex II 2 G EX dh IIB T4 Gb hazardous location approval

Materials of Construction

• 32 Ra surface finish 316L Stainless Steel fluid section with Tri-Clamp Center Port
• Internal components include 316 Stainless Steel seats, 316 Stainless Steel Flapper balls, Buna-N diaphragms and EPDM manifold o-rings
• EN 2.1 material certification

GG HEL012

LDX SERIES REEL, HOSE, 3/8"X50', 1/4" NPT, A/W

LDX™ Series, Air/Water/Antifreeze/WWS, 3/8 in (10 mm) Inlet, 1/4 in (6mm) Outlet, 3/8 in X 50 ft (10 mm X 15 m) Hose, NPT Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction. Designed for smaller garages, independent repair facilities and industrial manufacturing environments. Dual Pedestal Frame - Ribbed metal for increased stability and robustness. External Swivel Housing - Quickly access swivel seal for faster repairs. Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation. Adjustable Arm - Easily change to one of six arm positions to fit your application. Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.

GG HEL015

LDX SERIES REEL, HOSE, 1/2" X 45', DEF

LDX™ Series, DEF, 1/2 in (13 mm) Inlet, 1/2 in X 45 ft (13 mm X 14 m) Hose, BSPT Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction. Designed for smaller garages, independent repair facilities and industrial manufacturing environments. Dual Pedestal Frame - Ribbed metal for increased stability and robustness. External Swivel Housing - Quickly access swivel seal for faster repairs. Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation. Adjustable Arm - Easily change to one of six arm positions to fit your application. Large Hose Capacity with Small Profile - Compact design accommodates up to a 45 foot (14 meter) hose to meet a wide variety of application requirements.

GG HFRL12

HFR LAMINATION SYSTEM, 230/1, 2:1, 50/25, C

Graco HFRL12 2.00:1 Ratio HFR Package with 50/25 Pump

With its accuracy and repeatability, the Graco HFR lets you hit a specific ratio and volume – the first time, and every time. Static, dynamic, or impingement mixing options along with positive displacement pump technology will improve throughput while reducing scrap and rework.

Application: Hydraulic fixed ratio system for two-part epoxies, silicones, adhesives

• Constant pressure or constant flow rate material outputs
• Lower cost than basic shot meters or gear pumps
• Faster lead times – configured equipment solutions delivered faster than a custom engineered solution
• Precision, on-ratio dispense reduces material waste for a better bottom line
• More technology for less money
• Fully configurable
• Stores 100 shot sizes and five sequences of 20 positions each
• Compact footprint saves space in your plant
• Easier maintenance with standard parts
  • Eliminate costly pump rebuilds and the need for backup pumps
• Intuitive, easy-to-use controls simplify training
• Integrated USB lets you download process data onto a flash drive for further analysis

• Model: HFR
• Series: L

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPS

• Amperage (A): 55
• Applicator Type: Automatic

• Component A Inlet Size (in): 3/4
• Component A Inlet Size (mm): 19.05
• Component A Outlet Size (in): 1/2
• Component A Outlet Size (mm): 12.7
• Component A Thread Gender: Female
• Component A Thread Type: NPT
• Component B Inlet Size (in): 3/4
• Component B Inlet Size (mm): 19.05
• Component B Outlet Size (in): 1/2
• Component B Outlet Size (mm): 12.7
• Component B Thread Gender: Female
• Component B Thread Type: NPT

• Frequency (Hz): 50/60

• Includes: Hose, MD2 Valve with Adjustable Orifice Kit

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (cc/sec): 30
• Maximum Flow Rate (kg/min): 1.81
• Maximum Flow Rate (lb/min): 4

• Maximum Fluid Temperature (°C): 50
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Temperature (°C): 50
• Maximum Fluid Temperature (°F): 120

• Maximum Hose Length (ft): 15
• Maximum Hose Length (m): 4.575

• Maximum Working Pressure (bar): 103
• Maximum Working Pressure (kPa): 10300
• Maximum Working Pressure (MPa): 10
• Maximum Working Pressure (psi): 1500
• Measuring Type: Meter

• Overall Depth (cm): 94.5
• Overall Depth (in): 37.2
• Overall Depth (mm): 945

• Overall Height (cm): 147.6
• Overall Height (in): 58.1
• Overall Height (mm): 1476
• Overall Width (cm): 131.6
• Overall Width (in): 51.8
• Overall Width (mm): 1316

• Phase: 1

• Power Rating (HP): 16.96
• Power Rating (kW): 12.7
• Power Rating (W): 12650
• Power Source: Electric, Hydraulic

GG HFRL22

Hfr Lamination System, 400/3, 1.50:1, 60/40, Cs

GG HFRS16

Hfr Silicone System, Si, 230/1, 4:1, Ss, 55/5

GG HFRS69

Hfr Silicone System, Si, 230/1, 1:1, Cs, No Fe

GG HFRS73

HFR SILICONE SYSTEM,SI,230/1,2:1,CS,NO FE

Graco HFRS73 2:1 Ratio Carbon Steel HFR Metering System without Feed Pump

With its accuracy and repeatability, the Graco HFR lets you hit a specific ratio and volume – the first time, and every time. Static, dynamic, or impingement mixing options along with positive displacement pump technology will improve throughput while reducing scrap and rework.

Application: Hydraulic fixed ratio system for two-part epoxies, silicones, adhesives

• Constant pressure or constant flow rate material outputs
• Lower cost than basic shot meters or gear pumps
• Faster lead times – configured equipment solutions delivered faster than a custom engineered solution
• In-person support and service through Graco’s global distribution network
• Precision, on-ratio dispense reduces material waste for a better bottom line
• More technology for less money
• Fully configurable
• Stores 100 shot sizes and five sequences of 20 positions each
• Compact footprint saves space in your plant
• Intuitive, easy-to-use controls simplify training
• Integrated USB lets you download process data onto a flash drive for further analysis

GG HFRS90

Hfr Silicone System, Si, 400/3, 10:1, Cs, No F

GG HFRS91

Hfr Silicone System, Si, 230/1, 10:1, Ss, No F

GG HFRS95

Hfr Silicone System, Si, 400/3, 1:1, Cs, 55/55

GG HFRS98

Hfr Silicone System, Si, 230/1, 1:1, Ss, 5/5

GG HFRSA8

HFR SILICONE SYSTEM,SI,400/3,2:1,CS,55/55

GG HH73215

HOSE, HTD, 3/8X1/4, 50FT, 7250PSI

Electric Heated Hose, 7250 psi (500 bar), 3/8 in. x 1/4 in., 50 ft (15 m) Electric heated hoses are designed for use with plural component high-pressure airless equipment, such as the Graco XP and XM sprayers. Electric heat is the lightest and most effective way to maintain temperature between the primary heaters on an XM or XP sprayer and a remote mix manifold. No vertical height limitations 7,250 psi (500 bar) pressure rating Continuous hose lengths available - 50ft (15m), 100ft (30m), 150ft (45m), 200ft (60m) Lightweight hose bundle - no water! Integrated recirculation hoses available Multiple A/B hose diameters available to achieve the desired chemical mix ratio Additional B hose optional to adapt to multiple chemical mix ratios with minimal effort Easily install on new or existing Graco XM or XP sprayers Hose temperature control and recirculation accessory kits for Graco XM and XP sprayers available

GG HH7321X

HOSE, HTD, 3/8X1/4, 100FT, 7250PSI

Electric Heated Hose, 7250 psi (500 bar), 3/8 in. x 1/4 in., 100 ft (30m) Electric heated hoses are designed for use with plural component high-pressure airless equipment, such as the Graco XP and XM sprayers. Electric heat is the lightest and most effective way to maintain temperature between the primary heaters on an XM or XP sprayer and a remote mix manifold. No vertical height limitations 7,250 psi (500 bar) pressure rating Continuous hose lengths available - 50ft (15m), 100ft (30m), 150ft (45m), 200ft (60m) Lightweight hose bundle - no water! Integrated recirculation hoses available Multiple A/B hose diameters available to achieve the desired chemical mix ratio Additional B hose optional to adapt to multiple chemical mix ratios with minimal effort Easily install on new or existing Graco XM or XP sprayers Hose temperature control and recirculation accessory kits for Graco XM and XP sprayers available
