GRACO INC. S10595
15:1 Merkur Bellows Pump, Assembly, 150Cc, Std
GG B15FA0
15:1 Merkur Bellows Pump, Assembly, 150Cc, Std
Straight Tip Flange Nozzle, 1/16 Orfice
GG C00044
Straight Tip Flange Nozzle, 1/16 Orfice
FUSION AP GUN, AR2929, AUTO
GG 248376
FUSION AP GUN, AR2929, AUTO
Graco 248376 Round Fusion Air-Purge Gun with 00 Mix Chamber
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Auto
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.074
- Fluid Orifice Size (in): 0.029
- Fluid Orifice Size (mm): 0.74
- Gun Type: Air Purge Gun
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 00 (.029)
- Overall Height (cm): 9.5
- Overall Height (in): 3.75
- Overall Height (mm): 95
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm): 193
- Overall Width (cm): 7.9
- Overall Width (in): 3.1
- Overall Width (mm): 79
FUSION AP GUN, AR4242, AUTO
GG 248377
FUSION AP GUN, AR4242, AUTO
Round Fusion Air-Purge Gun with 01 Mix ChamberWith long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
For high output spray polyurethane foam and polyurea applications. Easy air-blast tip cleaning reduces build-up and tip clogging. Long-lasting side seals means less downtime for maintenance Quick-release fluid housing - lets you easily change the mix chambers without tools Hand-tightened front cap - no tools needed to clean and maintain seals and mix chamber Ergonomic handle
FUSION AP GUN, AR5252, AUTO
GG 248378
FUSION AP GUN, AR5252, AUTO
Graco 248378 Round Fusion Air-Purge Gun with 02 Mix Chamber
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Auto
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.132
- Fluid Orifice Size (in): 0.052
- Fluid Orifice Size (mm): 1.32
- Gun Type: Air Purge Gun
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 02 (.052)
- Overall Height (cm): 9.5
- Overall Height (in): 3.75
- Overall Height (mm): 95
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm): 193
- Overall Width (cm): 7.9
- Overall Width (in): 3.1
- Overall Width (mm): 79

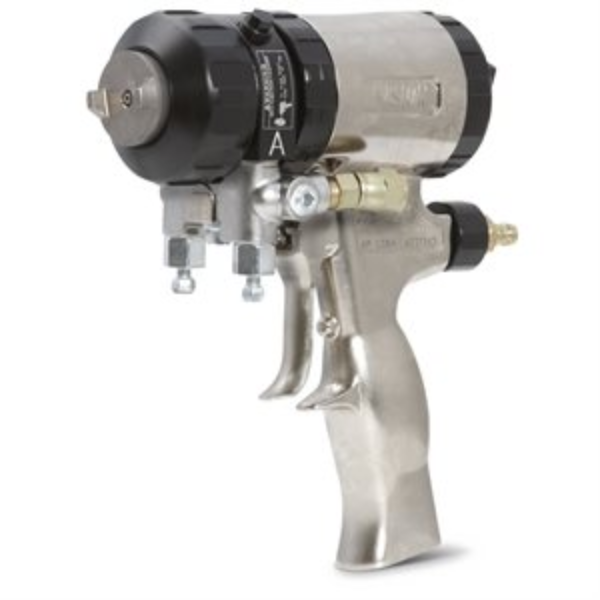

FUSION AP GUN, AF2929 FT0438, AUTO
GG 248381
FUSION AP GUN, AF2929 FT0438, AUTO
Graco 248381 Fusion Air-Purge Gun, 0.038 in (0.96 mm) Orifice Size, 0.029 in (0.74 mm) Impingement Port & 8-10 in (203-254 mm) Flat Pattern Size
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Auto
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.074
- Fluid Orifice Size (in): 0.029
- Fluid Orifice Size (mm): 0.74
- Gun Type: Air Purge Gun
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 00 (.029)
- Overall Height (cm): 9.5
- Overall Height (in): 3.75
- Overall Height (mm): 95
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm): 193
- Overall Width (cm): 7.9
- Overall Width (in): 3.1
- Overall Width (mm): 79
- Pattern Size (in): 8-10 in @ 24 in from target
FUSION MP GUN, XR3535 RTM040, AUTO
GG 248383
FUSION MP GUN, XR3535 RTM040, AUTO
Round Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.040 in (1.0 mm) Ceramic Tip and 0.035 in (0.9 mm) Impingement PortWhether you're spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties - giving you great results at the jobsite.
For high output spray polyurethane foam and polyurea applications. Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit Long-lasting PolyCarballoy mix module Advanced mix module and tip provides superior mixing capabilities
FUSION MP GUN, XF1818 FTM424, AUTO
GG 248385
FUSION MP GUN, XF1818 FTM424, AUTO
Graco 248385 Flat Pattern Automatic Fusion Mechanical Purge Direct Impingement Gun with 0.024 in (0.61 mm) Ceramic Tip and 0.018 in (0.46 mm) Impingement Port
Whether you&prime, re spraying polyurea coatings or spray foam insulation, the Fusion MP Gun handles it all. Its rugged design provides excellent mix and material properties - giving you great results at the jobsite.
Application: For high output spray polyurethane foam and polyurea applications.- Easy mechanical cleaning – mix modules and tips are cleaned with a drill bit
- Long-lasting PolyCarballoy mix module
- Advanced mix module and tip provides superior mixing capabilities
- Model: Fusion MP
- Series: Auto
- Air Inlet Size (cm): 0.3175
- Air Inlet Size (in): 1/8-27
- Air Inlet Size (mm): 3.175
- Air Inlet Thread Type: NPT
- Compatible Material: Polyurethane, Roof Coating, Polyurea, Spray Polyurethane Foam, No-Heat Foam
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.42875
- Component B Inlet Size (in): 9/16-18
- Component B Inlet Size (mm): 14.2875
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.061
- Fluid Orifice Size (in): 0.024
- Fluid Orifice Size (mm): 0.61
- Gun Type: Impingement Mix Air Purge Spray Gun
- Gun Weight (g): 1247
- Gun Weight (kg): 1.24
- Gun Weight (lb): 2.75
- Gun Weight (oz): 44
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 242
- Maximum Fluid Working Pressure (MPa): 24.2
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Overall Height (cm): 9.5
- Overall Height (in): 3.75
- Overall Height (mm): 95
- Overall Length (cm): 19.3
- Overall Length (in): 7.6
- Overall Length (mm): 193
- Overall Width (cm): 7.9
- Overall Width (in): 3.1
- Overall Width
Kit, Repair, Manifold, Fluid
GG 248430
KIT, REPAIR, MANIFOLD, FLUID
Graco 248430 Fluid Manifold Repair Kit- For ProMix Easy, Xtreme Mix 185and ProMix II Proportioners
Kit, Dispense Valve Ndl/Seat
GG 248429
KIT, DISPENSE VALVE NDL/SEAT
Graco 248429 Dispense Valve Repair Kit

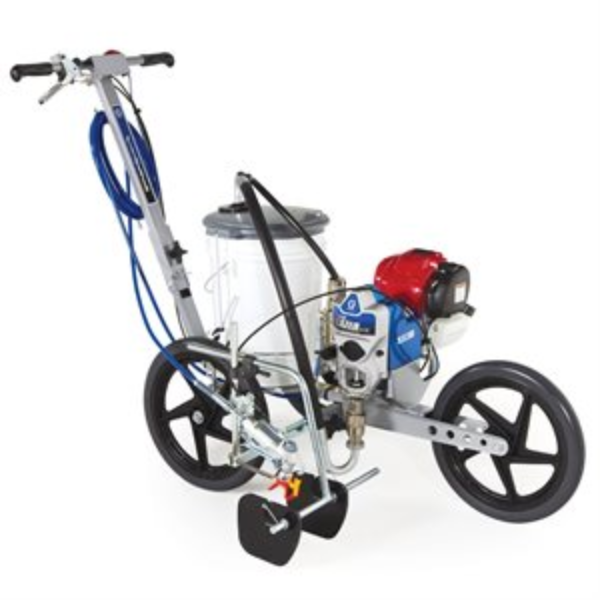

FIELDLAZER SPRAYER, S100
GG 248942
FIELDLAZER SPRAYER, S100
Graco 248942 FieldLazer S100 Airless Field Striper
Introduced in 2004, the original FieldLazer striper was the first walk-behind field marker utilizing proven Graco high-pressure airless paint spray technology. It is now recognized by field marking professionals as one of the top walk-behind field marking machines available.
USER-FRIENDLY OPERATION
Easy Reach Handlebar Controls
High-comfort design for greater control and less operator fatigue
Operator controls are located on the handlebars
DURABLE PUMP
Endurance Pump
Hardened stainless steel rod and cylinder holds up to abrasive materials
QuikAccess intake for easy cleaning
RELIABLE POWER
Honda® Engine
Contractor preferred—excellent power and proven reliability
Easy starting
PRECISE SPRAY CONTROL
FieldLazer RAC 5 Tip
Turn tip 180° to clear clogs
SMOOTHER APPLICATIONS
Exclusive Tall Wheel Design
Easily rolls over rough terrain
Reduces operator fatigue
COMPACT, USER-FRIENDLY DESIGN
Fold-Down Handle
Fits into minivans, SUVs, even pickups with toppers
FAST AND EASY PAINT HANDLING
5-Gallon Bucket-Ready
Eliminates hassle of cleaning tanks or pots
EASY STENCILING
No-Tool Gun Removal
Switch for spraying stencils or large solid areas
- Model: FieldLazer
- Series: S100
- Compatible Surfaces: Turf
- Engine Brand: Honda
- Engine Model: GX35
- Features: Adjustable Spray Guides, Disposable Paint Bucket Siphon System, Handlebar Operator Controls
- Fuel Tank Capacity (gal): 0.17
- Fuel Tank Capacity (L): 0.64
- Gun Activation: Manual
- Hopper Volume Capacity (gal): 5
- Hopper Volume Capacity (L): 19
- Includes: SG2 Spray Gun, FieldLazer RAC 5 421 Spray Tip, RAC 5 Guard, 3/16 in x 25 ft BlueMax II Airless Hose, TSL, 4 oz
- Maximum Sound Pressure Level (dB(A)): 87
- Maximum Tip Size (cm): 0.0533
- Maximum Tip Size (in): 0.021
- Maximum Tip Size (mm): 0.533
- Maximum Working Pressure (bar): 62
- Maximum Working Pressure (kPa): 6200
- Maximum Working Pressure (psi): 900
- Number of Colors: One Color
KIT, REPAIR, BRUSH
GG 249042
KIT, REPAIR, BRUSH
Graco 249042 Pro Motor Brush Paint Sprayer Kit for Pro210ES
Replace your motor brushes with genuine Graco parts. Kit comes assembled for easy replacement. For Pro 210ES cart or stand model sprayer. Refer to the parts manual for your sprayer to ensure part compatibility
Application: Graco&prime, s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come.- Sprayer&prime, s motor is not turning, it might be due to brushes wearing away
- Graco tech support can further assist with troubleshooting sprayer operation
- For use with Pro210ES airless paint sprayer stand, 16D163 or cart 17C305
- For Use With: Pro210ES Stand, Pro210ES Cart
KIT, REPAIR, LINE, DRAIN
GG 249051
KIT, REPAIR, LINE, DRAIN
Graco 249051 210ES Drain Tube Paint Sprayer Kit for 210ES Stand
Replace your sprayers paint covered or worn out drain line. Keep the suction set - replacement drain line only. For Pro 210ES stand only. Refer to the parts manual for your sprayer to ensure part compatibility
Application: Graco&prime, s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. Paints and coatings wear down parts from normal use due to the abrasives used in coatings. Use Genuine Graco parts to keep your sprayer in peak working order for years to come.- Coating buildup or brittleness may cause leakage
- Graco tech support can further assist with troubleshooting sprayer operation
- For use with 210ES stand, 16D163
- For Use With: Pro210ES Stand, Pro210ES Cart
LINELAZER HOSE, CPLD, 1/4" X 50'
GG 249080
LINELAZER HOSE, CPLD, 1/4" X 50'
Coupled Hose- 1/4 in. Diameter, 50 ft. Long For Use With LineLazer ES 1000, LineLazer V ES 2000 and LineLazer 3400
KIT, REPAIR, PACKING
GG 249123
KIT, REPAIR, PACKING
Graco 249123 Stainless Steel Check Balls Pump Repair Kit
Replace a worn or damaged pump with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility
Application: Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come.- Graco Tech Support can further assist with troubleshooting sprayer operation
Diffuser, Assy
GG 249132
DIFFUSER, ASSY
Graco 249132 Diffuser Assembly for G15 Spray Gun w/ Plastic Seat
Diffuser, Assembly, H.P.
GG 249133
DIFFUSER, ASSY,H.P.
Graco 249133 G15/G40 Diffuser, assy
- Compatible Material: Sealants, Adhesives
Kit, Retaining Ring
GG 249134
KIT, RETAINING RING
Graco 249134 Retaining Ring Assembly for Automatic G40 Air-Assisted Spray Guns
- Bleed Type: Non-Bleeder
- Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solventborne, Urethane, Waterborne
KIT, REPAIR, PUMP, CERAMIC BALL
GG 249189
KIT, REPAIR, PUMP, CERAMIC BALL
Graco 249189 Graco Pump Repair Kit with Ceramic Check Balls
Replace a worn or damaged pump with genuine Graco parts. Refer to the parts manual for your sprayer to ensure part compatibility
Application: Graco’s dedication to delivering the highest quality products also allows you to protect your investment by offering products that can be repaired to ensure years of reliable service. High quality parts have years of service, but wear parts will need replacement over time. Use Genuine Graco parts to keep your sprayer in peak working order for years to come.- Graco Tech Support can further assist with troubleshooting sprayer operation
Kit, Gun, Repair
GG 249422
KIT, GUN,REPAIR
Graco 249422 Seal Repair Kit, includes replacement o-rings, gasket, u-cup, air valve assembly, and seal installation tool
Kit, Needle, Seat, G40
GG 249456
KIT, NEEDLE,SEAT,G40
Graco 249456 Carbide Seat Repair Kit, includes replacement carbide seat, seat gasket, and seat nut
FUSION AP GUN, WIDE RND 01
GG 249529
FUSION AP GUN, WIDE RND 01
Graco 249529 Wide Round Fusion Air-Purge Gun with 01 Mix Chamber
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Wide
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.099
- Fluid Orifice Size (in): 0.039
- Fluid Orifice Size (mm): 0.99
- Gun Type: Air Purge Gun
- Gun Weight (g): 1130
- Gun Weight (kg): 1.1
- Gun Weight (lb): 2.5
- Gun Weight (oz): 40
- Impingement Port Size (in): 0.039
- Impingement Port Size (mm): 0.99
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 01 (.042)
- Overall Height (cm): 20.6
- Overall Height (in): 8.1
- Overall Height (mm): 206
- Overall Length (cm): 19.1
- Overall Length (in): 7.5
- Overall Length (mm): 191
- Overall Width (cm): 8.4
- Overall Width (in): 3.3
- Overall Width (mm): 84
- Pattern Size (in): 16 in @ 24 in from target
THERM-O-FLOW GUN, HOT MELT, BOTTOM FEED
GG 249514
THERM-O-FLOW GUN, HOT MELT, BOTTOM FEED
Graco 249514 Therm-O-Flo Bottom Feed Manual Gun, 240V
Hot melt dispense gun provides ergonomic, easy-trigger actuation for high pressure, high flow sealant and adhesive applications.
Application: For applying hot melt materials.- Provides accurate dispense control for Therm-O-Flow Systems
- Precise temperature control from PID control panel
- Piston-actuated ball and seat design for positive shut off
- Rugged all metal construction
Provides precise proportional control and variable dispense volume with unique tapered needle valve design
Dual heaters offer rapid warm-up during initial start-up and maintain uniform temperature control
Rugged construction – durable, lightweight anodized aluminum body
Ergonomic, easy-trigger actuation
Designed for easy service – minimal maintenance and downtime
Rated for high-pressure Therm-O-Flow Systems up to 3500 psi (24.1 MPa, 241 bar)
- Model: Therm-O-Flow
- For Use With: Therm-O-Flow
- Maximum Fluid Pressure (bar): 245
- Maximum Fluid Pressure (kPa): 2450
- Maximum Fluid Pressure (MPa): 24.5
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Pressure (bar): 245
- Maximum Fluid Pressure (kPa): 2450
- Maximum Fluid Pressure (MPa): 24.5
- Maximum Fluid Pressure (psi): 3500
REACTOR HEATED HOSE, 3', 1/4, 2000 PSI
GG 249586
REACTOR HEATED HOSE, 3', 1/4, 2000 PSI
3 ft x 1/4" Whip Hose, 2000 psi, Without Cable, Mesh Scuff, Reactor 1 & 2Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
Gun, Hot Melt, Top Outlet with Switch
GG 249513
THERM-O-FLOW GUN,HOT MELT,TOP W/SWITCH
Graco 249513 Manual Top Feed Electric Hot Melt Dispense Gun with Switch
Perfect for high pressure, high flow sealant and adhesive applications, Therm-O-Flow Guns are available with electric switches so they can be used in conjunction with automated equipment.
Application: For applying hot melt materials.
Provides accurate dispense control for Therm-O-Flow Systems
- Provides precise proportional control and variable dispense volume with unique tapered needle valve design
- Dual heaters offer rapid warm-up during initial start-up and maintain uniform temperature control
- Rugged construction - durable, lightweight anodized aluminum body
- Ergonomic, easy-trigger actuation
- Designed for easy service - minimal maintenance and downtime
- Rated for high-pressure Therm-O-Flow Systems up to 3500 psi (24.1 MPa, 241 bar)
Precise temperature control from PID control panel
Piston-actuated ball and seat design for positive shut off
Light trigger pull
Rugged all metal construction
- Model: Therm-O-Flow
- Compatible Material: Sealants, Adhesives

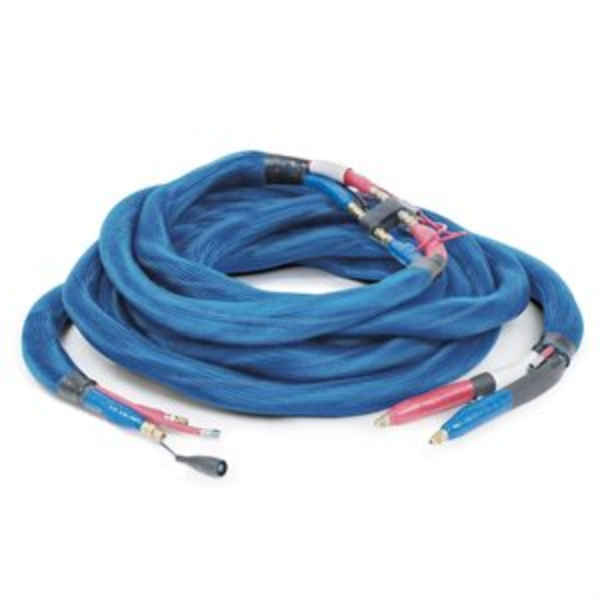

REACTOR HEATED HOSE, 50', 3/8, W/O CBL, 3500P
GG 249588
REACTOR HEATED HOSE, 50', 3/8, W/O CBL, 3500P
50 ft x 3/8 in Heated Hose, 3500 psi, Without Cable, No Scuff, Reactor 1 & 2Graco’s heated hoses are designed specifically for use with Reactor Equipment. Hoses are a key component to the total system, making it important to achieve accurate and uniform heating for the best application possible.
For Reactor proportioners.New multi-strand copper heating element has greatly increased hose quality:
- Provides 10-times* the flex life compared to previous flat copper heating element
- Long-term, even heating without hot spots
- Backwards compatible with existing Reactor heated hoses
Gun, Hotmelt Bottom w/Switch
GG 249512
THERM-O-FLOW GUN,HOTMELT,BOTTOM W/SWITCH
Graco 249512 Precision Hot Melt Dispense Gun with Switch
Perfect for high pressure, high flow sealant and adhesive applications, Therm-O-Flow Guns are available with electric switches so they can be used in conjunction with automated equipment.
Application:
For applying hot melt materials.
Provides accurate dispense control for Therm-O-Flow Systems
- Provides precise proportional control and variable dispense volume with unique tapered needle valve design
- Dual heaters offer rapid warm-up during initial start-up and maintain uniform temperature control
- Rugged construction - durable, lightweight anodized aluminum body
- Ergonomic, easy-trigger actuation
- Designed for easy service - minimal maintenance and downtime
- Rated for high-pressure Therm-O-Flow Systems up to 3500 psi (24.1 MPa, 241 bar)
Precise temperature control from PID control panel
Piston-actuated ball and seat design for positive shut off
Light trigger pull
Rugged all metal construction
- Model: Therm-O-Flow
REACTOR E-10 PROPORTIONER, CMPLT, 240V, 1X16A, HTD
GG 249572
REACTOR E-10 PROPORTIONER, CMPLT, 240V, 1X16A, HTD
Graco 249572 Reactor E-10 Heated Proportioner with 20 A Circuit, 240 V
Graco&prime, s Reactor E-10 is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The Reactor E-10 sprayers are ideal for plural-component spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.
- Small size
Ideal for on-site portability and hard-to-reach areas
- Cost Savings
One-person operation saves time and money
- Extent your spray business
Use as an add-on to your existing spray business
- Material savings
Saves 30% on material costs compared to disposable foam systems
- Electric power
Low draw and plugs into standard outlets
- Single Knob Operation
Intuitive start, stop and digital temperature display with single knob operation
- Easily balancing
Pressure balance valves give you quick and easy balancing of system pressures
Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern
- Easy-to-service fluid section
Reduces maintenance and increases productivity
- Electric motor
Improves performance and reduces operating costs
- Spray on-ratio
Self-contained translucent material tanks show you that you are spraying on-ratio
- Pre-heat material
Heaters and hose give you up to 2000 watts to pre-heat circulating material
- Model: Reactor
- Series: E-10
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Outlet Size (cm): 0.635
- Air Outlet Size (in): 1/4
- Air Outlet Size (mm): 6.35
- Air Outlet Thread Type: NPSM
- Amperage (A): 20
- Application: Spray Foam
- Applicator Type: Manual
- Compatible Material: Plural Components
- Component Type: Two Component
- Flush Type: Solvent
- Frequency (Hz): 50/60
- Gun Type: No Gun
- Hose Package: No Hose
- Material Application: Polyurethane Foam
- Maximum Flow Rate (kg/min): 5.44
- Maximum Flow Rate (lb/min): 12
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Fluid Temperature (°C): 71
- Maximum Fluid Temperature (°F): 160
- Maximum Hose Length (ft): 35
- Maximum Hose Length (m): 94.5
- Maximum Mix Ratio: 1:1
- Maximum Working Pressure (bar): 138
- Maximum Working Pressure (kPa): 1380
Diffuser, Assembly, Rac
GG 249877
DIFFUSER, ASSY,RAC
Graco 249877 Diffuser Assembly for Flat Tip to RAC Tip Air Cap Conversion Kit
- Compatible Material: Sealants, Adhesives

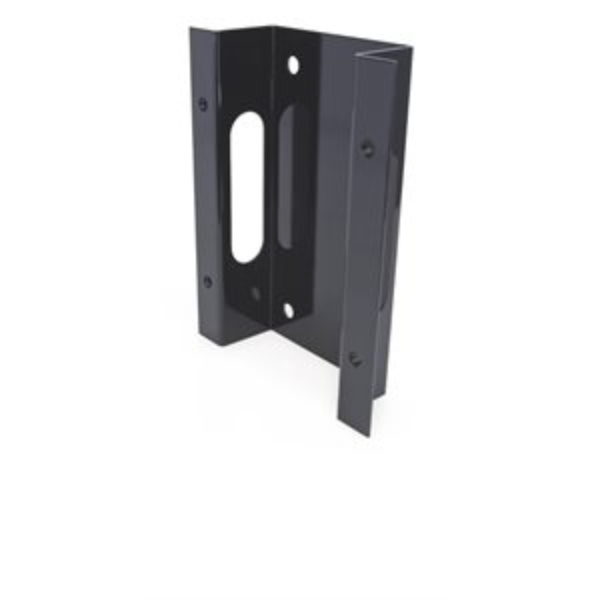

CHANNEL, MOUNTING, DUAL ARM 1 REEL
GG 24A219
CHANNEL, MOUNTING, DUAL ARM 1 REEL
Graco 24A219 XD Series Open Reel Mounting Channel - Accommodates 1 Reel
- Number of Pieces: 9
FUSION AP GUN, AF5252 FTM979
GG 249526
FUSION AP GUN, AF5252 FTM979
Graco 249526 Round Fusion Air-Purge Stud Wall Gun with 0.070 Mix Chamber
With long-life mix chamber and durable side seals, Fusion guns are designed to reduce maintenance and downtime, and provide a better mix.
Application: For high output spray polyurethane foam and polyurea applications.- Easy air-blast tip cleaning reduces build-up and tip clogging.
- Long-lasting side seals means less downtime for maintenance
- Quick-release fluid housing - lets you easily change the mix chambers without tools
- Ergonomic handle
- Model: Fusion AP
- Series: Specialty
- Compatible Material: Adhesives, Polyurethane, Polyurea, Polyurethane Coating, Spray Polyurethane Foam
- Fluid Orifice Size (cm): 0.132
- Fluid Orifice Size (in): 0.052
- Fluid Orifice Size (mm): 1.32
- Gun Type: Air Purge Gun
- Maximum Air Inlet Pressure (bar): 9
- Maximum Air Inlet Pressure (kPa): 900
- Maximum Air Inlet Pressure (MPa): 0.9
- Maximum Air Inlet Pressure (psi): 130
- Maximum Air Pressure (bar): 9
- Maximum Air Pressure (kPa): 900
- Maximum Air Pressure (MPa): 0.9
- Maximum Air Pressure (psi): 130
- Maximum Flow Rate @ PSI (lb/min): 50
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 5.5
- Minimum Air Inlet Pressure (kPa): 550
- Minimum Air Inlet Pressure (MPa): 0.55
- Minimum Air Inlet Pressure (psi): 80
- Mix Chamber: 04 (.070)
- Pattern Size (in): 22 in @ 24 in from target
DURA-FLO 1800 PUMP, RECIP, DISPL (18 SST)
GG 249992
DURA-FLO 1800 PUMP, RECIP, DISPL (18 SST)
Stainless Steel 18 cm Displacement Pump
KIT, ACCESSORY
GG 24A217
KIT, ACCESSORY

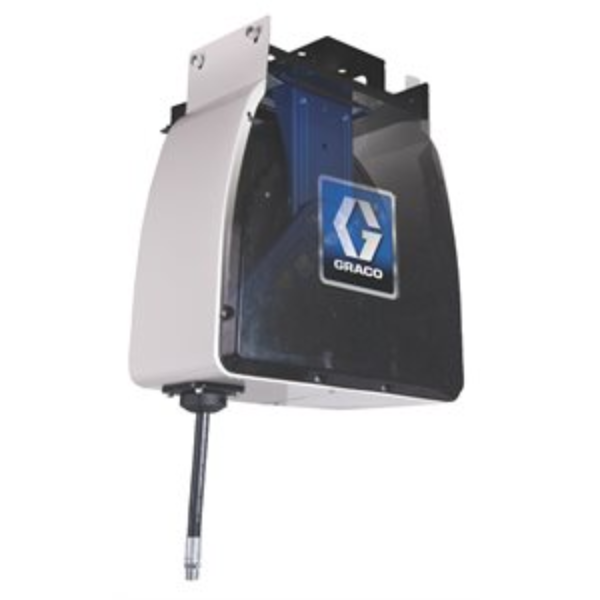

Graco 24A217 SD 10 Oil Reel Enclosure - White
- Number of Pieces: 22
Kit, Repair, Vee, 25Cc
GG 24A251
KIT, REPAIR, VEE, 25CC
Graco 24A251 Standard Seal Repair Kit for Merkur LW025A
CHANNEL, MOUNTING, DUAL ARM 2 REEL
GG 24A220
CHANNEL, MOUNTING, DUAL ARM 2 REEL
Graco 24A220 Open Reel Mounting Channel (Accommodates 2 Reels)
- Number of Pieces: 17
