    E-10 Reactor, Bare, 230V Heated

    Manufacturer: GRACO INC. S10595

    GG 249572

    REACTOR E-10 PROPORTIONER, CMPLT, 240V, 1X16A, HTD

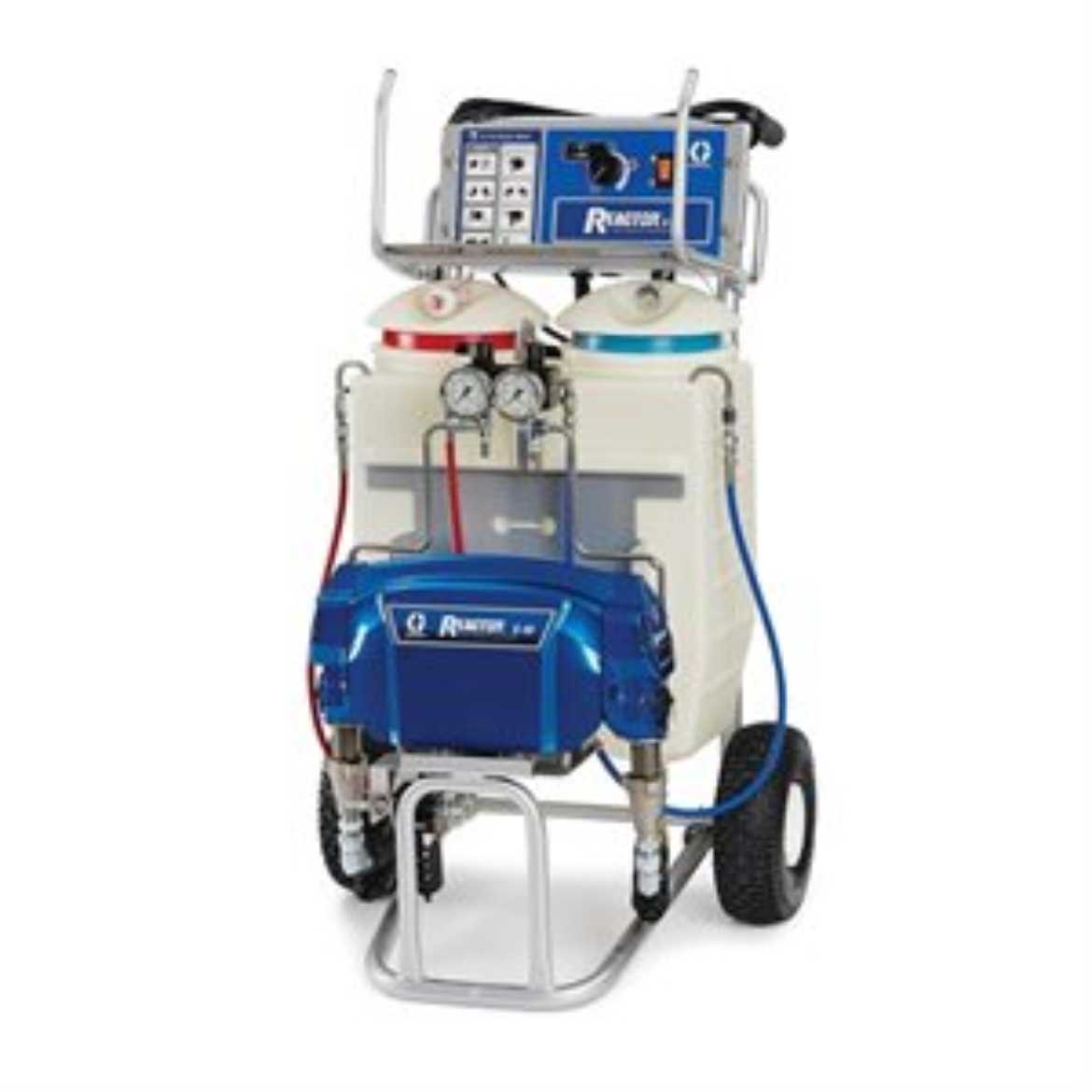

    Graco 249572 Reactor E-10 Heated Proportioner with 20 A Circuit, 240 V

    Gracos Reactor E-10 is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The Reactor E-10 sprayers are ideal for plural-component spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.

    • Small size

      Ideal for on-site portability and hard-to-reach areas

    • Cost Savings

      One-person operation saves time and money

    • Extent your spray business

      Use as an add-on to your existing spray business

    • Material savings

      Saves 30% on material costs compared to disposable foam systems

    • Electric power

      Low draw and plugs into standard outlets

    • Single Knob Operation

      Intuitive start, stop and digital temperature display with single knob operation

    • Easily balancing

      Pressure balance valves give you quick and easy balancing of system pressures

      Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern

    • Easy-to-service fluid section

      Reduces maintenance and increases productivity

    • Electric motor

      Improves performance and reduces operating costs

    • Spray on-ratio

      Self-contained translucent material tanks show you that you are spraying on-ratio

    • Pre-heat material

      Heaters and hose give you up to 2000 watts to pre-heat circulating material


    • Model: Reactor
    • Series: E-10
    • Air Inlet Size (cm): 0.635
    • Air Inlet Size (in): 1/4
    • Air Inlet Size (mm): 6.35
    • Air Outlet Size (cm): 0.635
    • Air Outlet Size (in): 1/4
    • Air Outlet Size (mm): 6.35
    • Air Outlet Thread Type: NPSM
    • Amperage (A): 20
    • Application: Spray Foam
    • Applicator Type: Manual
    • Compatible Material: Plural Components
    • Component Type: Two Component
    • Flush Type: Solvent
    • Frequency (Hz): 50/60
    • Gun Type: No Gun
    • Hose Package: No Hose
    • Material Application: Polyurethane Foam
    • Maximum Flow Rate (kg/min): 5.44
    • Maximum Flow Rate (lb/min): 12
    • Maximum Fluid Temperature (°C): 71
    • Maximum Fluid Temperature (°F): 160
    • Maximum Fluid Temperature (°C): 71
    • Maximum Fluid Temperature (°F): 160
    • Maximum Hose Length (ft): 35
    • Maximum Hose Length (m): 94.5
    • Maximum Mix Ratio: 1:1
    • Maximum Working Pressure (bar): 138
    • Maximum Working Pressure (kPa): 13800
    • Maximum Working Pressure (MPa): 13.8
    • Maximum Working Pressure (psi): 2000
    • Overall Depth (cm): 76.2
    • Overall Depth (in): 30
    • Overall Depth (mm): 762
    • Overall Height (cm): 111.8
    • Overall Height (in): 44
    • Overall Height (mm): 1118
    • Overall Width (cm): 67.3
    • Overall Width (in): 26.5
    • Overall Width (mm): 673
    • Power Rating (HP): 5.10
    • Power Rating (
    SKU: GG 249572
    Availability:
    Price: $22,890.00
