GRACO INC. S10595

GG 114151

GG 116172

SWITCH, LIMIT, PNEUMATIC

Graco 116172 Pneumatic Limit Switch

GG 116344

GG 117773

GG 118338

GG 117237

MUFFLER

GG 192387

GG 197340

GG 2000481

KIT, ALIGNMENT TOOL

Graco 2000481 Stellair Automatic Gun Alignment Tool

Spray pattern alignment and pathing tool helps ensure the accuracy and repeatability needed to keep production moving on automated finishing systems with robots, reciprocators, or flat line machines. It is easily attached and detached from a Stellair Auto air spray gun.

• Gauge helps paint line operators and service technicians quickly set the angle of the air cap, so that it matches the part being sprayed, reducing overspray and material waste.
• Path guide shows operators and robot programmers the spray center point and the distance between the gun and the workpiece. This prevents uneven coverage and runs, especially when used for robot pathing.

GG 17W768

GG 184128

COLLAR, COUPLING

GG 238620

GG 238747

KIT, REPAIR, DISPHRAGM

Graco 238747 Fluid Diaphragm Repair Kits

GG 171147

GG 171912

GG 172580

GG 17B969

GG 15D909

GG 15H392

GG 15K652

GG 15X303

KIT, VALVE, DISPENSE

Graco 15X303 High Pressure Air Actuated Dispense Valve

GG 161577

GG 161589

GG 24E420

GG 24F249

GG 247480

GG 214980

REGULATOR, PRESS FLUID

Graco 214980 Low Pressure Fluid Regulator, 250 Max psi, 0-30 psi Range, 3.0 GPM, SST, Air Type, 3/8 (f) x 3/8 (f), 1/4 (f) Port

Fluid pressure regulators control pressure of the downstream fluid, allowing operators to accurately control the pressure to guns, applicators and dispense valves

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Removable adjustment key eliminates operator interference
• Manual quick flush mode ensures easy cleaning without impacting production settings
• Tungsten and carbide materials ensure low wear and long life

• Actuation Type: Air

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Thread Gender: Female
• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 0.9525
• Inlet Size (in): 3/8
• Inlet Size (mm): 9.525

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 3
• Maximum Flow Rate (L/min): 11.36

• Maximum Regulated Pressure (bar): 2.1
• Maximum Regulated Pressure (kPa): 210
• Maximum Regulated Pressure (MPa): 0.21
• Maximum Regulated Pressure (psi): 30

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 18
• Maximum Working Pressure (kPa): 1800
• Maximum Working Pressure (MPa): 1.8
• Maximum Working Pressure (psi): 250

• Minimum Regulated Pressure (bar): 0
• Minimum Regulated Pressure (kPa): 0
• Minimum Regulated Pressure (MPa): 0
• Minimum Regulated Pressure (psi): 0

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Female

GG 221092

GG 224457

KIT, STRAIGHT SWIVEL HIGH PRES

Graco 224457 Gun Swivel

Attach this gun swivel to any airless spray gun providing a swiveling joint between gun and hose for improved maneuverability. 1/4 in npsm (m), 1/4 in npsm (f), Maximum Working Pressure of 3600 psi.

• Model: Graco

• End A Inlet Size (in): 0.25
• End A Inlet Size (mm): 6.35
• End A Inlet Thread Gender: Female
• End A Inlet Thread Type: NPSM
• End B Inlet Size (in): 0.25
• End B Inlet Size (mm): 6.35
• End B Inlet Thread Gender: Male
• End B Inlet Thread Type: NPSM

• For Use With: Airless Spray Guns

• Maximum Working Pressure (bar): 250
• Maximum Working Pressure (kPa): 25000
• Maximum Working Pressure (psi): 3600

GG 233481

TRITON SPRAYER, SS DIA PUMP, CART

Graco 233481 Triton Stainless Steel Pump Package, cart mount with suction hose. Does not include applicator.

Air-operated diaphragm spray package designed for the finishing market. It is a more effective alternative to traditional pressure pots and standard diaphragm pumps.

• Superior finish quality for conventional, HVLP and compliant or electrostatic applications
• Supplies up to 35% extra air flow to gun for superior atomization
• Saves material and time during flushing, priming and color changes
• Rugged, stainless steel or aluminum construction pump handles a wide variety of fluids

• Model: Triton
• Series: 308

• Compatible Material: CARC, Enamel, Epoxies, High Solids, Latex, Lacquer, Metallics, Stains, Single Components, Solvent borne Paints, Solvent borne, Varnish Primers, Waterborne

• Feed Type: Suction Hose

• Fluid Inlet Size (cm): 1.905
• Fluid Inlet Size (in): 3/4
• Fluid Inlet Size (mm): 19.05
• Fluid Inlet Thread Type: NPT

• Fluid Outlet Size (cm): 0.9525
• Fluid Outlet Size (in): 3/8
• Fluid Outlet Size (mm): 9.525
• Fluid Outlet Thread Type: NPT

• Gun Included: 0
• Gun Model: No Applicator
• Gun Technology: Bare Package
• Gun Type: No Applicator

• Includes: Suction Hose

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 8.5
• Maximum Flow Rate (L/min): 32

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kg/cm 2): 7.03
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Mount Location: Cart Mount
• Mount Type: Cart Mount

• Power Source: Air

• Pressure Type: Low Pressure
• Product Type: Bare Package

• Pump Ratio: 1:1
• Pump Type: Pneumatic Diaphragm Pump

GG 626060

GG 687056

GG 257682

GG 25B316

GG L40T16

PRO XP GUN, ES, 40KV, HC

Graco L40T16 Pro Xp40 Air Spray Manual Electrostatic High Conductivity Gun, 40 kV, 0.055 in (1.5 mm) precision high wear nozzle, standard display

This 40 kV electrostatic air spray gun comes in a compact, lightweight package. The longer fluid tube on the high conductivity gun lets you spray lower resistivity material.

• Metal tip precision high-wear nozzle, high-wear electrode, and more durable fluid tube improve longevity when spraying low resistivity materials, such as abrasives and metallic coatings.
• Removable black fluid tube cover allows operator to see fluid movement.
• Made in the USA
• Rugged, dependable design supported by a three year warranty
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements

• Model: Pro Xp
• Series: 40

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, High Conductivity, High Wear
• Applicator Type: Manual

• Coating Type: Abrasive, Metallic, High Conductivity, High Wear

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Standard

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 560
• Gun Weight (kg): 0.56
• Gun Weight (lb): 1.23
• Gun Weight (oz): 19.75

• Includes: Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Paint Resistivity (megohm/cm): 25

• Minimum Paint Resistivity (megohm/cm): 1

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 22.1
• Overall Length (in): 8.7
• Overall Length (mm): 221

GG L85M10

PRO XP GUN, ES, 85KV, SMART

Graco L85M10 Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 0.055 in (1.5 mm) nozzle, smart display, standard coatings

This 85 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market. It comes with smart technology that empowers you to maximize efficiency and productivity.

• Alternator speed indicator light ensures turbine speed is running at the correct level.
• Smart controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier.
• Painters experience less muscle strain and fatigue when using ergonomic, lightweight gun.
• Rugged, dependable design supported by a three year warranty
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements

• Model: Pro Xp
• Series: 85

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Smart

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 675
• Gun Weight (kg): 0.675
• Gun Weight (lb): 1.49
• Gun Weight (oz): 23.81

• Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm 2): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 48
• Maximum Fluid Temperature ( degree F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 25

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 26.67
• Overall Length (in): 10.5
• Overall Length (mm): 266.7

GG LCE800

GG LCF080

GG LTX517

RAC X LTX TIP, SPRAY, 517

Graco LTX517 RAC X SwitchTip, 517

The Reverse-A-Clean (RAC) 517 RAC X SwitchTip produces a 10 to 12 inch fan and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain

• For Use With: RAC X HandTite Tip Guard

• Material: Tungsten Carbide

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.017

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8

GG LTX515

RAC X LTX TIP, SPRAY, 515

Graco LTX515 RAC X SwitchTip, 515

The Reverse-A-Clean (RAC) 515 RAC X SwitchTip produces a 10 to 12 inch fan and has a 0.015 inch orifice. Reverse the SwitchTip to easily clear clogs.

• Best Tip on the Market

  Longest lasting fan pattern

  Highest quality finish with a consistent spray pattern

• Easy to Identify Tip Size

  Large raised tip size numbers are always legible - even when covered with paint

• Superior Tip Design

  Locking tab ensures tip stays securely in guard

  Snaps tip in spray or reverse position

  OneSeal tip gasket installs with no tools

  Solvent seal available when using extremely hot solvents

• Model: RAC X
• Series: LTX SwitchTip

• Compatible Material: Latex Paint, Latex Stain, Oil-Based Paint, Oil-Based Stain

• For Use With: RAC X HandTite Tip Guard

• Material: Tungsten Carbide

• Maximum Fan Width (cm): 25
• Maximum Fan Width (in): 10
• Maximum Fan Width (mm): 305

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (psi): 4050

• Minimum Fan Width (in): 10
• Minimum Fan Width (mm): 254

• Orifice Diameter (in): 0.015

• Pattern Size (in): 10 to 12
• Pattern Size (mm): 254 to 304.8

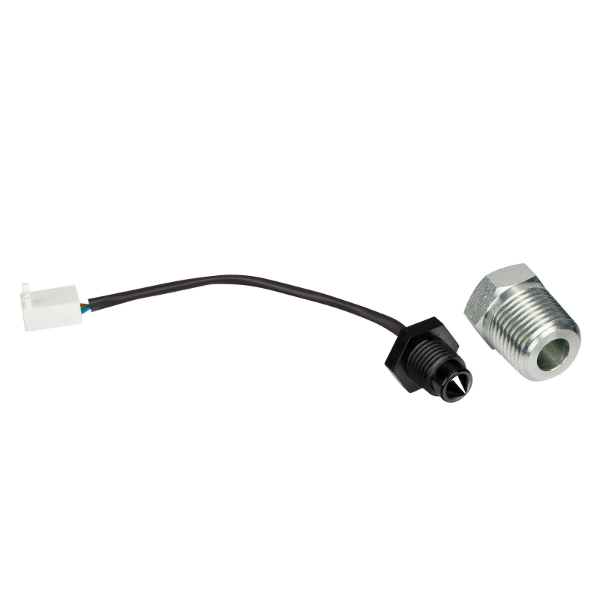

GG 25F108

KIT, ACCESSORY, LEAK SENSE

Graco 25F108 Standard Location Leak Sensor Accessory Kit

• Includes:


  1 level switch sensor

  1 reducer fitting

  2 elbow swivels (1/4 in. NPT, 3/8 in. hose port)

  1 tee union

  1 hose (30 in. long, 3/8 in. outer diameter)

  1 breather

• Application: Industrial

• Kit Type: Accessory Kit

GG 25M212

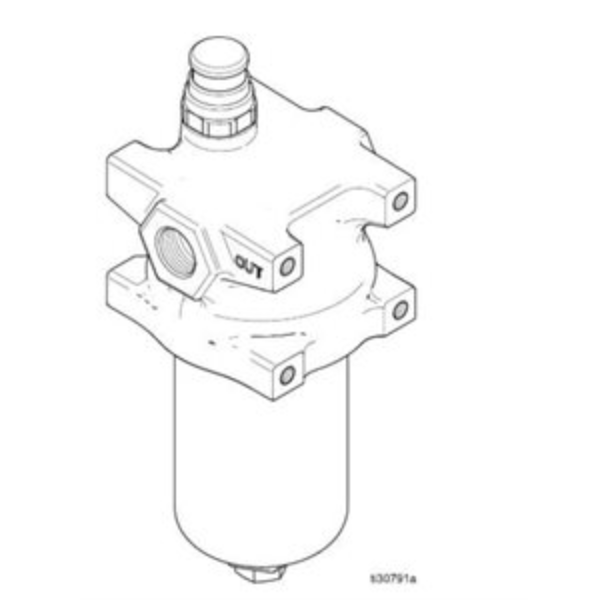

FILTER, RED ALERT

GG 253483

SEAT, VALVE

Graco 253483 Intake Valve Seat with Pressure Relief Valve, Carbide Seat

GG 255181

MD2 VALVE,DISPENSE,10:1,SOFT SEATS

Graco 255181 10:1 Ratio Soft Seat MD2 Valve

Accurately dispenses and mixes two-component sealants and adhesives.

• Minimizes maintenance time and costs while maximizing dispense time
• Designed with fewer parts and is easy to clean
• Streamlines maintenance and service Complete modular design adapts to different installation needs
• No unique tools required

• Model: MD2

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding

GG 255206

HANDLE, VALVE, AIR

GG 289143-S

GG 289799

KIT,NEEDLE

Graco 289799 Needle Assembly Kit for AirPro Pressure and Gravity Feed Guns with 0.047-0.070 inch (1.2-1.8 mm)

GG 295616

T2 PUMP, TRANSFER, 2:1

Graco 295616 T2 Supply Pump (Stainless Steel): 2:1 Fluid to Air Ratio

Gracos family of transfer pumps maintain performance in any environment. Transfer pumps are required to feed chemical to your Reactor spray machine or any other equipment requiring fluid transfer. Consider your material viscosities, desired output rate, interior ceiling height of your rig, and available air pressure when choosing your ideal transfer pump.

• Provide consistent feed pressures and flow rates for dependable results
• Lower pressure drops with higher viscosity materials at any ambient temperature
• Designed and manufactured by the worldwide leader in pump technology
• Quick-release bung adapter for easy drum removal without interference from hose connections
• Stainless steel wetted parts for corrosion-resistance
• PTFE seals for improved performance and less maintenance

• Model: T2

• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Industrial

• Compatible Material: Polyurethane Foam, Polyurea

• Cycles Per Gallon: 15.9

• Fluid Outlet Size (in): 3/4
• Fluid Outlet Size (mm): 19.05
• Fluid Outlet Thread Gender: Female
• Fluid Outlet Thread Type: NPT

• Material: Stainless Steel

• Maximum Air Inlet Pressure (bar): 12.5
• Maximum Air Inlet Pressure (kPa): 1250
• Maximum Air Inlet Pressure (MPa): 1.2
• Maximum Air Inlet Pressure (psi): 180

• Maximum Continuous Cycle Rate (CPM): 100

• Maximum Flow Rate (GPM): 5
• Maximum Flow Rate (L/min): 20

• Maximum Operating Temperature ( degree C): 88
• Maximum Operating Temperature ( degree F): 190

• Maximum Working Pressure (bar): 28
• Maximum Working Pressure (kPa): 2800
• Maximum Working Pressure (MPa): 2.8
• Maximum Working Pressure (psi): 405

• Package Options: Bare

• Pump Ratio: 2:1

GG CM7A3C

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L

Graco CM7A3C 20:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20 - For low-volume applications of medium to high-viscosity materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm 2): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 150.6
• Maximum Height (ft): 4.94
• Maximum Height (in): 59.3
• Maximum Height (m): 1.51
• Maximum Height (mm): 1506

• Maximum Operating Temperature ( degree C): 49
• Maximum Operating Temperature ( degree F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 90.9
• Minimum Height (ft): 2.98
• Minimum Height (in): 35.8
• Minimum Height (m): 0.91
• Minimum Height (mm): 909

• Overall Depth (cm): 48.26
• Overall Depth (in): 19
• Overall Depth (mm): 482.6

• Overall Width (cm): 43.18
• Overall Width (in): 17
• Overall Width (mm): 431.8

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG D05331

GG D05211

GG D05311

GG 24T842

KIT, ROD

GG 288185

KIT, PEEK NEEDLE TIP ,055

Graco 288185 Needle Tip Kit (5-pack, 4 grooves) for AirPro Guns with 0.047-0.070 in (1.2-1.8 mm) Nozzle

GG AEM413

TIP,MANUAL,ES

Graco AEM413 AEM Fine Finish Spray Tips, 0.013 inch (0.330 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width

GG AXM515

GG 24K999

GG 24N667

KIT, GUN BODY ASSY, 85KV

Graco 24N667 85 kV Gun Body Assembly Kit

GG 24N695

GG 24N725

KIT,HOUSING,SEAT,AA

Graco 24N725 Housing Seat for Standard Pro Xp Auto AA Gun Models

GG 24N743

KIT,TUBE,FLUID,AA,85KV

Graco 24N743 Fluid Tube for ProXp 85 kV Manual Electrostatic Air-Assisted Spray Gun

GG 24N781

KIT, NEEDLE, FLUID, AA, 85KV

Graco 24N781 Pro Xp Air-Assisted Gun Fluid Needle Kit

• Coating Type: Standard

• Compatible Paint Type: Epoxy, High Solids, Lacquers, Plural Component Materials, Polyurethanes, Solventborne, Urethanes, UV Curing, Varnishes

GG 24N793

KIT, RING, RETAINING, AA

• Coating Type: Standard

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes

GG 244819

GG 244820

GG 246012

GG 246354

GG 246356

GG 205612

VALVE, DISP, AUTO

GG 208997

VALVE, PRESS, BACK

Graco 208997 Back Pressure Regulator, Low Pressure Corrosion Resistant, 200 Max psi, SST, Manual, 1-1/4 (f) x 1-1/4 (f), with Gauge

Back pressure regulators use closed loop control to maintain the pressure of the system regardless of flow demand

• Stainless steel wetted materials are compatible with catalyst and waterborne materials
• Hardened stainless steel seat ensure low wear and long life
• PTFE/Elastomer hybrid diaphragm withstands wear while maintaining accurate responsiveness
• Air operated models available for automated control, Conversion kit (15J498)

• Compatible Material: Catalyst, Waterborne

• Gauge Port Size (cm): 0.635
• Gauge Port Size (in): 1/4
• Gauge Port Size (mm): 6.35

• Gauge Port Type: NPT

• Includes: Gauge
• Inlet Size (cm): 3.175
• Inlet Size (in): 1-1/4
• Inlet Size (mm): 31.75

• Inlet Thread Type: NPT

• Maximum Flow Rate (GPM): 15
• Maximum Flow Rate (L/min): 56.8

• Maximum Regulated Pressure (bar): 14
• Maximum Regulated Pressure (kPa): 1400
• Maximum Regulated Pressure (psi): 200

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 21
• Maximum Working Pressure (kPa): 2100
• Maximum Working Pressure (psi): 300

• Minimum Regulated Pressure (bar): 0.35
• Minimum Regulated Pressure (kPa): 35
• Minimum Regulated Pressure (MPa): 0.035
• Minimum Regulated Pressure (psi): 5

• Outlet Size (cm): 3.175
• Outlet Size (in): 1-1/4
• Outlet Size (mm): 31.75
• Outlet Thread Type: NPT

GG 21198-00

GG 16N963

KIT,REPAIR,THROAT SEALS,CATAL

KIT INCLUDES: SEAL, SLAVE PUMP WEEP [QTY. 2], SEAL, SNAP ON, CARTRIDGE [QTY. 1], O-RING, SILICONE #016 [QTY. 1], O-RING, O-RING, SILICONE, 2-014 [QTY. 2], RING, BACKUP, .518 ID, .053 WIDE [QTY. 2], TOOL, ASSEMBLY BULLET [QTY. 1], KIT, ASSEMBLY TOOL, WEEP SEAL [QTY. 1]

GG 121324

VALVE, SOLENOID, 3-WAY, .24W

Graco 121324 Solenoid 3-Way Dump Valve- .25 W

GG 122056

GG 123690

GG 156454

GG 15A179

DIAPHRAGM

GG 15A185

GG 100020

GG 100279

GG 100846

GG 101566

GG 102982

GG 104319

GG 106258

GG 107167

GG 107409

GG 189018

SWIVEL, ASSEMBLY

Graco 189018 Fluid swivel connector

Connector to ease movement of the gun and fluid hose

• Provides free movement of hose sections and guns without kinking.

• Swivels maintain a high pressure seal while providing fully rotational movement between hoses, guns, siphon tubes and other equipment.

GG 188611

GG 189434

GG 17H307

KIT, REPAIR, CHECK, 350CC

Graco 17H307 Check Valve Cartridge for Endura-Flo 350 pumps, 4 - pack, includes o-rings

GG 17K758

KIT,REPAIR, 750CC, S4B, COMP

Graco 17K758 Complete Pump Repair Kit for 750 cc Sealed 4-Ball Lowers

GG 15B206

GG 15D059

LINER, PRESS. TANK, 5 GAL. 20 PK

Graco 15D059 5 Gallon Pressure Pot tank liners, 20 pack

• Tough anti-static material resists cuts and tears for safe and clean handling
• Reduce cleaning time and keep materials segregated
• Reduce changeover time between jobs

• Compatible Tank Capacity (gal): 5
• Compatible Tank Capacity (L): 19

• Number of Pieces: 20

GG 15D060

LINER, PRESS. TANK, 10 GAL, 20 PK

Graco 15D060 10 Gallon Pressure Pot tank liners, 20 pack

• Tough anti-static material resists cuts and tears for safe and clean handling
• Reduce cleaning time and keep materials segregated
• Reduce changeover time between jobs

• Compatible Tank Capacity (gal): 10
• Compatible Tank Capacity (L): 45

• Number of Pieces: 20

GG 161575

GG 109261

GG 109482

GG 235627

ULTRA-LITE 4000 GUN, FLOW

Graco 235627 Ultra-Lite 4000 Flow Gun

The operator-friendly Ultra-Lite 4000 combines ergonomic design with high-operating pressure for dispensing low-to-medium viscosity industrial and automotive sealants and adhesives.

• Operating pressures to 4000 psi (276 bar, 27.6 MPa).
• 150 degree head/handle angle is more comfortable for operator
• Changeable tips for a variety of dispensing needs

• Model: Ultra-Lite
• Series: 4000

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation

• Connection Type: Threaded, Flange

• Gun Activation: Manual

• Inlet Size (in): 1/4

• Inlet Thread Gender: Female
• Inlet Thread Type: NPT

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kg/cm 2): 281
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Number of Outputs: 1

GG 117571

GASKET

Graco 117571 Santoprene Gasket for Low Pressure Stainless Steel Tanks
