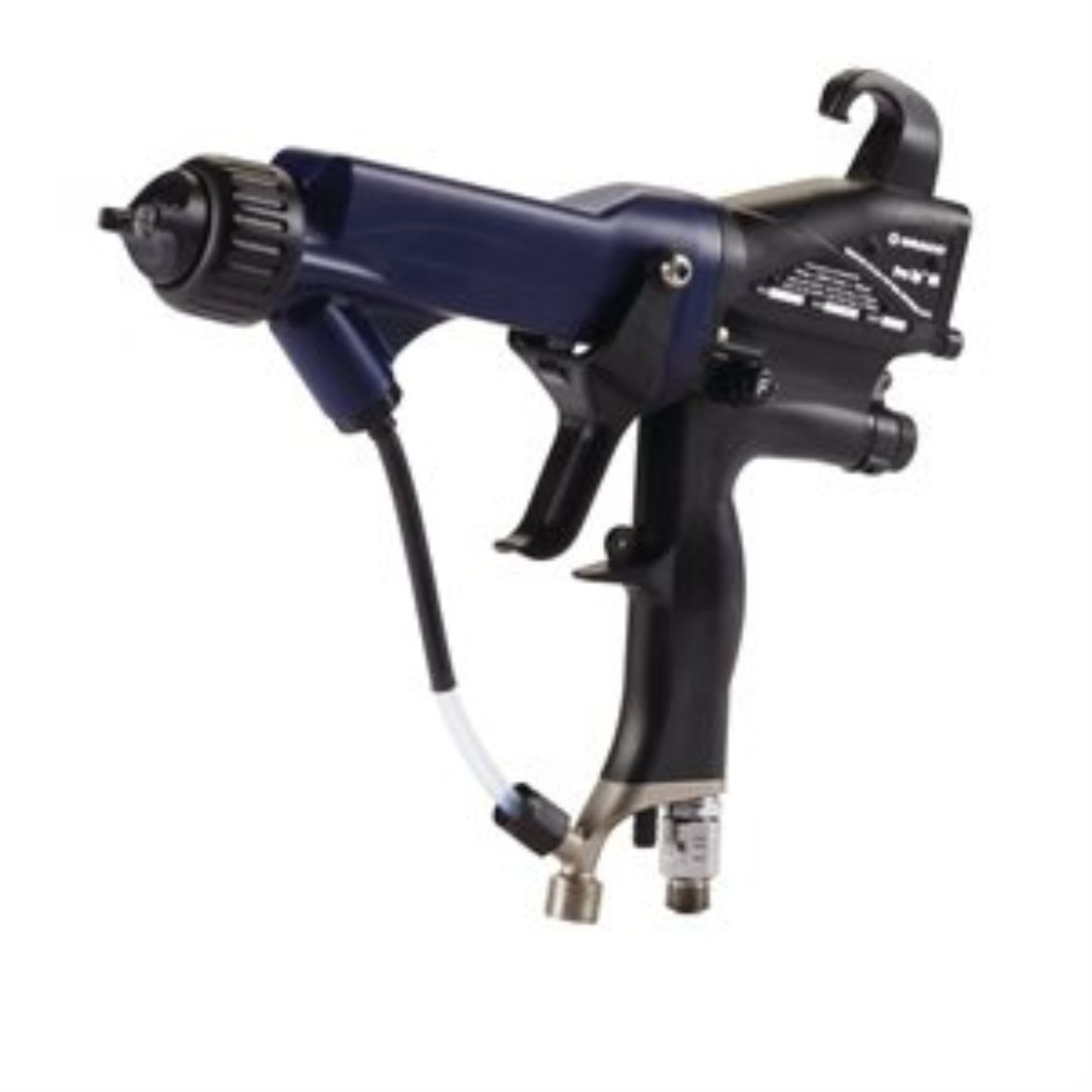

Gun, Pro Xp Electrostatic, 85kv, Smt.

GG L85M10

PRO XP GUN, ES, 85KV, SMART

Graco L85M10 Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 0.055 in (1.5 mm) nozzle, smart display, standard coatings

This 85 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market. It comes with smart technology that empowers you to maximize efficiency and productivity.

• Alternator speed indicator light ensures turbine speed is running at the correct level.
• Smart controls help you analyze performance, adapt to your voltage needs and make troubleshooting easier.
• Painters experience less muscle strain and fatigue when using ergonomic, lightweight gun.
• Rugged, dependable design supported by a three year warranty
• Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Gracos requirements

• Model: Pro Xp
• Series: 85

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Application: Electrostatic, Standard
• Applicator Type: Manual

• Coating Type: Standard, Specialty

• Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solvent borne, Urethanes

• Display Type: Smart

• Fluid Inlet Size (in): 3/8
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Type: Electrostatic
• Gun Weight (g): 675
• Gun Weight (kg): 0.675
• Gun Weight (lb): 1.49
• Gun Weight (oz): 23.81

• Includes: Smart Display, Air Cap, Nozzle, Tool Kit, Gun Cover, Exhaust Tube

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Fluid Pressure (bar): 7.0
• Maximum Fluid Pressure (kg/cm²): 7.14
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature (°C): 48
• Maximum Fluid Temperature (°F): 120

• Maximum Paint Resistivity (megohm/cm): Infinity

• Minimum Paint Resistivity (megohm/cm): 25

• Nozzle Size (cm): 0.15
• Nozzle Size (in): 0.055
• Nozzle Size (mm): 1.5

• Overall Length (cm): 26.67
• Overall Length (in): 10.5
• Overall Length (mm): 266.7
