IR D3141
1/2" 20V Cordless Compact Drill Driver Bare Tool, 450 in-lb Torque, Keyless Chuck, Pistol Grip

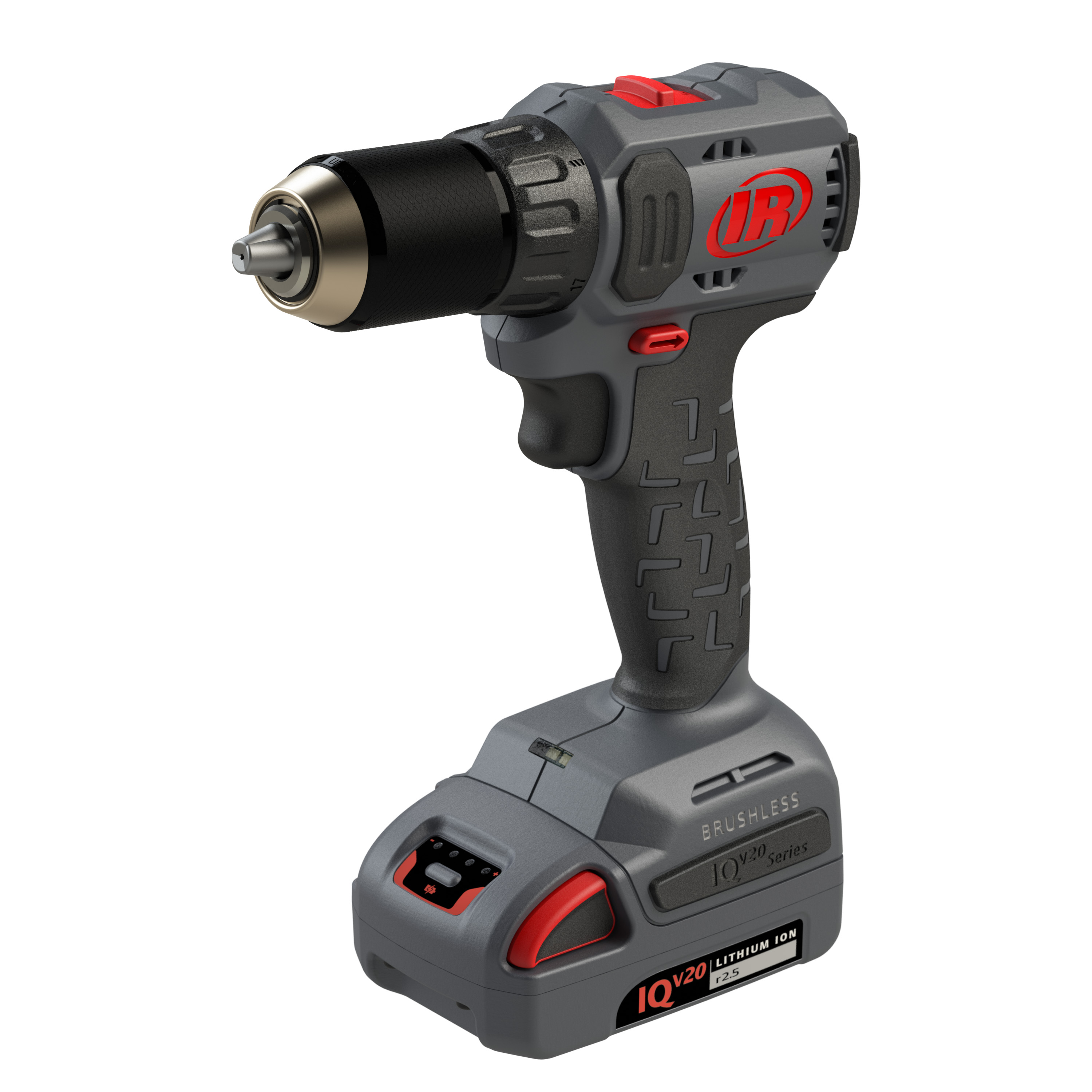

The Ingersoll Rand® D3141 IQV20™ Cordless Compact Drill Driver combines all the flexibility and dexterity of cordless tools with the power, durability, and strength that our professional-grade portfolio is known for. Weighing 3 lbs. with battery and 7" tip to tail length, it’s designed to help you access the toughest spots, from wheel hubs to heavy machinery gaskets. Also available in the D3141-K22 kit which includes (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.
Features And Benefits
- Performance: A powerful brushless motor runs with up to 450 in-lbs of torque, ensuring the IQV20™ Cordless Compact Drill Driver operates at the peak of power in any application.
- Versatility: Equipped with both drill and drive modes, to help get the job done right- no matter the application.
- Precision: Fine-tune fastening depth with an 18-position clutch that helps reduce cam-outs and keep you working efficiently.
- Ergonomics: Powerful things come in small packages. The IQV20™ Cordless Compact Drill Driver is 7" tip to tail and weighs 3 lbs. with battery.
- Durability: Impact-resistant rubberized design helps prevent accidental damage and increases longevity. IPX6 rated protection against harmful effects of water ingress.
- Speed: Whether you're drilling through sheet metal, wood or anything in between, two speed settings help you with the right level of torque.
- Strength: A 1/2" all-metal keyless chuck with carbide teeth grips drill bits and lets you drill through tough materials with ease.
- Visibility: An LED light located at the bottom of the tool reduces shadows so you can see your work area clearly.
- Also available in the D3141-K22 kit which includes the D3141 Drill Driver, (2) BL2012 2.5Ah Batteries, and 20V Battery Charger.

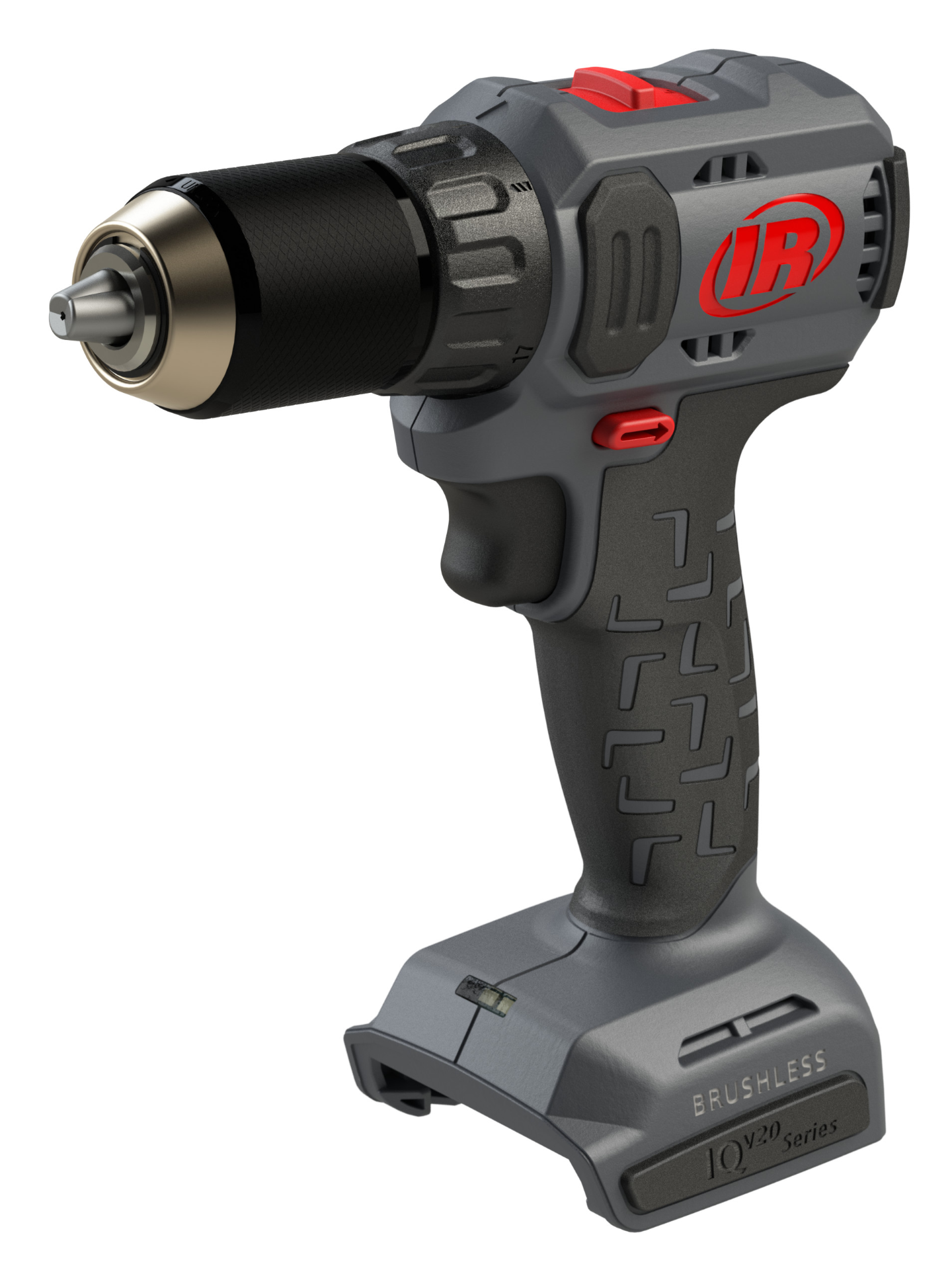

Includes: Bare tool only; batteries and charger sold separately or with other kits.
Product Application and Uses: Drilling, honing, reaming, hole sawing, drilling out spot welds and rivets, driving threaded fasteners in sheet metal, wood or anything in between.
Actuation/Throttle Type/Switch Type: Trigger
Adjustable Clutch: Yes
Built-in Light: Yes
Chuck Capacity/Bit Capacity (in): 1/2
Chuck Type: Keyless Chuck
Clutch Settings: 18
Color: Grey
Configuration/Handle Type: Pistol Grip
Handle Material: Overmolded Grip
Housing Material: Impact and chemical-resistant composite housing
Max Free Speed (rpm): 1800
Max Torque (ft-lb): 37
Max Torque (in-lb): 443
Max Torque (nm): 50
Motor: Brushless Motor
Number of Batteries Required: 1
Power Source: Battery Powered
Product Length (in): 7.1
Product Width (in): 3.1
Product Height (in): 8.3
Product Height (in) (with Battery): 9.1
Product Weight (lb): 2.2
Product Weight (lb) (with Battery): 3.1
Recommended Forward Torque Range (ft-lb): 37
Recommended Forward Torque Range (in-lb): 443
Recommended Forward Torque Range (nm): 50
Reversible: Reversible
RPM Setting 1: 500
Sound Pressure/Power Db(A): 73 / 81
Special Features: Compact
Speed Setting: Dual speed
Standards/Certifications: ETL, CB, CE, IPX6
Tool Type: Compact
Vibration Level (m/s2): 4.0
Vibration Uncertainy K* (m/s2): 1.5
Voltage DC: 20
Warranty: 3-year tool, 2-year Battery, 3-year Charger
Wireless Tool Tracking: No Wireless Functionality
