Cordless Tools

IR QXBD2AT005PQ04

1/4" Hex 20V Cordless QX Precision Fastening Angle Torque Wrench, 44 in-lb Torque, 1213 RPM

Description: Increase the productivity of your assembly line with the Cordless 20V Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. The QXBD models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 1213
• Max Torque (ft-lb): 3.7
• Max Torque (in-lb): 44
• Max Torque (nm): 5
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 21.73

• Product Height (in) (with Battery): 3.94
• Product Weight (lb): 2.5
• Recommended Forward Torque Range (ft-lb): 0.7-3.7
• Recommended Forward Torque Range (in-lb): 8.9-44
• Recommended Forward Torque Range (nm): 1.0-5
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 0.36
• Side to Center Distance (mm): 9

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBD2AT010PS06

3/8" 20V Cordless QX Precision Fastening Angle Wrench, 89 in-lb Torque, 936 RPM

Description: Increase the productivity of your assembly line with the Cordless 20V Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. The QXBD models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 936
• Max Torque (ft-lb): 7.4
• Max Torque (in-lb): 89
• Max Torque (nm): 10
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 20.67

• Product Height (in) (with Battery): 3.94
• Product Weight (lb): 2.6
• Recommended Forward Torque Range (ft-lb): 1.5-7.4
• Recommended Forward Torque Range (in-lb): 18-89
• Recommended Forward Torque Range (nm): 2.0-10
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.49
• Side to Center Distance (mm): 12

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBD2AT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Angle Torque Wrench, 159 in-lb Torque, 500 RPM

Description: Increase the productivity of your assembly line with the Cordless 20V Angle Wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. The QXBD models also offer users the Bluetooth connectivity capability to wirelessly program the QX Connect Series tools using the INSIGHT Connect App.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 24.34

• Product Height (in) (with Battery): 3.94
• Product Weight (lb): 2.8
• Recommended Forward Torque Range (ft-lb): 2.7-13
• Recommended Forward Torque Range (in-lb): 32-159
• Recommended Forward Torque Range (nm): 3.6-18
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 0.51
• Side to Center Distance (mm): 13

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBD2PT004PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Square

• Max Free Speed (rpm): 1500
• Max Torque (ft-lb): 3.0
• Max Torque (in-lb): 35
• Max Torque (nm): 4
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.2

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 0.6-3.0
• Recommended Forward Torque Range (in-lb): 7.1-35
• Recommended Forward Torque Range (nm): 0.8-4
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Vibration Level (m/s2): < 2.5
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBD2PT004PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb Torque, 1500 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 1500
• Max Torque (ft-lb): 3.0
• Max Torque (in-lb): 35
• Max Torque (nm): 4
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 0.6-3.0
• Recommended Forward Torque Range (in-lb): 7.1-35
• Recommended Forward Torque Range (nm): 0.8-4
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Vibration Level (m/s2): < 2.5
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

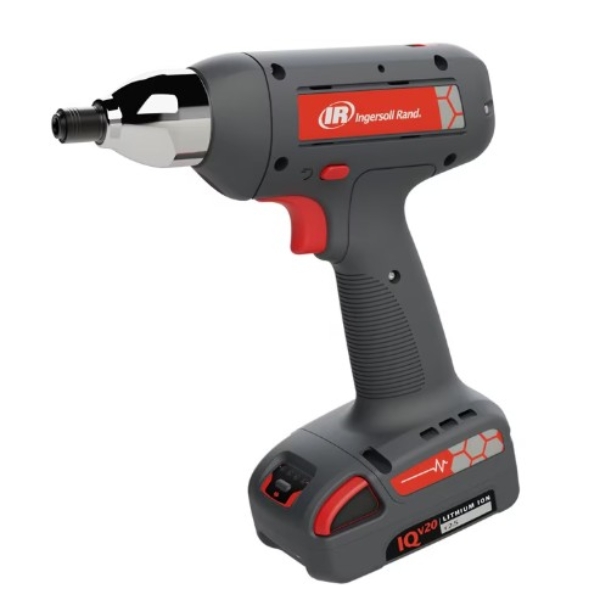

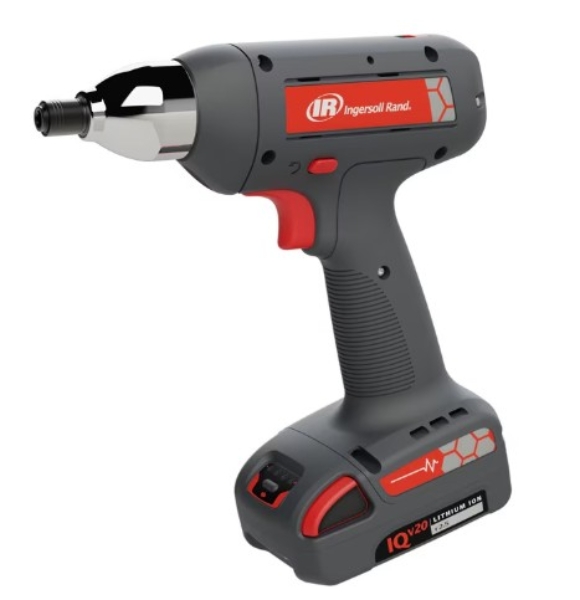

IR QXBD2PT008EQ04

1/4" Hex 20V Cordless QX Precision Fastening ETS Screwdriver, 70 in-lb, 1150 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn't have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.13

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

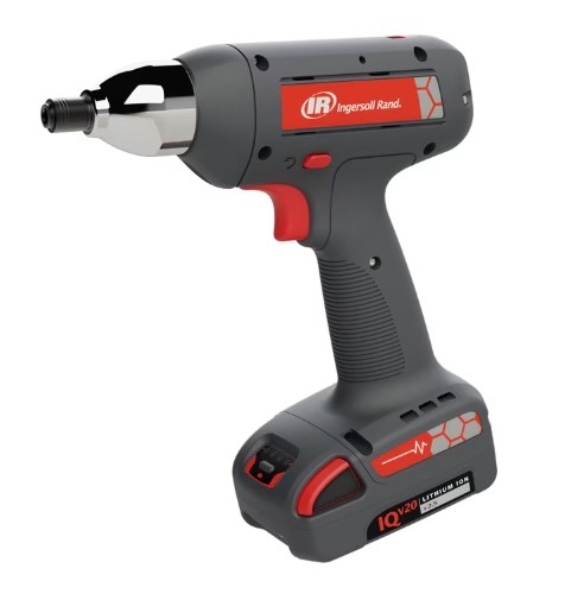

IR QXBD2PT008ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 70 in-lb, 1150 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn't have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 7.99

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBD2PT008PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Square

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.2

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBD2PT008PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb Torque, 1150 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

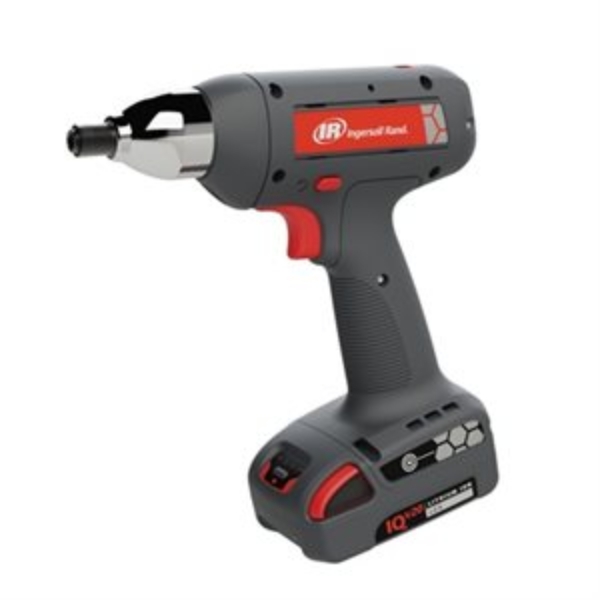

IR QXBD2PT012ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 106 in-lb, 750 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn't have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 7.99

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.8-8.9
• Recommended Forward Torque Range (in-lb): 21-106
• Recommended Forward Torque Range (nm): 2.4-12
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBD2PT012PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb Torque, 750 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Square

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.2

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.8-8.9
• Recommended Forward Torque Range (in-lb): 21-106
• Recommended Forward Torque Range (nm): 2.4-12
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBD2PT018PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb Torque, 500 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 2.7-13
• Recommended Forward Torque Range (in-lb): 32-159
• Recommended Forward Torque Range (nm): 3.6-18
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

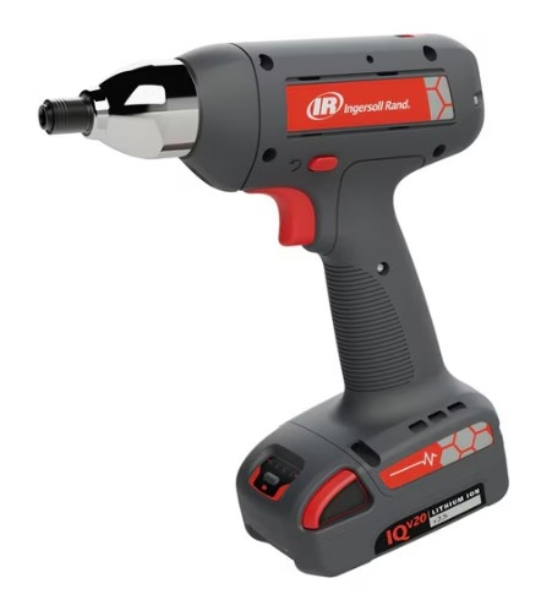

IR QXBD2PT024ES06

3/8" 20V Cordless QX Precision Fastening ETS Screwdriver, 212 in-lb, 500 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Pistol Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable, accurate results. Reducing torque reaction doesn't have to be complicated with the QX Series Ergonomic Tightening System. Control and ergonomics, not compromise – that is what the QX ETS is all about. The QX ETS offers all the capabilities found in the QX Series platform, without the torque reaction.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Bluetooth further add mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20-volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App, and ICS Software.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol – ETS (ergonomic tightening system)
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 18
• Max Torque (in-lb): 212
• Max Torque (nm): 24
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): -
• Recommended Forward Torque Range (in-lb): -
• Recommended Forward Torque Range (nm): 4.8 – 24
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• User Interface: Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

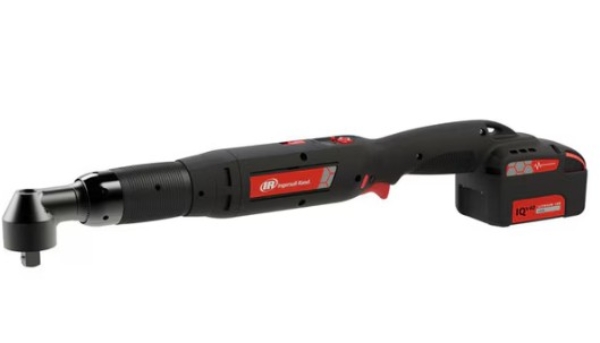

IR QXBD5AT040PS08

1/2" 40V Cordless QX Precision Fastening Angle Torque Wrench, 354 in-lb, 545 RPM

Description: Increase the productivity of your assembly line with the 40V high torque Angle wrench. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBD models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time.

Features And Benefits:

• Comes with 32 programmable tightening configuration.
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• The QX Series IQV40 high torque tools utilize the BL4011 40V 2.5Ah battery for increased torque and runtime. The BL4011 is optimum for longer-use applications. The 40-volt batteries utilize our IQv Series 40V, 2.5Ah charger BC1161.
• Insight Connect Android APP LINK.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square

• Max Free Speed (rpm): 545
• Max Torque (ft-lb): 30
• Max Torque (in-lb): 354
• Max Torque (nm): 40
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 23.07

• Product Height (in): 3.94
• Product Weight (lb): 5
• Recommended Forward Torque Range (ft-lb): 5.9-30
• Recommended Forward Torque Range (in-lb): 71-354
• Recommended Forward Torque Range (nm): 8.0-40
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.85
• Side to Center Distance (mm): 22

• User Interface: Display
• Voltage DC: 40
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2AT027PS06

3/8" 20V Cordless QX Precision Fastening Angle Screwdriver, 239 in-lb, 330 RPM

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: No

• Color: Grey
• Configuration/Handle Type: Right Angle
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 330
• Max Torque (ft-lb): 20
• Max Torque (in-lb): 239
• Max Torque (nm): 27
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 21.73

• Product Height (in) (with Battery): 3.94
• Product Weight (lb): 3.7
• Recommended Forward Torque Range (ft-lb): 4.0-20
• Recommended Forward Torque Range (in-lb): 48-239
• Recommended Forward Torque Range (nm): 5.4-27
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 0.67
• Side to Center Distance (mm): 17

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2PT004PS04

1/4" 20V Cordless QX Precision Screwdriver, 35 in-lb, 1500 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Square

• Max Free Speed (rpm): 1500
• Max Torque (ft-lb): 3.0
• Max Torque (in-lb): 35
• Max Torque (nm): 4
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.2

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 0.6-3.0
• Recommended Forward Torque Range (in-lb): 7.1-35
• Recommended Forward Torque Range (nm): 0.8-4
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Vibration Level (m/s2): < 2.5
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2PT004PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 35 in-lb, 1500 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 1500
• Max Torque (ft-lb): 3.0
• Max Torque (in-lb): 35
• Max Torque (nm): 4
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 0.6-3.0
• Recommended Forward Torque Range (in-lb): 7.1-35
• Recommended Forward Torque Range (nm): 0.8-4
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Vibration Level (m/s2): < 2.5
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2PT008PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb, 1150 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.48

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2PT008PS04

1/4" 20V Cordless QX Precision Screwdriver, 70 in-lb, 1150 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Square

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.2

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2PT008PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 70 in-lb, 1150 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 1150
• Max Torque (ft-lb): 5.9
• Max Torque (in-lb): 71
• Max Torque (nm): 8
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.2-5.9
• Recommended Forward Torque Range (in-lb): 14-71
• Recommended Forward Torque Range (nm): 1.6-8
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2PT012PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb, 750 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.48

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.8-8.9
• Recommended Forward Torque Range (in-lb): 21-106
• Recommended Forward Torque Range (nm): 2.4-12
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2PT012PS04

1/4" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb, 750 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Square

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.2

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.8-8.9
• Recommended Forward Torque Range (in-lb): 21-106
• Recommended Forward Torque Range (nm): 2.4-12
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2PT012PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 106 in-lb, 750 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 750
• Max Torque (ft-lb): 8.9
• Max Torque (in-lb): 106
• Max Torque (nm): 12
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 1.8-8.9
• Recommended Forward Torque Range (in-lb): 21-106
• Recommended Forward Torque Range (nm): 2.4-12
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• Sound Pressure/Power Db(A): < 70.0

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

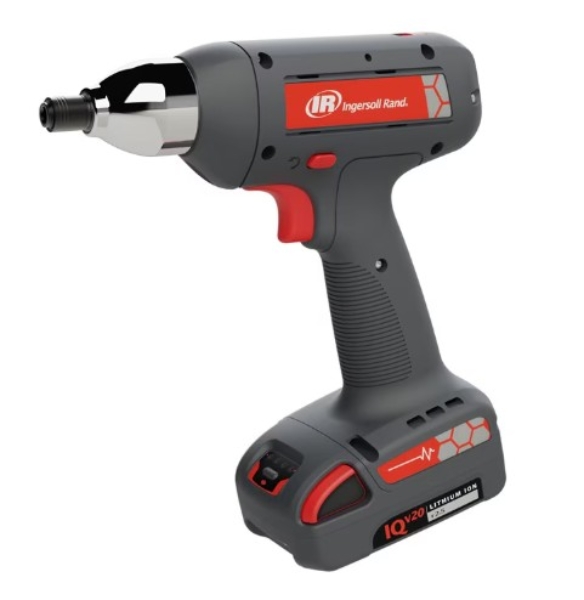

IR QXBN2PT018PQ04

1/4" Hex 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb, 500 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.48

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 2.7-13
• Recommended Forward Torque Range (in-lb): 32-159
• Recommended Forward Torque Range (nm): 3.6-18
• Retainer Type: Quick Change
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C

IR QXBN2PT018PS06

3/8" 20V Cordless QX Precision Fastening Screwdriver, 159 in-lb, 500 RPM, Pistol

Description: Increase the productivity of your assembly line with the 20V Precision Screwdriver. Offering 32 programmable configurations in a single tool, this member of the QX Connect Series Precision Fastening System streamlines your operation into one tool with traceable results! The QXBN models further add Bluetooth connectivity to wirelessly program the QX Connect Series tools using the INSIGHT Connect App reducing set up time. Reducing torque reaction doesn't have to be complicated with the QX- ETS Series Ergonomic Tightening System. Add mobility and enhance the simplicity and flexibility of Ingersoll Rand QX Series cordless assembly tools with the INSIGHT Connect app.

Features And Benefits:

• Now Comes with 32 programmable tightening configuration.
• Bluetooth further adds mobility to enable Wireless programming using the INSIGHT Connect app
• Enhanced quantitative feedback – displaying the actual measured torque or angle result.
• 1,200 cycles of onboard tightening data storage.
• Configurable preventative maintenance alarms.
• Intuitive qualitative feedback using Green, Red, and Yellow indicators.
• All QX Series IQV20 tools are compatible with both the BL2022 and BL2012 batteries. The BL2022 is optimum for longer use applications while the BL2012 is ideal for tighter spaces and reduced weight. The 20 volt batteries utilize our 20V battery charger.
• Insight Connect Android APP LINK.
• Optional ergonomic tightening system to reduce torque reaction experienced by operator.
• Multiple Programming Methods: Through USB with, INSIGHTqcx Controller, Insight Connect Android App and ICS Software, Through On Board Tool Display/ Key.

• Includes: Bare tool only, batteries and charger sold separately.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square

• Max Free Speed (rpm): 500
• Max Torque (ft-lb): 13
• Max Torque (in-lb): 159
• Max Torque (nm): 18
• Motor: Brushless Motor

• Power Source: Battery Powered
• Product Length (in): 8.35

• Product Height (in) (with Battery): 10.07
• Product Weight (lb): 2
• Recommended Forward Torque Range (ft-lb): 2.7-13
• Recommended Forward Torque Range (in-lb): 32-159
• Recommended Forward Torque Range (nm): 3.6-18
• Retainer Type: Pin Detent
• Reversible: Reversible

• Side to Center Distance (in): 1
• Side to Center Distance (mm): 25

• User Interface: No Display
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: USB-C
