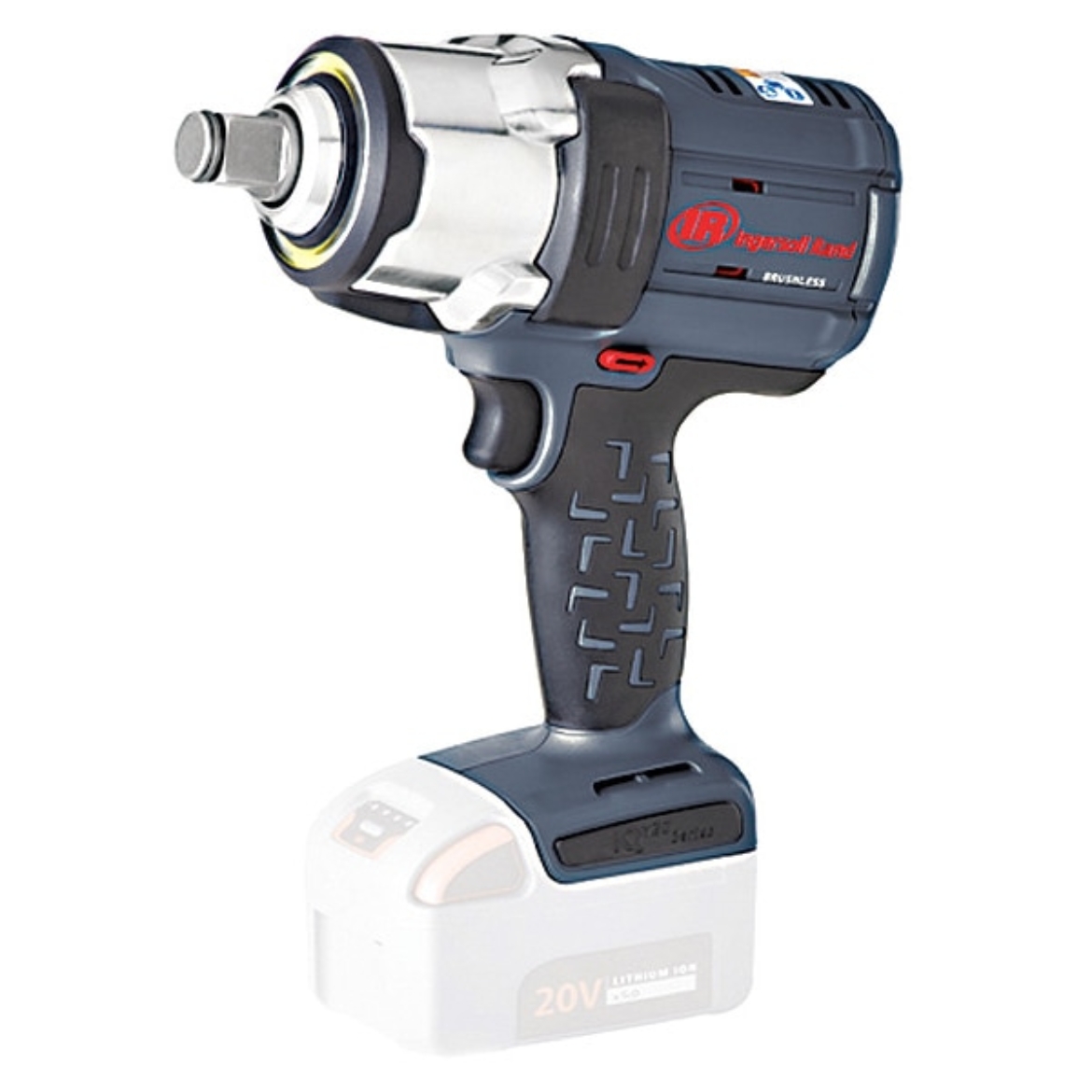

3/4" 20V Impact, W7172

IR W7172

3/4" 20V Cordless Impact Wrench, 1500 ft-lb Torque, Friction Ring and Thru-hole Retainer, Pistol, Bare Tool

Description: The IQV 20 Series W7172 3/4" 20V High Torque Impact Wrench delivers 1500 ft-lb of nut busting torque and utilizes the IQV Power Control System, going from MAX torque to "hand tight" in no time with the best in class length from tip to tail.

Features And Benefits:

• Power: Powerful brushless motor and impact mechanism are finely tuned for best in class power-to-weight ratio. 1500 ft-lb nut-busting torque and 1000 ft-lb of MAX torque.
• Control: Includes the IQV Power Control System with 4 modes: Full Power, Half Power, Wrench Tight, and Hand Tight. From axle nuts to oil pans, flange bolts to pre-torque joints there's no need to switch tools.
• Access: 8.5" short tip-to-tail design and 360⁰ shadowless task light with 4 dimmable settings provides increased visibility and access.
• Robust and durable all-metal drivetrain and hammer mechanism optimized for maximum power and efficiency.
• Variable-speed switch (half and full power only) with electronic brake provides maximum control of the tool and increases safety—release trigger, drive stops spinning.
• Patented steel-reinforced nylon casing protects against aggressive fluids, chemicals and repeated drops.
• Ideally used for removing or fastening cradle bolts, tire changing, fleet truck maintenance and in industrial and MRO settings.
• Weighs only 7.8 lbs (with BL2022 battery).
• 3-year warranty.
• Compatible with IQV 20 Series Battery System

Product Application and Uses:

Cordless impact wrenches are designed to remove and install threaded fasteners. Applications include tire changing, cradle bolts, fleet truck maintenance, industrial and MRO.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Actuation/Throttle Type/Switch Type: Trigger
• Anvil Length: Standard

• Blows per Min: 2450 (BL2022)
• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: General Duty

• Forward Torque setting 1 (ft-lb): 3.7-10
• Forward Torque setting 1 (in-lb): 44-124
• Forward Torque setting 1 (nm): 5-14
• Forward Torque setting 2 (ft-lb): 37-111
• Forward Torque setting 2 (in-lb): 443-1328
• Forward Torque setting 2 (nm): 50-150
• Forward Torque setting 3 (ft-lb): 531
• Forward Torque setting 3 (in-lb): 6373
• Forward Torque setting 3 (nm): 720
• Forward Torque setting 4 (ft-lb): 1003
• Forward Torque setting 4 (in-lb): 12037
• Forward Torque setting 4 (nm): 1360

• Hammer Case: Steel-lined Aluminum
• Head Width (in): 2.7
• Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
• Impact Mechanism: Ball and Cam

• Max Bolt Diameter (in): 3/4
• Max Free Speed (rpm): 1900
• Max Torque (ft-lb): 1003
• Max Torque (in-lb): 12037
• Max Torque (nm): 1360
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Number of Power Settings: 4
• Nut-busting/Breakaway Torque (ft-lb): 1505
• Nut-busting/Breakaway Torque (in-lb): 18056
• Nut-busting/Breakaway Torque (nm): 2040
• Power Source: Battery Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 194.81
• Product Length (in): 8.5

• Product
