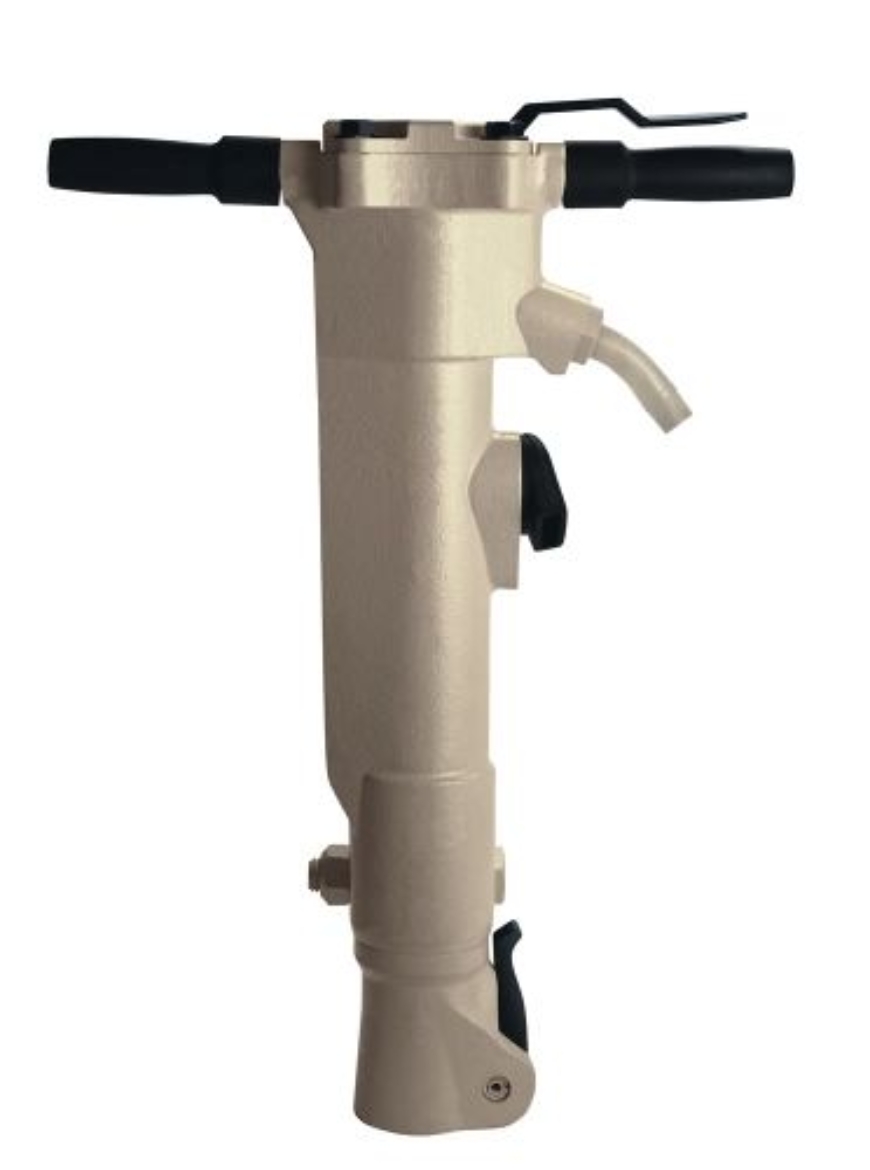

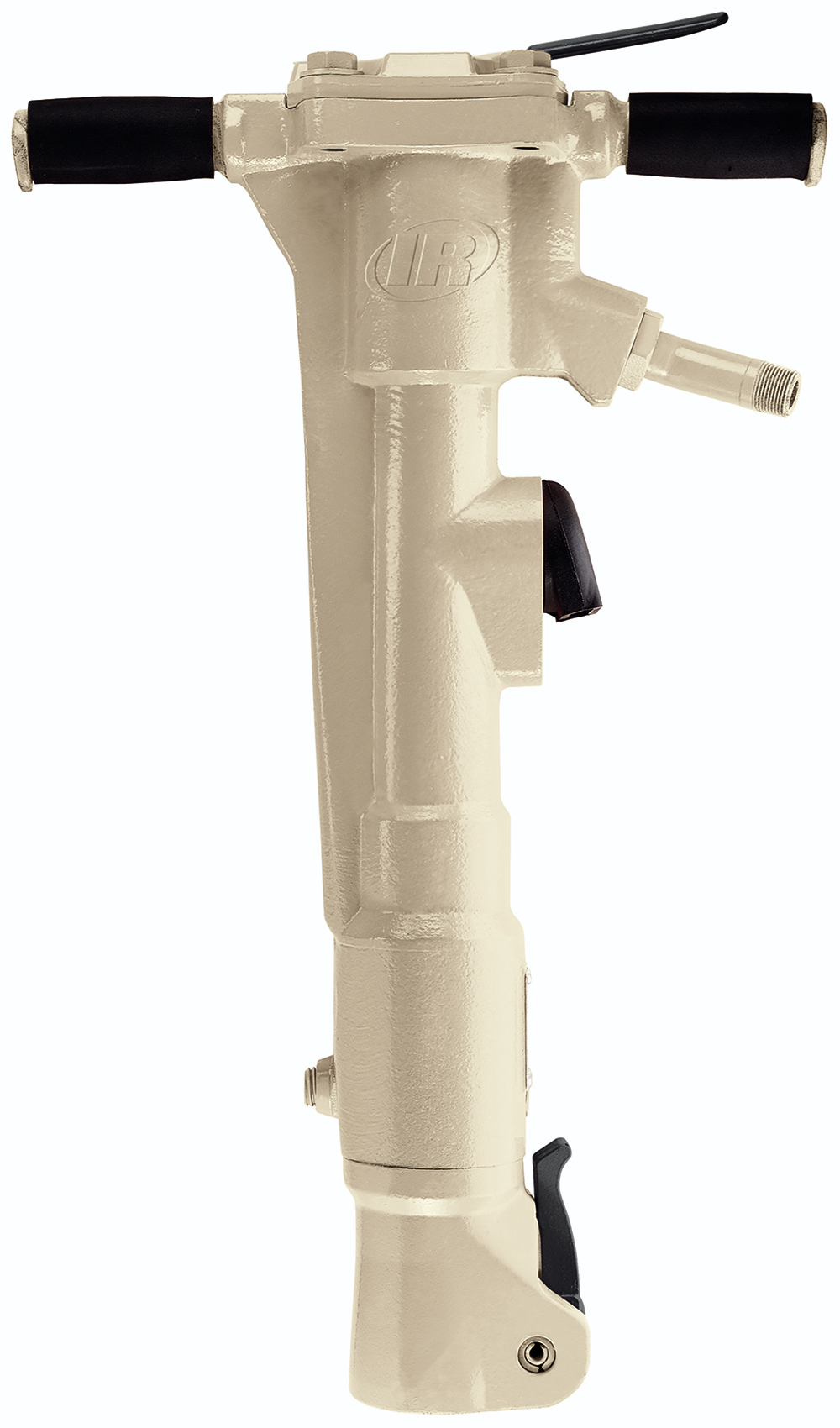

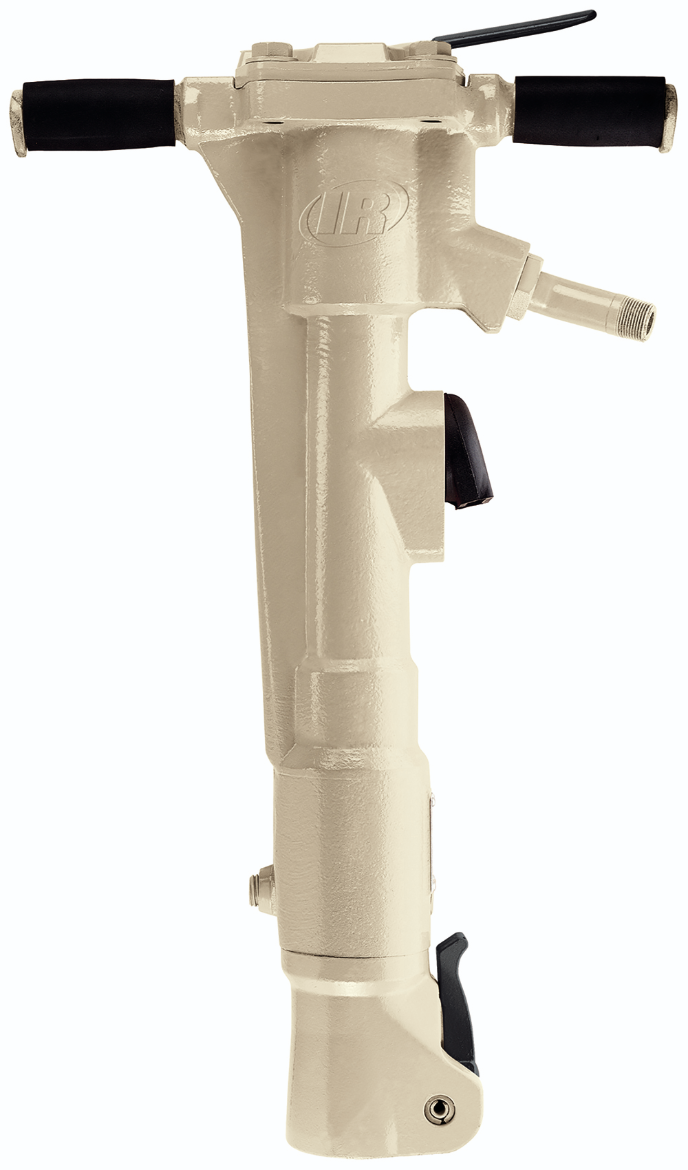

IR MX60A
Pavement Breaker 1-1/8 x 6" Hex Shank, 5-3/4" Stroke Length, 1250 BPM, 2.06" Bore
The most versatile of our available pavement breakers, the MX60 is great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and you can choose between a standard or "flex handle" to add to vibration reduction. With one of the fewest parts in the industry, the MX Series is easier and less complex to service.
Features And Benefits
- Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
- Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
- Power: The MX60 delivers large blow energy at 1250 BPM thanks to our Power-Strok™ piston technology.
Product Application and Uses: Mx60 And Mx90 Models Are Great For Anything From Heavy Asphalt Removal To Industrial Maintenance To Heavy Demolition
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 70
Air Consumption @ Load (l/min): 1982
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.06
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Height Over Spindle (in): 27.5
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Optional
Power Source: Air Powered
Product Length (in): 27.5
Product Width (in): 7.4
Product Weight (lb): 76
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Standards/Certifications: Standards
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year
