IR 241A1M

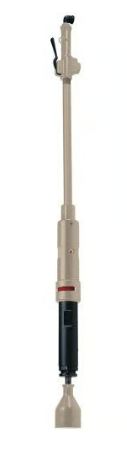

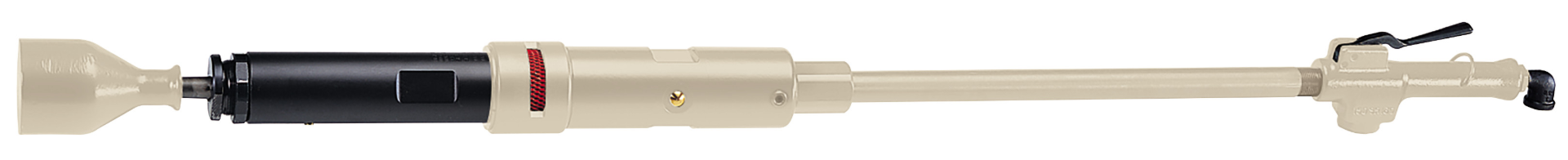

Pneumatic Floor Sand Rammer, 3" Round Malleable Butt, 4" Stroke, 1-5/16" Bore
Versatile, powerful and ergonomic, this floor sand rammer can handle any heavy duty job with ease, without having to worry about dirt and grit getting inside and ruining the machinery.
Features And Benefits
- Versatile: The floor sand rammer comes with a long handle attachment that can be added for standing operation.
- Durability: With a front-end seal and plated piston, this tool is designed to combat wear and last through the toughest environments.
- Reliability: Ingersoll Rand tools are built to last, and this floor sand rammer is no different. Comes with a 1-year warranty.
Product Application and Uses: Designed for use in foundries for compacting sand in floor level molds and patterns and tamping backfill in construction applications.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 29
Air Consumption @ Load (l/min): 821
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 1590
Bore Diameter (in): 1-5/16
Butt Diameter (in): 3
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Muffler: Built In
Power Source: Air Powered
Product Length (in): 52.75
Product Weight (lb): 27
Retainer Type: Latch
Shank Opening: 1-5/16"
Sound Pressure/Power Db(A): 92.3 / 103.3
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Steels: Yes
Stroke Length (in): 4
Vibration Level (m/s2): 56.2
Vibration Uncertainy K* (m/s2): 18.5
Warranty: 1-year
