Breakers and Busters

Z3150

1 X 4 1/4 X 18 X 3 CHSL

IR 241SR-118

NUT

IR 3DA1SA

Air Chipping Hammer, 3" Stroke, 1900 BPM, Hex Shank Oval Collar

The D Series chipping hammers are ready and equipped for any task, from light demolition work to metal removing. With an easily serviceable D-handle and directional exhaust for your convenience, these are hammers you can rely on.

Features And Benefits

• Weight: At 13 lbs., these tools are lightweight and easy to use.
• Reliability: Equipped with a steel cone, you never have to worry that the bit will fall out during production. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 31
Air Consumption @ Load (l/min): 879
Air Inlet: 7/8" NPT
Air Pressure (psi): 90
Blows per Min: 1900
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1
Muffler: No
Power Source: Air Powered
Product Length (in): 17
Product Weight (lb): 13
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.58
Shank Type: Hex
Stroke Length (in): 3
Warranty: 1-year

IR 4DA1SA

Air Chipping Hammer, 4" Stroke, 1600 BPM, Hex Shank Oval Collar

The D Series chipping hammers are ready and equipped for any task, from light demolition work to metal removing. With an easily serviceable D-handle and directional exhaust for your convenience, these are hammers you can rely on.

Features And Benefits

• Weight: At 14 lbs., these tools are lightweight and easy to use.
• Reliability: Equipped with a steel cone, you never have to worry that the bit will fall out during production. Comes with a 1-year warranty.

Product Application and Uses: These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 34
Air Consumption @ Load (l/min): 963
Air Inlet: 7/8" NPT
Air Pressure (psi): 90
Blows per Min: 1600
Bore Diameter (in): 1.125
Collar Type: Oval
Color: Beige
Configuration/Handle Type: D-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Aluminum
Max Pressure (bar): 6.2
Min Hose Size (in): 1
Muffler: No
Power Source: Air Powered
Product Length (in): 18
Product Weight (lb): 14
Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)
Shank SIze (in): 0.58
Shank Type: Hex
Stroke Length (in): 4
Warranty: 1-year

IR 51291425

BUSHING

IR 51305860

36" Moil Point Pavement Breaker/Digger Steel, Hex 7/8" x 3-1/4" Shank

Ingersoll Rand offers a complete line of construction tool steels and accessories for countless applications. Our construction heritage dates back to 1871 with the invention of the world’s first rockdrill. Drawing on our long and successful history in the construction industry, we use top-grade materials to manufacture a line of tough, durable products that are versatile enough to be used in virtually every tool brand. Choose from a complete line of tool steels for your pavement breaker, with products for many applications including concrete, asphalt, excavation, and general demolition.

Includes: (1) Steel Rod
Product Application and Uses: Ideal for concrete, asphalt, excavation, and general demolition. For use with Ingersoll Rand 93A1, 93LA1, 95A1, 95LA1 diggers.
Chisel Style: Moil Point
Collar Type: Round
Collar Width (in): 1.563
Housing Material: Steel
Length Under Collar (in): 36
Product Length (in): 39.25
Product Weight (lb): 7.5
Shank Length (in): 3.25
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex

For Use With

• 93A1
• 93LA1
• 95A1
• 95LA1

IR 51716454

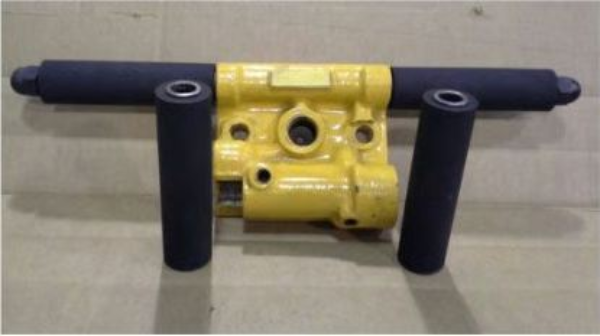

Grip (50973379) JH40

IR 51943017

LEVER

IR 95L-A240

FRONTHEAD ASY (73L-A240

IR JH40C1

Jack Hammer, 7/8 x 3-1/4" Hex Shank, 2.63" Stroke

The JH40 Series jackhammer sports a hole capacity of up to 18 feet deep and 2 inches across, and is tough enough to blast away hard rock. Great for blasting holes, industrial work, and excavation projects, the JH40 will see you through any project.

Features And Benefits

• Wet or Dry Drilling: Take the JH40 to any environment you need to work in.
• Capacity: Hole capacity of up to 18 feet deep and 2 inches across.
• Powerful: With 2000 blows per minute, the JH40 Series jackhammer lives up to the strength and power our customers have come to expect from Ingersoll Rand tools.
• Applications: Great for blasting holes, industrial work, and excavation projects, the JH40 will see you through any project.

Product Application and Uses: Blasting holes, industrial work, and excavation projects.
Air Consumption @ Load (cfm): 115
Air Consumption @ Load (l/min): 3257
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2000
Bore Diameter (in): 2.5
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Side
Max Hole Depth (ft): 18
Max Hole Diameter (in): 2
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 22.5
Product Weight (lb): 61
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex
Stroke Length (in): 2.63
Warranty: 1-year

Similar IR

• JH40C2
• JH40C3

IR JH40C2

Jack Hammer, 7/8 x 4-1/4" Hex Shank, 2.63" Stroke

The JH40 Series jackhammer sports a hole capacity of up to 18 feet deep and 2 inches across, and is tough enough to blast away hard rock. Great for blasting holes, industrial work, and excavation projects, the JH40 will see you through any project.

Features And Benefits

• Wet or Dry Drilling: Take the JH40 to any environment you need to work in.
• Durable: Tough enough for any workspace, the JH40 will become a trusted companion anytime you need a rugged jackhammer on the job.
• Powerful: The JH40 Series jackhammer lives up to the strength and power our customers have come to expect from Ingersoll Rand tools.

Product Application and Uses: Blasting holes, industrial work, and excavation projects.
Air Consumption @ Load (cfm): 115
Air Consumption @ Load (l/min): 3257
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2000
Bore Diameter (in): 2.5
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Side
Max Hole Depth (ft): 18
Max Hole Diameter (in): 2
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 22.5
Product Weight (lb): 61
Shank SIze (in): 7/8 x 4-1/4
Shank Type: Hex
Stroke Length (in): 2.63
Warranty: 1-year

Similar IR

• JH40C1
• JH40C3

IR JRD30-B

Rock Drill, 7/8 x 4-1/4" Hex Shank, 1.44" Stroke

The JRD30 Series rock drill is one of our most versatile units. Perfect for both wet and dry drill jobs, the JRD30 can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.

Features And Benefits

• Easy Access: The JRD30 Series is easy enough to maneuver in tight spaces, and light enough to use when the occasion calls for horizontal drilling.
• Wet Drilling Capabilities: Take this drill anywhere it needs to go - but wet drilling environments in particular can extend the life of your tool.
• Capacity: Can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.
• Lightweight: This rock drill is lightweight but powerful, and durable enough to stand up to the toughest conditions.

Product Application and Uses: Perfect for both wet and dry drill jobs, the JRD30 can be used to drill up to 10 feet deep and 1.5 inches wide in concrete or soft to medium rock.
Air Consumption @ Load (cfm): 73
Air Consumption @ Load (l/min): 2067
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2700
Bore Diameter (in): 2.38
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Front
Max Hole Depth (ft): 10
Max Hole Diameter (in): 1.5
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 19.5
Product Weight (lb): 29
Shank SIze (in): 7/8 x 4-1/4
Shank Type: Hex
Stroke Length (in): 1.44
Warranty: 1-year

Similar IR

• JRD30-A
• JRD50-A

IR MX60BF

Pavement Breaker, 1-1/4 X 6" Hex Shank, 5.75" Stroke Length, 2.06" Bore

The most versatile of our available pavement breakers, the MX60 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and the "flex handle" will reduce vibration. With one of the fewest parts in the industry, the MX Series is easier and less complex to service.

Features And Benefits

• Vibration-Reduced Flex Handle: The optional vibration-reduced flex handle of the MX Series provides vibration dampening in full 360-degree range of movement.
• Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
• Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
• Power: The MX60 pavement breakers deliver large blow energy thanks to our Power-Strok™ piston technology.
• 1-year warranty.

Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 70
Air Consumption @ Load (l/min): 1982
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.06
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Optional
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 76
Retainer Type: Latch
Shank SIze (in): 1-1/4 X 6
Shank Type: Hex
Special Features: Vibration Reduced Flex Handle
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year

Similar IR

• MX60B

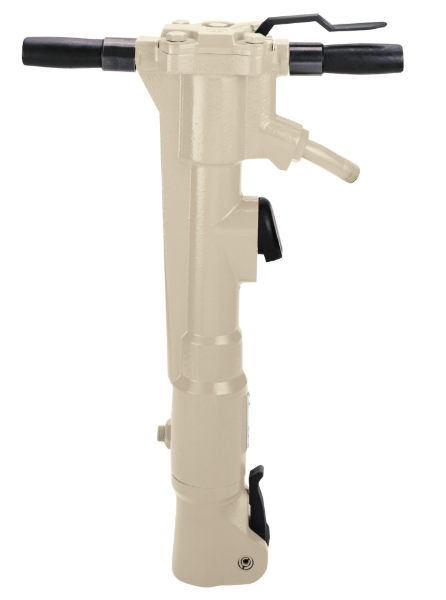

IR MX90BF

Pavement Breaker, 1-1/4 X 6" Hex Shank, 5.75" Stroke Length, 2.62" Bore

The most versatile of our available pavement breakers, the MX90 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and the "flex handle" will reduce vibration. With one of the fewest parts in the industry, the MX Series is easier and less complex to service.

Features And Benefits

• Vibration-Reduced Flex Handle: The optional vibration-reduced flex handle of the MX Series provides vibration dampening in full 360-degree range of movement.
• Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
• Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
• Power: The MX90 pavement breakers deliver large blow energy thanks to our Power-Strok™ piston technology.
• 1-year warranty.

Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 85
Air Consumption @ Load (l/min): 2407
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.62
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 87
Retainer Type: Latch
Shank SIze (in): 1-1/4 X 6
Shank Type: Hex
Special Features: Vibration Reduced Flex Handle
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year

Similar IR

• MX90A

IR MX90F-SD

Spike Driver, Vibration Reduced Flex T-Handle, 5.75" Stroke, 1250 BPM, 2.62" Bore

The MX90 Series spike drivers deliver more blow energy to each spike than you’ll find anywhere else thanks to our Power-Strok™ piston technology. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.

Features And Benefits

• Powerful: The MX Series spike drivers are powerful, but still easy to handle.
• Variable Exhaust Deflector: Choose where you want the exhaust air to flow with the MX Series’ 360-degree directional exhaust capabilities.
• Vibration-Reduced Flex Handle: The flex handles of the MX Series provide vibration dampening in a full 360-degree range of movement, increasing maximum operator comfort and productivity.
• Durable: The Ingersoll Rand MX Series spike drivers are rugged enough to tackle any job you throw their way.

Product Application and Uses: The spike driver is designed for driving cut spikes in the construction of new track and the relaying of old track with new rails.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 85
Air Consumption @ Load (l/min): 2407
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.62
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Exhaust Location: Side - Adjustable
Housing Material: Steel
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 86
Stroke Length (in): 5.75
Warranty: 1-year

IR PB35AL8

Pavement Breaker, 1 X 4-1/4" Hex Shank, 6.25" Stroke Length, 1250 BPM, 1-3/4" Bore

Ingersoll Rand has a unique heritage in construction that dates back to the company’s founding in 1871. Simon Ingersoll invented the world’s first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB35 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.

Features And Benefits

• Power: With 1250 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
• Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
• Built-in lubricator helps ensure adequate lubrication.
• Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
• 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.

Product Application and Uses: Ideal for a variety of projects, from bridge deck resurfacing to general demolition
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 49
Air Consumption @ Load (l/min): 1388
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 1 3/4
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Height Over Spindle (in): 25
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: No
Power Source: Air Powered
Product Length (in): 25
Product Width (in): 19
Product Weight (lb): 40
Retainer Type: Latch
Shank SIze (in): 1 X 4-1/4
Shank Type: Hex
Steels: Yes
Stroke Length (in): 6.25
Warranty: 1-year

Similar IR

• PB50AS1

IR PB35AS8

Pavement Breaker, 1 X 4-1/4" Hex Shank, 6.25" Stroke Length, 1250 BPM, 1-3/4" Bore

Ingersoll Rand has a unique heritage in construction that dates back to the company’s founding in 1871. Simon Ingersoll invented the world’s first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB35 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.

Features And Benefits

• Power: With 1250 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
• Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
• Built-in lubricator helps ensure adequate lubrication.
• Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
• 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.
• Muffler Reduces Noise

Product Application and Uses: These paving breakers are suitable for breaking concrete, asphalt and stone paving in road construction work; breaking large boulders in mines, quarries and general demolition work.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 49
Air Consumption @ Load (l/min): 1388
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 1 3/4
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 25
Product Weight (lb): 43
Retainer Type: Latch
Shank SIze (in): 1 X 4-1/4
Shank Type: Hex
Steels: Yes
Stroke Length (in): 6.25
Warranty: 1-year

Similar IR

• PB35AL8

IR PB50AS1

Pavement Breaker, 1-1/8 X 6" Hex Shank, 6.25" Stroke Length, 1150 BPM, 1-3/4" Bore

Ingersoll Rand has a unique heritage in construction that dates back to the company’s founding in 1871. Simon Ingersoll invented the world’s first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB50 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.

Features And Benefits

• Power: With 1150 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
• Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
• Built-in lubricator helps ensure adequate lubrication.
• Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
• 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.
• Muffler Reduces Noise

Product Application and Uses: These paving breakers are suitable for breaking concrete, asphalt and stone paving in road construction work; breaking large boulders in mines, quarries and general demolition work.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 58
Air Consumption @ Load (l/min): 1643
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1150
Bore Diameter (in): 1 3/4
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 55
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Steels: Yes
Stroke Length (in): 6.25
Warranty: 1-year

Similar IR

• PB50AL1

IR 50719723

RATCHET JH40

IR 51913440

CONNECTOR

IR 51955565

LEVER

IR 99056

FLAT CABLE-7 CONDUCTOR-12AWG

MPT MP-K2LH-RET

Chipping Hammer with Retainer

IR 50809748

VALVE (JH40)

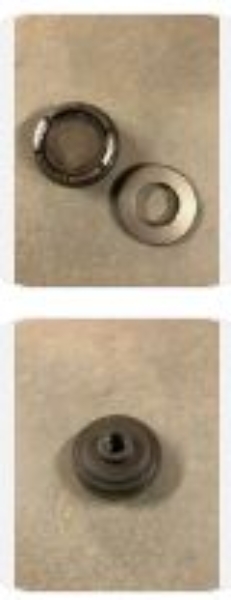

IR 51291342

VALVE CHEST
