Breakers and Busters

IR 130A1M

Pneumatic Bench Sand Rammer, 2-1/2" Round Malleable Butt, 2.5" Stroke, 1" Bore

With dual-action sand wipers, a built-in muffler and a side exhaust, this tool is built for heavy use. Ideal for compacting small sand molds in a foundry or casting facility. Its shorter height and light weight allow this unit to be used on smaller molds that are set up waist high.

Features And Benefits

• Reliability: Thanks to a built-in lubricator, these tools will run smoothly and last.
• Durability: With a plated piston and front-end seal to protect your tool, this Backfill Tamper can be used in the toughest environments. The sand-wiper seal prevents dirt and grit from getting inside the tool.
• Access: This tool is as lightweight as it is powerful, making compact spaces easy to reach.

Product Application and Uses: Ideal for compacting small sand molds in a foundry or casting facility
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 14
Air Consumption @ Load (l/min): 396
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 870
Bore Diameter (in): 1
Butt Diameter (in): 2.5
Butt Material: Malleable/ Steel
Butt Shape: Round
Color: Beige
Configuration/Handle Type: Straight
Duty Rating: Super Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/8
Muffler: Built In
Power Source: Air Powered
Product Length (in): 21.5
Product Weight (lb): 11.56
Retainer Type: Latch
Shank Opening: 1/2" Tapered Rod
Special Features: Time Tested Valve Design, Round Piston Rod, Built In Muffler, Optional Front End Butts Available.
Steels: Yes
Stroke Length (in): 2.5
Warranty: 1-year

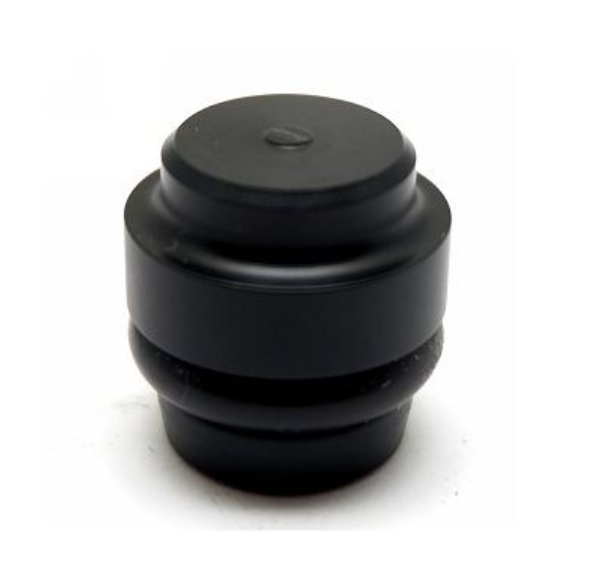

IR 51719615

VALVE (51716561)

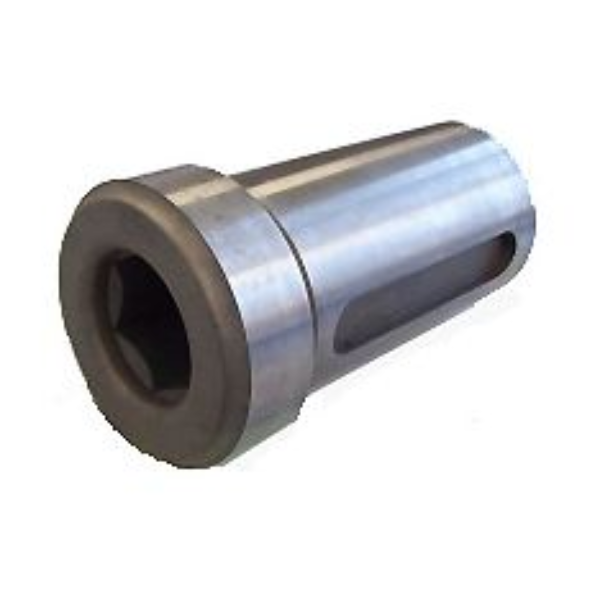

IR 51943470

BUSHING (MX60-MX90)

IR 51955383

KIT, LATCH

IR 52082682

VALVE CHEST (52080694)

IR 52089802

FILTER (51945111)

IR 9RB-207

Lock Clip for Ingersoll Rand Riveters

Product Application and Uses: For use with Ingersoll Rand 9001 and 11001 Riveters

For Use With

• 11001
• 9001

IR JRD50-A

Rock Drill, 7/8 x 3-1/4" Hex Shank, 2" Stroke

The JRD50 Series rock drill is ideal for holes up to 15 feet deep and 2 inches in diameter when you’re working in medium to hard rock. This particular tool is great for general utility work in corals or mines.

Features And Benefits

• Directional Exhaust: The JRD50 Series sports a directional exhaust, which expels exhaust air in multiple directions to keep your workspace exhaust-free.
• Durable: The JRD50 is tough enough to withstand harsh environments and repeated drops.

Product Application and Uses: Ideal for holes up to 15 feet deep and 2 inches in diameter when you’re working in medium to hard rock. This particular tool is great for general utility work in corals or mines.
Air Consumption @ Load (cfm): 120
Air Consumption @ Load (l/min): 3398
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2300
Bore Diameter (in): 3
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Side - Adjustable
Max Hole Depth (ft): 15
Max Hole Diameter (in): 2
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 20.5
Product Weight (lb): 51
Shank SIze (in): 7/8 x 3-1/4
Shank Type: Hex
Stroke Length (in): 2
Warranty: 1-year

Similar IR

• JRD50-B
• JRD50-C
• JRD30-A

IR JRD50-C

Rock Drill, 1 x 4-1/4" Hex Shank, 2" Stroke

The JRD50 Series rock drill is ideal for holes up to 15 feet deep and 2 inches in diameter when you’re working in medium to hard rock. This particular tool is great for general utility work in corals or mines.

Features And Benefits

• Directional Exhaust: The JRD50 Series sports a directional exhaust, which expels exhaust air in multiple directions to keep your workspace exhaust-free.
• Durable: The JRD50 is tough enough to withstand harsh environments and repeated drops.

Product Application and Uses: Ideal for holes up to 15 feet deep and 2 inches in diameter when you’re working in medium to hard rock. This particular tool is great for general utility work in corals or mines.
Air Consumption @ Load (cfm): 120
Air Consumption @ Load (l/min): 3398
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 2300
Bore Diameter (in): 3
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Exhaust Location: Side - Adjustable
Max Hole Depth (ft): 15
Max Hole Diameter (in): 2
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Power Source: Air Powered
Product Length (in): 20.5
Product Weight (lb): 51
Shank SIze (in): 1 x 4-1/4
Shank Type: Hex
Stroke Length (in): 2
Warranty: 1-year

Similar IR

• JRD50-B
• JRD50-A

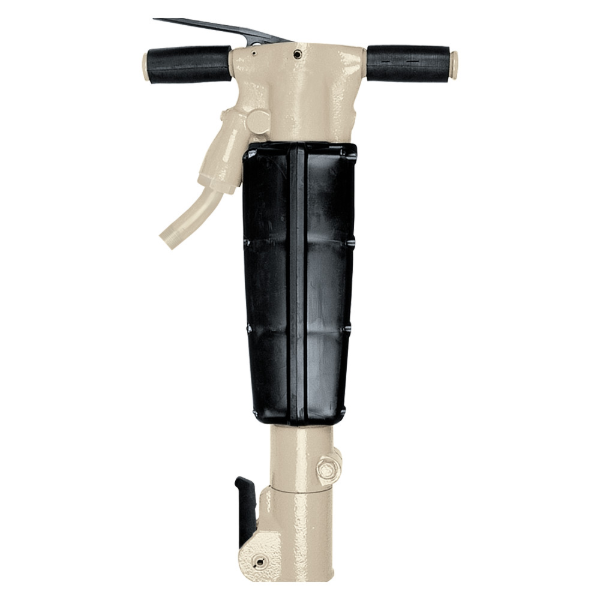

IR PB50AL1

Pavement Breaker, 1-1/8 X 6" Hex Shank, 6.25" Stroke Length, 1150 BPM, 1-3/4" Bore

Ingersoll Rand has a unique heritage in construction that dates back to the company’s founding in 1871. Simon Ingersoll invented the world’s first rock drill and revolutionized productivity on the jobsite with the wide array of compressors, tools, and related products that came later. Today, Ingersoll Rand offers one of the most comprehensive lines of construction tools on the market, as well as portable air compressors that have become industry standards. The PB50 pavement breakers are ideal for a variety of projects, from bridge deck resurfacing to general demolition. The standard flex handle provides maximum operator comfort and productivity, while the one-piece housing eliminates the need for costly side rods and springs.

Features And Benefits

• Power: With 1150 blows per minute and a 6.25" stroke, the Power-stroke piston delivers more energy to the work surface improving productivity.
• Maintenance: One-piece housing eliminates costly side rods and springs. Drop in valve cartridge simplifies maintenance and reduces overall operating costs.
• Built-in Lubricator: helps ensure adequate lubrication.
• Ergonomic: Ergonomically designed handles, grips, throttle lever, and breaker housing provide maximum operator comfort and productivity.
• 360 Variable Exhaust Deflector: Allows the operator to choose the direction of the exhaust air.

Product Application and Uses: Ideal for a variety of projects, from bridge deck resurfacing to general demolition
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 58
Air Consumption @ Load (l/min): 1643
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1150
Bore Diameter (in): 1 3/4
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: T-handle
Duty Rating: Industrial Duty
Exhaust Location: Side
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: No
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 52
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Steels: Yes
Stroke Length (in): 6.25
Warranty: 1-year

Similar IR

• PB50AS1

IR 24SR-40

VALVE

IR 51955862

RETAINER

IR 51956506

SEAT

IR 75H-41

VALVE BOX (73H)

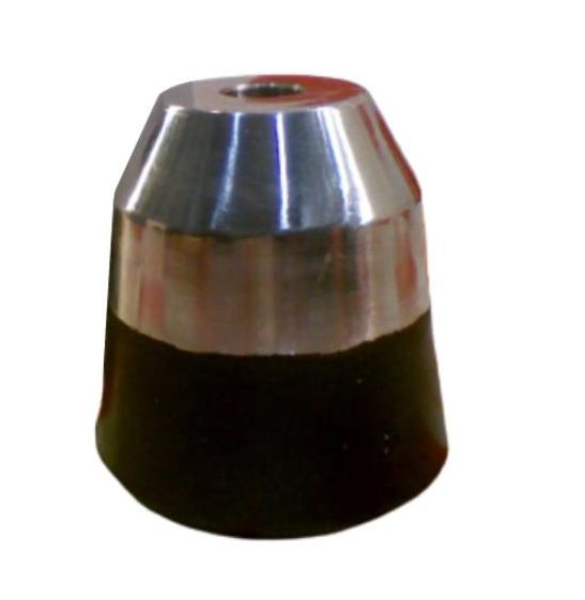

IR 24SR-83R-3

Rubber Tipped Butt, 3" Diameter 5/8” Tapered Rod for Ingersoll Rand 241A1M Sand Rammers

Product Application and Uses: For use with Ingersoll Rand 241A1M Sand Rammers
Butt Diameter (in): 3

For Use With

• 241A1M
• 241A1M-EU

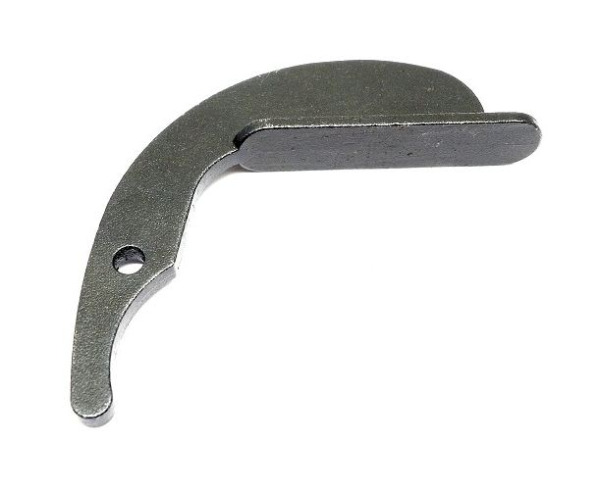

IR 97MP-18

THROTTLE LEVER

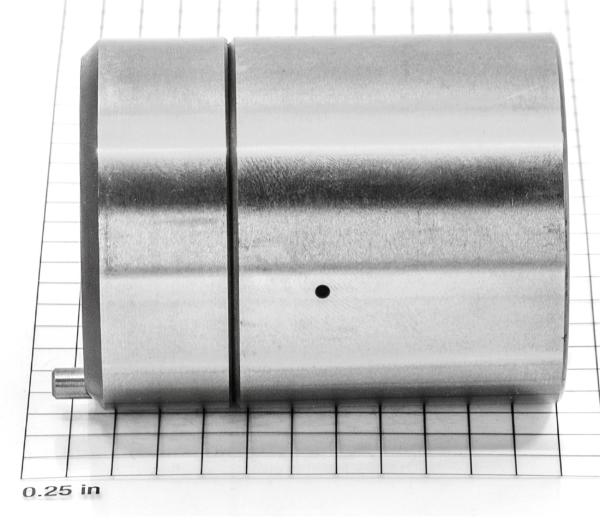

IR 9RB-A4

BOX

IR MX90AF

Pavement Breaker, 1-1/8 X 6" Hex Shank, 5.75" Stroke, 2.62" Bore, Vibration Reduced Flex Handle

The most versatile of our available pavement breakers, the MX90 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and the "flex handle" will reduce vibration. With one of the fewest parts in the industry, the MX Series is easier and less complex to service.

Features And Benefits

• Vibration-Reduced Flex Handle: The optional vibration-reduced flex handle of the MX Series provides vibration dampening in full 360-degree range of movement.
• Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
• Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won’t let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
• Power: The MX90 pavement breakers deliver large blow energy thanks to our Power-Strok™ piston technology.
• 1-year warranty.

Product Application and Uses: Heavy asphalt removal, industrial maintenance, heavy demolition.
Actuation/Throttle Type/Switch Type: Outside Trigger
Air Consumption @ Load (cfm): 85
Air Consumption @ Load (l/min): 2407
Air Inlet: 3/4" NPT
Air Pressure (psi): 90
Blows per Min: 1250
Bore Diameter (in): 2.62
Bushing: Spring Loaded Anvil
Collar Type: Round
Color: Beige
Configuration/Handle Type: Vibration Reduced Flex T-Handle
Duty Rating: Industrial Duty
Exhaust Location: Side - Adjustable
Housing Material: Steel
Inline Oilers: Yes
Max Pressure (bar): 6.2
Min Hose Size (in): 3/4
Muffler: Yes
Power Source: Air Powered
Product Length (in): 27.5
Product Weight (lb): 87
Retainer Type: Latch
Shank SIze (in): 1-1/8 X 6
Shank Type: Hex
Special Features: Vibration Reduced Flex Handle
Steels: Yes
Stroke Length (in): 5.75
Warranty: 1-year

Similar IR

• MX90BF

TAM 3374-012UNB

Jumbo Buster Back Out Punch 3/4 x 12

IR 241SR-A32A

GUIDE (241SR-29, -32)

Z3120

1 X 4 1/4 X 14 X 3 CHSL

Z3160

1 X 4 1/4 X 24 NAR CHISL

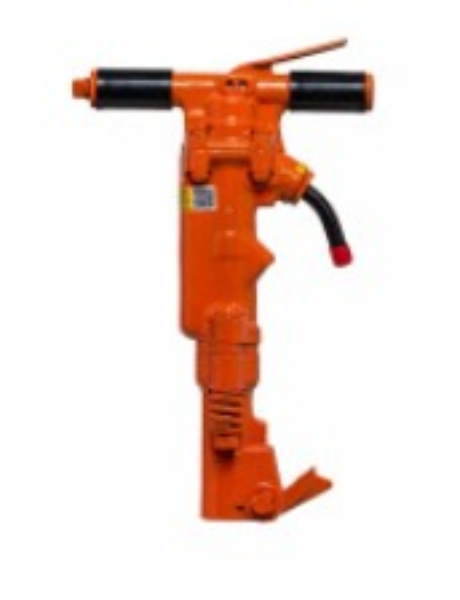

APT 17923

140 PAVING BREAKER

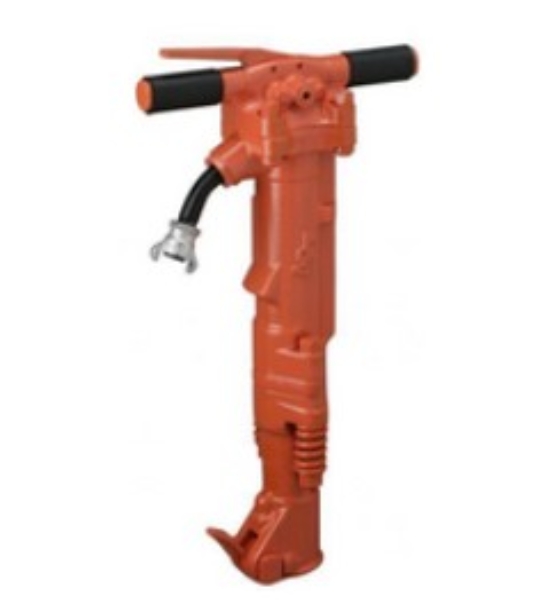

APT 5239

190 PAVING BREAKER 1 1/8

IR 241SR-101

VALVE
