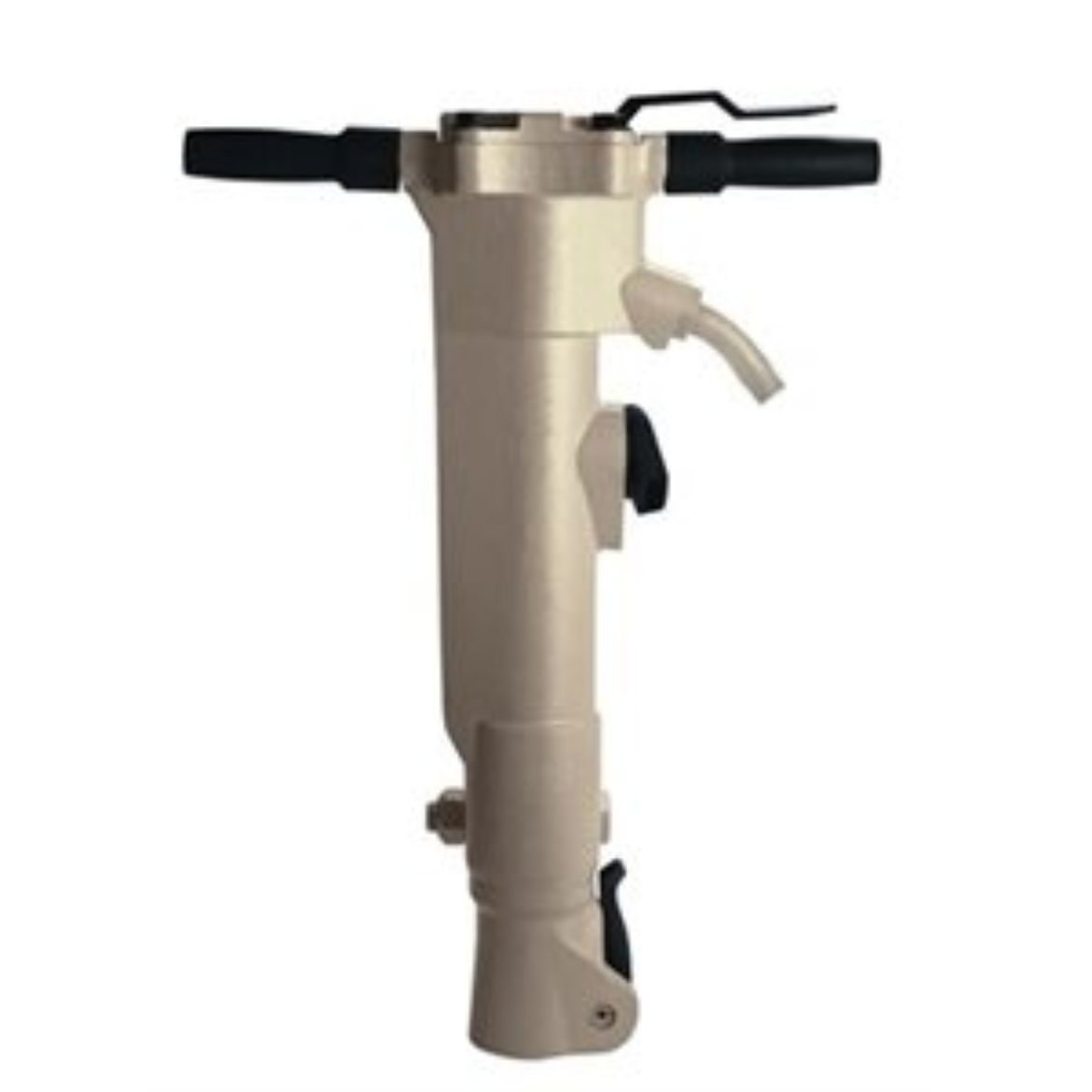

IR MX90B
Pavement Breaker, 1-1/4 X 6" Hex Shank, 5.75" Stroke Length, 2.62" Bore
Description: The most versatile of our available pavement breakers, the MX90 models are great for anything from heavy asphalt removal to industrial maintenance to heavy demolition. The directional exhaust prevents blowback, and with one of the fewest parts in the industry, the MX Series is easier and less complex to service.
Features And Benefits:
- Variable Exhaust Deflector: The MX Series has an exhaust deflector that will rotate 360 degrees, allowing you to choose the direction of exhaust air.
- Durability: As our most versatile pavement breakers, the MX Series can easily withstand the needs of any job. From handling harsh environments to repeated drops, the MX Series won't let you down. The drop-in composite valve cartridge prevents rust, while the one-piece breaker housing eliminates the need for side rods and springs.
- Power: The MX90 pavement breakers deliver large blow energy thanks to our Power-Strok piston technology.
- 1-year warranty.
Product Application and Uses:
Heavy asphalt removal, industrial maintenance, heavy demolition.
- Actuation/Throttle Type/Switch Type: Outside Trigger
- Air Consumption @ Load (cfm): 85
- Air Consumption @ Load (l/min): 2407
- Air Inlet: 3/4" NPT
- Air Pressure (psi): 90
- Blows per Min: 1250
- Bore Diameter (in): 2.62
- Bushing: Spring Loaded Anvil
- Collar Type: Round
- Color: Beige
- Configuration/Handle Type: T-handle
- Duty Rating: Industrial Duty
- Exhaust Location: Side - Adjustable
- Housing Material: Steel
- Inline Oilers: Yes
- Max Pressure (bar): 6.2
- Min Hose Size (in): 3/4
- Muffler: Yes
- Power Source: Air Powered
- Product Length (in): 27.5
- Product Weight (lb): 87
- Retainer Type: Latch
- Shank SIze (in): 1-1/4 X 6
- Shank Type: Hex
- Steels: Yes
- Stroke Length (in): 5.75
- Accessories: 22040489
- Accessories: 50055680
- Accessories: 50055698
- Accessories: 50055714
- Accessories: 50055755
- Accessories: 50189570
- Accessories: 50193879
- Accessories: 50193887
- Accessories: 50193903
- Accessories: 50196385
- Accessories: 50196401
- Accessories: 50196419
- Accessories: 51299477
- Lubrication: 10G
- Lubrication: 10P
