Agitator for a 19 L (5 gallon) tank, pressure tank not included

GG 25C539

AGITATOR, HEAVY DUTY, 5 GAL

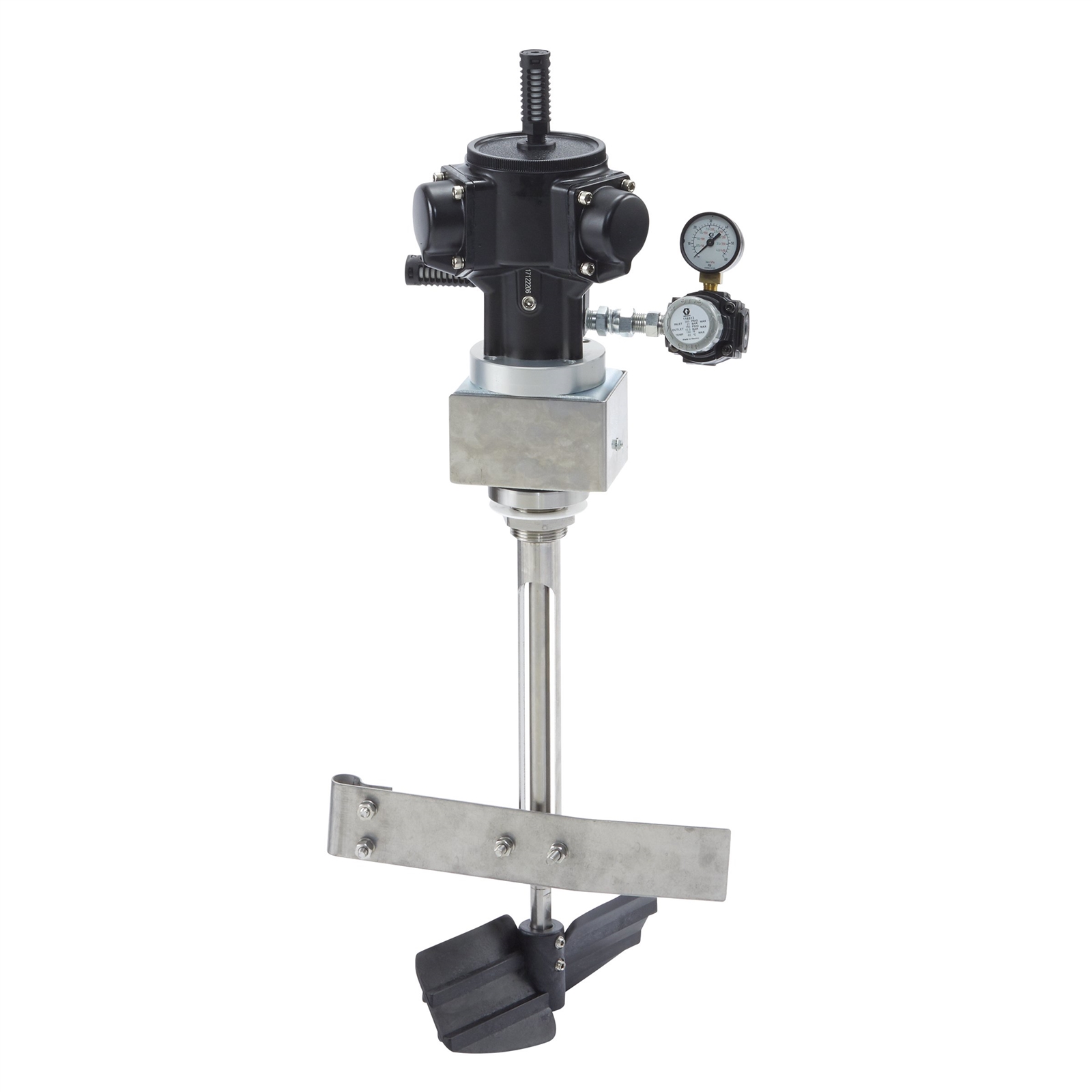

Graco 25C539 Agitator for a 5 gallon (19 L) tank, pressure tank not included

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Use less compressed air than most rotary vane air motors.
• Install quickly and operate quietly.
• Maintain easily – air line lubrication not required.
• Control speed with Graco's Intelligent Paint Kitchen (IPK).
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• For Use With: 5 Gallon (19 Litre) Pressure Tank

• Maximum Air Inlet Pressure (bar): 5
• Maximum Air Inlet Pressure (kPa): 500
• Maximum Air Inlet Pressure (psi): 70

• Maximum Speed (RPM): 150

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston
