Agitator, Direct Drive

GG 222698

AGITATOR, DIRECT DRIVE

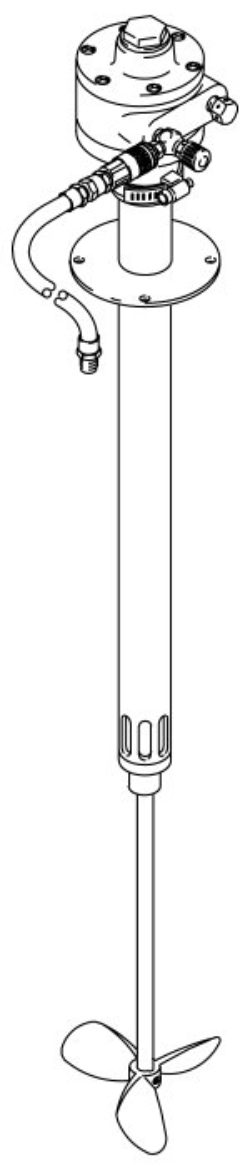

Graco 222698 Drum agitator without mounting tube, air driven, 3/4 HP, 31.25 inches (79.3 cm) in length, stainless steel material

• Agitators mount directly to mix tank or drum covers
• Dual propeller ensures efficient and thorough mixing
• Easy adjustment knob for fine tuning agitator speed to ideal mixing parameters

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• For Use With: 55 Gallon Drums and 30 Gallon Mix Tanks

• Maximum Speed (RPM): 3000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Rotary Vane

• Power Rating (HP): 0.75
