Agitators

ASC ASC-SP-976

BB 31-397

BB 31-420

BB 31-421

BB 41-3300

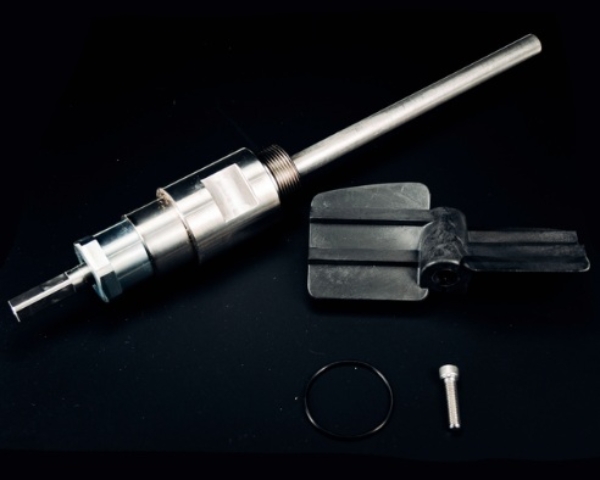

DD QMS-431

DD QMS-6

GG 17V342

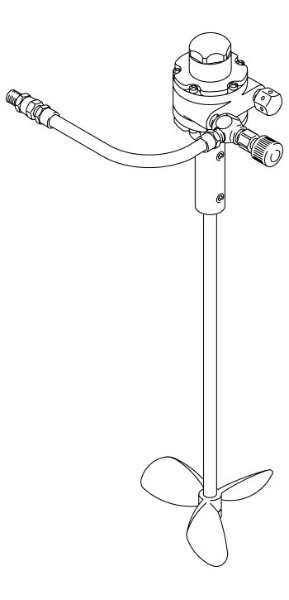

GG 222695

AGITATOR

Graco 222695 Pail Cover Agitator for 5 gallon (18 L) pails, air driven, 1/4 HP, 13.25 inches (33.6 cm), stainless steel material, round prop

Waterborne compatible

• Lift handles for easy moving and color changes
• Locking bolts to secure cover and reduce spills
• Ideal for wall mount pumps or spray packages

• Air Inlet Size (cm): 0.3175
• Air Inlet Size (in): 1/8
• Air Inlet Size (mm): 3.175
• Air Inlet Thread Type: NPT

• For Use With: 5 Gallon Pail

• Maximum Speed (RPM): 800

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Rotary Vane

• Power Rating (HP): 0.25

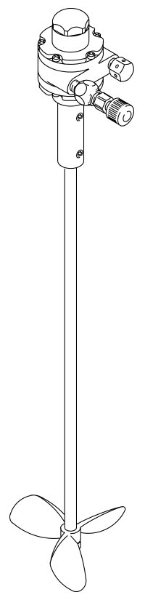

GG 224572

AGITATOR, 10 GAL. (SST)

Graco 224572 Pail Cover Agitator for 10 Gallon (37 L) Pails, Air-Driven, 1/4 HP, 17.25 inches (43.8 cm) long, SST, Single Round Prop (3 Blade)

Waterborne compatible

• Lift handles for easy moving and color changes
• Locking bolts to secure cover and reduce spills
• Ideal for wall mount pumps or spray packages

GG 25N881

AGITATOR, IN-DRUM, 1.5 BUNG,

Graco 25N881 In-Drum, 1.5-inch (3.8 cm) Bung Mount

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Recommended agitator rotation: Clockwise
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
• Maximum allowable process fluid temperature: 194° F (90° C)

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Maximum Speed (RPM): 100

• Maximum Viscosity (cP): 500

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston

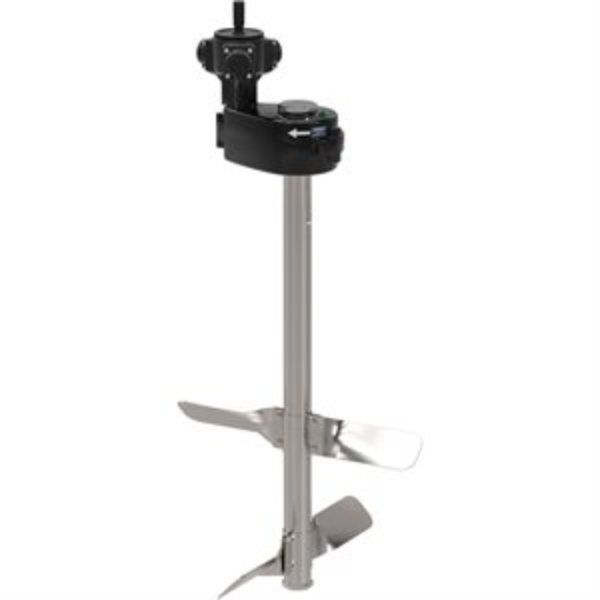

GG 26B630

AGITATOR, 6:1

Graco 26B630 Back-Geared Radial Piston Agitator, heavy duty

Speed up savings when agitating high viscosity material. The radial piston air motor that powers this back-geared agitator uses up to 85 percent less compressed air than a comparable rotary vane motor.

• Installs quickly for immediate cost savings
• Needs no air line lubrication to keep running well
• Operates more quietly than comparable rotary vane agitator air motors

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• For Use With: 55 Gallon (208 Liter) Drum

• Maximum Air Inlet Pressure (bar): 5
• Maximum Air Inlet Pressure (kPa): 500
• Maximum Air Inlet Pressure (psi): 70

• Maximum Speed (RPM): 83

• Maximum Viscosity (cP): 3000

• Maximum Working Pressure (bar): 5
• Maximum Working Pressure (kPa): 500
• Maximum Working Pressure (psi): 70

• Motor Type: Pneumatic - Radial Piston

• Power Rating (HP): 0.16

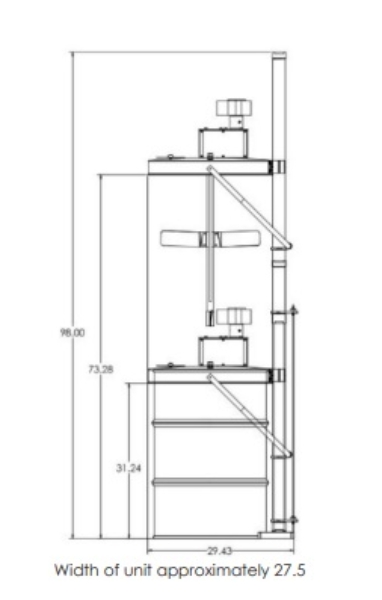

AQ 3077-55LD-301

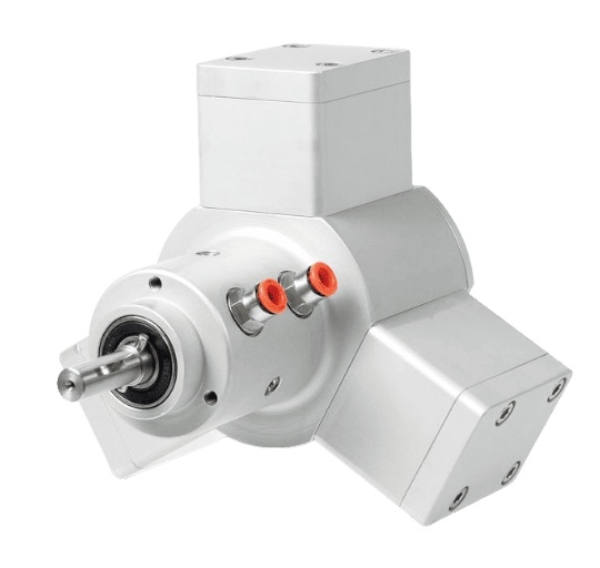

AQ 3077-BP15-300

ASC ASC-5-8-55P-SSC-E

ASC ASC-BRBG-SSC

ASC ASC-SP-2249

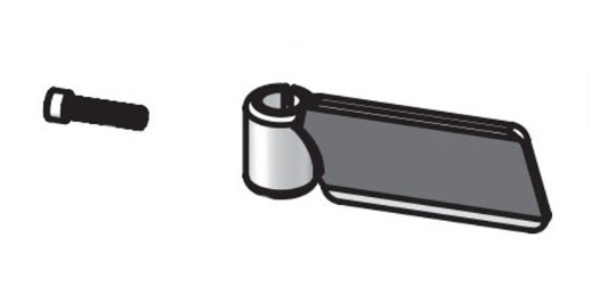

BB QMS-445-CE

DD QM-142

DD QMS-430

DD QMS-53-1

GG 230992

GG 236663

AGITATOR, HEAVY DUTY, 15 GAL

Graco 236663 15 Gallon (57 L) Heavy Duty Pressure Tank Agitator, air driven, 1/2 HP, 15 inches (38 cm) in length, gear reduced

Waterborne compatible

• 20:1 gear reduction to mix high viscosity materials, even at low speeds
• Sealed agitator shaft to prevent air leakage and contamination
• Built-in baffle and support for efficient mixing

• For Use With: 15 Gallon (57 Litre) Pressure Tank

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Speed (RPM): 3000

• Maximum Viscosity (cP): 800

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Rotary Vane

• Power Rating (HP): 0.50

AQ 3077-AQ60-700

AQ 9273-24-01-021624
