Torque Control

IR QXX2PT18ES6

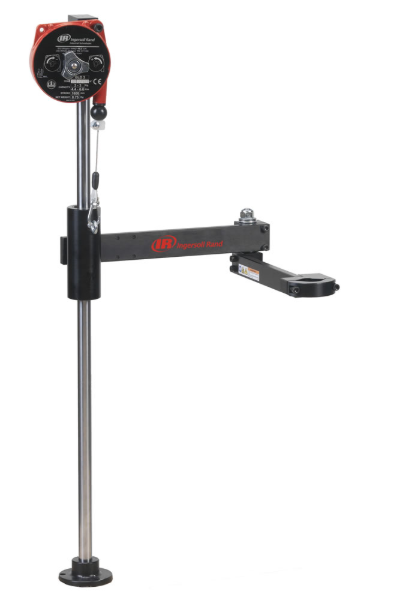

IR QTA100

Bench-mounted Torque Reaction Arm, 52" Max Reach, 100 NM Torque, 22" Vertical Travel Distance, 10 lb Capacity, 78.7" H

Description: Ingersoll Rand QTA Series bench-mounted torque reaction arms are constructed of lightweight aluminum. They include an Ingersoll Rand spring-loaded, die-cast aluminum balancer for impressive strength and reduced weight.

Features And Benefits:

• Spring balancer adjusts easily and offers effortless vertical movement.
• Simple, proven design for trouble-free setup and dependability.
• Anodized aluminum body delivers toughness in a lightweight design.
• Chrome-plated pole paired with a self-lubricating bearing, provides unmatched durability.
• Adjustable reach for easy use and convenience when locating fasteners.
• Multiple-tool holder options include right angle, swivel, and pistol grip.
• Cable or air line clamps keep work area clear and organized.
• Custom tool holder options enable seamless integration with Ingersoll Rand QA and QE tools.
• Position arm at 90-degree angle for optimum torque reaction performance. Arm should not be used in fully extended or fully collapsed position as this reduces reaction capabilities.

Product Application and Uses:

For use with assembly tools.

• Includes: tool holder and spring balancer

IR QXFN2PT000P000

STR 10667

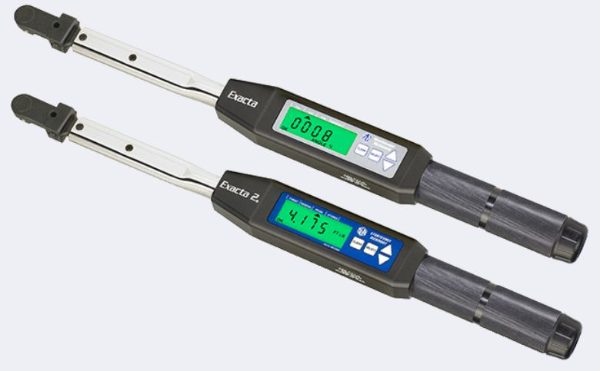

Wireless Digital Torque Wrenches: 1250 Series Exacta 2 Digital Torque Wrench, ft-lb

Product Description

• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque.
• Torque and angle can identify changing joint conditions and prevent errors
• Backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application
• Turns yellow at 90% of target torque, green upon reaching target torque and red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400m
• P-Sets are set and saved via the controller, no changes can be made at the wrench level
• Provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series
• Wrenches are available in traditional pin and spring dovetail, quick change, and fixed ratchet models

IR RTS025PQ4

RTS 1/4" Hex 20V Mechanical Cordless Pulse Tool, 18ft-lb Torque, 3800PPM, 2700RPM, Quick Change Retainer

Description: RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits:

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT Connect controller or mobile app, Expert setup via INSIGHTqcx MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20 battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS025PQ4-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Product Application and Uses:

For use in product environments on assembly lines.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/4
• Drive Type: Hex
• Duty Rating: Production Environment

• Fastener Size: M6-M8

• Housing Material: Glass-filled Nylon (PA6-GF30)

• Lumens: 11
• Max Free Speed (rpm): 2700
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 6.1

• Product Weight (lb): 2.31
• Product Weight (lb) (with Battery): 3.21
• Pulses per Minute: 3600-3800
• Recommended Forward Torque Range (ft-lb): 5.9-18
• Recommended Forward Torque Range (in-lb): 71-221
• Recommended Forward Torque Range (nm): 8-25
• Retainer Type: Quick Change
• Reversible: Reversible

• Sound Pressure/Power Db(A): 92 / 100

• Vibration Level (m/s2): 10.7
• Vibration Uncertainy K* (m/s2): 3.4
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking

STR 10657

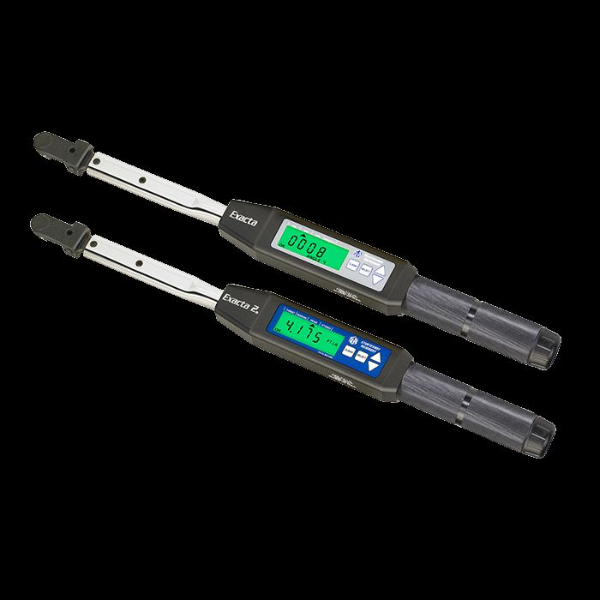

Wireless Digital Torque Wrenches: 1250 Series Exacta 2 Digital Torque Wrench, ft-lb

Product Description

• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque.
• Torque and angle can identify changing joint conditions and prevent errors
• Backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application
• Turns yellow at 90% of target torque, green upon reaching target torque and red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400m
• P-Sets are set and saved via the controller, no changes can be made at the wrench level
• Provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series
• Wrenches are available in traditional pin and spring dovetail, quick change, and fixed ratchet models

STR 810401

Click-Type Preset Torque Wrenches: LTCR Preset Interchangeable Head Click-Type Wrench - Ratcheting Square Drive, in-lb

Product Description

• LTCR-Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• When we preset the torque value for you at the factory, we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
• Cushioned comfort grip is lightweight and provides excellent ergonomics
• Slide pin ratchet provides strength and durability
• Easy to install ratchet renewal kit is available
• The torque is preset and locked in with a special tool
• Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• Wrench measures torque in the clockwise direction

STR 810415

Wireless Click-Type Torque Wrenches: SLTC FM 2.4 GHZ Click Wrenches, in-lb

Product Description

• Preset click torque wrench measures and applies torque in the clockwise direction
• Using this wrench in the counter-clockwise direction will apply torque, but it will not measure torque because it does not click in the counter-clockwise direction
• Flattened case for superior accuracy, reliability, and durability
• Accuracy of +/- 4% or better of preset value from 20% to 100% of capacity meets or exceeds requirements of ASME B107.300-2010 and ISO 6789
• Excellent audible/tactile impulse when preset torque is achieved
• Error Proofing By Guidance: Monitors time in the clicked position to proved OK/BAD quality attribute data with every use of the tool
• Error Proofing By Behavior Modification in action. The new A3 has a new battery that lasts longer and is easier to change
• Raised LED Fresnel to improve visibility when working in less than optimal positions
• AAA batteries are more readily available than are the 6-volt batteries

ETA PA815

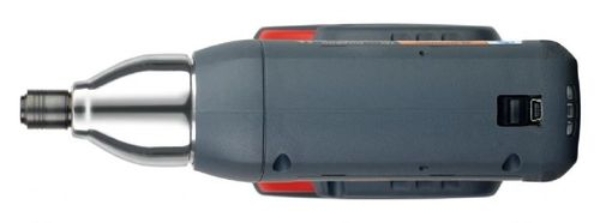

IR QXBN2PT000P000

IR VA2-427

STR 10770

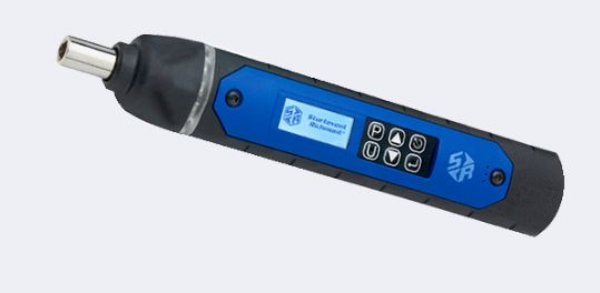

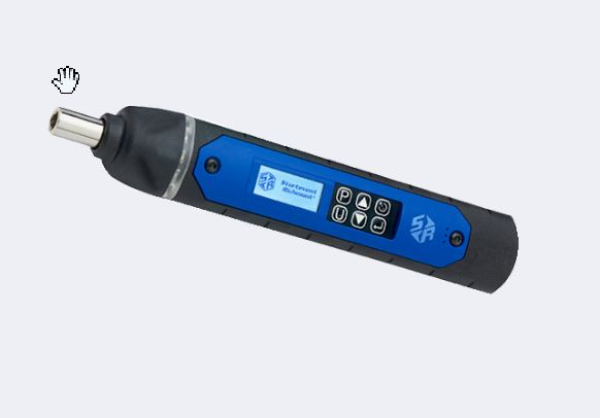

Wireless Torque Screwdrivers: 1350 Digital Torque and Angle Torque Diver, in-lb

Product Description

• Compatible with the Global 400 and Global 400mp
• Perfect for lower torque applications when you need accuracy and traceability
• Error proofing feature: parameters cannot be set using the buttons on the torque screwdriver
• XBee radio 2.4 GHz - 12 channels
• Modes of operation: Peak, TAM, T2A, Residual
• Meets/exceeds ASME B107.300-2010 and ISO 6789
• Bi-directional +/- 2% Indicated Value from 5% to 100% of tool capacity
• The display back light is visible when torque is applied; Displays the torque and angle value on the digital display on the screwdriver
• Visible from any angle, light band on the driver turns yellow, then green, the driver beeps, and the handle vibrates when target torque is achieved
• Female and male hexagon versions as well as square drive version gives you flexibility to meet all of your torque driver application needs
• ESD Compliant when grounding strap is properly worn
• Powered by 1 AA NiMH battery (two included with driver)
• Compatible with NiMH batteries only
• Units of measure: in-oz, in-lb, ft-lb, cNm, NM, cmkg

ETA EL506-UV

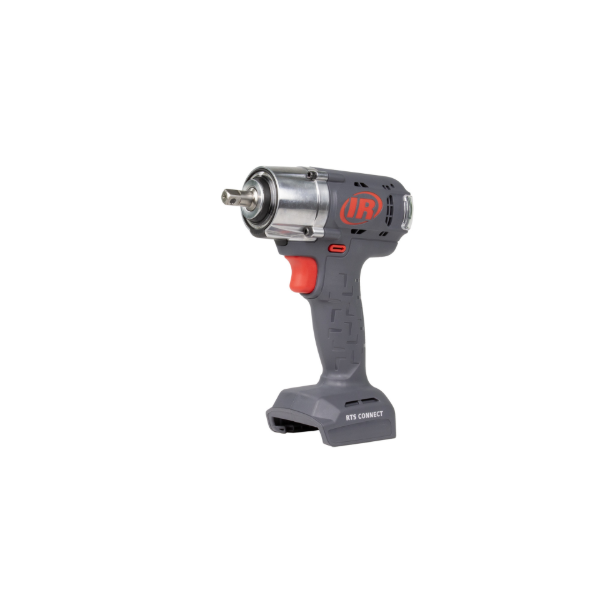

IR RTS060PS6

RTS 3/8" 20V Mechanical Cordless Pulse Tool, 44ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

Description: RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits:

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT Connect controller or mobile app, Expert setup via INSIGHTqcx MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20 battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS060PS6-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Product Application and Uses:

For use in product environments on assembly lines.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Production Environment

• Fastener Size: M8-M10

• Housing Material: Glass-filled Nylon (PA6-GF30)

• Lumens: 11
• Max Free Speed (rpm): 2700
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 6.42

• Product Weight (lb): 2.35
• Product Weight (lb) (with Battery): 3.26
• Pulses per Minute: 3600
• Recommended Forward Torque Range (ft-lb): 8.9-44
• Recommended Forward Torque Range (in-lb): 106-531
• Recommended Forward Torque Range (nm): 12-60
• Retainer Type: Pin Detent
• Reversible: Reversible

• Sound Pressure/Power Db(A): 94 / 102

• Vibration Level (m/s2): 10.5
• Vibration Uncertainy K* (m/s2): 1.8
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.

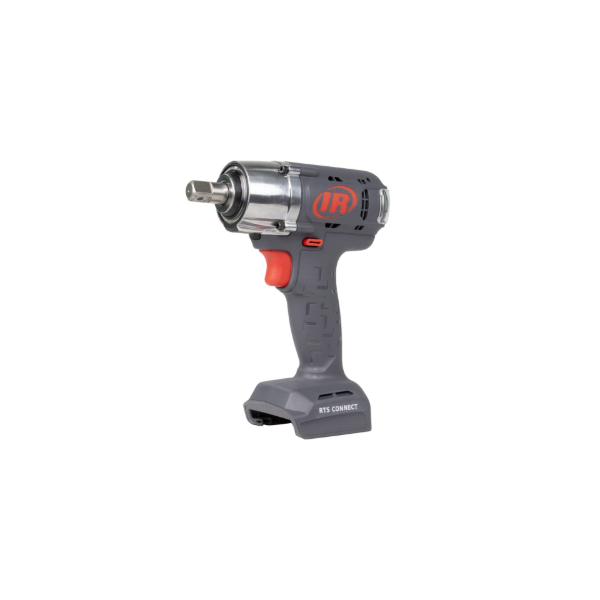

IR RTS060PS8

RTS 1/2" 20V Mechanical Cordless Pulse Tool, 44ft-lb Torque, 3600PPM, 2700RPM, Pin Retainer

Description: RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits:

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT Connect controller or mobile app, Expert setup via INSIGHTqcx MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20 battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS060PS8-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Product Application and Uses:

For use in product environments on assembly lines.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 1/2
• Drive Type: Square
• Duty Rating: Production Environment

• Fastener Size: M8-M10

• Housing Material: Glass-filled Nylon (PA6-GF30)

• Lumens: 11
• Max Free Speed (rpm): 2700
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 6.65

• Product Weight (lb): 2.4
• Product Weight (lb) (with Battery): 3.3
• Pulses per Minute: 3600
• Recommended Forward Torque Range (ft-lb): 8.9-44
• Recommended Forward Torque Range (in-lb): 106-531
• Recommended Forward Torque Range (nm): 12-60
• Retainer Type: Pin Detent
• Reversible: Reversible

• Sound Pressure/Power Db(A): 94 / 102

• Vibration Level (m/s2): 10.5
• Vibration Uncertainy K* (m/s2): 1.8
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wireless Tool Tracking: 802.15.4<

STR 810172

Click-Type Preset Torque Wrenches: LTCS Preset Interchangeable Head Click-Type Torque Wrenches - Fixed Square Drive, in-lb

Product Description

• LTCS Series torque wrenches have +/- 4% Indicated Value Accuracy from 20% to 100% of capacity, meeting or exceeding the requirements of ASME B107.300-2010 and ISO 6789
• When we preset the tool to your requested torque value we include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• The low profile of the square drive creates access where other tools cannot go, which is important with our larger square drives
• Flattened case prevents side loading and provides support for the click mechanisms so the wrench is easier to calibrate and it hold calibration longer
• Cushioned comfort grip is lightweight and provides excellent ergonomics
• Slide pin ratchet provides strength and durability
• Easy to install ratchet renewal kit is available
• The torque is preset and locked in with a special tool
• Combination Adjusting and Release Tool (CART P/N 819177) allows the operator to easily adjust torque on all SLTC, LTC, LTCR and LTCS wrenches
• Torque can be set using any unit of measurement
• Can be ordered preset from the factory or you can set the torque with your own torque tester
• Wrench measures torque in the clockwise direction

STR 810334

Click-Type Preset Torque Wrenches: LTC Preset Interchangeable Head Click-Type Torque Wrenches, in-lb

Product Description

• +/- 4% repeatability from 20% to 100% of capacity
• Meets or exceeds the requirements of ASME B107.300-2010 and ISO 6789
• Tools preset at the factory include a free Certificate of Calibration from our ISO 17025 Accredited Lab
• Low profile of the square drive creates access where other tools cannot go
• Flattened case is sideloading resistant
• Error Proofing By Design flattened case provides superior mechanism support that makes the wrench easier to calibrate and it holds calibration much longer than other wrenches
• Excellent tactile and audible pulse when the preset torque is achieved
• Cushion grip plus lightweight for excellent ergonomics
• Fixed square drive provides exceptional strength and durability
• CART tool
• Torque is preset and locked in with a special tool
• Torque can be set using any unit of measurement
• Combination Adjusting and Release Tool (CART) P/N 819117 allows the operator to easily adjust torque on all SLTC -FM, SLTC, LTC, LTCR, and LTCS wrenches
• Can be ordered preset from the factory or you can set the torque with your own torque tester

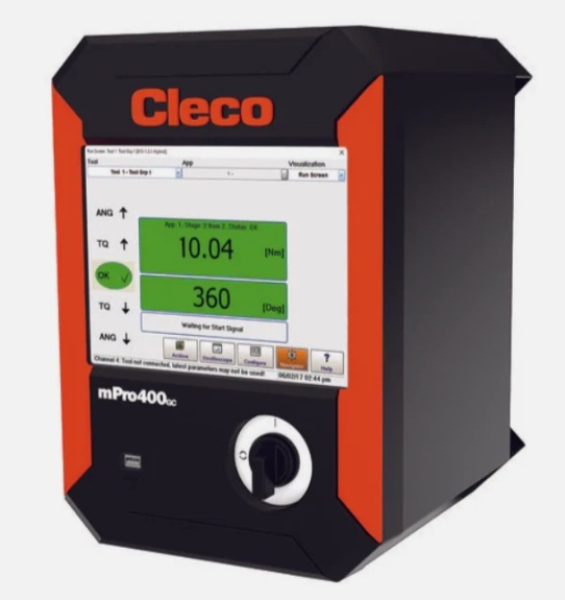

CL MPRO400GCD-P

ETA UVTH

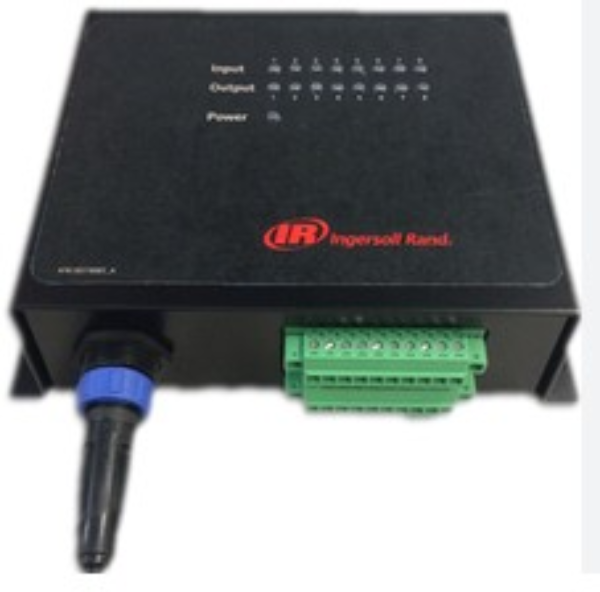

IR QC-DIO-8CH

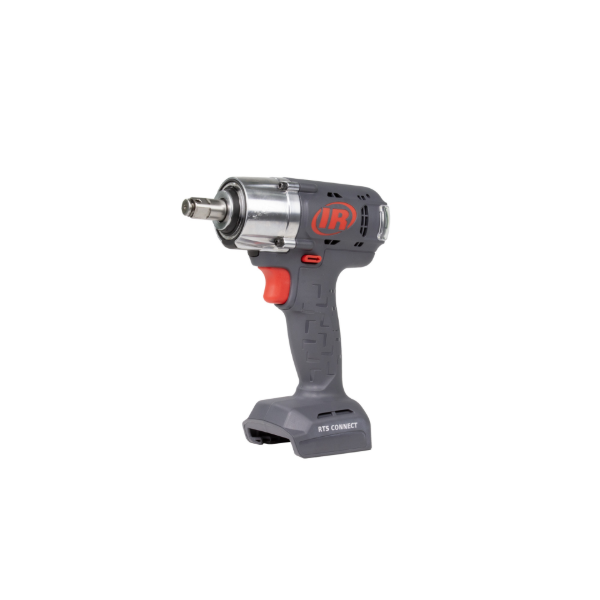

IR RTS060PH6

RTS 3/8" 20V Mechanical Cordless Pulse Tool, 44ft-lb Torque, 3600PPM, 2700RPM, Hog Ring/Thru-Hole Retainer

Description: RTS Responsive Tightening System - Transform assembly lines with the RTS Connect, where responsive action meets torque control. Infused with Ingersoll Rand torque control algorithm, this system is a game changer for reliable tightening. Experience effortless operations with its user-friendly interface, 40 distinct torque levels, seven flush levels and dual speed non-contact trigger and a 360° status beam LED ring light. The RTS Connect features reactionless performance, combined with robust wireless connectivity and programmable settings, making it the tool of choice for those who demand perfection at every turn.

Features And Benefits:

• SIMPLE: An integrated color LCD display is an easy-to-use interface that streamlines the setup process and delivers key insights to the operator. The multi-color 360° status beam LED ring light illuminates the work area and offers clear feedback to the operator on the cycle status. 3 programming methods provide faster and smarter configuration. (Basic setup via the tool display, Advanced setup via INSIGHT Connect controller or mobile app, Expert setup via INSIGHTqcx MTC controller)
• FLEXIBLE: Up to 8 P-set configurations reduce the need for multiple tools for different applications on the assembly line. Compatible with IQV20 battery and charger platform, providing flexibility and reducing costs in operations. 4 communication options available to adapt to evolving connectivity requirements. (Wi-Fi 2.4 and 5 Ghz, Radio (802.15.4), Bluetooth, USB-C)
• CAPABLE: Proprietary torque control algorithm that delivers consistent, repeatable fastening every time. 40 torque settings and 7 flush detection levels to adapt to various application types. Multi-tool connection, with up to 16 tools wirelessly connected to the INSIGHTqcx MTC controller, reduces the hardware footprint.
• ERGONOMICS: RTS Connect tools eliminate torque reaction, have best-in-class tool balance & ergonomic grip design, and their light weight design significantly reduces operator fatigue.
• Also Available in the RTS060PH6-K2 Kit which includes (2) 2.5Ah Batteries and a charger.

Product Application and Uses:

For use in product environments on assembly lines.

• Includes: Bare tool only, batteries and charger sold separately or with other kits.
• Anvil Length: Standard

• Built-in Light: Yes

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Data Storage Capacity: 1200 cycles
• Drive Size (in): 3/8
• Drive Type: Square
• Duty Rating: Production Environment

• Fastener Size: M8-M10

• Housing Material: Glass-filled Nylon (PA6-GF30)

• Lumens: 11
• Max Free Speed (rpm): 2700
• Motor: Brushless Motor

• Number of Batteries Required: 1
• Power Source: Battery Powered
• Product Length (in): 6.46

• Product Weight (lb): 2.35
• Product Weight (lb) (with Battery): 3.26
• Pulses per Minute: 3600
• Recommended Forward Torque Range (ft-lb): 8.9-44
• Recommended Forward Torque Range (in-lb): 106-531
• Recommended Forward Torque Range (nm): 12-60
• Retainer Type: Friction Ring and Thru-hole
• Reversible: Reversible

• Sound Pressure/Power Db(A): 94 / 102

• Vibration Level (m/s2): 10.5
• Vibration Uncertainy K* (m/s2): 1.8
• Voltage DC: 20
• Warranty: 1-year Tool, 2-year Battery, 3-year Charger
• Wireless Tool Tracking: Bluetooth
• Wir

STR 10652

Wireless Digital Torque Wrenches: 1250 Series Exacta 2 Digital Torque Wrench, ft-lb

Product Description

• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque.
• Torque and angle can identify changing joint conditions and prevent errors
• Backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application
• Turns yellow at 90% of target torque, green upon reaching target torque and red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400m
• P-Sets are set and saved via the controller, no changes can be made at the wrench level
• Provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series
• Wrenches are available in traditional pin and spring dovetail, quick change, and fixed ratchet models

IR CPS2-A580-Q04

IR QTA020

Bench-mounted Torque Reaction Arm, 20" Max Reach, 20 NM Torque, 14.5" Vertical Travel Distance, 5LB Weight Capacity, 31.8" H

Description: Ingersoll Rand QTA Series bench-mounted torque reaction arms are constructed of lightweight aluminum. They include an Ingersoll Rand spring-loaded, die-cast aluminum balancer for impressive strength and reduced weight.

Features And Benefits:

• Spring balancer adjusts easily and offers effortless vertical movement.
• Simple, proven design for trouble-free setup and dependability.
• Anodized aluminum body delivers toughness in a lightweight design.
• Chrome-plated pole paired with a self-lubricating bearing, provides unmatched durability.
• Adjustable reach for easy use and convenience when locating fasteners.
• Multiple-tool holder options include right angle, swivel, and pistol grip.
• Cable or air line clamps keep work area clear and organized.
• Custom tool holder options enable seamless integration with Ingersoll Rand QA and QE tools.
• Position arm at 90-degree angle for optimum torque reaction performance. Arm should not be used in fully extended or fully collapsed position as this reduces reaction capabilities.

Product Application and Uses:

For use with assembly tools.

• Includes: tool holder and spring balancer

STR 10666

Wireless Digital Torque Wrenches: 1250 Series Exacta 2 Digital Torque Wrench, ft-lb

Product Description

• Patented "Shear Beam" transducer eliminates lever sensitivity to produce more consistently accurate torque application
• Torque and Angle functionality include these operational modes: Torque To Angle, Torque and Angle Monitoring, Residual Torque, and Prevailing Torque.
• Torque and angle can identify changing joint conditions and prevent errors
• Backlit display is easy to read in any light condition
• Customizable color display change to inform the operator
• Display lights upon torque application
• Turns yellow at 90% of target torque, green upon reaching target torque and red upon reaching maximum torque
• Tool emits an acceptance tone and the handle vibrates upon reaching target torque and angle values
• Tool emits reject tone upon reaching maximum torque
• Compatible with the Global 400 and Global 400m
• P-Sets are set and saved via the controller, no changes can be made at the wrench level
• Provides you with another level of error proofing by preventing inadvertent changes
• Can be used with the Patented Holding Tool Series
• Wrenches are available in traditional pin and spring dovetail, quick change, and fixed ratchet models
