Spray Guns - Manual

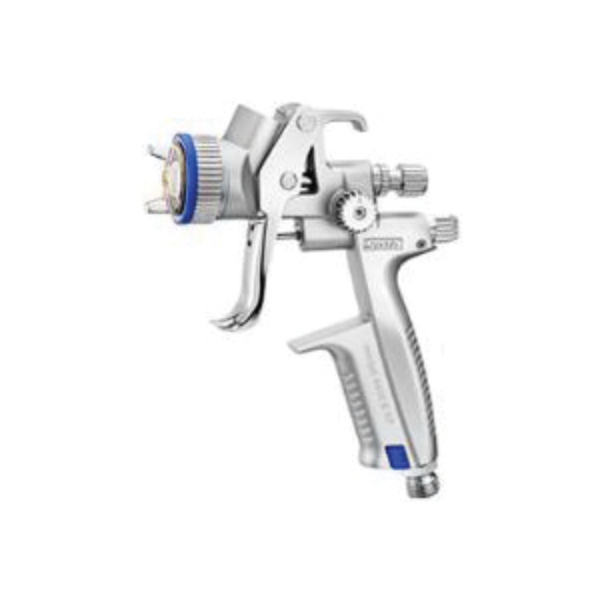

SATA 198358

Spray Gun, Minijet 4400B RP

BB 1466-10HV-C1S

Trophy Tu Grav 1.0Xc1Hvlp

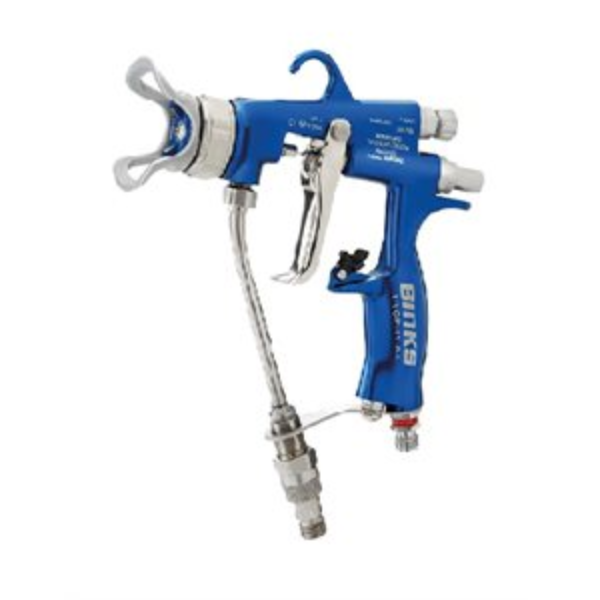

BB 1600-HF1510

Trophy Aa Handgun, 1600Psi & Aa10 + 1510 Tip

BB 7000-1202-7

Mach 1Sl Gun 94-95Ap

BB 98-3156

2-Gal Outfit W/Trophy Hvlp Gun

DD COM-PS507B-22-01

Spray Gun, Compact, Siphon, HVLP

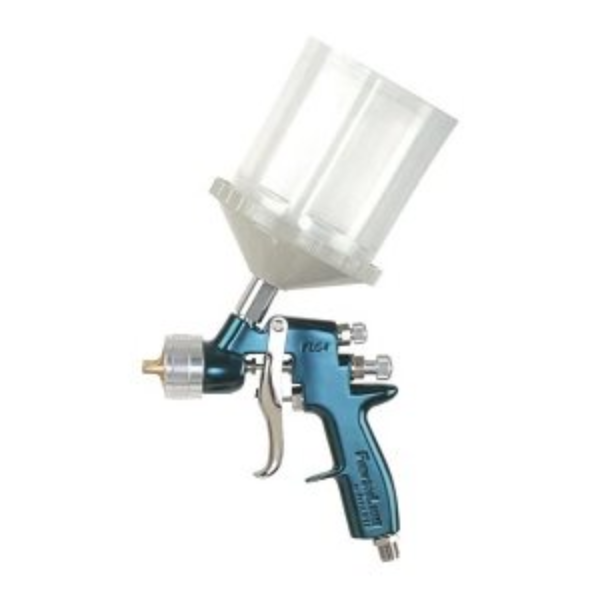

DD FLG-CNG-115

Flg4 Conv Gravity Gun W/1.5Mm Fluid Nozzle

GG 24B866

AIRPRO GUN, EFX, HITECH, .028

AirPro EFX Auto Air Spray Gun with Manifold, HiTEch, 0.028 inch (0.7 mm) Nozzle, SST Tip, Ultra Precision Fluid Adjust KnobThe AirPro EFX air spray automatic guns are among the lightest and most compact guns in their class. With no internal air shutoff mechanism, the AirPro EFX delivers increased reliability and precision fluid flow. The modest size and weight of this gun make it an excellent choice for fixed, reciprocating and robotic applications.Aircaps and nozzles deliver superior, precision spray performancePrecision fluid adjustment with a micrometer-telescoping knobHigh wear components designed for abrasive materialsExcellent fluid flow rate stability and repeatability

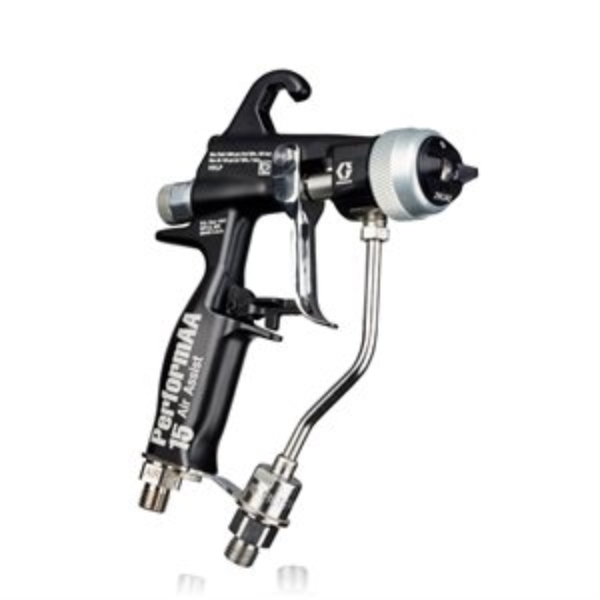

GG 26B503

PERFORMAA GUN, AA, 1500, WL, SWIVEL

Graco 26B503 PerformAA 1500 Air Assist Gun with Wood Lacquer air cap, light trigger pull and fluid swivel

Performance Above All with material specific air caps and fine finish spray tips for superior spray performance. Light weight gun designed for operator comfort with optimized balance, trigger pull and ergonomics.

• High quality 1500 psi air assist spray gun
• Wood lacquer air cap for wood finishing top coats and lacquers
• Includes a low profile fluid swivel
• Trigger pull force is ultra-light, reducing operator fatigue and muscle stress

• Model: PerformAA 15

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Gender: Male
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: Lacquer, Varnish, Latex, Plural Component Materials, Solvent borne, Solvent borne Paints, Topcoats
• Compatible Spray Tip: AXM, AXF

• Feed Type: Pressure Feed

• Fluid Adjustment Knob: Clicking
• Fluid Inlet Size (cm): 0.635
• Fluid Inlet Size (in): 1/4
• Fluid Inlet Size (mm): 6.35
• Fluid Inlet Thread Gender: Male
• Fluid Inlet Thread Type: NPSM

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Air-Assisted Gun
• Gun Weight (g): 453
• Gun Weight (kg): 0.45
• Gun Weight (lb): 1
• Gun Weight (oz): 16
• Gun Weight with Tip and Guard (g): 480
• Gun Weight with Tip and Guard (oz): 17.1
• Gun Weight without Tip and Guard (g): 460

• Gun Weight without Tip and Guard (oz): 16.2

• Includes: Carbide Seat/Ball, Indexing Air Cap, Tip of Choice, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 105
• Maximum Fluid Pressure (kPa): 10500
• Maximum Fluid Pressure (MPa): 10.5
• Maximum Fluid Pressure (psi): 1500
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Maximum Fluid Pressure (bar): 105
• Maximum Fluid Pressure (kPa): 10500
• Maximum Fluid Pressure (MPa): 10.5
• Maximum Fluid Pressure (psi): 1500
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 110

• Overall Height (cm): 20.8
• Overall Height (in): 8.2
• Overall Height (mm): 208
• Overall Length (cm): 15.25
• Overall Length (in): 6
• Overall Length (mm): 152

• Product Type: Spray Gun

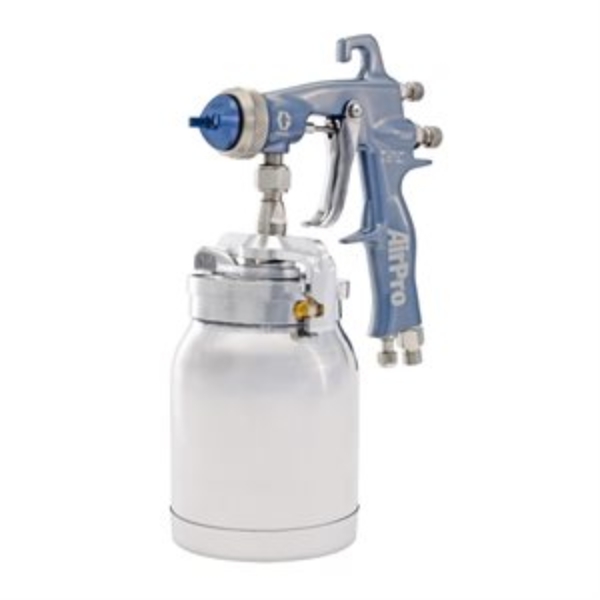

GG 289030

AIRPRO GUN, SIPHON, HVLP, .055

Graco 289030 AirPro Air Spray Siphon Feed Gun, HVLP, 0.055 inch (1.4 mm) Nozzle, Metal Siphon Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Specialty
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Siphon Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.14
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.4

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: HVLP Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

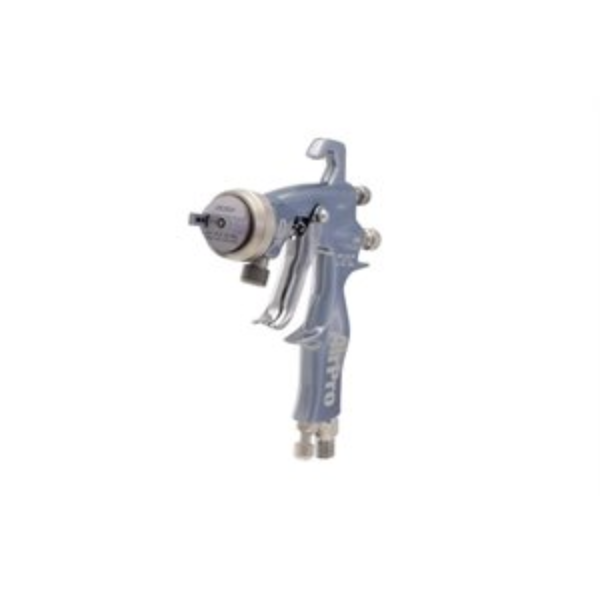

GG 289035

AIRPRO GUN, AUTOMOTIVE, HVLP, .047

Graco 289035 AirPro Air Spray Pressure Feed Gun, HVLP, 0.047 inch (1.2 mm) Nozzle, for Automotive Applications

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Automotive
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: Base Coat, Clear Coat, Latex, Plural Component Materials, Primer, Solvent borne, Waterborne

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.12
• Fluid Orifice Size (in): 0.047
• Fluid Orifice Size (mm): 1.2

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: HVLP Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 803351

Gun, Spray, Sst

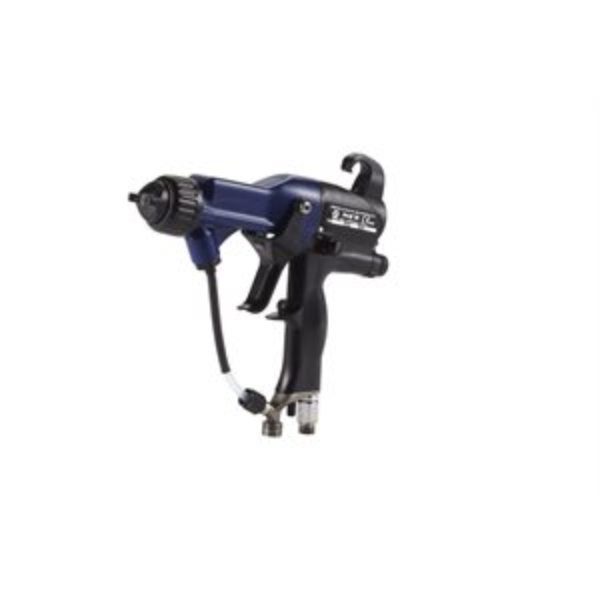

GG L60T10

PRO XP GUN, ES, 60KV

Pro Xp60 Air Spray Manual Electrostatic General Gun Model, 60 kV, 0.055 in (1.5 mm) nozzle, standard display, standard coatingsThe 60 kV electrostatic air spray gun is the smallest profile gun with an internal power supply on the market.Internal power supply reduces operator fatigue with no heavy cords to slow painters down.Durable, easy-to-repair components are backed by a three-year warranty and A+ Service.High transfer efficiency equals less waste, saving you money on material.Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

IW 7611

Pressure Spray Gun, COG-101, 1.2

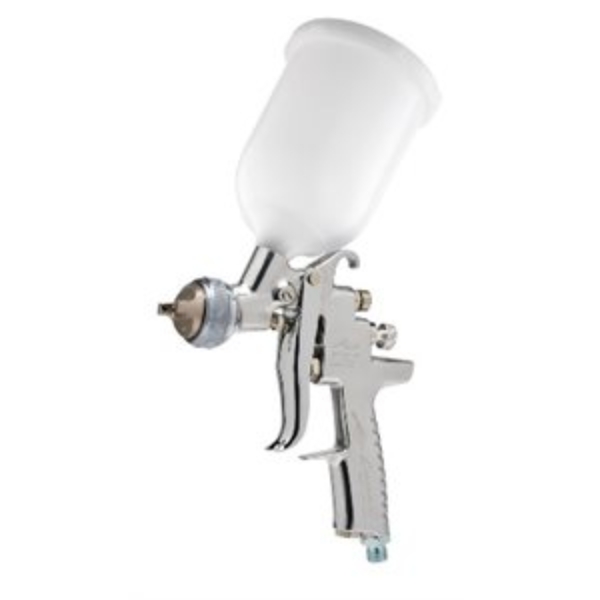

IW 9233

Air Gunza, AZ3HP2 Gravity Spray Gun, 2.0

SATA 198366

Minijet 4400B RP Gun, 1.2SR w/RPS Cup

BB 152-3887

Trophy C, 12 Inch Extension

BB 2466-12HV-32SG

Trophy Grav 1.2X32Hvlp

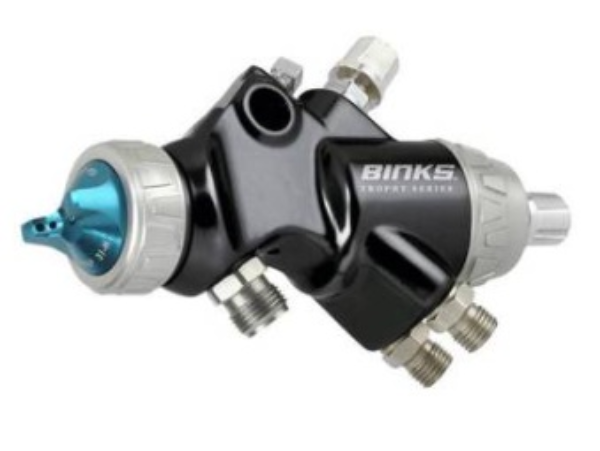

BB 3465-10HV-32S0

Trophy Auto 10 X 32 Hvlp

BB 6143-0901-3

115 Gun 78Ss-78S

BB 98-3170

Sv50 Hvlp Gravity Set

DD 704521

Dv1 C1+ & C2+ Digi Gravity Gun Kit

DD ADV-S507-18

Advance Suction Spraygun Kit Hvlp

DD JGA-510-90FW

Jga Spray Gun, 9000Fw

GG 2004173

STELLAIR GUN, CONV (.051), ADHESIVES

Stellair Air Spray Gun, Conventional, 0.051 in (1.3 mm), Adhesive, PEEK Tip
