Spray Guns - Manual

DD EXL-520P-11

Exl Pressure Gun Assembly

DD EXL-520P-18

Exl Pressure Gun Assembly

DD JGA-510-E

Spray Gun

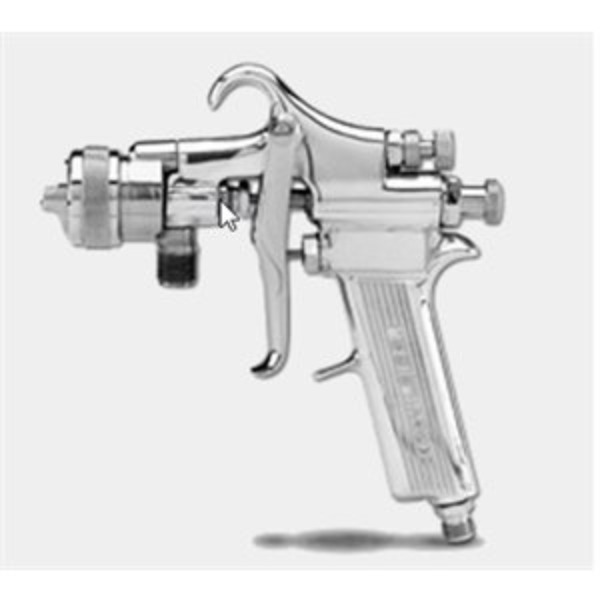

DD MBC-510-30EX

Mbc Spray Gun, 30Ex (1.8)

GG 2004159

STELLAIR GUN, HVLP (.055) SST TIP

Stellair Air Spray Gun, HVLP, 0.055 in (1.4 mm), General Industry, SST Tip

GG 288425

CONTRACTOR GUN, 4 FINGER, (PKGD)

Contractor Airless Spray Gun, 4 Finger Trigger, RAC X 517 SwitchTipThe Contractor Airless Spray Gun is the industry standard for performance and durability. Includes a 4-finger trigger and a RAC X 517 SwitchTip and Guard.Exclusive FlexSeal Needle

• Totally enclosed patented design eliminates needle’s exposure to fluid, extends needle life by 70%, and ensures consistent needle shut-off
• Fluid pushes on seal to quickly shut off needle and reduce spitting
• Spring is located outside fluid path for better flow
• Helps eliminate pack out and slow needle shut-off

Reduced Gun Spitting

• Repositioned seat is closer to the tip, eliminating 60% of the dead space
• Less paint left between needle and tip results in less spitting

Ergonomic Design

• Form-fitted handle provides maximum control and comfort
• Detachable trigger guard swings clear of gun handle for easy filter access
• Lightweight design reduces operator fatigue

Trigger Lock

• Smooth, lightweight trigger pull with simple, thumb-engaged safety lock

Modular Needle Design

• Simply remove the trigger cross pin and unthread front housing to change out needle

EasyGlide Swivel

• Exclusive dual-seat swivel design reduces sealing friction under pressure, making this the best swivel on the market!

Easy Out Gun Filter

• Filters from the inside out to prevent filter from collapsing
• Interchangeable with all Contractor series guns

GG 288884

Sharpe Finex 2 Conventional Gravity Gun, 1.3

GG 289002

AIRPRO GUN, CONV, .055

Graco 289002 AirPro Air Spray Gravity Feed Gun, Conventional, 0.055 inch (1.4 mm) Nozzle, without Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Specialty
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.14
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.4

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 410

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

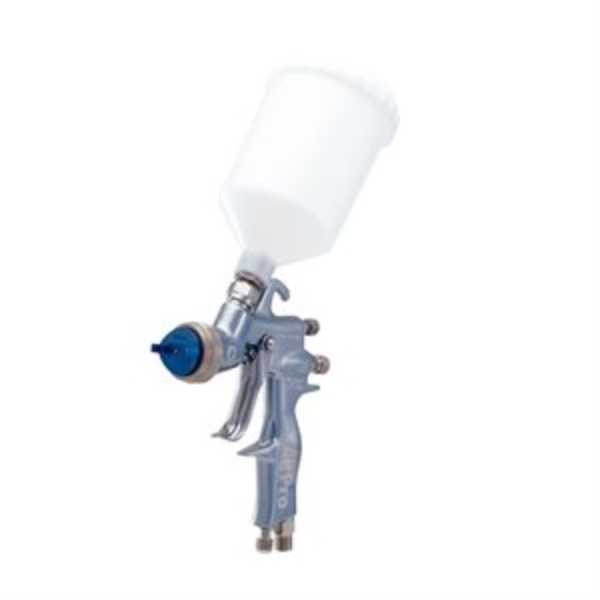

GG 289011

AIRPRO GUN, ASSY, CONV, GRAVITY W/CUP

Graco 289011 AirPro Air Spray Gravity Feed Gun, Conventional, 0.055 inch (1.4 mm) Nozzle, Plastic Gravity Cup

The AirPro air spray gun delivers exceptional spray performance while addressing your environmental and operator concerns - whether you're a custom shop or a high volume manufacturing facility.

• Even material distribution through the spray pattern for optimum coverage
• Improved transfer efficiency through reduced air consumption
• Enhanced atomization through material-specific aircaps
• Ultra-light trigger pull reduces operator muscle stress
• Ergonomic gun handle provides a comfortable grip
• Rounded control knobs for operator comfort
• Optimize spray performance with our cutting edge aircap and nozzle design
• Choose from a wide range of gun models to meet the needs of your specific application

• Model: AirPro

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Application: Specialty
• Applicator Type: Manual

• Bleed Type: Non-Bleeder

• Compatible Material: CARC, Enamel, Epoxies, Fast-Set, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.14
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.4

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (g): 590
• Gun Weight (kg): 0.59
• Gun Weight (lb): 1.3
• Gun Weight (oz): 20.8

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 21
• Maximum Fluid Pressure (kPa): 2100
• Maximum Fluid Pressure (MPa): 2.1
• Maximum Fluid Pressure (psi): 300
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

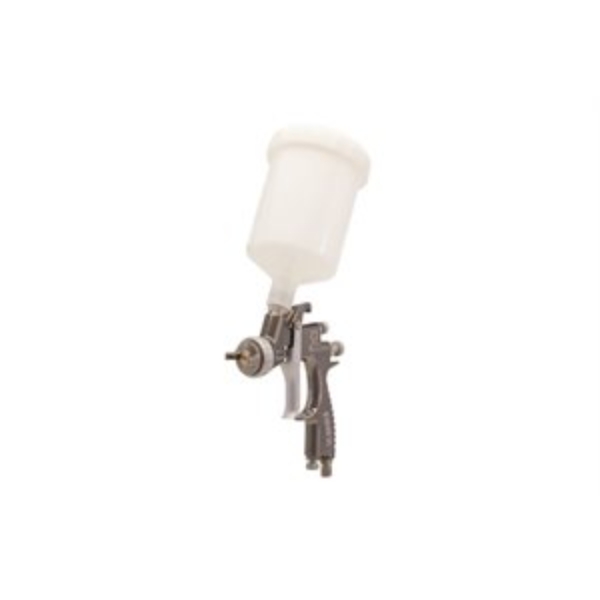

GG 289243

FINEX GUN, GRACO, 2, CONV., 1.3

Graco 289243 Finex Air Spray Gravity Feed Gun, conventional, 0.051 in (1.3 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Standard Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.13
• Fluid Orifice Size (in): 0.051
• Fluid Orifice Size (mm): 1.3

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: Conventional Gun
• Gun Weight (kg): 0.54
• Gun Weight (lb): 1.2

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 289247

FINEX GUN, 2, HVLP, PRESS, 1.0

Graco 289247 Finex Air Spray Pressure Feed Gun, HVLP, 0.039 in (1.0 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.10
• Fluid Orifice Size (in): 0.039
• Fluid Orifice Size (mm): 1.0

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: HVLP Gun
• Gun Weight (kg): 0.37
• Gun Weight (lb): 0.8

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

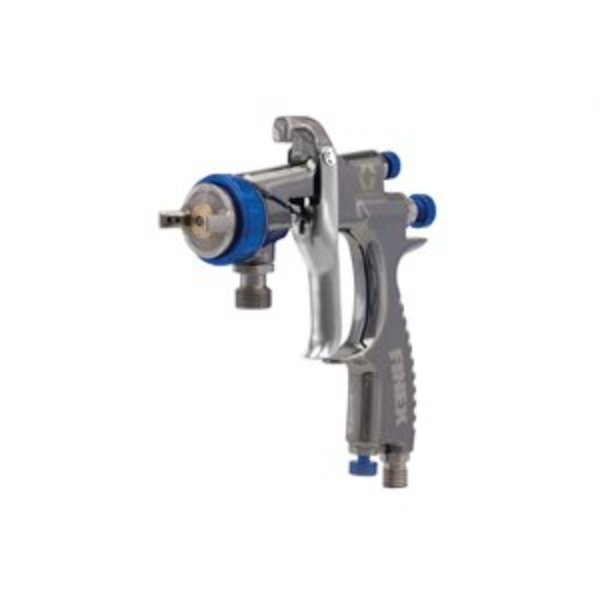

GG 289248

FINEX GUN, 2, HVLP, PRESS, 1.2

Graco 289248 Finex Air Spray Pressure Feed Gun, HVLP, 0.047 in (1.2 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Pressure Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.12
• Fluid Orifice Size (in): 0.047
• Fluid Orifice Size (mm): 1.2

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: HVLP Gun
• Gun Weight (kg): 0.37
• Gun Weight (lb): 0.8

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

GG 289260

FINEX GUN, 2, MINI, HVLP, 1.4

Graco 289260 Finex Air Spray Gravity Feed Gun, mini, HVLP, 0.055 in (1.4 mm) needle/ nozzle size

Well-balanced and lightweight, the Finex gun design offers a more affordable way to spray. Available in either pressure feed or gravity feed guns options and HVLP or conventional technologies.

• Aircaps optimized for high quality spray performance
• Lightweight, ergonomic gun
• Lightest trigger pull in its category

• Model: Finex

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPSM

• Applicator Type: Manual

• Bleed Type: Non-Bleeder
• Body Material: Metal

• Compatible Material: Epoxies, High Solids, Latex, Plural Component Materials, Sealants, Solvent borne, Urethane, Waterborne

• Feed Type: Mini Gravity Feed

• Fluid Inlet Size (cm): 0.9525
• Fluid Inlet Size (in): 3/8
• Fluid Inlet Size (mm): 9.525
• Fluid Inlet Thread Type: NPSM
• Fluid Orifice Size (cm): 0.14
• Fluid Orifice Size (in): 0.055
• Fluid Orifice Size (mm): 1.4

• Gun Activation: Manual
• Gun Included: 1
• Gun Type: HVLP Gun
• Gun Weight (kg): 0.4
• Gun Weight (lb): 0.9

• Includes: Air Cap, Needle Assembly, Nozzle, Tool Kit, Cup

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (MPa): 0.7
• Maximum Air Inlet Pressure (psi): 100
• Maximum Air Pressure (bar): 7

• Maximum Air Pressure (kPa): 700
• Maximum Air Pressure (MPa): 0.7
• Maximum Air Pressure (psi): 100

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Maximum Fluid Pressure (bar): 7
• Maximum Fluid Pressure (kPa): 700
• Maximum Fluid Pressure (MPa): 0.7
• Maximum Fluid Pressure (psi): 100
• Maximum Fluid Temperature ( degree C): 43
• Maximum Fluid Temperature ( degree F): 109

• Product Type: Spray Gun

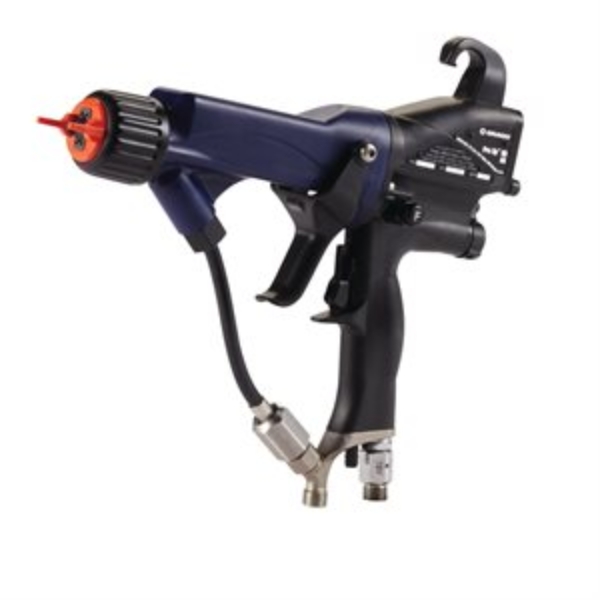

GG H85M10

PRO XP GUN, ES, 85KV, AA, SMART

Pro Xp85 Air Assist Manual Electrostatic Gun, 85 kV, with smart display, standard coatings, includes AEM or AEF tip of choicePro Xp85 kV air-assist gun maximizes transfer efficiency and lowers cost of ownership. Pro Xp85 AA gun line includes Standard and Smart models.High quality spray performance with a one-piece aircap and variety of spray tipsAlternator speed indicator light ensures your turbine speed is running at the correct levelSmart Controls help you analyze performance, adapt to your voltage needs and make troubleshooting easierIncrease transfer efficiency up to 10%Internal power supply reduces operator fatigue with no heavy cords to slow you doneRugged, dependable design supported by a three year warrantyEvery gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

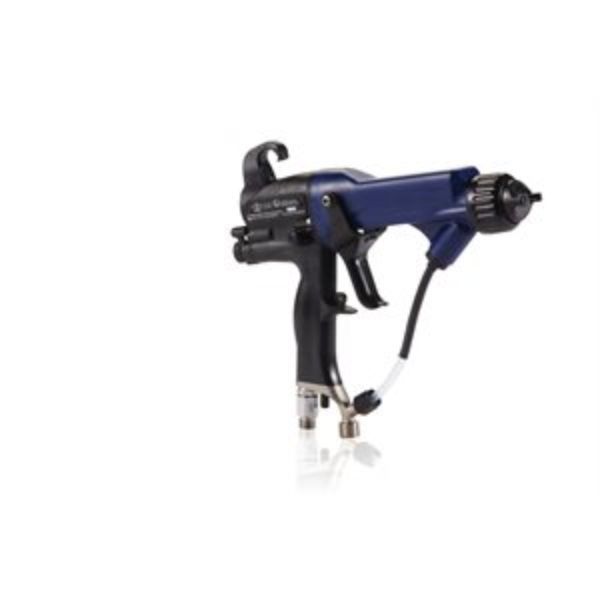

GG L85T12

PRO XP GUN, ES, 85KV, 1.2

Pro Xp85 Air Spray Manual Electrostatic General Gun Model, 85 kV, 0.047 in (1.2 mm) nozzle, standard display, standard coatingsAvailable in 85 kV, this general model is the smallest profile gun with an internal power supply on the market. The 1.2 mm nozzle is for lower fluid flow.For applying Class A or decorative finishes with standard and specialty coatingsPainters experience less muscle strain and fatigue when spraying with the ergonomic, lightweight electrostatic gun model.Electrostatic air spray gun meets strict requirements for spray pattern, mechanical and electrical performance.Durable, easy-to-repair components are backed by a three-year warranty and A+ Service.

IW 10010

Gun, Spray, Wider 1-08E2P

IW 21011

Wider2L-12G2P, Conventional Pressure, 1.2 - Replaces# 5400

IW 5308

LPA200-122P Auto Spray Gun (HVLP)

IW 5560

IWATA LPH400-164LV HVLP GRAVITY GUN (1.6)

IW 6009

Gravity Cup, 1/4in Side, (pc5 250ml)

SATA 149302

1000B RP Gun, 1.3, w/ 0.6L PL Cup

SATA 202390

Minijet 4400B RP Gun, 0.8SR w/RPS Cups

SATA 209882

Satajet 5000 BRP w/1.4 Nozzle

SATA 93369

3000k RP Gun, 1.7SS

SSI AA30L-PP

Gun Jet Assy Polypropolene
