Sealant and Adhesives

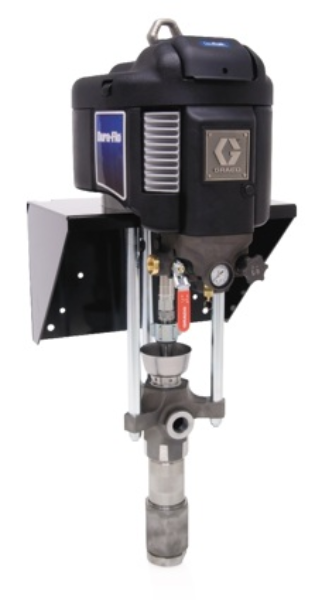

GG 24D604

DURA-FLO SYSTEM, 6:1, WALL MT

NXT™ Dura-Flo® 6:1 Wall Mount Pump without DataTrak and Thermal Relief Kit

Tested to outperform and outlast all other pumps on the market – with its long-life design and intuitive, easy-to-use controls – the NXT Dura-Flo pump is the best value for the money. Fewer parts, faster repairs and long-lasting durability.

Optional DataTrak™ Control - Intuitive, easy-to-use DataTrak control gives you pump diagnostics, material usage tracking and pump runaway protection. NXT Air Motor - Modular design for easier maintenance with rugged body armor that won’t rust or dent. Modular Air Valves - Easy-to-repair valve eliminates stalling and contains de-icing controls. Integrated Air Controls - Easy-turn, lockable regulator is front-mounted for easy access. Compact and modular with built-in filtration. Piston Valve with Floating Piston Seal - For maximum pressure balance over a range of material viscosities.

GG 24D608

DURA-FLO SYSTEM, 10:1, W WALL MT

NXT™ Dura-Flo® 10:1 Wall Mount Pump without DataTrak and Thermal Relief Kit

Tested to outperform and outlast all other pumps on the market – with its long-life design and intuitive, easy-to-use controls – the NXT Dura-Flo pump is the best value for the money. Fewer parts, faster repairs and long-lasting durability.

Optional DataTrak™ Control - Intuitive, easy-to-use DataTrak control gives you pump diagnostics, material usage tracking and pump runaway protection. NXT Air Motor - Modular design for easier maintenance with rugged body armor that won’t rust or dent. Modular Air Valves - Easy-to-repair valve eliminates stalling and contains de-icing controls. Integrated Air Controls - Easy-turn, lockable regulator is front-mounted for easy access. Compact and modular with built-in filtration. Piston Valve with Floating Piston Seal - For maximum pressure balance over a range of material viscosities.

GG 24Y227

DURA-FLO 1800 PUMP, XL, LASD, 47:1, (18CM SST)LH

47:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, MaxLife Stainless Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.

Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer XL 1000 Air Motor

• Modular design for easier maintenance
• Rugged body armor won't rust or dent
• Highest technology air motor on the market

430cc Dura-Flo Lower

• MaxLife coatings on rods and cylinder maximizes wear life

Standard Threaded Coupler -

Replaceable 1 1/2"-11 1/2 NPT Male Outlet Fitting

• Reduces repair costs

Replaceable Seat

• Minimizes service costs

Cast Outlet and Inlet Housing

• Improves structural integrity

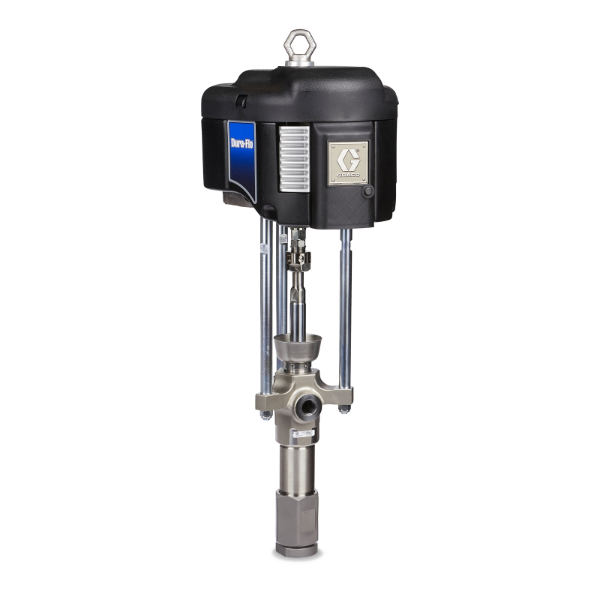

GG 24Y228

DURA-FLO 1800 PUMP, XL, LASD, 47:1, (18CM SST)RH

45:1 - 430cc Dura-Flo Pump with XL 10000 Air Motor, MaxLife Right Hand Stainless Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.

Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer XL 1000 Air Motor

• Modular design for easier maintenance
• Rugged body armor won't rust or dent
• Highest technology air motor on the market

430cc Dura-Flo Lower

• MaxLife coatings on rods and cylinder maximizes wear life

Standard Threaded Coupler -

Replaceable 1 1/2"-11 1/2 NPT Male Outlet Fitting

• Reduces repair costs

Replaceable Seat

• Minimizes service costs

Cast Outlet and Inlet Housing

• Improves structural integrity

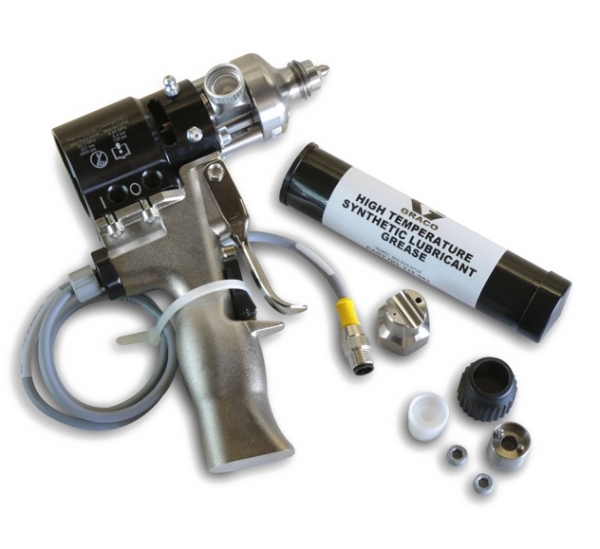

GG 255446

MD2 VALVE, ASSY, 10:1, HS, GUN, ELEC

10:1 Wide Ratio, Hard Seat, Electric Actuated, Non-adjustable Snuff-back, Manual Handle Manual gun option for mixing dispense (MD) valve for 2 component materials supports minimizing maintenance while maximizing production. Static valve reliably dispenses and mixes a wide range of 2 component sealants and adhesives. Wide ratio valve with center injection tip works well when the low volume material has a much lower viscosity than the high volume material. Frequent cleaning intervals may be required to maintain the tip. Carbide hard seats and hardened needles are good for abrasive material and stall against pressure applications. Hand held valve with electric switch signals the controller to open and close the ports on the MD2 valve. The process uses a remote four-way air control (not included; must be ordered separately). Non-adjustable snuff-back control keeps shut-off performance consistent for a clean bead dispense. Maximum flow rate is 25 to 30 cc/s, depending on material viscosity. Snuff-back control prevents dripping as it brings material back into the valve until next dispense. Hand held electric handle eases manual dispense.

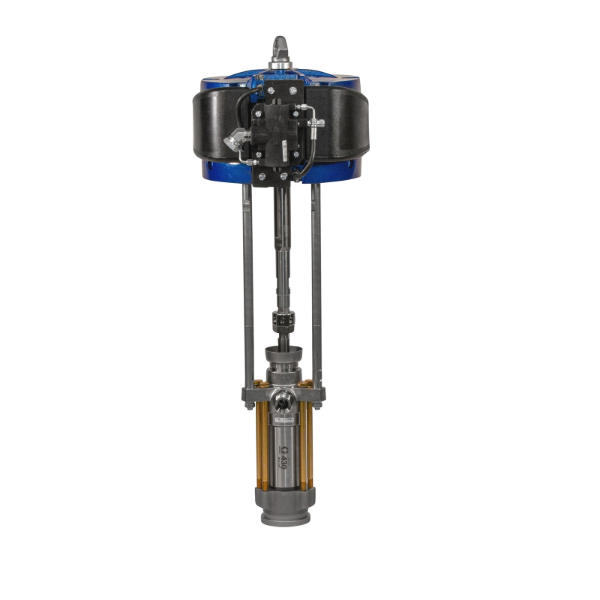

GG 25A454

DURA-FLO 1000 PUMP, XL, 47:1, SS, MAXLIFE

47:1 - 1000cc Dura-Flo Pump with XL 24000 Air Motor, MaxLife Stainless Steel Construction

Graco Supply Pumps reliably deliver one-component sealants, adhesives and other low to medium-viscosity materials to metering and dispensing systems. Maximize your plant's production capacity.

Long-lasting durability - Dura-Flo pumps are a time-tested, proven performer XL 24000 Air Motor

• Modular design for easier maintenance
• Rugged body armor won't rust or dent
• Highest technology air motor on the market

1000cc Dura-Flo Lower

• MaxLife coatings on rods and cylinder maximizes wear life

Standard Threaded Coupler -

Replaceable Outlet Fitting

• Reduces repair costs

Replaceable Seat

• Minimizes service costs

Cast Outlet and Inlet Housing

• Improves structural integrity
