Md2 Valve,Assy,10:1,Hs,Gun,Elec

GG 255446

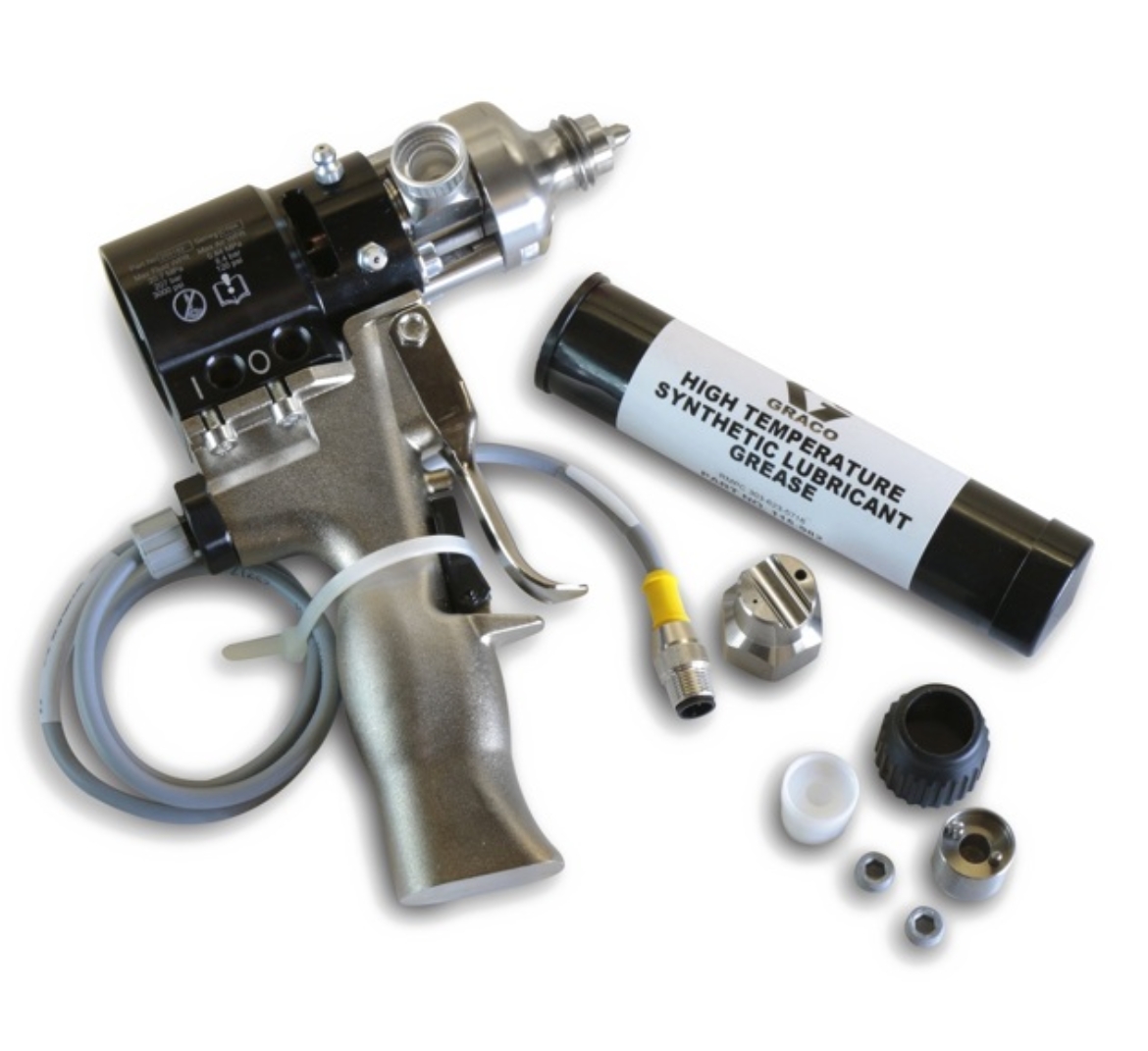

MD2 VALVE, ASSY, 10:1, HS, GUN, ELEC

Graco 255446 10:1 Wide Ratio, Hard Seat, Electric Actuated, Non-adjustable Snuff-back, Manual Handle

Manual gun option for mixing dispense (MD) valve for 2 component materials supports minimizing maintenance while maximizing production.

• Wide ratio valve with center injection tip works well when the low volume material has a much lower viscosity than the high volume material. Frequent cleaning intervals may be required to maintain the tip.
• Carbide hard seats and hardened needles are good for abrasive material and stall against pressure applications.
• Hand held valve with electric switch signals the controller to open and close the ports on the MD2 valve. The process uses a remote four-way air control (not included, must be ordered separately).
• Snuff-back control prevents dripping as it brings material back into the valve until next dispense.
• Hand held electric handle eases manual dispense.

• Model: Two Component Mixing Dispense Valve
• Series: MD2

• Air Inlet Size (in): 1/8
• Air Inlet Thread Gender: Female
• Air Inlet Thread Type: NPT

• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Thermal Management, Molding

• Compatible Material: 2K Sealants, Adhesives

• Component Type: Plural-Component

• Fluid Inlet Size (in): 9/16-18
• Fluid Inlet Thread Gender: Female
• Fluid Inlet Thread Type: UNF

• Fluid Outlet Size (in): 7/8-9
• Fluid Outlet Thread Gender: Male
• Fluid Outlet Thread Type: UNC

• Gun Activation: Manual

• Includes: 2K Dispense Handle, 10:1 Hard Seat Dispense Valve, 10:1 Ratio Check Kit, 10:1 Night Cap, ASM Aid Tool
• Inlet Size (in): 9/16-18

• Maximum Viscosity (cP): 1000000

• Maximum Working Pressure (bar): 207
• Maximum Working Pressure (kPa): 20700
• Maximum Working Pressure (MPa): 20.7
• Maximum Working Pressure (psi): 3000

• Mount Hole Thread Gender: Female
• Mount Hole Thread Type: Metric
