Chipping Hammer, 2 In Stroke, 2200 Bpm

IR 2DA1SA

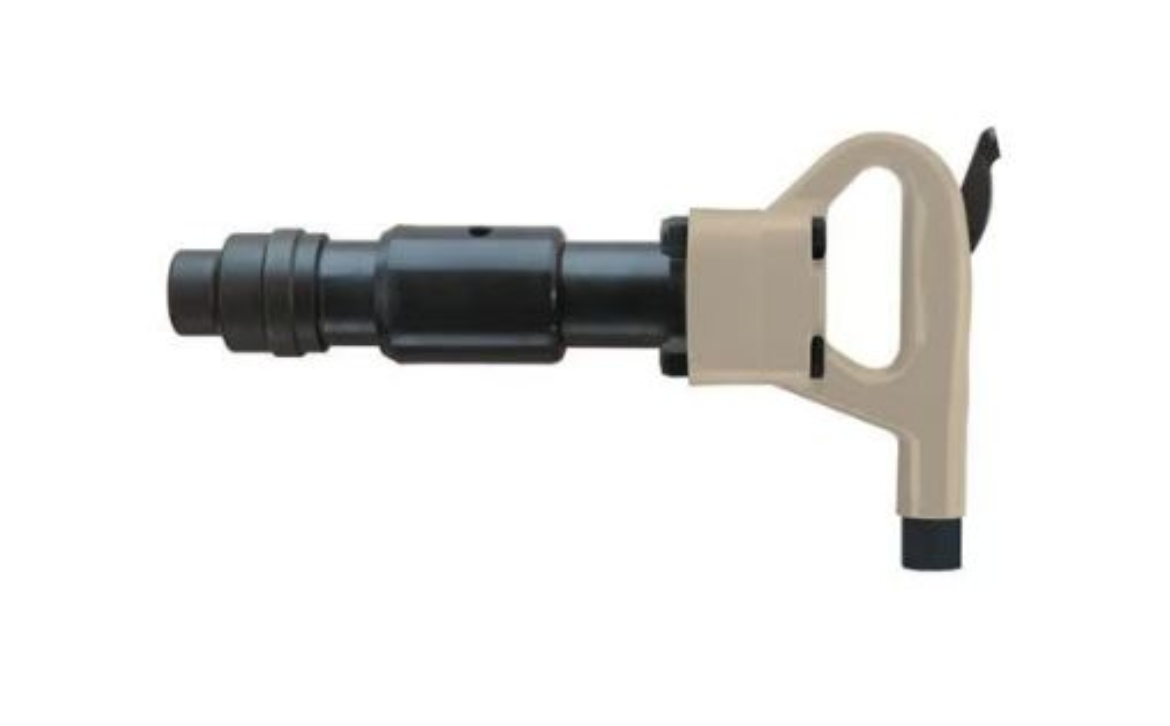

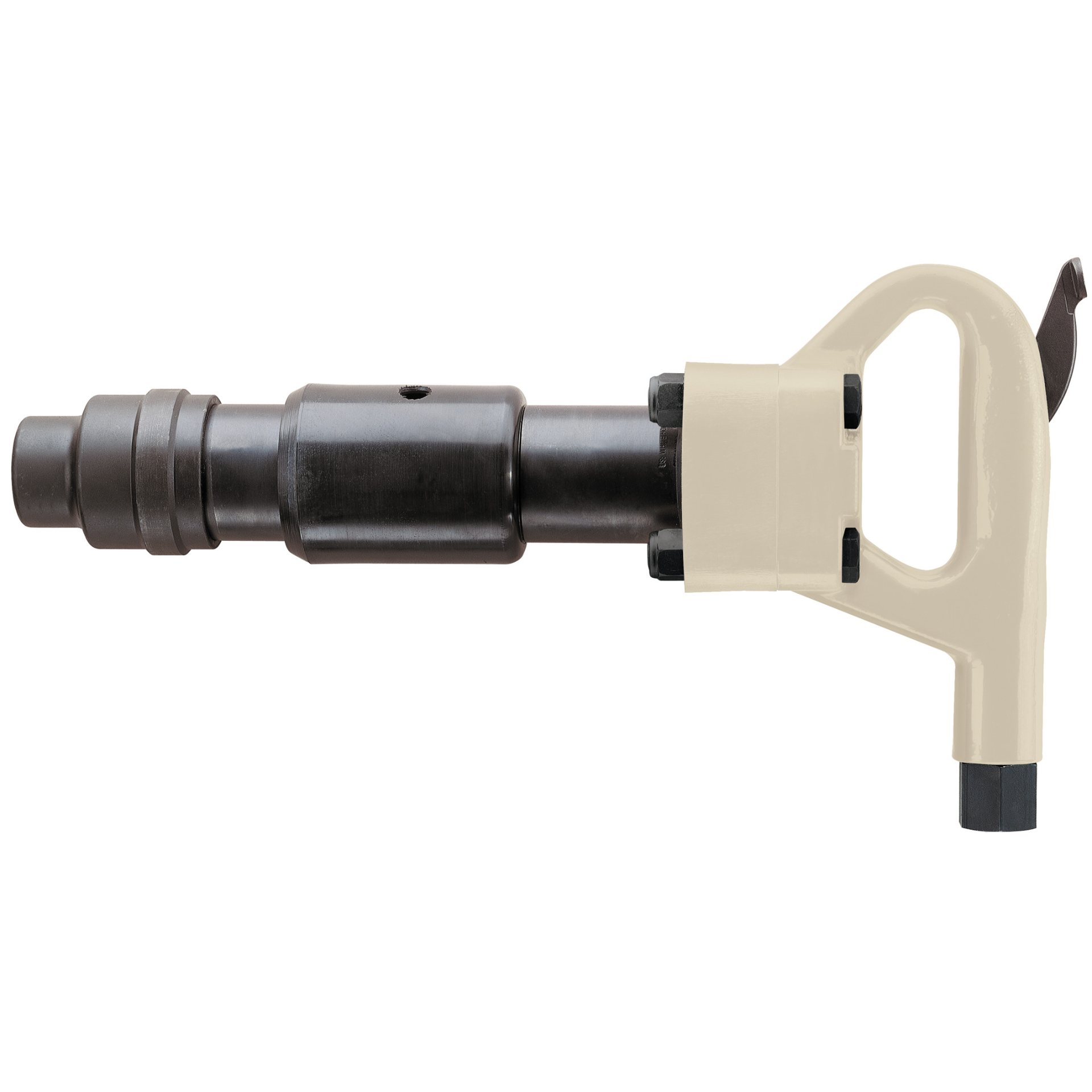

Air Chipping Hammer, 2" Stroke, 2200 BPM, Hex Shank Oval Collar

Description: The D Series chipping hammers are ready and equipped for any task, from light demolition work to metal removing. With an easily serviceable D-handle and directional exhaust for your convenience, these are hammers you can rely on.

Features And Benefits:

• Weight: At 11.74lbs., these tools are lightweight and easy to use.
• Reliability: Equipped with a steel cone, you never have to worry that the bit will fall out during production. Comes with a 1-year warranty.
• Precision: With the D Series' tease throttles, you'll be able to control the tool's impact down to the smallest margin.

Product Application and Uses:

These Air Percussive Chipping Hammers are designed for chipping, cutting, chiseling and breaking of hardened materials through repetitive application of linear impacts of a tool steel that is retained and driven by the chipper.

• Actuation/Throttle Type/Switch Type: Outside Trigger
• Air Consumption @ Load (cfm): 28
• Air Consumption @ Load (l/min): 793
• Air Inlet: 7/8" NPT
• Air Pressure (psi): 90

• Blows per Min: 2200
• Bore Diameter (in): 1.125

• Collar Type: Oval
• Color: Beige
• Configuration/Handle Type: D-Handle
• Duty Rating: Industrial Duty

• Exhaust Location: Side - Adjustable

• Housing Material: Aluminum

• Max Pressure (bar): 6.2
• Min Hose Size (in): 1
• Muffler: No

• Power Source: Air Powered
• Product Length (in): 13.75

• Product Weight (lb): 11.75
• Retainer Type: Grooved Barrel with Lock-spring (Plain Arrow)

• Shank SIze (in): 0.58
• Shank Type: Hex

• Stroke Length (in): 2

• Warranty: 1-year

• Accessories: HH1-1190
• Accessories: HH1-214-12
• Accessories: HH1-214-18
• Accessories: HH1-214-24
• Accessories: HH1-214B-12
• Accessories: HH1-214B-18
• Accessories: HH1-214B-9
• Accessories: HH1-214D-12
• Accessories: HH1-214F-12
• Accessories: HH1-214F-18
• Accessories: HH1-214F-24
• Accessories: HH1-214F-36
• Accessories: HH1-214F-60
• Accessories: HH1-214F-9
• Accessories: HH1-214M-12
• Accessories: HH1-214M-18
• Accessories: HH1-214M-24
• Accessories: HH1-214M-36
• Accessories: HH1-214M-9
• Accessories: HH1-214N-12
• Accessories: HH1-214S-12
• Accessories: HH1-214T-9

• Accessories: HH1-324-12
• Accessories: HH1-324-18
• Accessories: HH1-324-24
• Accessories: HH1-324-48
• Accessories: HH1-324-72
• Accessories: HH1-324-9
• Accessories: HH1-324-96

• Lubrication: 10P
• Parts: HH1-1194
