IR 117K

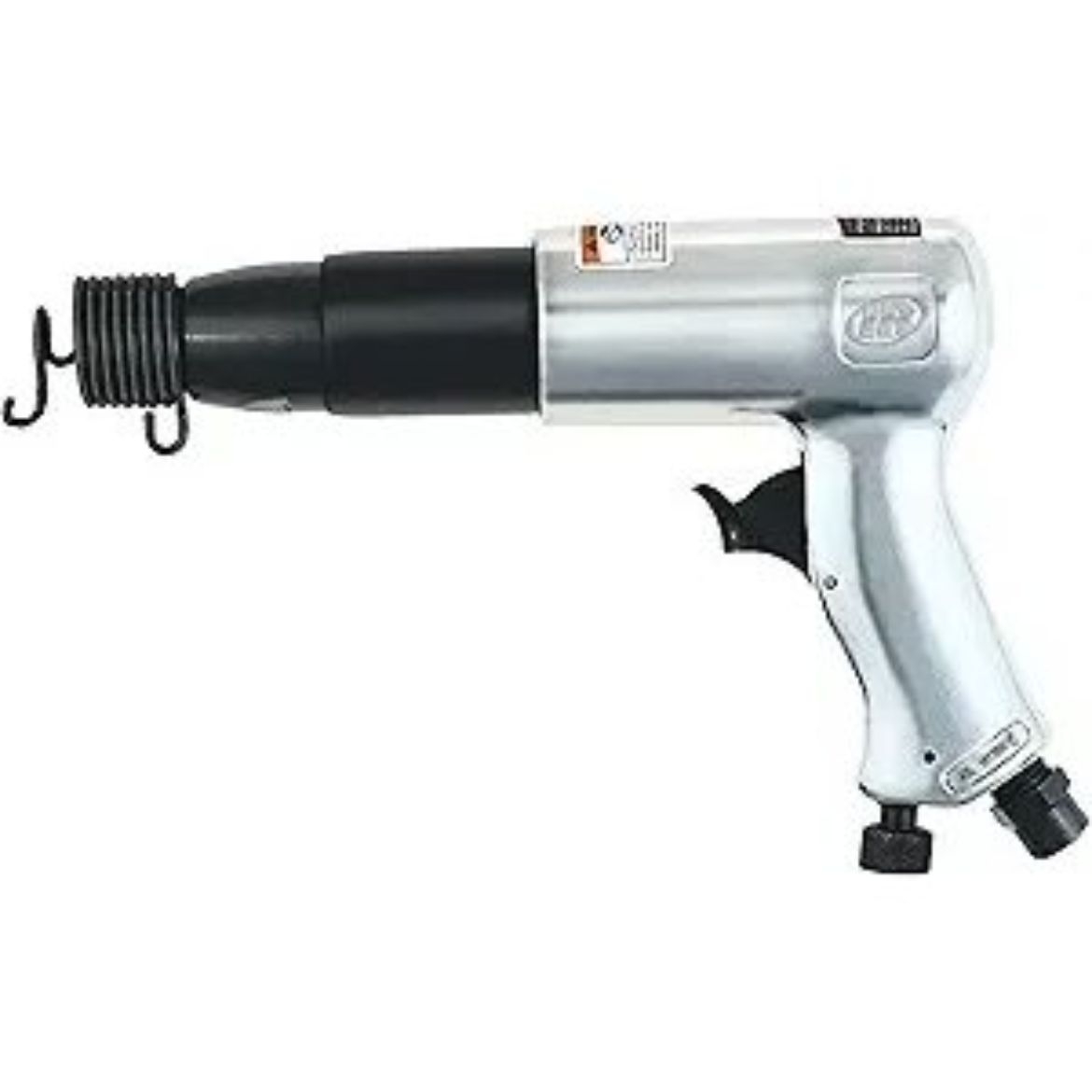

Air Hammer 5-Piece Chisel Set, 2000 BPM, 3-1/2" Stroke
Description: The 117 standard air hammer has a longer piston stroke than other hammers in the series. It is designed for exhaust work, bolt cutting, and front end work.
Features And Benefits:
- Performance: This general duty air hammer has a 3-1/2" stroke and 2,000 blows per minute.
- Control: This hammer has a built-in power regulator that allows you to completely control the speed and power output of your tool.
- Longer Life: To ensure a long life for your tool, it has a heat-treated piston and an alloyed steel barrel.

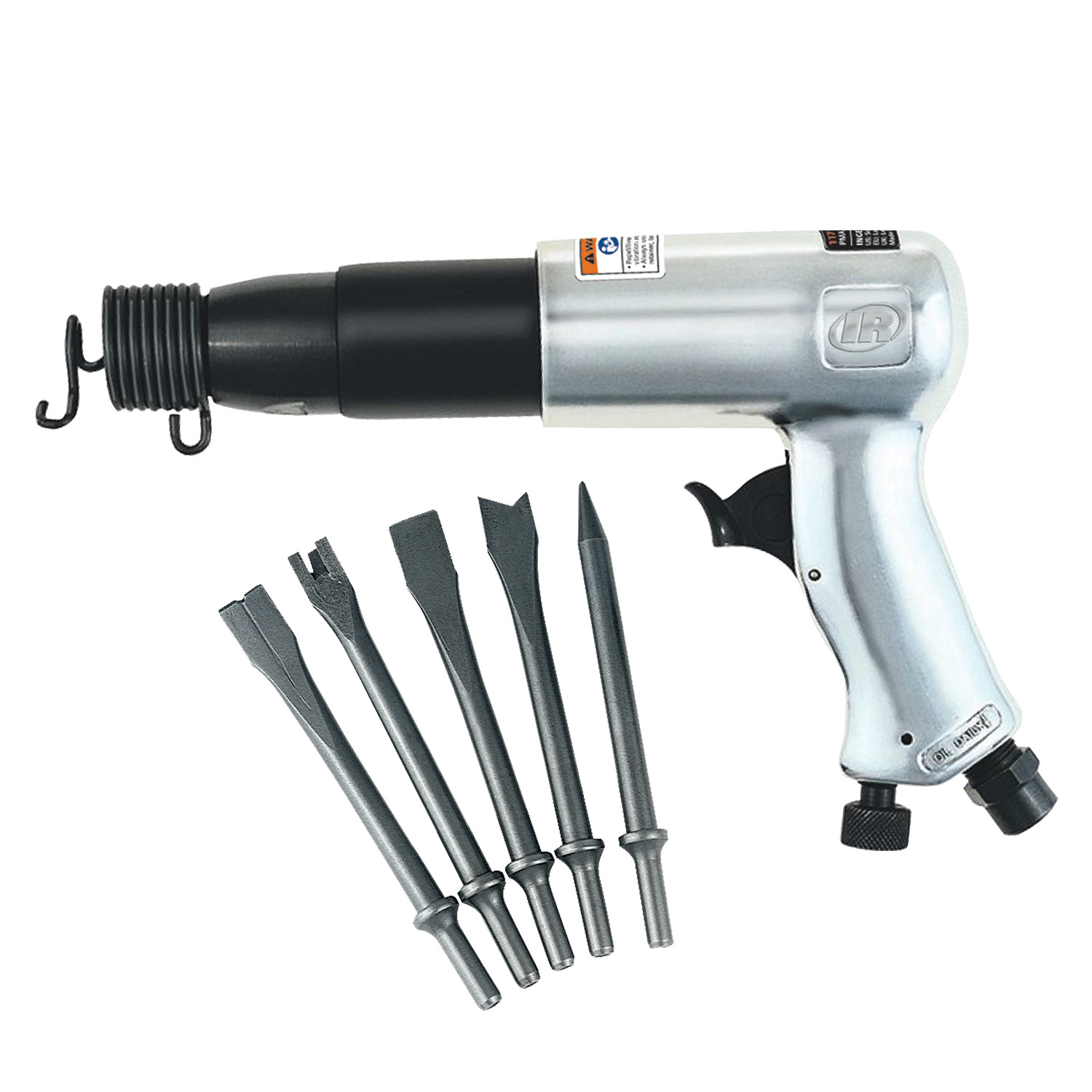

- Kit Includes: Tool, Retainer, Manuals and 5 Piece Chisel Set, (1) punch chisel, (1) edging tool, (1) tail pipe cutter, (1) 3/4" wide blade straight chisel, and (1) cutting chisel.
Product Application and Uses:
Vehicle Repair, Exhaust Front End Jobs, Bolt Cutting
- Includes: Tool, Retainer, Manuals and 5 Piece Chisel Set, (1) punch chisel, (1) edging tool, (1) tail pipe cutter, (1) 3/4" wide blade straight chisel, and (1) cutting chisel.
- Actuation/Throttle Type/Switch Type: Trigger
- Air Consumption @ Load (cfm): 15
- Air Consumption @ Load (l/min): 396
- Air Inlet: 1/4" NPT
- Air Pressure (psi): 90
- Average Air Consumption (cfm): 3
- Average Air Consumption (l/min): 85
- Blows per Min: 2000
- Bore Diameter (in): 0.69
- Color: Silver
- Configuration/Handle Type: Pistol Grip
- Duty Rating: General Duty
- Handle Material: Aluminum
- Housing Material: Aluminum
- Max Pressure (bar): 6.2
- Min Hose Size (in): 3/8
- Power Source: Air Powered
- Product Length (in): 9.9
- Product Width (in): 7.4
- Product Height (in): 2.68
- Product Weight (lb): 4.1
- Retainer Type: Spring
- Shank SIze (in): .401
- Shank Type: Round
- Sound Pressure/Power Db(A): 103.5 / 114.5
- Standards/Certifications: Ce
- Stroke Length (in): 3.5
- Vibration Level (m/s2): 9.2
- Warranty: 1-year
- Accessories: 401B07
- Accessories: 401B09
- Accessories: 401FC347
- Accessories: 401MP7
- Accessories: 9500
- Accessories: 9510
- Lubrication: 10G
- Lubrication: 10P
- Parts: 9510
