Pumps

GG CM1F4F

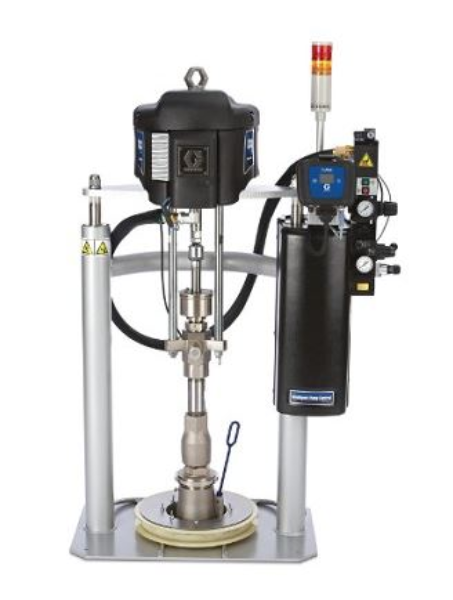

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, D60, 20L

Graco CM1F4F Supply Unit, Check-Mate, 40:1, S/S, Severe Duty, 3 in. D60 Ram, Integrated Air Controls, 20L S/S Flat Platen, Single PTFE Wiper

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco D60 - Provides higher down-force and 60-liter pail capacity
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D60

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.1

• Maximum Fluid Pressure (bar): 275.8
• Maximum Fluid Pressure (kPa): 27580
• Maximum Fluid Pressure (psi): 4000

• Maximum Fluid Pressure (bar): 275.8
• Maximum Fluid Pressure (kPa): 27580
• Maximum Fluid Pressure (psi): 4000

• Maximum Height (cm): 226.06
• Maximum Height (ft): 7.42
• Maximum Height (in): 89
• Maximum Height (m): 2.26
• Maximum Height (mm): 2260.6

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Height (cm): 149.86
• Minimum Height (ft): 4.92
• Minimum Height (in): 59
• Minimum Height (m): 1.5
• Minimum Height (mm): 1498.6

• Overall Depth (cm): 45.72
• Overall Depth (in): 18
• Overall Depth (mm): 457.2

• Overall Width (cm): 71.12
• Overall Width (in): 28
• Overall Width (mm): 711.2

• Power Type: Pneumatic

• Pump Ratio: 40:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM2159

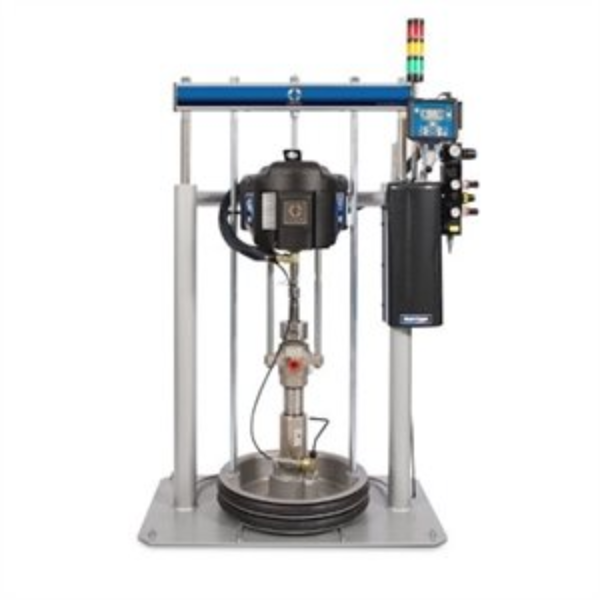

CHECK-MATE SUPPLY UNIT, 23:1, 3.0 RAM, 200L

Graco CM2159 23:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 158.8
• Maximum Fluid Pressure (kPa): 15880
• Maximum Fluid Pressure (psi): 2300

• Maximum Fluid Pressure (bar): 158.8
• Maximum Fluid Pressure (kPa): 15880
• Maximum Fluid Pressure (psi): 2300

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 161
• Maximum Working Pressure (kPa): 16100
• Maximum Working Pressure (MPa): 16.1
• Maximum Working Pressure (psi): 2300

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 23:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM2959

CHECK-MATE SUPPLY UNIT, 36:1, 3.0 RAM, 200L

Graco CM2959 36:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 248.2
• Maximum Fluid Pressure (kPa): 24820
• Maximum Fluid Pressure (psi): 3600

• Maximum Fluid Pressure (bar): 248.2
• Maximum Fluid Pressure (kPa): 24820
• Maximum Fluid Pressure (psi): 3600

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 252
• Maximum Working Pressure (kPa): 25200
• Maximum Working Pressure (MPa): 25.2
• Maximum Working Pressure (psi): 3600

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 36:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM2M79

CHECK-MATE SUPPLY UNIT, 68:1, 6.5 RAM, 200L

Graco CM2M79 68:1 Ratio 200 L 6.5 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200s - For heavy-duty, high-volume applications of high-viscosity materials. Provides more down-force for difficult-to-move materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200s

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 427.5
• Maximum Fluid Pressure (kPa): 42750
• Maximum Fluid Pressure (psi): 6200

• Maximum Fluid Pressure (bar): 427.5
• Maximum Fluid Pressure (kPa): 42750
• Maximum Fluid Pressure (psi): 6200

• Maximum Height (cm): 266.5
• Maximum Height (ft): 8.74
• Maximum Height (in): 104.9
• Maximum Height (m): 2.66
• Maximum Height (mm): 2665

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 434
• Maximum Working Pressure (kPa): 43400
• Maximum Working Pressure (MPa): 43.4
• Maximum Working Pressure (psi): 6200

• Minimum Height (cm): 178.5
• Minimum Height (ft): 5.86
• Minimum Height (in): 70.3
• Minimum Height (m): 1.79
• Minimum Height (mm): 1785

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 121.9
• Overall Width (in): 48
• Overall Width (mm): 1219

• Power Type: Pneumatic

• Pump Ratio: 68:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

LN 2524

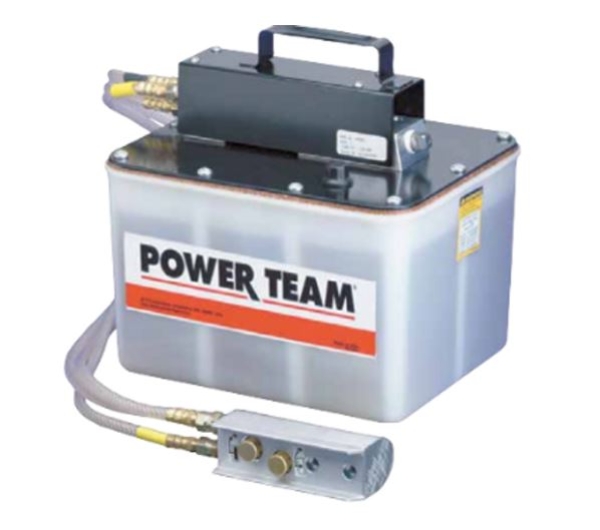

SPX PA50R2

SPX PA6

BB 104018-21

BB MX1212UC-0DC1S00

BB MX12220PU-SMH

BB MX3511PU-SAH

BB MX3511PU-SAW1T00

BB MX3523PU-SAW5T00

BB MX3536PU-SAW5T00

BB MX44046PU-SMB

EP PA133

Enerpac PA Series Air Over Hydraulic Pumps are robust, simple to use, and easy to service. The series includes several models with varying reservoir capacities, air consumption, and maximum operating pressures.

All models can be used either by foot or hand to advance and retract your single-acting hydraulic tool. The PA133 and PA1150 models also provide a hold capability.

The swivel coupling enables simple connection and hassle-free operation. The PA133, PA135, and PA136 models include base mounting slots.

The maximum operating pressure depends upon the model, and ranges from 3,000-10,000 psi (207-700 bar). Maximum flow rates at rated pressures range from 8 in3/min up to 120 in3/min (0.13L – 1.97L).

PA-Series at a Glance:

• PA133 : Advance / Hold / Retract. Max 10,000 psi. Max flow 8 in3/min (0.13 l/min).
• PA1150 : Advance / Hold / Retract. Max 10,000 psi. Max flow 8 in3/min (0.13 l/min). Extra oil capacity.
• PA135 : Advance / Retract. Max 5,000 psi. Max flow 60 in3/min. (0.98 l/min).
• PA136 : Advance / Retract. Max 3,000 psi. Max flow 120 in3/min (1.97 l/min).

• Type: Hydraulic Pump
• Max Bar: 700
• Max PSI: 10000

• Product Group: Pumps
• Product Line: Industrial Tools
• Series: PA
• SubTypes: Air Pump

• Rugged construction - built for long life and easy service
• Swivel coupling simplifies hydraulic connection and pump operation
• Three-position treadle provides cylinder advance, hold and retract operation

• Spare Part(s): DA5816900SR, PA133K3, CF180900SR

GG CM114G

CHECK-MATE SUPPLY UNIT, 40:1, 0 VOLT, D60, 20L

Graco CM114G 40:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco D60 - Provides higher down-force and 60-liter pail capacity
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D60

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.1

• Maximum Fluid Pressure (bar): 275.8
• Maximum Fluid Pressure (kPa): 27580
• Maximum Fluid Pressure (psi): 4000

• Maximum Fluid Pressure (bar): 275.8
• Maximum Fluid Pressure (kPa): 27580
• Maximum Fluid Pressure (psi): 4000

• Maximum Height (cm): 226.06
• Maximum Height (ft): 7.42
• Maximum Height (in): 89
• Maximum Height (m): 2.26
• Maximum Height (mm): 2260.6

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 280
• Maximum Working Pressure (kPa): 28000
• Maximum Working Pressure (MPa): 28
• Maximum Working Pressure (psi): 4000

• Minimum Height (cm): 149.86
• Minimum Height (ft): 4.92
• Minimum Height (in): 59
• Minimum Height (m): 1.5
• Minimum Height (mm): 1498.6

• Overall Depth (cm): 45.72
• Overall Depth (in): 18
• Overall Depth (mm): 457.2

• Overall Width (cm): 71.12
• Overall Width (in): 28
• Overall Width (mm): 711.2

• Power Type: Pneumatic

• Pump Ratio: 40:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM154B

CHECK-MATE SUPPLY UNIT, 63:1, 0 VOLT, D60, 20L

Graco CM154B 63:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco D60 - Provides higher down-force and 60-liter pail capacity
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D60

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 1.6
• Maximum Flow Rate (L/min): 6.1

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Fluid Pressure (bar): 434.4
• Maximum Fluid Pressure (kPa): 43440
• Maximum Fluid Pressure (psi): 6300

• Maximum Height (cm): 226.06
• Maximum Height (ft): 7.42
• Maximum Height (in): 89
• Maximum Height (m): 2.26
• Maximum Height (mm): 2260.6

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 441
• Maximum Working Pressure (kPa): 44100
• Maximum Working Pressure (MPa): 44.1
• Maximum Working Pressure (psi): 6300

• Minimum Height (cm): 149.86
• Minimum Height (ft): 4.92
• Minimum Height (in): 59
• Minimum Height (m): 1.5
• Minimum Height (mm): 1498.6

• Overall Depth (cm): 45.72
• Overall Depth (in): 18
• Overall Depth (mm): 457.2

• Overall Width (cm): 71.12
• Overall Width (in): 28
• Overall Width (mm): 711.2

• Power Type: Pneumatic

• Pump Ratio: 63:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM395A

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

Graco CM395A 55:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Fluid Pressure (bar): 379.2
• Maximum Fluid Pressure (kPa): 37920
• Maximum Fluid Pressure (psi): 5500

• Maximum Fluid Pressure (bar): 379.2
• Maximum Fluid Pressure (kPa): 37920
• Maximum Fluid Pressure (psi): 5500

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 385
• Maximum Working Pressure (kPa): 38500
• Maximum Working Pressure (MPa): 38.5
• Maximum Working Pressure (psi): 5500

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 55:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM3A5A

CHECK-MATE SUPPLY UNIT, 55:1, 3.0 RAM, 200L

Graco CM3A5A 55:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 4
• Maximum Flow Rate (L/min): 15.1

• Maximum Fluid Pressure (bar): 379.2
• Maximum Fluid Pressure (kPa): 37920
• Maximum Fluid Pressure (psi): 5500

• Maximum Fluid Pressure (bar): 379.2
• Maximum Fluid Pressure (kPa): 37920
• Maximum Fluid Pressure (psi): 5500

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 385
• Maximum Working Pressure (kPa): 38500
• Maximum Working Pressure (MPa): 38.5
• Maximum Working Pressure (psi): 5500

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 55:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM7A1B

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, L20C, 20L

Graco CM7A1B 20:1 Ratio 20 L L20C Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco L20c - A lightweight, elevator ram on a cart
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: L20c

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 175.26
• Maximum Height (ft): 5.75
• Maximum Height (in): 69
• Maximum Height (m): 1.75
• Maximum Height (mm): 1752.6

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 111.76
• Minimum Height (ft): 3.67
• Minimum Height (in): 44
• Minimum Height (m): 1.12
• Minimum Height (mm): 1117.6

• Overall Depth (cm): 53.34
• Overall Depth (in): 21
• Overall Depth (mm): 533.4

• Overall Width (cm): 55.88
• Overall Width (in): 22
• Overall Width (mm): 558.8

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM7A59

SPLYUNIT, 20: 1, D200, 200L

Graco CM7A59 200 L D200 Supply System

Bulk unloaders for ambient sealants, adhesives and other medium to high-viscosity materials

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM7C3F

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L

Graco CM7C3F 20:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20 - For low-volume applications of medium to high-viscosity materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 150.6
• Maximum Height (ft): 4.94
• Maximum Height (in): 59.3
• Maximum Height (m): 1.51
• Maximum Height (mm): 1506

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 90.9
• Minimum Height (ft): 2.98
• Minimum Height (in): 35.8
• Minimum Height (m): 0.91
• Minimum Height (mm): 909

• Overall Depth (cm): 48.26
• Overall Depth (in): 19
• Overall Depth (mm): 482.6

• Overall Width (cm): 43.18
• Overall Width (in): 17
• Overall Width (mm): 431.8

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM8C2F

CHECK-MATE SUPPLY UNIT, 38:1, 0 V, S20 CART, 20L

Graco CM8C2F Supply Unit, Check-Mate, 38:1, S/S, Severe Duty, 3 in. S20c Ram, Integrated Air Controls, 20L S/S Flat Platen, Single PTFE Wiper

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20c - Same as the S20, but includes a cart
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20c

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 262
• Maximum Fluid Pressure (kPa): 26200
• Maximum Fluid Pressure (psi): 3800

• Maximum Fluid Pressure (bar): 262
• Maximum Fluid Pressure (kPa): 26200
• Maximum Fluid Pressure (psi): 3800

• Maximum Height (cm): 228.6
• Maximum Height (ft): 7.5
• Maximum Height (in): 90
• Maximum Height (m): 2.29
• Maximum Height (mm): 2286

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 262
• Maximum Working Pressure (kPa): 26200
• Maximum Working Pressure (MPa): 26.2
• Maximum Working Pressure (psi): 3800

• Minimum Height (cm): 165.1
• Minimum Height (ft): 5.42
• Minimum Height (in): 65
• Minimum Height (m): 1.65
• Minimum Height (mm): 1651

• Overall Depth (cm): 66.1
• Overall Depth (in): 26
• Overall Depth (mm): 661

• Overall Width (cm): 56.2
• Overall Width (in): 22.1
• Overall Width (mm): 562

• Power Type: Pneumatic

• Pump Ratio: 38:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

LN 82050
