Check-Mate Supply Unit,23:1,3.0 Ram,200L

GG CM2159

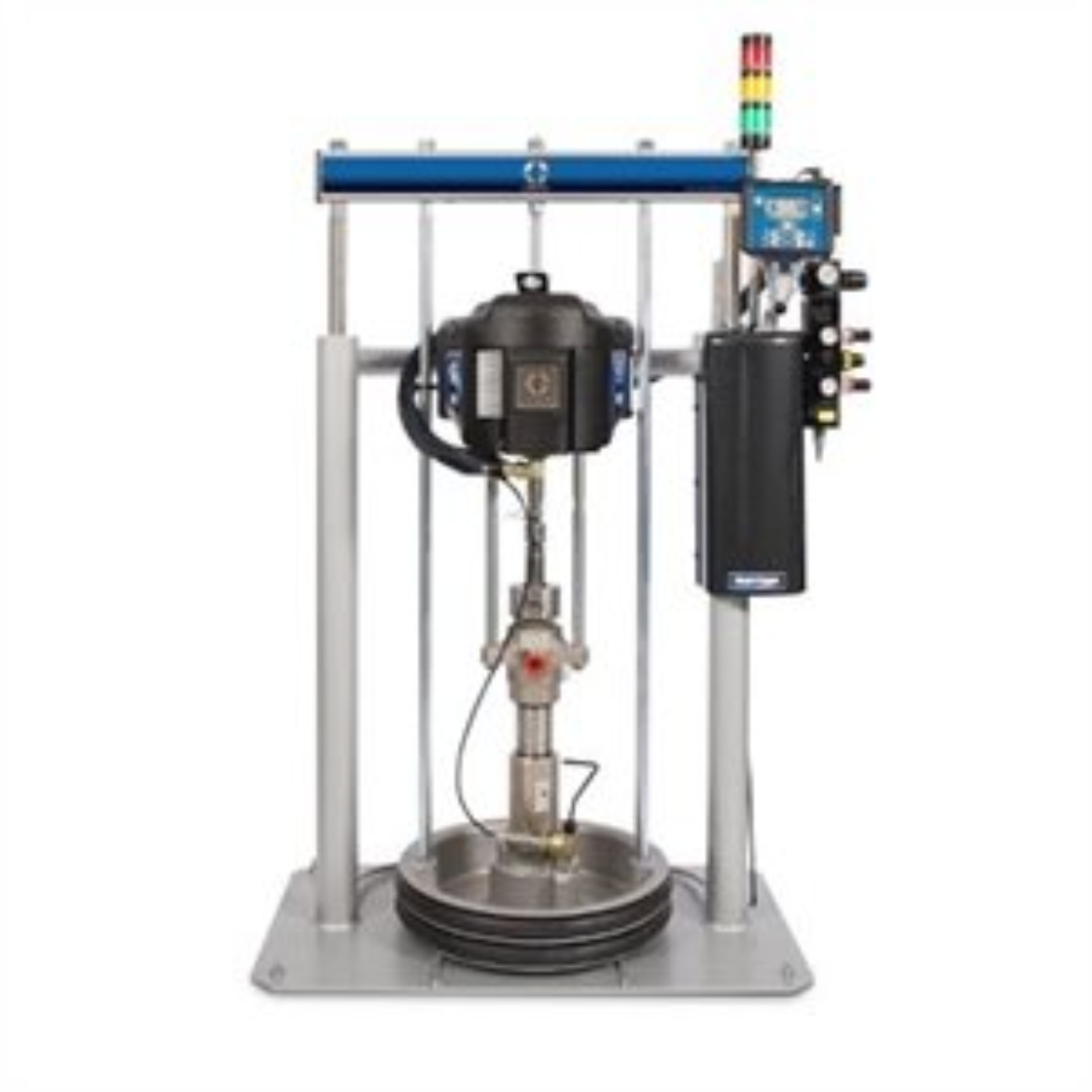

CHECK-MATE SUPPLY UNIT, 23:1, 3.0 RAM, 200L

Graco CM2159 23:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 158.8
• Maximum Fluid Pressure (kPa): 15880
• Maximum Fluid Pressure (psi): 2300

• Maximum Fluid Pressure (bar): 158.8
• Maximum Fluid Pressure (kPa): 15880
• Maximum Fluid Pressure (psi): 2300

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 161
• Maximum Working Pressure (kPa): 16100
• Maximum Working Pressure (MPa): 16.1
• Maximum Working Pressure (psi): 2300

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 23:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel
