Pumps

GG CM2558

CHECK-MATE SUPPLY UNIT, 23:1, 3.0 RAM, 200L

Graco CM2558 23:1 Ratio 200 L 3.0 RAM Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum

• Material Container Volume (gal): 52.8
• Material Container Volume (l): 200

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 158.8
• Maximum Fluid Pressure (kPa): 15880
• Maximum Fluid Pressure (psi): 2300

• Maximum Fluid Pressure (bar): 158.8
• Maximum Fluid Pressure (kPa): 15880
• Maximum Fluid Pressure (psi): 2300

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 161
• Maximum Working Pressure (kPa): 16100
• Maximum Working Pressure (MPa): 16.1
• Maximum Working Pressure (psi): 2300

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 23:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM2A4B

CHECK-MATE SUPPLY UNIT, 36:1, 0 VOLT, D60, 20L

Graco CM2A4B 36:1 Ratio 20 L D60 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 60 liter (16-gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco D60 - Provides higher down-force and 60-liter pail capacity
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D60

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 10.34
• Maximum Air Inlet Pressure (kg/cm²): 10.55
• Maximum Air Inlet Pressure (kPa): 1034
• Maximum Air Inlet Pressure (psi): 150

• Maximum Flow Rate (GPM): 3.2
• Maximum Flow Rate (L/min): 12.1

• Maximum Fluid Pressure (bar): 248.2
• Maximum Fluid Pressure (kPa): 24820
• Maximum Fluid Pressure (psi): 3600

• Maximum Fluid Pressure (bar): 248.2
• Maximum Fluid Pressure (kPa): 24820
• Maximum Fluid Pressure (psi): 3600

• Maximum Height (cm): 226.06
• Maximum Height (ft): 7.42
• Maximum Height (in): 89
• Maximum Height (m): 2.26
• Maximum Height (mm): 2260.6

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 252
• Maximum Working Pressure (kPa): 25200
• Maximum Working Pressure (MPa): 25.2
• Maximum Working Pressure (psi): 3600

• Minimum Height (cm): 149.86
• Minimum Height (ft): 4.92
• Minimum Height (in): 59
• Minimum Height (m): 1.5
• Minimum Height (mm): 1498.6

• Overall Depth (cm): 45.72
• Overall Depth (in): 18
• Overall Depth (mm): 457.2

• Overall Width (cm): 71.12
• Overall Width (in): 28
• Overall Width (mm): 711.2

• Power Type: Pneumatic

• Pump Ratio: 36:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM5M78

GG CM7A3C

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, S20, 20L

Graco CM7A3C 20:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20 - For low-volume applications of medium to high-viscosity materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 150.6
• Maximum Height (ft): 4.94
• Maximum Height (in): 59.3
• Maximum Height (m): 1.51
• Maximum Height (mm): 1506

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 90.9
• Minimum Height (ft): 2.98
• Minimum Height (in): 35.8
• Minimum Height (m): 0.91
• Minimum Height (mm): 909

• Overall Depth (cm): 48.26
• Overall Depth (in): 19
• Overall Depth (mm): 482.6

• Overall Width (cm): 43.18
• Overall Width (in): 17
• Overall Width (mm): 431.8

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

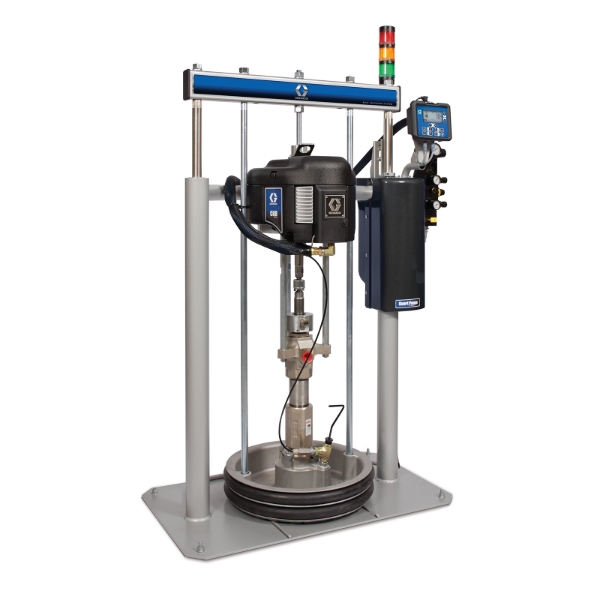

GG CM7C5A

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, D200, 200L

Graco CM7C5A Supply Unit, Check-Mate, 20:1, S/S, Severe Duty, 3 in. D200 Ram, Integrated Air Controls, 200L Al Platen, Double O-Ring Neoprene Wiper

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• For large drums up to 200 liter (55 gal)
• Graco D200 - For high-volume in-plant applications
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: D200

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Drum
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 259.9
• Maximum Height (ft): 8.53
• Maximum Height (in): 102.3
• Maximum Height (m): 2.6
• Maximum Height (mm): 2599

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 164.6
• Minimum Height (ft): 5.4
• Minimum Height (in): 64.8
• Minimum Height (m): 1.65
• Minimum Height (mm): 1646

• Overall Depth (cm): 63.5
• Overall Depth (in): 25
• Overall Depth (mm): 635

• Overall Width (cm): 106.7
• Overall Width (in): 42
• Overall Width (mm): 1067

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GG CM9A3B

CHECK-MATE SUPPLY UNIT, 61:1, 0 VOLT, S20, 20L

Graco CM9A3B 61:1 Ratio 20 L S20 Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20 - For low-volume applications of medium to high-viscosity materials
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 420.6
• Maximum Fluid Pressure (kPa): 42060
• Maximum Fluid Pressure (psi): 6100

• Maximum Fluid Pressure (bar): 420.6
• Maximum Fluid Pressure (kPa): 42060
• Maximum Fluid Pressure (psi): 6100

• Maximum Height (cm): 150.6
• Maximum Height (ft): 4.94
• Maximum Height (in): 59.3
• Maximum Height (m): 1.51
• Maximum Height (mm): 1506

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 421
• Maximum Working Pressure (kPa): 42100
• Maximum Working Pressure (MPa): 42.1
• Maximum Working Pressure (psi): 6100

• Minimum Height (cm): 90.9
• Minimum Height (ft): 2.98
• Minimum Height (in): 35.8
• Minimum Height (m): 0.91
• Minimum Height (mm): 909

• Overall Depth (cm): 48.26
• Overall Depth (in): 19
• Overall Depth (mm): 482.6

• Overall Width (cm): 43.18
• Overall Width (in): 17
• Overall Width (mm): 431.8

• Power Type: Pneumatic

• Pump Ratio: 61:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel

GR 4HA27

IR 7T2

PV EPG KRFC20

SPX HDT41065

SPX PE172

BB 0115-010186

BB 101-2021

BB 101-2053

BB 104023

BB 104038

BB 104042-N

BB 104129

BB 104266-HE

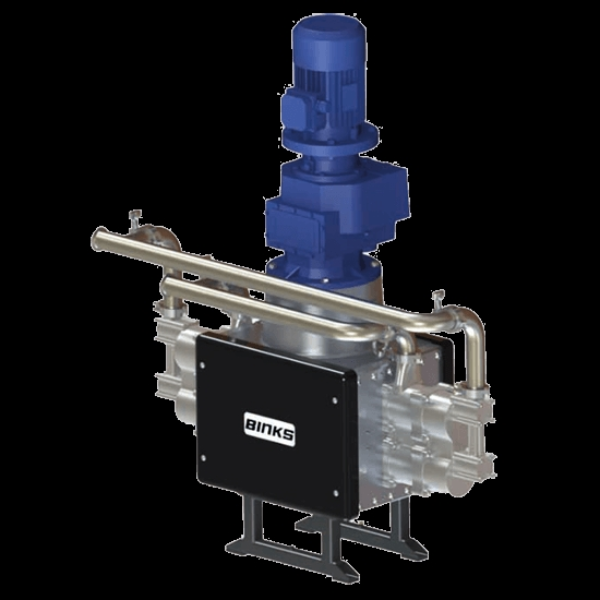

BB 107071
