Check-Mate Supply Unit,38:1,0 V,S20 Cart,20L

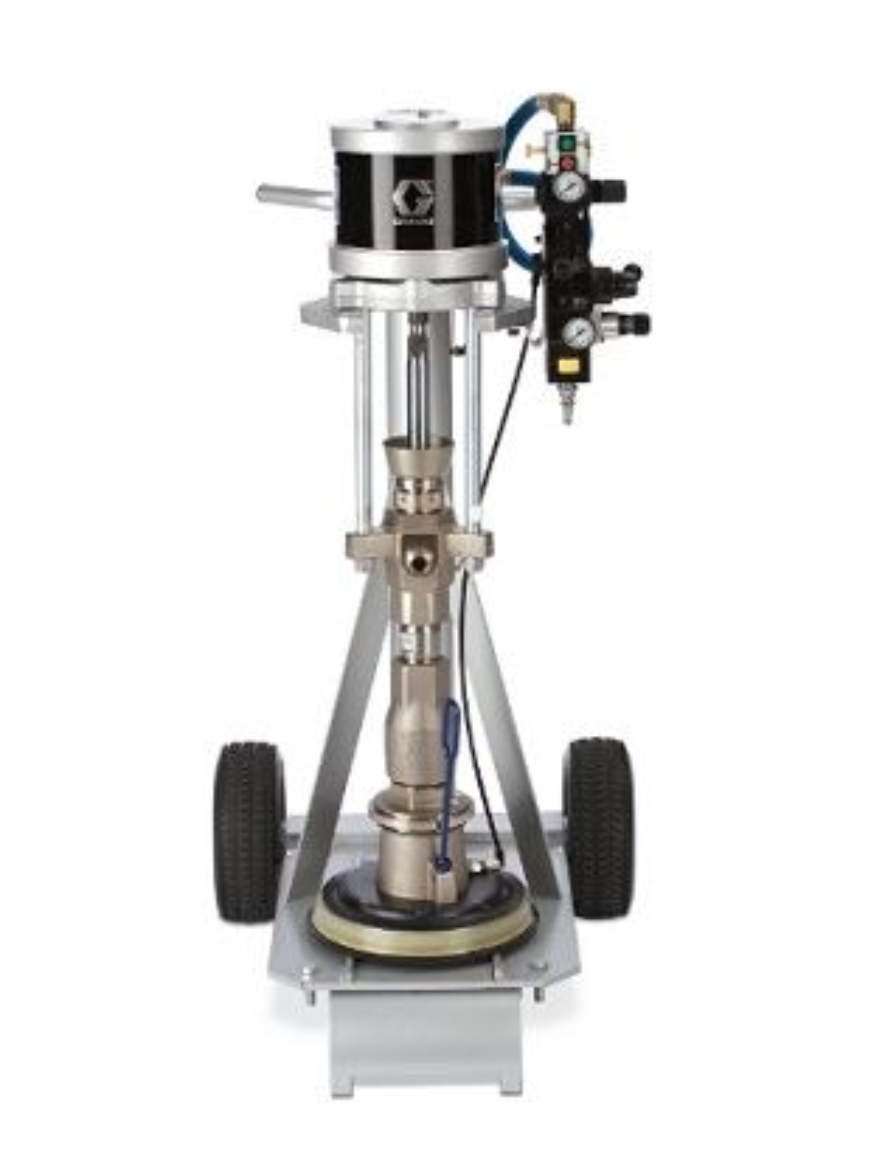

GG CM8C2F

CHECK-MATE SUPPLY UNIT, 38:1, 0 V, S20 CART, 20L

Graco CM8C2F Supply Unit, Check-Mate, 38:1, S/S, Severe Duty, 3 in. S20c Ram, Integrated Air Controls, 20L S/S Flat Platen, Single PTFE Wiper

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco S20c - Same as the S20, but includes a cart
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: S20c

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 8.62
• Maximum Air Inlet Pressure (kg/cm²): 8.79
• Maximum Air Inlet Pressure (kPa): 862
• Maximum Air Inlet Pressure (psi): 125

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 262
• Maximum Fluid Pressure (kPa): 26200
• Maximum Fluid Pressure (psi): 3800

• Maximum Fluid Pressure (bar): 262
• Maximum Fluid Pressure (kPa): 26200
• Maximum Fluid Pressure (psi): 3800

• Maximum Height (cm): 228.6
• Maximum Height (ft): 7.5
• Maximum Height (in): 90
• Maximum Height (m): 2.29
• Maximum Height (mm): 2286

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 262
• Maximum Working Pressure (kPa): 26200
• Maximum Working Pressure (MPa): 26.2
• Maximum Working Pressure (psi): 3800

• Minimum Height (cm): 165.1
• Minimum Height (ft): 5.42
• Minimum Height (in): 65
• Minimum Height (m): 1.65
• Minimum Height (mm): 1651

• Overall Depth (cm): 66.1
• Overall Depth (in): 26
• Overall Depth (mm): 661

• Overall Width (cm): 56.2
• Overall Width (in): 22.1
• Overall Width (mm): 562

• Power Type: Pneumatic

• Pump Ratio: 38:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel
