Check-Mate Supply Unit,20:1,0 Volt,L20C,20L

GG CM7A1B

CHECK-MATE SUPPLY UNIT, 20:1, 0 VOLT, L20C, 20L

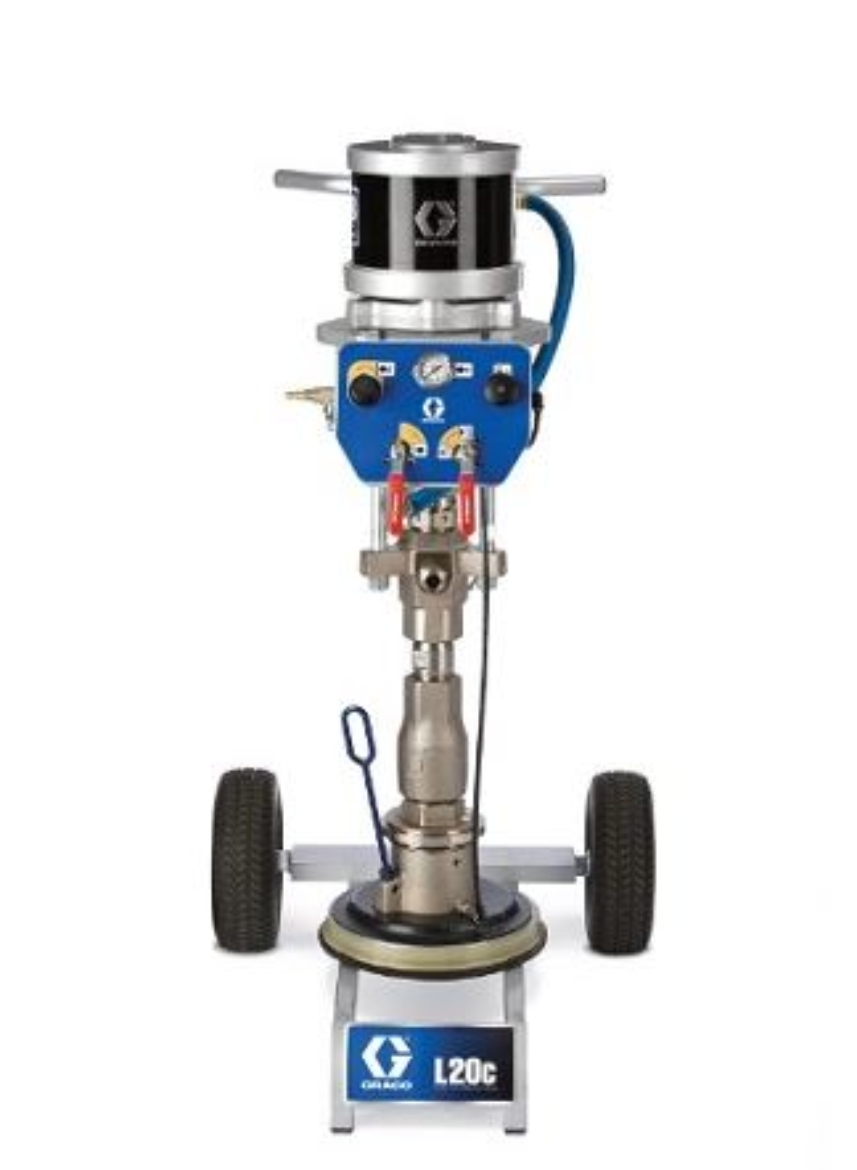

Graco CM7A1B 20:1 Ratio 20 L L20C Supply Unit

Graco Supply Systems reliably deliver one-component sealants, adhesives and other medium to high-viscosity materials from pails or drums to metering and dispensing systems.

• 20 liter (5 gal) pail sizes provides the same proven technologies as the larger systems, but with small NXT Air Motors
• Graco L20c - A lightweight, elevator ram on a cart
• Industry-first controls give you immediate and important information at the touch of a button
• Platen wipers can be replaced in seconds
• Pumps quick-disconnect coupler, turnbuckle mount and pump cartridge packings let you service the pump without removing it from the ram
• High-quality, durable parts reduce maintenance time, maximize uptime

• Model: Check-Mate
• Series: L20c

• Ambient/Warm Melt/Hot Melt: Ambient
• Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Molding, Spray, Fluid Transfer, Unloading, Underfill

• Container Type: Pail
• Control Panel Material: N/A

• Material Container Volume (gal): 5.3
• Material Container Volume (l): 20

• Maximum Air Inlet Pressure (bar): 6.9
• Maximum Air Inlet Pressure (kg/cm²): 7.03
• Maximum Air Inlet Pressure (kPa): 690
• Maximum Air Inlet Pressure (psi): 100

• Maximum Flow Rate (GPM): 0.9
• Maximum Flow Rate (L/min): 3.4

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Fluid Pressure (bar): 137.9
• Maximum Fluid Pressure (kPa): 13790
• Maximum Fluid Pressure (psi): 2000

• Maximum Height (cm): 175.26
• Maximum Height (ft): 5.75
• Maximum Height (in): 69
• Maximum Height (m): 1.75
• Maximum Height (mm): 1752.6

• Maximum Operating Temperature (°C): 49
• Maximum Operating Temperature (°F): 120

• Maximum Working Pressure (bar): 138
• Maximum Working Pressure (kPa): 13800
• Maximum Working Pressure (MPa): 13.8
• Maximum Working Pressure (psi): 2000

• Minimum Height (cm): 111.76
• Minimum Height (ft): 3.67
• Minimum Height (in): 44
• Minimum Height (m): 1.12
• Minimum Height (mm): 1117.6

• Overall Depth (cm): 53.34
• Overall Depth (in): 21
• Overall Depth (mm): 533.4

• Overall Width (cm): 55.88
• Overall Width (in): 22
• Overall Width (mm): 558.8

• Power Type: Pneumatic

• Pump Ratio: 20:1
• Pump Type: Priming Piston

• Ram Material: Carbon Steel
