Pressure Pots
5 Gallon Pressure Tank, AGIT, 1 REG (Sensitve)
BB 183S-534
BB 183S-534
5 GAL SS TANK, AGIT, 1 REG (SENSITIVE)
Call for pricing
5 Gallon Pressure Tank, Gear Reduced, Agitated, Extra-Sensitive Regulator Stainless Steel
BB 183S-543
BB 183S-543
5 Gallon Pressure Tank, Gear Reduced, Agitated, Extra-Sensitive Regulator Stainless Steel
Call for pricing

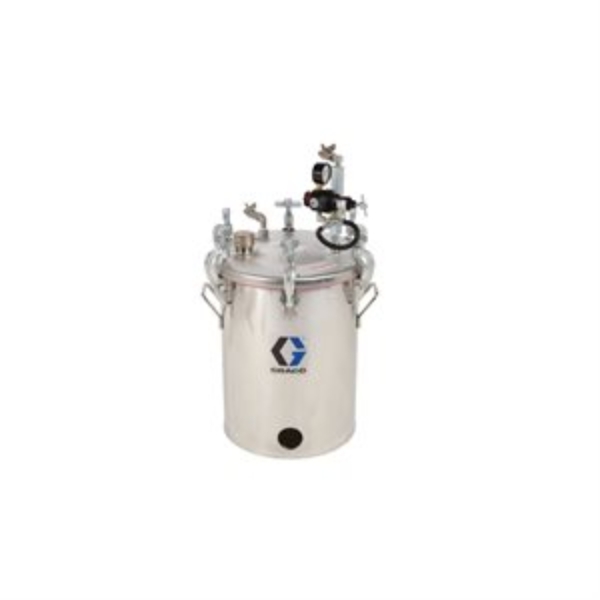

TANK, LOW PRESSURE 5 GAL
GG 236143
GG 236143
TANK, LOW PRESSURE 5 GAL
5 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 30.5 in (77.5 cm), 65 lbs (30 kg), SST Designed with electroplated surfaces thatprevent debris build-up and keep youroperation free of contaminants, Gracopressure pots are precision welded andsurfaced. ASME rated to ensure it meets factory standards High quality stainless steel design is compatible with many materials Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
$3,140.00

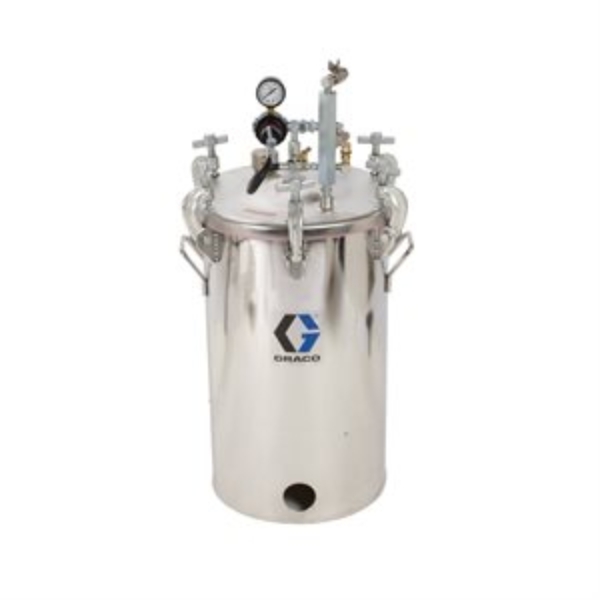

TANK, LOW PRESSURE 10 GAL
GG 236144
GG 236144
TANK, LOW PRESSURE 10 GAL
Graco 236144 10 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 33.9 in (88 cm), 76 lbs (35 kg), SST
Designed with electroplated surfaces that
prevent debris build-up and keep your
operation free of contaminants, Graco
pressure pots are precision welded and
surfaced.
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Gender: Male
- Inlet Thread Type: NPT
- Maximum Volume Capacity (gal): 10
- Maximum Volume Capacity (L): 38
- Maximum Working Pressure (bar): 1
- Maximum Working Pressure (kPa): 100
- Maximum Working Pressure (MPa): 0.1
- Maximum Working Pressure (psi): 15
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Male
- Outlet Thread Type: NPSM
- Overall Height (cm): 86.0
- Overall Height (in): 33.87
- Overall Height (mm): 860
- Overall Width (cm): 48.3
- Overall Width (in): 19
- Overall Width (mm): 483
$3,510.00

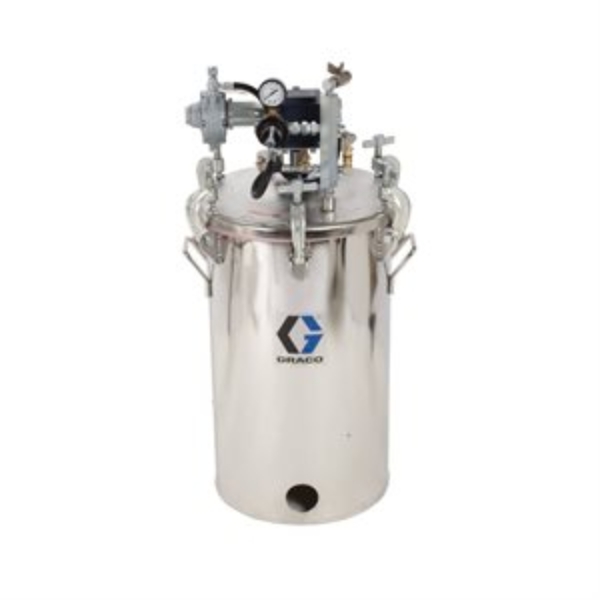

TANK, LOW PRESS, AGIT. 10 GAL
GG 236147
GG 236147
TANK, LOW PRESS, AGIT. 10 GAL
Graco 236147 10 Gallon Low Pressure (HVLP) Pot with Agitator, Regulated to 15 psi, ASME Rated, 33.9 in (88 cm), 85 lbs (39 kg), SST
Designed with electroplated surfaces that
prevent debris build-up and keep your
operation free of contaminants, Graco
pressure pots are precision welded and
surfaced.
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
- Includes: Agitator
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Gender: Male
- Inlet Thread Type: NPT
- Maximum Volume Capacity (gal): 10
- Maximum Volume Capacity (L): 38
- Maximum Working Pressure (bar): 1
- Maximum Working Pressure (kPa): 100
- Maximum Working Pressure (MPa): 0.1
- Maximum Working Pressure (psi): 15
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Male
- Outlet Thread Type: NPSM
- Overall Height (cm): 86.0
- Overall Height (in): 33.87
- Overall Height (mm): 860
- Overall Width (cm): 48.3
- Overall Width (in): 19
- Overall Width (mm): 483
$5,360.00
TANK, HIGH PRESS, AGIT 15 GAL
GG 25C538
GG 25C538
TANK, HIGH PRESS, AGIT 15 GAL
Graco 25C538 Agitator with pressure tank, 15 gallon (58 L)
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
Application: For wood (top coat, primer) and general finishing applications- Use less compressed air than most rotary vane air motors.
- Install quickly and operate quietly.
- Maintain easily – air line lubrication not required.
- Control speed with Graco&prime, s Intelligent Paint Kitchen (IPK).
- Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Includes: 15 Gallon Pressure Tank
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Speed (RPM): 150
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Radial Piston
$4,810.00
3099-BPPL-305, Binks 5-Gallon Pressure Pot Lift with 3 Piston Air Engine
AQ 3099-BPPL-305
AQ 3099-BPPL-305
3099-BPPL-305, Binks 5-Gallon Pressure Pot Lift with 3 Piston Air Engine
Call for pricing
3099-GPPL-005, Graco 5-Gallon Pressure Pot Lift with No Air Engine
AQ 3099-GPPL-005
AQ 3099-GPPL-005
3099-GPPL-005, Graco 5-Gallon Pressure Pot Lift with No Air Engine
Call for pricing
3099-Gppl-010, Graco 10-Gallon Pressure Pot Lift With No Air Engine
AQ 3099-GPPL-010
AQ 3099-GPPL-010
3099-Gppl-010, Graco 10-Gallon Pressure Pot Lift With No Air Engine
Call for pricing
Tank Lid Assembly, Agitated (Lid Only)
BB PT-425
BB PT-425
Tank Lid Assembly, Agitated (Lid Only)
$471.00
Tank And Lug Assembly, Stainless Steel, Asme, 10 Gallon
BB QMS-510-1
BB QMS-510-1
Tank And Lug Assembly, Stainless Steel, Asme, 10 Gallon
$1,625.00
Tank, Low Pressure, 10 Gal
GG 244148
GG 244148
TANK, LOW PRESSURE, 10 GAL.
Graco 244148 10 Gallon Supply Tank (pot, lid, gasket, plugs, fill port cap, pick-up tube, liner), ASME rated, stainless steel
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
$2,850.00
15 Gallon Supply Tank ASME Rated, SS
GG 244149
GG 244149
TANK, LOW PRESSURE, 15 GAL.
Graco 244149 15 Gallon Supply Tank (pot, lid, gasket, plugs, fill port cap, pick-up tube, liner), ASME rated, stainless steel
Designed with electroplated surfaces thatprevent debris build-up and keep youroperation free of contaminants, Gracopressure pots are precision welded andsurfaced.
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
$3,200.00
PET-10MN, SST, Pressure Pot, W/Agitator
IW 6341
IW 6341
PET-10MN, SST, Pressure Pot, W/Agitator
$3,096.76
