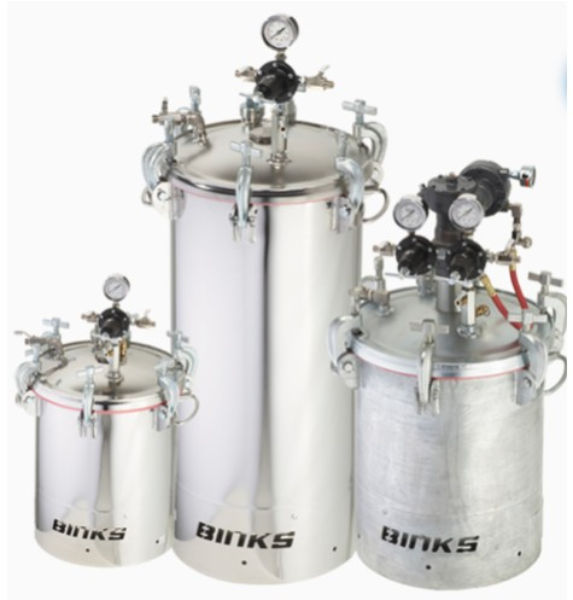

Pressure Pots

DD KB-74

DD PT-78-K10

DD PTL-402-K60

DD QMG-505-1

DD QMS-4003

GG 16M893

GG 16M894

GG 236086

GG 236088

GG 236143

TANK, LOW PRESSURE 5 GAL

Graco 236143 5 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 30.5 in (77.5 cm), 65 lbs (30 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 5
• Maximum Volume Capacity (L): 19

• Maximum Working Pressure (bar): 1
• Maximum Working Pressure (kPa): 100
• Maximum Working Pressure (MPa): 0.1
• Maximum Working Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 77.5
• Overall Height (in): 30.5
• Overall Height (mm): 775
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483

GG 236144

TANK, LOW PRESSURE 10 GAL

Graco 236144 10 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 33.9 in (88 cm), 76 lbs (35 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 10
• Maximum Volume Capacity (L): 38

• Maximum Working Pressure (bar): 1
• Maximum Working Pressure (kPa): 100
• Maximum Working Pressure (MPa): 0.1
• Maximum Working Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 86.0
• Overall Height (in): 33.87
• Overall Height (mm): 860
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483

GG 236147

TANK, LOW PRESS, AGIT. 10 GAL

Graco 236147 10 Gallon Low Pressure (HVLP) Pot with Agitator, Regulated to 15 psi, ASME Rated, 33.9 in (88 cm), 85 lbs (39 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Includes: Agitator
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 10
• Maximum Volume Capacity (L): 38

• Maximum Working Pressure (bar): 1
• Maximum Working Pressure (kPa): 100
• Maximum Working Pressure (MPa): 0.1
• Maximum Working Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 86.0
• Overall Height (in): 33.87
• Overall Height (mm): 860
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483

GG 244147

GG 244148

TANK, LOW PRESSURE, 10 GAL.

Graco 244148 10 Gallon Supply Tank (pot, lid, gasket, plugs, fill port cap, pick-up tube, liner), ASME rated, stainless steel

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

GG 244149

TANK, LOW PRESSURE, 15 GAL.

Graco 244149 15 Gallon Supply Tank (pot, lid, gasket, plugs, fill port cap, pick-up tube, liner), ASME rated, stainless steel

Designed with electroplated surfaces thatprevent debris build-up and keep youroperation free of contaminants, Gracopressure pots are precision welded andsurfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

GG 248225

GG 25C538

TANK, HIGH PRESS, AGIT 15 GAL

Graco 25C538 Agitator with pressure tank, 15 gallon (58 L)

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Use less compressed air than most rotary vane air motors.
• Install quickly and operate quietly.
• Maintain easily – air line lubrication not required.
• Control speed with Gracos Intelligent Paint Kitchen (IPK).
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Includes: 15 Gallon Pressure Tank

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Speed (RPM): 150

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Radial Piston

GG LC0012

IW 6341

PC 105-1236

RR HAR-503-2
