GG 236147
TANK, LOW PRESS, AGIT. 10 GAL

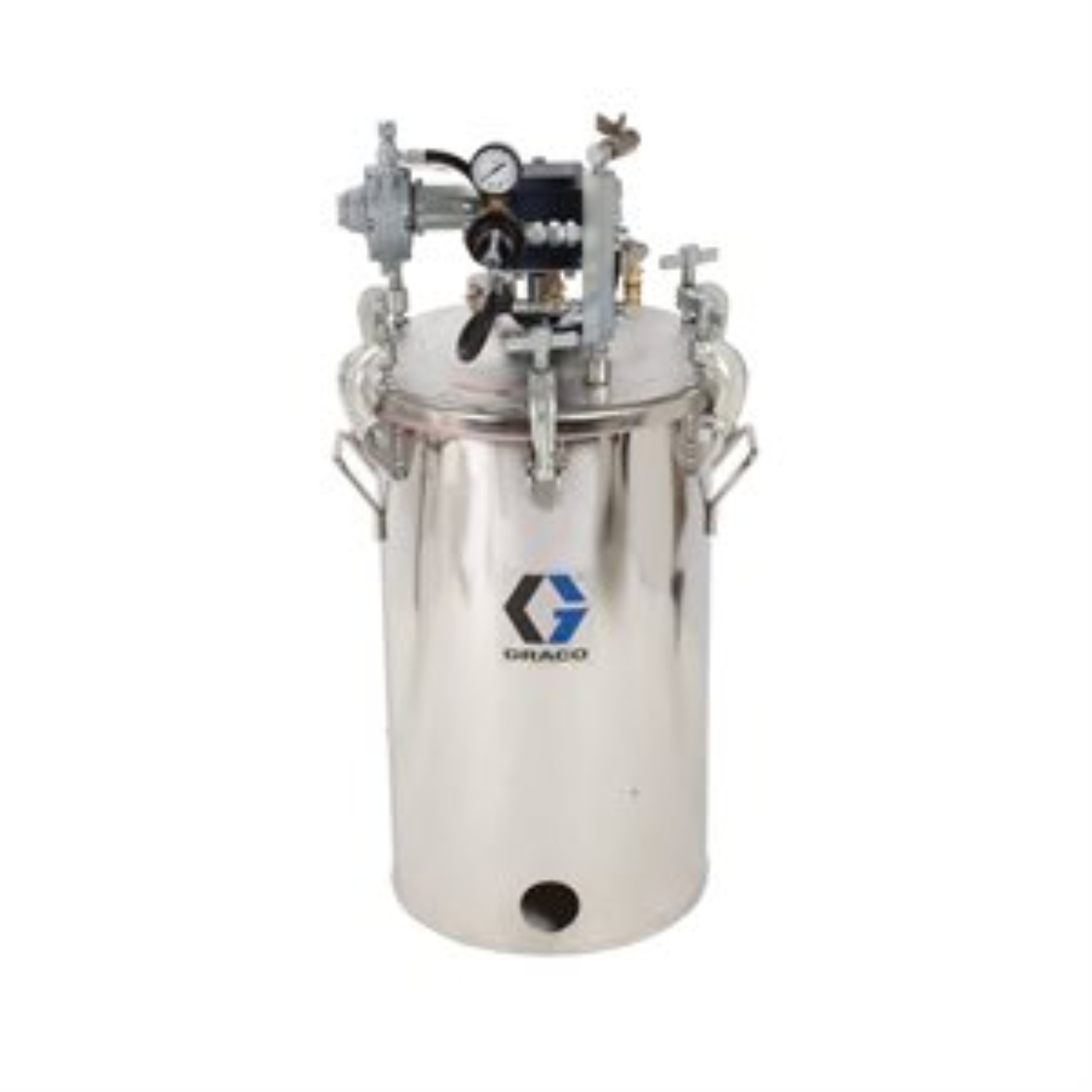

Graco 236147 10 Gallon Low Pressure (HVLP) Pot with Agitator, Regulated to 15 psi, ASME Rated, 33.9 in (88 cm), 85 lbs (39 kg), SST
Designed with electroplated surfaces that
prevent debris build-up and keep your
operation free of contaminants, Graco
pressure pots are precision welded and
surfaced.
- ASME rated to ensure it meets factory standards
- High quality stainless steel design is compatible with many materials
- Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir
- Includes: Agitator
- Inlet Size (cm): 0.635
- Inlet Size (in): 1/4
- Inlet Size (mm): 6.35
- Inlet Thread Gender: Male
- Inlet Thread Type: NPT
- Maximum Volume Capacity (gal): 10
- Maximum Volume Capacity (L): 38
- Maximum Working Pressure (bar): 1
- Maximum Working Pressure (kPa): 100
- Maximum Working Pressure (MPa): 0.1
- Maximum Working Pressure (psi): 15
- Outlet Size (cm): 0.9525
- Outlet Size (in): 3/8
- Outlet Size (mm): 9.525
- Outlet Thread Gender: Male
- Outlet Thread Type: NPSM
- Overall Height (cm): 86.0
- Overall Height (in): 33.87
- Overall Height (mm): 860
- Overall Width (cm): 48.3
- Overall Width (in): 19
- Overall Width (mm): 483
