Pressure Pots

GG 236145

TANK, LOW PRESSURE 15 GAL

Graco 236145 15 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 44.6 in (113.2 cm), 92 lbs (42 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 15
• Maximum Volume Capacity (L): 57

• Maximum Working Pressure (bar): 1
• Maximum Working Pressure (kPa): 100
• Maximum Working Pressure (MPa): 0.1
• Maximum Working Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 113.2
• Overall Height (in): 44.57
• Overall Height (mm): 1132
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483

GG 236148

TANK, LOW PRESS, AGIT. 15 GAL

Graco 236148 15 Gallon Low Pressure (HVLP) Pot with Agitator, Regulated to 15 psi, ASME Rated, 44.6 in (113.2 cm), 101 lbs (46 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Includes: Agitator
• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 15
• Maximum Volume Capacity (L): 57

• Maximum Working Pressure (bar): 1
• Maximum Working Pressure (kPa): 100
• Maximum Working Pressure (MPa): 0.1
• Maximum Working Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 113.2
• Overall Height (in): 44.57
• Overall Height (mm): 1132
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483

GG 236155

TANK, LOW PRESS, 2 GALLON SST

Graco 236155 2 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 25.4 in (64.5 cm) 30 lbs (14 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 2
• Maximum Volume Capacity (L): 8

• Maximum Working Pressure (bar): 1
• Maximum Working Pressure (kPa): 100
• Maximum Working Pressure (MPa): 0.1
• Maximum Working Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Type: NPSM

• Overall Height (cm): 64.5
• Overall Height (in): 25.4
• Overall Height (mm): 645
• Overall Width (cm): 33.3
• Overall Width (in): 13.125
• Overall Width (mm): 333

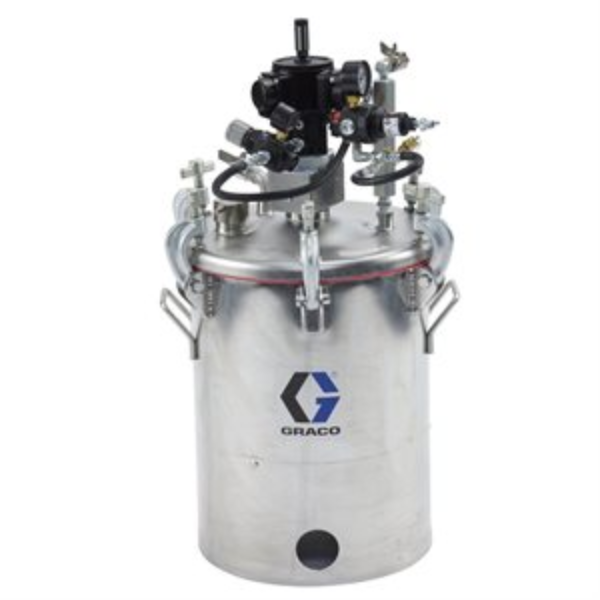

GG 25C537

TANK, HIGH PRESS, AGIT 10 GAL

Graco 25C537 Agitator with pressure tank, 10 gallon (28 L)

Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.

• Use less compressed air than most rotary vane air motors.
• Install quickly and operate quietly.
• Maintain easily – air line lubrication not required.
• Control speed with Gracos Intelligent Paint Kitchen (IPK).
• Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA

• Air Inlet Size (cm): 0.635
• Air Inlet Size (in): 1/4
• Air Inlet Size (mm): 6.35
• Air Inlet Thread Type: NPT

• Includes: 10 Gallon Pressure Tank

• Maximum Air Inlet Pressure (bar): 7
• Maximum Air Inlet Pressure (kPa): 700
• Maximum Air Inlet Pressure (psi): 100

• Maximum Speed (RPM): 150

• Maximum Viscosity (cP): 1000

• Maximum Working Pressure (bar): 7
• Maximum Working Pressure (kPa): 700
• Maximum Working Pressure (psi): 100

• Motor Type: Pneumatic - Radial Piston

IW 7016B

BB 183G-1520

BB 183G-200

BB 183G-223

BB 183G-241

BB 183G-533

BB 183GZ-5200

BB 183S-1000

BB 183S-1523

BB 183S-1543

BB 183S-210-CE

BB 183S-211-CE

BB 183S-214

BB 183S-243

BB 183S-524

BB 183S-534

BB 183S-543

BB 83Z-211

BB 98Z-358

GG 16M894

GG 236143

TANK, LOW PRESSURE 5 GAL

Graco 236143 5 Gallon Low Pressure (HVLP) Pot, Regulated to 15 psi, ASME Rated, 30.5 in (77.5 cm), 65 lbs (30 kg), SST

Designed with electroplated surfaces that

prevent debris build-up and keep your

operation free of contaminants, Graco

pressure pots are precision welded and

surfaced.

• ASME rated to ensure it meets factory standards
• High quality stainless steel design is compatible with many materials
• Use in stand-alone spraying, material/catalyst supply, or as a moisture sensitive material reservoir

• Inlet Size (cm): 0.635
• Inlet Size (in): 1/4
• Inlet Size (mm): 6.35

• Inlet Thread Gender: Male
• Inlet Thread Type: NPT

• Maximum Volume Capacity (gal): 5
• Maximum Volume Capacity (L): 19

• Maximum Working Pressure (bar): 1
• Maximum Working Pressure (kPa): 100
• Maximum Working Pressure (MPa): 0.1
• Maximum Working Pressure (psi): 15

• Outlet Size (cm): 0.9525
• Outlet Size (in): 3/8
• Outlet Size (mm): 9.525
• Outlet Thread Gender: Male
• Outlet Thread Type: NPSM

• Overall Height (cm): 77.5
• Overall Height (in): 30.5
• Overall Height (mm): 775
• Overall Width (cm): 48.3
• Overall Width (in): 19
• Overall Width (mm): 483
