GG 25C538
TANK, HIGH PRESS, AGIT 15 GAL

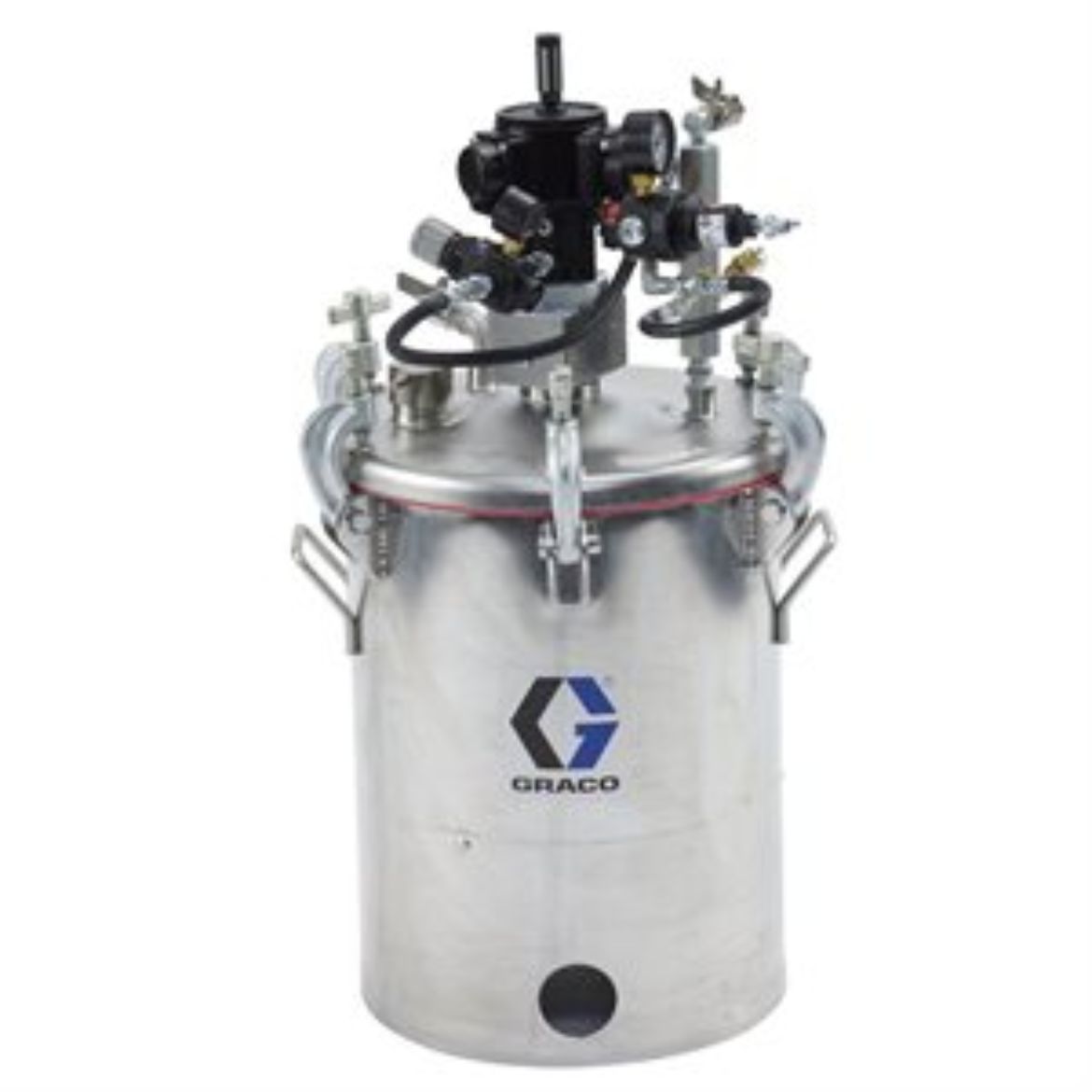

Graco 25C538 Agitator with pressure tank, 15 gallon (58 L)
Radial piston air motor driven agitators are reliable, simple and cost-effective solutions for low to medium speed (<500 rpm), low to medium viscosity (<1000 cp) agitation applications.
Application: For wood (top coat, primer) and general finishing applications
- Use less compressed air than most rotary vane air motors.
- Install quickly and operate quietly.
- Maintain easily – air line lubrication not required.
- Control speed with Gracos Intelligent Paint Kitchen (IPK).
- Sound pressure level at 70 psig (maximum recommended speed): Less than 75 dBA
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Type: NPT
- Includes: 15 Gallon Pressure Tank
- Maximum Air Inlet Pressure (bar): 7
- Maximum Air Inlet Pressure (kPa): 700
- Maximum Air Inlet Pressure (psi): 100
- Maximum Viscosity (cP): 1000
- Maximum Working Pressure (bar): 7
- Maximum Working Pressure (kPa): 700
- Maximum Working Pressure (psi): 100
- Motor Type: Pneumatic - Radial Piston
