HAMMER CASE ASSEMBLY
IR 1712B-A727
IR 1712B-A727
Hammer Case Assembly Service Part for Ingersoll Rand 290 Series Impact Wrench
For Use With- 290
$755.00
MOTOR -- MULTI-VANE
IR 17RA005
IR 17RA005
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 1110 RPM, 2.3 HP, 50.2 NM, Reversible
Air Consumption at Max HP (scfm): 103Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 1110
Max Pressure (bar): 6.2
Max Torque (ft-lb): 37
Max Torque (in-lb): 444
Max Torque (nm): 50.2
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 40
Rated Power (hp): 2.3
Rated Power (kW): 1.72
Reversible: Reversible
Speed at Max Power (rpm): 562
Starting Torque (ft-lb): 24
Starting Torque (nm): 32.5
Warranty: 1-year
$6,350.00
MOTOR -- MULTI-VANE
IR 17RA008
IR 17RA008
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 760 RPM, 2.3 HP, 73.9 NM, Reversible
Air Consumption at Max HP (scfm): 103Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 760
Max Pressure (bar): 6.2
Max Torque (ft-lb): 55
Max Torque (in-lb): 654
Max Torque (nm): 73.9
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 40
Rated Power (hp): 2.3
Rated Power (kW): 1.72
Reversible: Reversible
Speed at Max Power (rpm): 383
Starting Torque (ft-lb): 35
Starting Torque (nm): 47.5
Warranty: 1-year
$6,450.00
MOTOR -- MULTI-VANE
IR 17RA011
IR 17RA011
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 505 RPM, 2.3 HP, 111 NM, Reversible
Air Consumption at Max HP (scfm): 103Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 505
Max Pressure (bar): 6.2
Max Torque (ft-lb): 82
Max Torque (in-lb): 982
Max Torque (nm): 111
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 40
Rated Power (hp): 2.3
Rated Power (kW): 1.72
Reversible: Reversible
Speed at Max Power (rpm): 254
Starting Torque (ft-lb): 53
Starting Torque (nm): 71.9
Warranty: 1-year
$6,600.00
MOTOR -- MULTI-VANE
IR 17RA014
IR 17RA014
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 400 RPM, 2.3 HP, 141 NM, Reversible
Air Consumption at Max HP (scfm): 103Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 400
Max Pressure (bar): 6.2
Max Torque (ft-lb): 104
Max Torque (in-lb): 1248
Max Torque (nm): 141
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 40
Rated Power (hp): 2.3
Rated Power (kW): 1.72
Reversible: Reversible
Speed at Max Power (rpm): 201
Starting Torque (ft-lb): 67
Starting Torque (nm): 91
Warranty: 1-year
$6,600.00
MOTOR -- MULTI-VANE
IR 17RA017
IR 17RA017
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 335 RPM, 2.3 HP, 168 NM, Reversible
Air Consumption at Max HP (scfm): 103Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 335
Max Pressure (bar): 6.2
Max Torque (ft-lb): 124
Max Torque (in-lb): 1487
Max Torque (nm): 168
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 40
Rated Power (hp): 2.3
Rated Power (kW): 1.72
Reversible: Reversible
Speed at Max Power (rpm): 169
Starting Torque (ft-lb): 80
Starting Torque (nm): 109
Warranty: 1-year
$6,650.00
MOTOR -- MULTI-VANE
IR 17RA022
IR 17RA022
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 255 RPM, 2.3 HP, 221 NM, Reversible
Air Consumption at Max HP (scfm): 103Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 255
Max Pressure (bar): 6.2
Max Torque (ft-lb): 163
Max Torque (in-lb): 1956
Max Torque (nm): 221
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 40
Rated Power (hp): 2.3
Rated Power (kW): 1.72
Reversible: Reversible
Speed at Max Power (rpm): 129
Starting Torque (ft-lb): 105
Starting Torque (nm): 142
Warranty: 1-year
$6,600.00
MOTOR -- MULTI-VANE
IR 17RB029
IR 17RB029
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 187 RPM, 2.2 HP, 273 NM, Reversible
Air Consumption at Max HP (scfm): 100Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 187
Max Pressure (bar): 6.2
Max Torque (ft-lb): 201
Max Torque (in-lb): 2416
Max Torque (nm): 273
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 72
Rated Power (hp): 2.2
Rated Power (kW): 1.64
Reversible: Reversible
Speed at Max Power (rpm): 97
Starting Torque (ft-lb): 120
Starting Torque (nm): 163
Warranty: 1-year
$6,800.00
MOTOR -- MULTI-VANE
IR 17RB036
IR 17RB036
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 152 RPM, 2.2 HP, 336 NM, Reversible
Air Consumption at Max HP (scfm): 100Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 152
Max Pressure (bar): 6.2
Max Torque (ft-lb): 248
Max Torque (in-lb): 2974
Max Torque (nm): 336
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 72
Rated Power (hp): 2.2
Rated Power (kW): 1.64
Reversible: Reversible
Speed at Max Power (rpm): 79
Starting Torque (ft-lb): 148
Starting Torque (nm): 201
Warranty: 1-year
$6,950.00
MOTOR -- MULTI-VANE
IR 17RB045
IR 17RB045
Spur Gear Air Motor, 1-1/2" Keyed Shaft, 121 RPM, 2.2 HP, 423 NM, Reversible
Air Consumption at Max HP (scfm): 100Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Double
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 121
Max Pressure (bar): 6.2
Max Torque (ft-lb): 312
Max Torque (in-lb): 3744
Max Torque (nm): 423
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 72
Rated Power (hp): 2.2
Rated Power (kW): 1.64
Reversible: Reversible
Speed at Max Power (rpm): 62
Starting Torque (ft-lb): 187
Starting Torque (nm): 254
Warranty: 1-year
$7,200.00

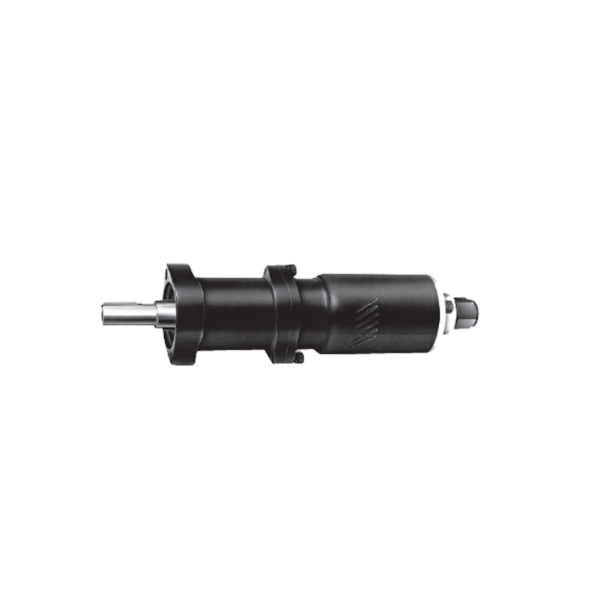

MOTOR
IR 1801P2
IR 1801P2
Inline Multi-Vane Air Motor, 5/8" Square Shaft, 1050 RPM, 1.35 HP, 31.2 NM, Non-reversible
Air Consumption at Max HP (scfm): 46Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 1050
Max Pressure (bar): 6.2
Max Torque (ft-lb): 23
Max Torque (in-lb): 276
Max Torque (nm): 31.2
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Length (in): 8.5
Product Weight (lb): 5.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Non-reversible
Speed at Max Power (rpm): 500
Starting Torque (ft-lb): 17
Starting Torque (nm): 23.3
Warranty: 1-year
$3,400.00
MOTOR
IR 1801U
IR 1801U
Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 435 RPM, 1.35 HP, 74.6 NM, Non-reversible
Air Consumption at Max HP (scfm): 46Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 435
Max Pressure (bar): 6.2
Max Torque (ft-lb): 55
Max Torque (in-lb): 660
Max Torque (nm): 74.6
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Non-reversible
Speed at Max Power (rpm): 205
Starting Torque (ft-lb): 41
Starting Torque (nm): 55.6
Warranty: 1-year
$3,425.00
SCALER KIT
IR 180PG-KIT
IR 180PG-KIT
Air Needle and Chisel Scaler Kit, 2200 BPM, 1.54" Stroke
This pistol grip chisel and needle scaler is designed with both power and ergonomics in mind. With a rubber over mold grip for maximum comfort, you can use this tool for hours with minimal fatigue.Features And Benefits
- Reliability: The 180 Series pistol grip needle and chisel scaler is as reliable as it is efficient. Able to withstand repeated drops and harsh conditions, you can take these tools anywhere.
- Comfort: With a rubber over mold grip for operator comfort, you’ll be able to grip your tool for as long as you need without discomfort.
Includes: 180PG needle scaler, the 1/2" shank chisel holder, 3 needle packs, and 3 chisels. Needles included are one pack each of chisel tip, pointed tip, and flat 3 mm needles. There are 28 needles per pack. The needles are 7" long and made of carbon steel. The chisels included are one each of the following 1/2" square, 7" long chisels: a 3/4" flat, a 1-3/8" offset (weld flux), and a 2" flat chisel.
Product Application and Uses: Designed for removing weld splatter or other unwanted surface deposits from metal.
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 8
Air Consumption @ Load (l/min): 22.7
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 2200
Bore Diameter (in): 1.13
Color: Black
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Lock Mechanism: Bayonet Needle
Lock Mechanism: Retaining Ball
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Needle Length: 7"
Needle Qty: 28
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 6.8
Shank SIze (in): 1/2
Shank Type: Square
Standards/Certifications: Vibration : ISO 28927-9:2009Sound : ISO 15744:2008Safety : ISO 11148-4:2012
Stroke Length (in): 1.54
Warranty: 1-year
Similar IR
- 170PG
- 180PG
- 180PG-CS
- 170PG-CS
$1,250.00
SCALER - CHISEL
IR 180PG-CS
IR 180PG-CS
Air Chisel Scaler, 2200 BPM, 1.54" Stroke
This pistol grip chisel scaler is designed with both power and ergonomics in mind. With a rubber over mold grip for maximum comfort, you can use this tool for hours with minimal fatigue.Features And Benefits
- Reliability: The 180 Series pistol grip chisel scaler is as reliable as it is efficient. Able to withstand repeated drops and harsh conditions, you can take these tools anywhere.
- Comfort: With a rubber over mold grip for operator comfort, you’ll be able to grip your tool for as long as you need without discomfort
Includes: Scaler Tool with 1/2" square shank bushing, 7" x 2" straight steel chisel
Product Application and Uses: Designed for removing weld splatter or other unwanted surface deposits from metal
Actuation/Throttle Type/Switch Type: Lever
Air Consumption @ Load (cfm): 8
Air Consumption @ Load (l/min): 22.7
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Blows per Min: 2200
Bore Diameter (in): 1.13
Color: Black
Configuration/Handle Type: Pistol Grip
Duty Rating: Industrial Duty
Lock Mechanism: Retaining Ball
Max Pressure (bar): 6.2
Min Hose Size (in): 5/16
Power Source: Air Powered
Product Length (in): 12.4
Product Weight (lb): 6.8
Shank SIze (in): 1/2
Shank Type: Square
Standards/Certifications: Vibration : ISO 28927-9:2009Sound : ISO 15744:2008Safety : ISO 11148-4:2012
Stroke Length (in): 1.54
Warranty: 1-year
Similar IR
- 170PG-CS
- 180PG
- 170PG
$605.00
