IR 1801U

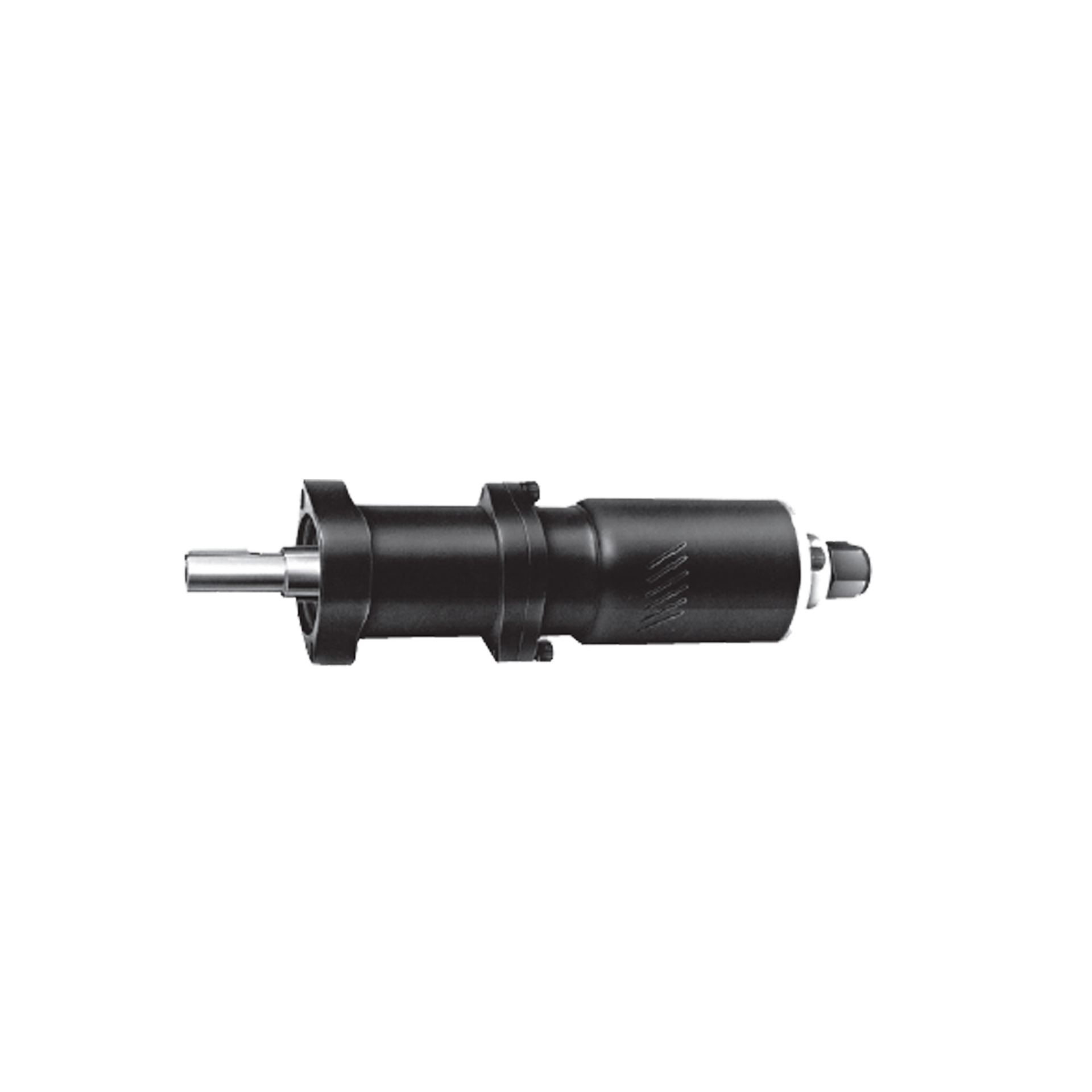

Inline Multi-Vane Air Motor, 5/8" Keyed Shaft, 435 RPM, 1.35 HP, 74.6 NM, Non-reversible
Air Consumption at Max HP (scfm): 46
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Drive Size (in): 5/8
Drive Type: Round Keyed
Exhaust Location: Rear
Finish: Black Oxide
Gear Train: Planetary
Housing Material: Steel
Max Free Speed (rpm): 435
Max Pressure (bar): 6.2
Max Torque (ft-lb): 55
Max Torque (in-lb): 660
Max Torque (nm): 74.6
Motor: Rotary Vane
Motor: In line
Mounting Type: Face
Number of Mounting Holes: 2
Power Source: Air Powered
Product Weight (lb): 5.75
Rated Power (hp): 1.35
Rated Power (kW): 1.01
Reversible: Non-reversible
Speed at Max Power (rpm): 205
Starting Torque (ft-lb): 41
Starting Torque (nm): 55.6
Warranty: 1-year
