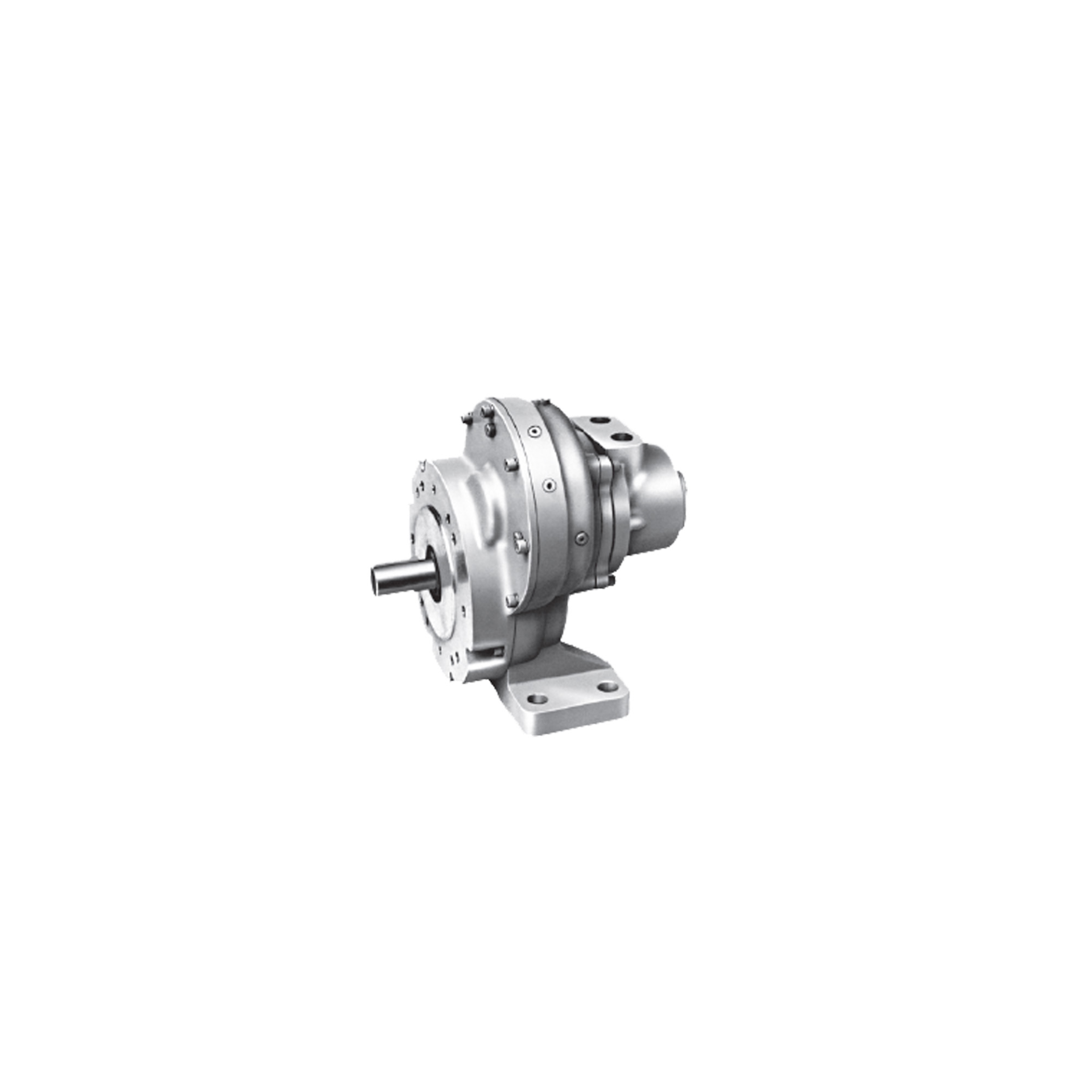

MOTOR -- MULTI-VANE

IR 17RA017

Spur Gear Air Motor, 1-1/2" Keyed Shaft, 335 RPM, 2.3 HP, 168 NM, Reversible

Air Consumption at Max HP (scfm): 103
Air Pressure (psi): 90
Drive Size (in): 1-1/2
Drive Type: Round Keyed
Exhaust Location: Side
Finish: Paint, Yellow
Gear Reduction: Single
Gear Train: Spur Gear
Housing Material: Steel Motor, Aluminum Gear Housing
Max Free Speed (rpm): 335
Max Pressure (bar): 6.2
Max Torque (ft-lb): 124
Max Torque (in-lb): 1487
Max Torque (nm): 168
Motor: Rotary Vane
Motor: Spur Gear
Mounting Type: Foot and Face
Power Source: Air Powered
Product Weight (lb): 40
Rated Power (hp): 2.3
Rated Power (kW): 1.72
Reversible: Reversible
Speed at Max Power (rpm): 169
Starting Torque (ft-lb): 80
Starting Torque (nm): 109
Warranty: 1-year
