Impacts

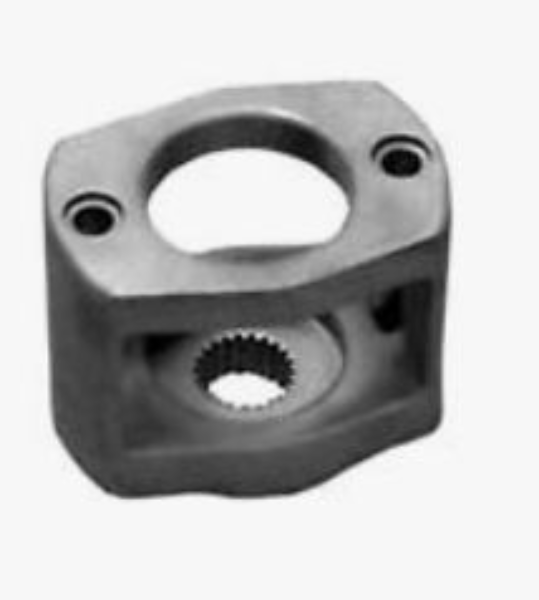

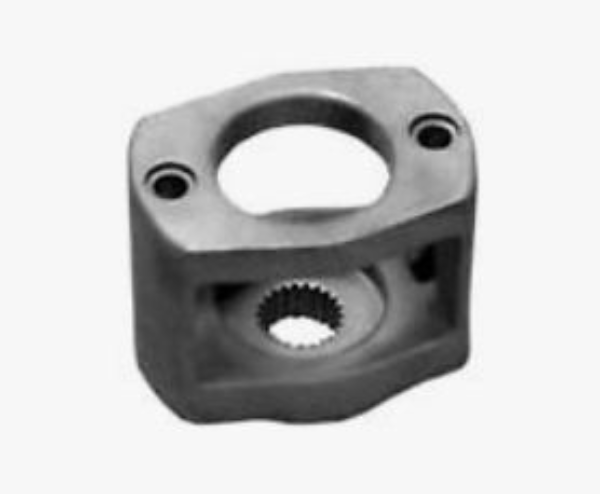

IR 2131-703

HAMMER FRAME

IR 2131-A703

HAMMER FRAME

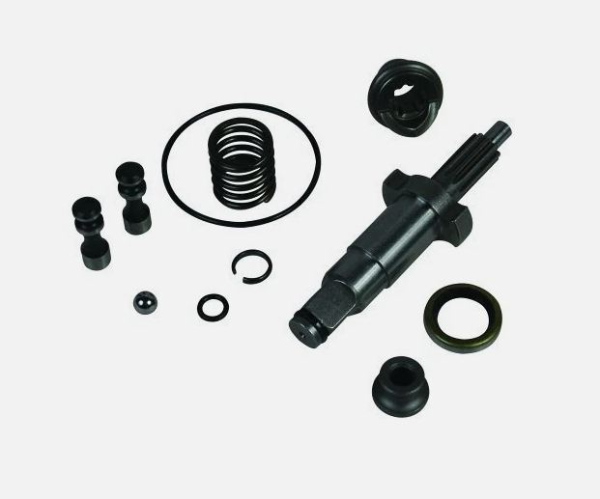

IR 2131P-TK2

Tune-up Kit for Ingersoll Rand 2131P Series Impact Wrench

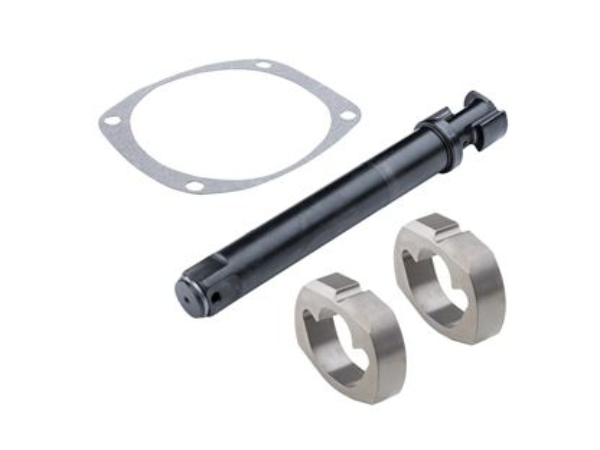

IR 2131-THK1

Hammer Kit for Ingersoll Rand 2135 Series, 2131 Series Impact Wrench

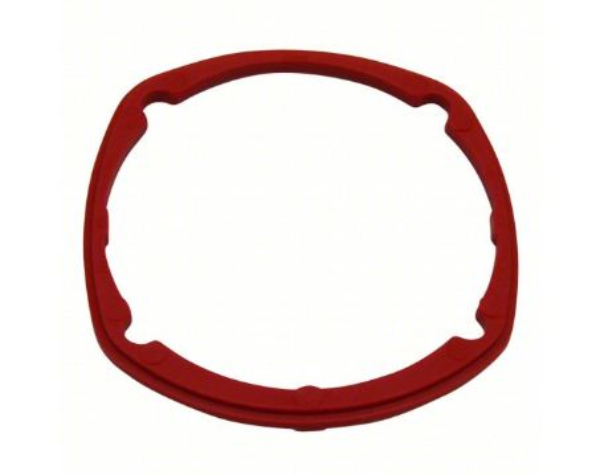

IR 2135-36B

GASKET

IR 2135PTIMAX-A

1/2" Air Impact Wrench, 1100 ft-lb Torque, Titanium Hammercase, Pin Retainer, Pistol

Powerful, durable and reliable, the 2135PTiMAX Series Impact Wrench will excel in any market.

Features And Benefits

• Power: This wrench's high torque output and power regulator allow easy control over your tool.
• Durability: With a composite housing and a hammer case made of titanium, this wrench can endure repeated drops and harsh environments.
• Reliability: With twin hammer mechanism and powerful motor, the 2135PTiMAX is built not only for performance, but to last. Comes with a 1-year warranty.

Product Application and Uses: Designed to remove and install threaded fasteners for vehicle repair, general industrial, facility maintenance applications.
Actuation/Throttle Type/Switch Type: Trigger
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: Standard
Average Air Consumption (cfm): 5
Average Air Consumption (l/min): 142
Blows per Min: 1250
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Hard-coating
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 109.2 / 120.2
Hammer Case: Titanium
Handle Material: Composite
Housing Material: Impact and chemical-resistant composite housing and patented steel reinforced frame
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 99.8 / 110.8
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 9800
Max Pressure (bar): 6.2
Max Torque (ft-lb): 780
Max Torque (in-lb): 9364
Max Torque (nm): 1058
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1100
Nut-busting/Breakaway Torque (in-lb): 13196
Nut-busting/Breakaway Torque (nm): 1491
Power Source: Air Powered
Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 278.48
Product Length (in): 7.35
Product Width (in): 2.7
Product Height (in): 7.2
Product Weight (lb): 3.95
Recommended Forward Torque Range (ft-lb): 600
Recommended Forward Torque Range (in-lb): 7196
Recommended Forward Torque Range (nm): 813
Retainer Type: Pin Detent
Side to Center Distance (in): 1.37
Side to Center Distance (mm): 35
Special Features: Titanium Hammer case
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 13.3
Warranty: 1-year

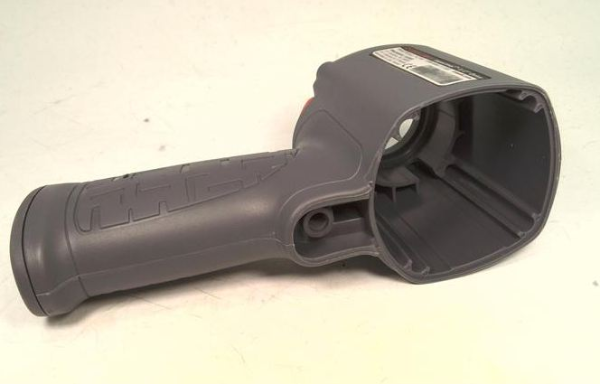

IR 2135TI-2MAX-A40

HOUSING ASSEMBLY

IR 2141-727

HAMMER CASE

IR 2141-BOOT

Protective Tool Boot for Ingersoll Rand 2141 Series Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Color: Grey

IR 2145QIMAX-6

3/4" Air Impact Wrench, Quiet, 1700 ft-lbs Nut-busting Torque, Maintenance Duty, Pistol Grip, 6" Extended Anvil

As one of the toughest, most durable wrenches on the market 2145QiMAX Series is particularly beneficial in vehicle repair work- though this impact wrench is well suited for any job you want to take on.

Features And Benefits

• MAX POWER: 1350 ft-lb (1830Nm) maximum reverse torque from a tool that weighs just 7.4 lbs (3.36kg)and is compact enough to access tight spaces.
• MAX DURABILITY: Built to last and designed to withstand tough use in rugged environments; a two-year limited warranty is standard.
• MAX PRODUCTIVITY: An air motor that’s 16% more efficient than its predecessor and an easy-to-clean inlet screen means less downtime, better tool performance, and less money spent on compressed air.
• Easier access to grease fitting – for quicker maintenance and less downtime.
• Enhanced socket retention.
• 7-vane Motor delivers added power with less weight.
• The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.
• Finely tuned twin hammer impact mechanism and motor deliver more torque, durability, and efficiency.
• Feather-touch trigger provides maximum control of this air impact wrench.
• Anodized end plate for enhanced durability.
• Optimized for the vehicle repair industry, body shops, general industrial use, MRO, rail, heavy machinery, oil and gas, shipbuilding, and construction.
• Patented one-hand forward/reverse control for easy operation.
• Optimized air flow for maximized performance when using this pneumatic impact wrench.

Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 32
Air Consumption @ Load (l/min): 906
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 8.5
Average Air Consumption (l/min): 241
Blows per Min: 1150
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Aluminum with Steel Wear Plate
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 91.1 / 102.1
Hammer Case: Steel
Handle Material: Composite
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 96.3 / 107.3
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1350
Max Torque (in-lb): 16197
Max Torque (nm): 1830
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 4
Nut-busting/Breakaway Torque (ft-lb): 1700
Nut-busting/Breakaway Torque (in-lb): 20401
Nut-busting/Breakaway Torque (nm): 2305
Power Source: Air Powered
Product Length (in): 14.5
Product Width (in): 3.3
Product Height (in): 8.1
Product Weight (lb): 9.3
Quiet Tool: Yes
Recommended Forward Torque Range (ft-lb): 1100
Recommended Forward Torque Range (in-lb): 13196
Recommended Forward Torque Range (nm): 1491
Retainer Type: Friction Ring and Thru-hole
Side to Center Distance (in): 1.7
Side to Center Distance (mm): 43
Special Features: Quiet Tool, 2-Year Max warranty
Tool Type: Full-size
Vanes: 7
Vibration Level (m/s2): 8.1
Warranty: 2-year

Superseded To

• 2146Q1MAX-6

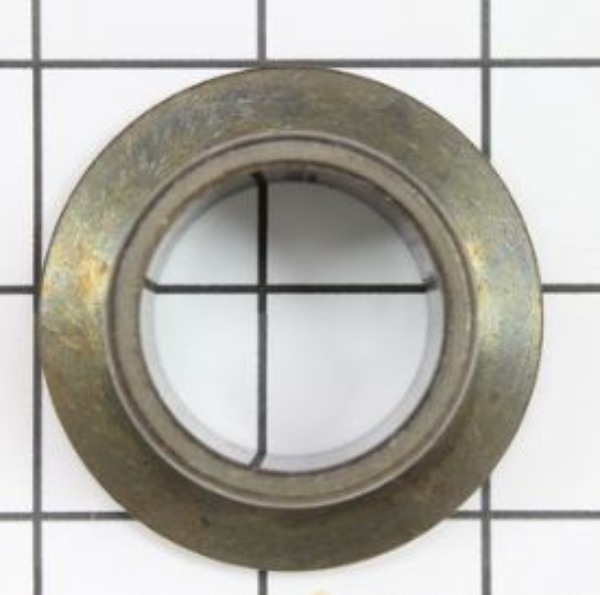

IR 2161-641

BUSHING

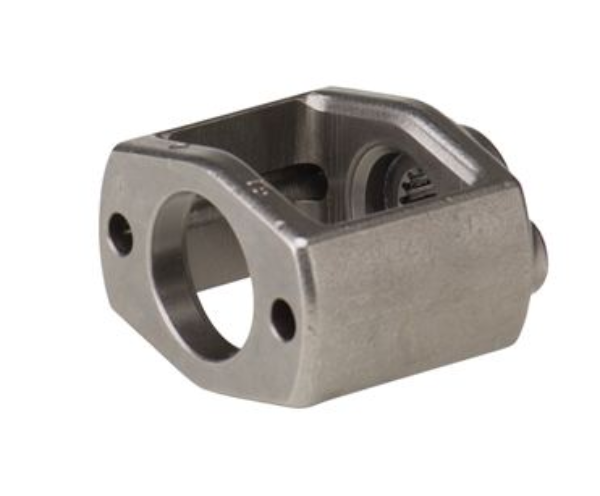

IR 2161-724

HAMMER

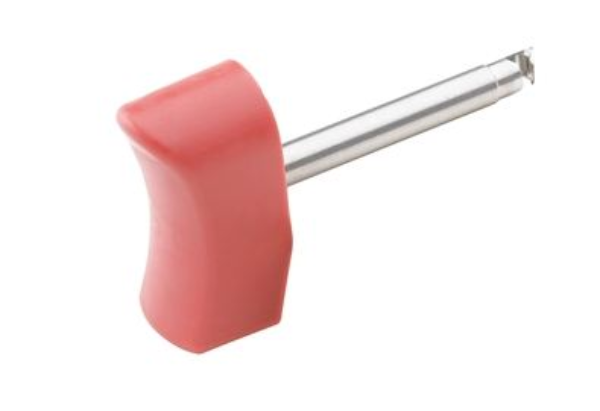

IR 2161-A93R

TRIGGER ASSEMBLY

IR 2161XP-6

3/4" Air Impact Wrench, ,6" Ext Anvil, 1250 ft-lb Torque, Friction Ring Retainer, Pistol

The metal housing and steel hammer case of the 2161 Series Impact Wrench makes this one of the toughest tools on the market. It combines a six-vane high output air motor, through-bolt construction, ergonomic handle and housing design to create an impact tool that offers increased power and durability like no other. You’ll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits

• Power: Most powerful 3/4" Impact in the industry with 1.250 ft.-lbs. of max torque and 6,000 rpm. Finely tuned twin hammer impact mechanism and 6-vane motor.
• Versatility: The 2161 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Durable: This heavy-duty impact wrench has a steel hammer case and is tough enough to handle harsh environments and repeated drops.
• Power Regulator: 3-position power regulator with full power in reverse.
• Extended Reach: The 6-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 46
Air Consumption @ Load (l/min): 1303
Air Inlet: 3/8" NPT
Air Pressure (psi): 90
Anvil Length: 6" Extended
Average Air Consumption (cfm): 10
Average Air Consumption (l/min): 283
Blows per Min: 1025
Color: Grey
Configuration/Handle Type: Pistol Grip
Drive Size (in): 3/4
Drive Type: Square
Duty Rating: Maintenance Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 97.2 / 108.2
Hammer Case: Steel
Handle Material: Composite
Housing Material: Aluminum core with composite sleeve
Impact Mechanism: Twin Hammer
Impacting Sound Pressure/Power Db(A): 92.8 / 103.8
Max Bolt Diameter (in): 1
Max Free Speed (rpm): 6000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 1250
Max Torque (in-lb): 15002
Max Torque (nm): 1695
Min Hose Size (in): 1/2
Motor: Reverse Bias
Number of Power Settings: 3
Power Source: Air Powered
Product Length (in): 14.5
Product Width (in): 3.5
Product Height (in): 9.5
Product Weight (lb): 13.11
Recommended Forward Torque Range (ft-lb): 300-1000
Recommended Forward Torque Range (in-lb): 3602-12002
Recommended Forward Torque Range (nm): 407-1356
Retainer Type: Friction Ring
Side to Center Distance (in): 1.75
Side to Center Distance (mm): 44
Special Features: Extended anvil
Speed Setting: Variable Speed
Standards/Certifications: CE
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 9.8
Warranty: 1-year

Similar IR

• 2161XP
• 2171P

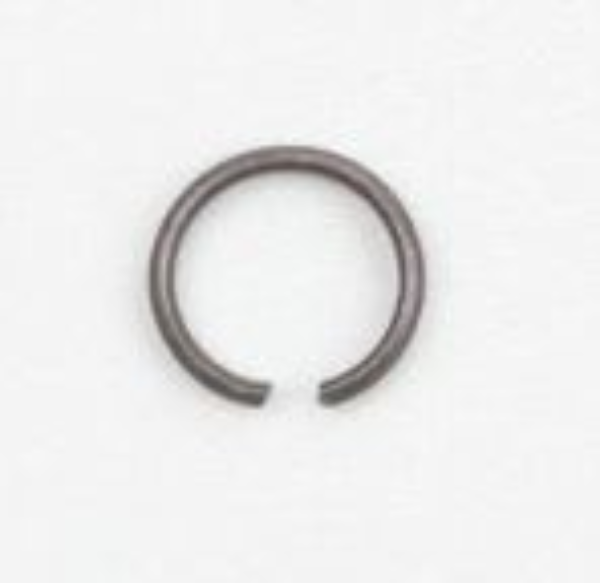

IR 216B-426

RETAINER, SOCKET

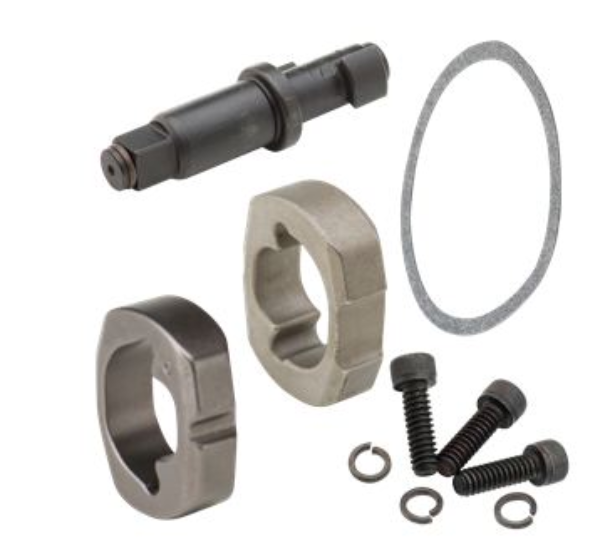

IR 2190-6-THK1

HAMMER KIT

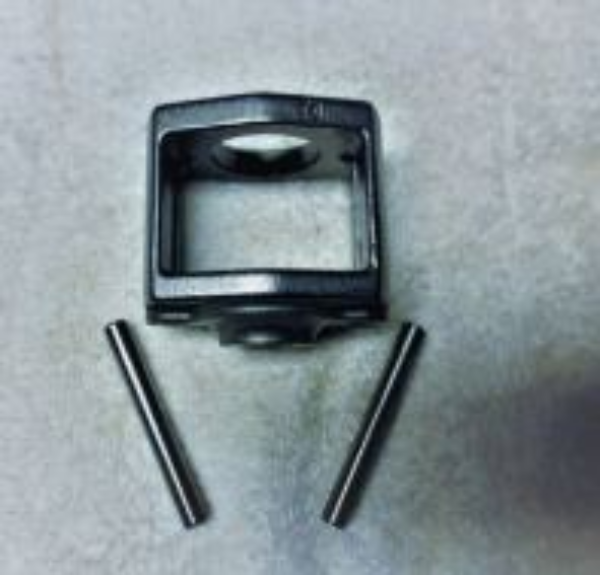

IR 2235-703

HAMMER FRAME

IR 231-BOOT

Protective Boot for Ingersoll Rand 231C, 231HA, 231HA-2 Impact Wrench

Ingersoll Rand's tool boots absorb vibrations and protect the tool from external damage.

Features And Benefits

• Protects surrounding surfaces from scratches, nicks ect.
• Protects tool from damage if dropped.
• Adds further protection from unwanted contaminates that can affect tool performance.

Color: Red
Housing Material: Thermoplastic Polymer

For Use With

• 231C
• 231C-AP
• 231HA
• 231HA-2

IR 231C-THK1

HAMMER KIT

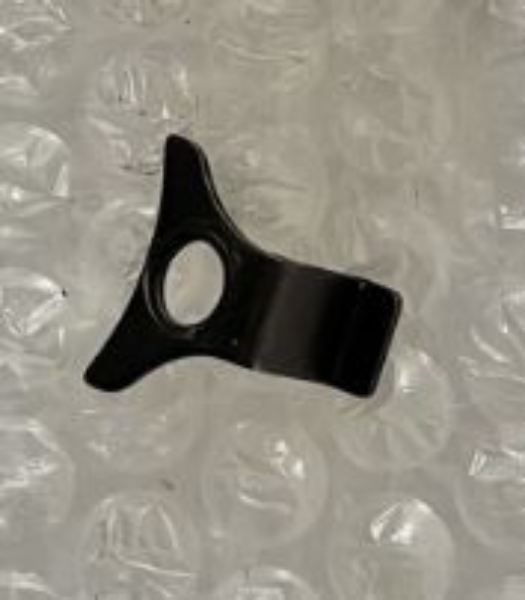

IR 231HP-656

RETAINER

IR 231-TK2

Tune-up Kit for Ingersoll Rand 231 Series Impact Wrench

For Use With

• 231C
• 231C-AP
• 231HA
• 231HA-2

IR 231XP-THK1

Hammer Kit for Ingersoll Rand Impact Wrench

For Use With

• 232TGSL

IR 232TGSL-P32

Protective Boot for Ingersoll Rand 232TGSL ThunderGun Street Legal Impact Wrench

Product Application and Uses: For use with ingersoll Rand 232TGSL impact wrench

For Use With

• 232TGSL

IR 244A-2

1/2" Air Impact Wrench, 2" Ext Anvil, Super Duty, 500 ft-lb Torque, Friction Ring Retainer, Pistol

The 244A Series ½” Impact Wrench comes loaded with a steel hammer case, square socket retaining ring, vane motor and metal housing — making this wrench one of the toughest, most durable impact wrenches on the market.

Features And Benefits

• Increased Control: The power regulator on the 244A Series provides you with increased control and stability on even your toughest projects.
• Durability: Tough and durable, the metal housing and steel hammer case on the 244A Series will help it hold up through repeated drops and harsh environments.
• Two-Piece Construction: Easy-to-service two-piece construction.
• Comfort and Control: Contoured handle for comfort and control. Patented one-hand forward/reverse for easy operation.
• Pressure Feed Lubrication: Pressure feed lubrication system automatically greases the impact mechanism.
• Extended Reach: The 2-inch extended anvil provides you with increased reach that’s invaluable when working with deeper fasteners.

Product Application and Uses: General Industrial, Facility Maintenance
Actuation/Throttle Type/Switch Type: Trigger
Air Consumption @ Load (cfm): 21
Air Consumption @ Load (l/min): 595
Air Inlet: 1/4" NPT
Air Pressure (psi): 90
Anvil Length: 2" Extended
Average Air Consumption (cfm): 5.4
Average Air Consumption (l/min): 153
Blows per Min: 1300
Color: Silver
Configuration/Handle Type: Pistol Grip
Drive Size (in): 1/2
Drive Type: Square
Duty Rating: Super Duty
End Plates: Steel
Exhaust Location: Bottom
Free Speed Sound Pressure/Power Db(A): 93.0 / 104.0
Hammer Case: Steel
Handle Material: Aluminum
Housing Material: Aluminum
Impact Mechanism: Twin Hammer
Max Bolt Diameter (in): 9/16
Max Free Speed (rpm): 7000
Max Pressure (bar): 6.2
Max Torque (ft-lb): 500
Max Torque (in-lb): 6001
Max Torque (nm): 678
Min Hose Size (in): 3/8
Motor: Reverse Bias
Number of Power Settings: 6
Power Source: Air Powered
Product Length (in): 9.5
Product Width (in): 2.95
Product Height (in): 7.85
Product Weight (lb): 6.3
Recommended Forward Torque Range (ft-lb): 40-350
Recommended Forward Torque Range (in-lb): 478-4204
Recommended Forward Torque Range (nm): 54-475
Recommended Reverse Torque (ft-lb): 40-350
Recommended Reverse Torque (nm): 54-475
Retainer Type: Friction Ring
Side to Center Distance (in): 1.5
Side to Center Distance (mm): 38
Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744
Tool Type: Full-size
Vanes: 6
Vibration Level (m/s2): 8.6
Warranty: 1-year

Similar IR

• 244A
• 2135QXPA-2
• 2235TIMAX-2

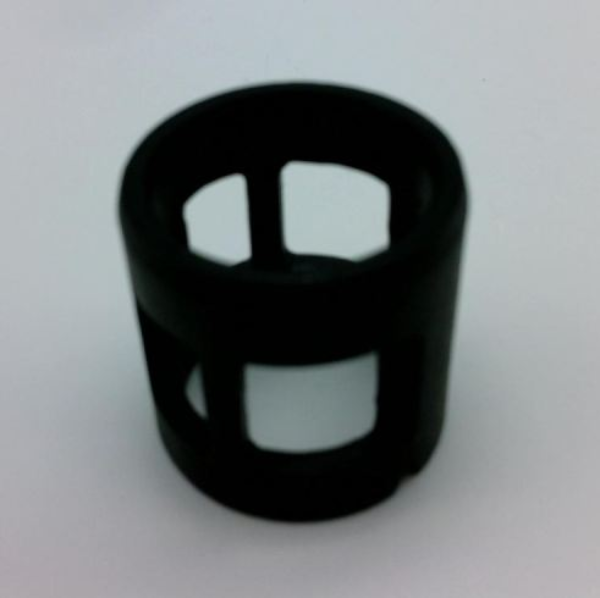

IR 259-330

REVERSE VALVE BUSHING
