Impactool

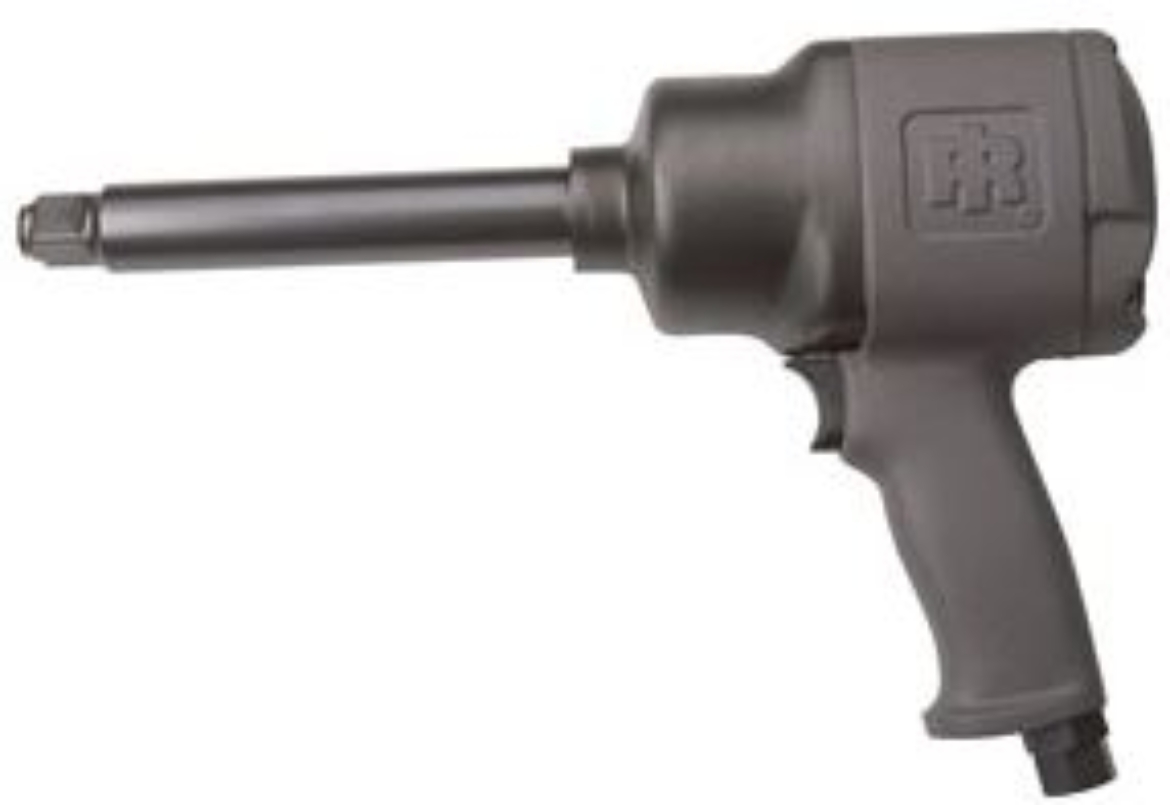

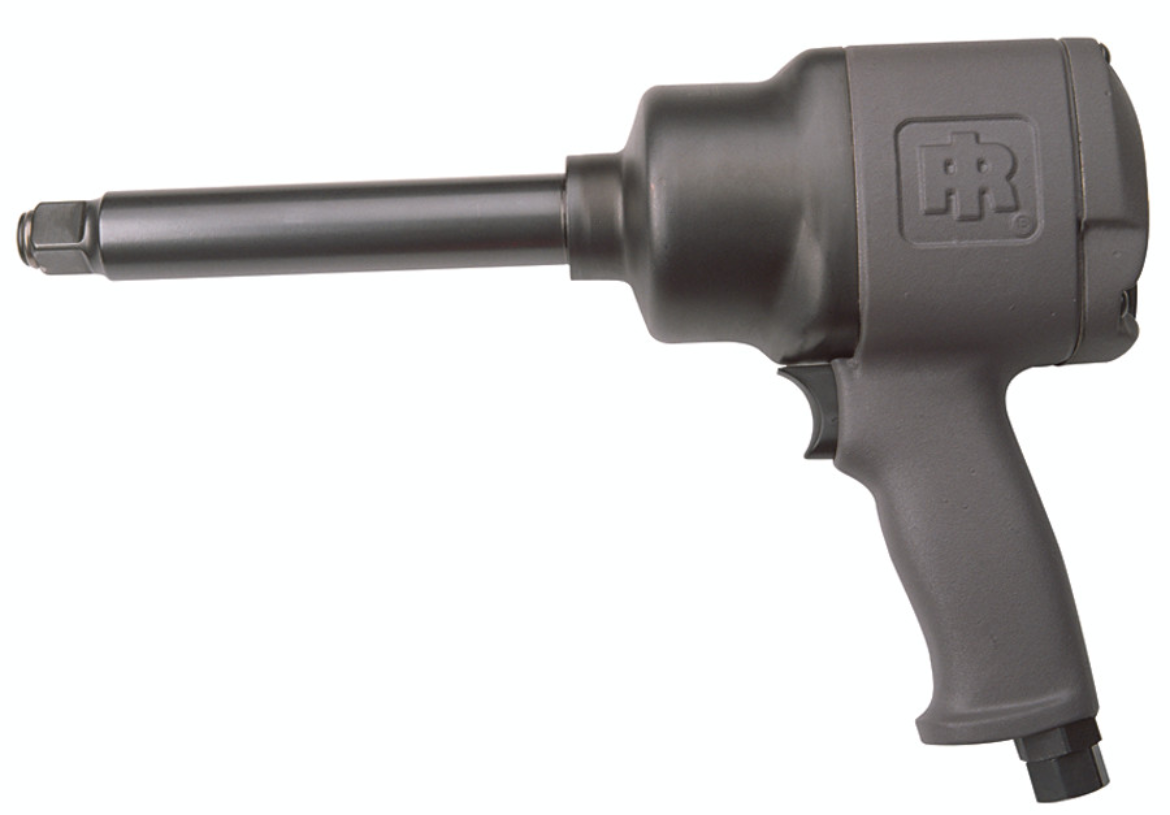

IR 2161XP-6

3/4" Air Impact Wrench, ,6" Ext Anvil, 1250 ft-lb Torque, Friction Ring Retainer, Pistol

Description: The metal housing and steel hammer case of the 2161 Series Impact Wrench makes this one of the toughest tools on the market. It combines a six-vane high output air motor, through-bolt construction, ergonomic handle and housing design to create an impact tool that offers increased power and durability like no other. You'll also benefit from the twin hammer impact mechanism, which provides a more even impact with every blow and makes it less sensitive to changes in air pressure.

Features And Benefits:

• Power: Most powerful 3/4" Impact in the industry with 1.250 ft.-lbs. of max torque and 6,000 rpm. Finely tuned twin hammer impact mechanism and 6-vane motor.
• Versatility: The 2161 Series is an ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.
• Durable: This heavy-duty impact wrench has a steel hammer case and is tough enough to handle harsh environments and repeated drops.
• Power Regulator: 3-position power regulator with full power in reverse.
• Extended Reach: The 6-inch extended anvil provides you with increased reach that's invaluable when working with deeper fasteners.

Product Application and Uses:

Ideal impact wrench for use in multiple markets, from vehicle repair and heavy machinery to general industrial and facility maintenance.

• Actuation/Throttle Type/Switch Type: Trigger
• Air Consumption @ Load (cfm): 46
• Air Consumption @ Load (l/min): 1303
• Air Inlet: 3/8" NPT
• Air Pressure (psi): 90
• Anvil Length: 6" Extended
• Average Air Consumption (cfm): 10
• Average Air Consumption (l/min): 283

• Blows per Min: 1025

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 3/4
• Drive Type: Square
• Duty Rating: Maintenance Duty

• End Plates: Steel
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 97.2 / 108.2

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum core with composite sleeve
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 92.8 / 103.8

• Max Bolt Diameter (in): 1
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1250
• Max Torque (in-lb): 15002
• Max Torque (nm): 1695
• Min Hose Size (in): 1/2
• Motor: Reverse Bias

• Number of Power Settings: 3
• Power Source: Air Powered
• Product Length (in): 14.5

• Product Width (in): 3.5
• Product Height (in): 9.5
• Product Weight (lb): 13.11
• Recommended Forward Torque Range (ft-lb): 300-1000
• Recommended Forward Torque Range (in-lb): 3602-12002
• Recommended Forward Torque Range (nm): 407-1356
• Retainer Type: Friction Ring

• Side to Center Distance (in): 1.75
• Side to Center Distance (mm): 44

• Special Features: Extended anvil
• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 9.8
• Warranty: 1-year

• Accessories: 2161-BOOT

• Lubrication: 50P
• Parts: 2141-THK1
• Parts: 2161-36
