Impacts

IR 2934-K23

IR 2934P-302

IR 2940-301

IR 2940-314-6

IR 2940-53

IR 2940-A40

IR 2940-A727

IR 2940B1

No. 5 Spline Impact Wrench, 1600 ft-lb Torque, D-Handle Inside Trigger

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 850

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): No. 5
• Drive Type: Spline
• Duty Rating: Industrial Duty

• Exhaust Location: Bottom

• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1601
• Max Torque (in-lb): 19206
• Max Torque (nm): 2170
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Power Source: Air Powered
• Product Length (in): 10.2

• Product Width (in): 22.1
• Product Height (in): 6.5
• Product Weight (lb): 22
• Recommended Forward Torque Range (ft-lb): 1003-1601
• Recommended Forward Torque Range (in-lb): 12037-19206
• Recommended Forward Torque Range (nm): 1360 - 2170
• Recommended Reverse Torque (ft-lb): 1003-1601
• Recommended Reverse Torque (nm): 1360-2170

• Side to Center Distance (in): 11.1
• Side to Center Distance (mm): 282

• Sound Pressure/Power Db(A): 94.8 / 105.8

• Tool Type: Full-size
• Vibration Level (m/s2): 17.8
• Vibration Uncertainy K* (m/s2): 3.4
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-A703
• Parts: 2940-TK3

IR 2940P2

1" Air Impact Wrench, 1600 ft-lb Torque, 810 BPM, Pistol

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard

• Blows per Min: 810

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Industrial Duty

• Exhaust Location: Bottom

• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 1-3/8
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 1601
• Max Torque (in-lb): 19206
• Max Torque (nm): 2170
• Min Hose Size (in): 3/4
• Motor: Non-Biased

• Power Source: Air Powered

• Recommended Forward Torque Range (ft-lb): 1003-1601
• Recommended Forward Torque Range (in-lb): 12037-19206
• Recommended Forward Torque Range (nm): 1360 - 2170
• Recommended Reverse Torque (ft-lb): 1003-1601
• Recommended Reverse Torque (nm): 1360-2170

• Sound Pressure/Power Db(A): 94.2 / 105.2

• Tool Type: Full-size
• Vibration Level (m/s2): 18.1
• Vibration Uncertainy K* (m/s2): 5.6
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-TK3

IR 2940P-36

Hammer Case Gasket Service Part for Ingersoll Rand Power Tools

IR 2945-42-6

IR 2945-A703

IR 2950-A40

IR 2950B7

1-1/2" Air Impact Wrench, Heavy Duty, 3000 ft-lb Torque, Thru-hole Retainer, D-Handle Inside Trigger

Description: With a finely tuned motor and excellent power regulation, the 2950 Series is ready to assist you on even the toughest of jobs.

Features And Benefits:

• Durability: The 2950 Series features a steel hammer case and metal housing, tough enough to last through any drops or harsh weather conditions.
• Reliability: This tool's twin hammer impact mechanism provides an even blow that delivers every time. Comes with a 1-year warranty.
• Great for Outdoor Environments: This wrench contains a bronze end-plate that increases durability and is corrosion resistant.

Product Application and Uses:

Engineered to withstand the harshest working conditions in oilfields, mines, and shipyards

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 70
• Average Air Consumption (l/min): 1982

• Blows per Min: 650

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1-1/2
• Drive Type: Square
• Duty Rating: Heavy Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 94.9 / 105.9

• Hammer Case: Steel
• Handle Material: Composite
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer

• Max Bolt Diameter (in): 1.5
• Max Free Speed (rpm): 3750
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 3000
• Max Torque (in-lb): 35996
• Max Torque (nm): 4067
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 14.5

• Product Weight (lb): 32.6
• Recommended Forward Torque Range (ft-lb): 2500
• Recommended Forward Torque Range (in-lb): 30004
• Recommended Forward Torque Range (nm): 3390
• Recommended Reverse Torque (ft-lb): 1601-2500
• Recommended Reverse Torque (nm): 2170-3390
• Retainer Type: Thru-hole

• Side to Center Distance (in): 2.5
• Side to Center Distance (mm): 64

• Speed Setting: Variable Speed
• Standards/Certifications: CE

• Tool Type: Full-size
• Vanes: 6
• Vibration Level (m/s2): 18.1
• Warranty: 1-year

• Lubrication: 10P
• Parts: 2950-42-6
• Parts: 2950-TK2

• Parts: RR10020S

IR 295A-334

IR 3934-123

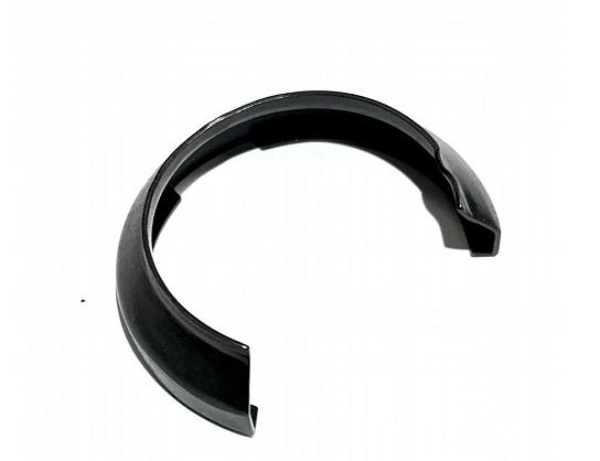

Exhaust Deflector for Ingersoll Rand 3940, 3942 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 3940A1TI, 3940A2TI, 3940B1TI, 3940B2TI, 3940B2TIEX Air Impact Wrench

• For Use With: 3940A1TI
• For Use With: 3940A2TI
• For Use With: 3940B1TI
• For Use With: 3940B2TI
• For Use With: 3940B2TIEX

IR 3940-123

Exhaust Deflector for Ingersoll Rand 3940, 3942, 3955 Series Impact Wrench

Product Application and Uses:

For use with Ingersoll Rand 3942A2TI, 3942B1TI, 3942B2TI, 3942B2TIEX Air Impact Wrench

• For Use With: 3942A2TI
• For Use With: 3942B1TI
• For Use With: 3942B2TI
• For Use With: 3942B2TIEX

IR 3940-93

IR 3940-A1

IR 3940A1TI

No. 5 Spline Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

Description: With a titanium hammer case, bronze end plates and torque up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits:

• Power: High torque output of 2750 ft-lbs and 800 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Actuation/Throttle Type/Switch Type: Outside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 64
• Average Air Consumption (l/min): 1812

• Blows per Min: 800

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): No. 5
• Drive Type: Spline
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4

• Hammer Case: Titanium
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 100.6 / 111.6

• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2750
• Max Torque (in-lb): 33004
• Max Torque (nm): 3729
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 13.5

• Product Weight (lb): 21.2
• Quiet Tool: No
• Recommended Forward Torque Range (ft-lb): 500-1800
• Recommended Forward Torque Range (in-lb): 6001-21596
• Recommended Forward Torque Range (nm): 678-2440
• Retainer Type: Thru-hole

• Special Features: Titanium hammercase

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 13.1
• Vibration Uncertainy K* (m/s2): 1.6
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 3934-123

IR 3940A2TI

1" Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, D-Handle Outside Trigger

Description: With a titanium hammer case, bronze end plates and torque up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits:

• Power: High torque output of 2750 ft-lbs and 800 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Actuation/Throttle Type/Switch Type: Outside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 64
• Average Air Consumption (l/min): 1812

• Blows per Min: 800

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4

• Hammer Case: Titanium
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 100.6 / 111.6

• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2750
• Max Torque (in-lb): 33004
• Max Torque (nm): 3729
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Product Length (in): 13.5

• Product Weight (lb): 21.2
• Quiet Tool: No
• Recommended Forward Torque Range (ft-lb): 500-1800
• Recommended Forward Torque Range (in-lb): 6001-21596
• Recommended Forward Torque Range (nm): 678-2440
• Retainer Type: Thru-hole

• Special Features: Titanium hammercase

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 13.1
• Vibration Uncertainy K* (m/s2): 1.6
• Warranty: 1-year

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 3934-123

IR 3940-A40

IR 3940B2TIEX

1" Air Impact Wrench, ATEX/Hazardous Duty, 2750 ft-lb Torque, Titanium Hammercase, D-Handle Inside Trigger

Description: Specifically designed to meet ATEX Zone 1 or Zone 2 requirements, with titanium hammer case, bronze end plates, and a corrosion preventative treatment up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impact wrench in the industry. ATEX Marking ATEX 2014/34/EU Ex h IIA T6 Gb X and ISO 80079-36 Certified.

Features And Benefits:

• Environmental, Health and Safety: ISO 80079-36 and ATEX 2014/34/EU, Ex h IIA T6 Gb X Certified to meet ATEX Zone 1 or Zone 2 requirements.
• Power: High torque output of 2750 ft-lbs and 800 blows per minute. The reverse bias motor helps remove the most stubborn bolts and the twin hammer mechanism ensures consistent power and balance.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Reverse bias motor to help remove the most stubborn bolts.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler

Product Application and Uses:

Hazardous Zones, Vehicle Repair, General Industrial, Facility Maintenance

• Actuation/Throttle Type/Switch Type: Inside Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 64
• Average Air Consumption (l/min): 1812

• Blows per Min: 800

• Color: Grey
• Configuration/Handle Type: D-Handle
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Atex/Hazardous Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 103.4 / 114.4

• Hammer Case: Titanium
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 100.6 / 111.6

• Max Bolt Diameter (in): 1-3/8
• Max Free Speed (rpm): 6000
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2750
• Max Torque (in-lb): 33004
• Max Torque (nm): 3729
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 117.9
• Product Length (in): 13.5

• Product Weight (lb): 21.2
• Quiet Tool: No
• Recommended Forward Torque Range (ft-lb): 500-1800
• Recommended Forward Torque Range (in-lb): 6001-21596
• Recommended Forward Torque Range (nm): 678-2440
• Retainer Type: Thru-hole

• Special Features: ATEX Rated, Titanium hammercase
• Standards/Certifications: Atex 2014/34/Eu, Atex Ex H Iia T6 Gb X, Iso 80079-36

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 13.1
• Vibration Uncertainy K* (m/s2): 1.6
• Warranty: 1-year

• Accessories: SK8H9TN

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-726
• Parts: 3934-123

• Parts: 3940-TK1

IR 3940-D727

IR 3940P2TI

1" Air Impact Wrench, Super Duty, 2750 ft-lb Torque, Titanium Hammercase, Thru-hole Retainer, Pistol

Description: With titanium hammer case, bronze end plates, and corrode-x up to 2750 ft-lbs, the 3900 Series are the premier industrial grade impacts in the industry.

Features And Benefits:

• Power: High torque output of 2750 ft-lbs and 800 blows per minute.
• Bronze End Plates: Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions.
• Durability: With a titanium hammer case and metal housing, this tool can withstand even the harshest conditions.
• Balance: Twin hammer mechanism ensure consistent power and balance.
• Reverse bias motor to help remove the most stubborn bolts.
• Pressure-fed mechanism lubrication ensures complete coverage throughout the tool
• Integral muffler
• Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding

Product Application and Uses:

Heavy Industry, Oil&Gas, Foundry

• Actuation/Throttle Type/Switch Type: Trigger
• Air Inlet: 1/2" NPT
• Air Pressure (psi): 90
• Anvil Length: Standard
• Average Air Consumption (cfm): 64
• Average Air Consumption (l/min): 1812

• Blows per Min: 800

• Color: Grey
• Configuration/Handle Type: Pistol Grip
• Drive Size (in): 1
• Drive Type: Square
• Duty Rating: Super Duty

• End Plates: Bronze
• Exhaust Location: Bottom
• Free Speed Sound Pressure/Power Db(A): 95.2 / 106.2

• Hammer Case: Titanium
• Housing Material: Aluminum
• Impact Mechanism: Twin Hammer
• Impacting Sound Pressure/Power Db(A): 97.8 / 108.8

• Max Bolt Diameter (in): 1-3/8
• Max Free Speed (rpm): 5300
• Max Pressure (bar): 6.2
• Max Torque (ft-lb): 2750
• Max Torque (in-lb): 33004
• Max Torque (nm): 3729
• Min Hose Size (in): 3/4
• Motor: Reverse Bias

• Number of Power Settings: Continuous
• Power Source: Air Powered
• Power to Weight Ratio (Nut-busting Torque/Weight) (ft-lb/lb): 117.9
• Product Length (in): 10.1

• Product Weight (lb): 20.4
• Quiet Tool: No
• Recommended Forward Torque Range (ft-lb): 500-1800
• Recommended Forward Torque Range (in-lb): 6001-21596
• Recommended Forward Torque Range (nm): 678-2440
• Retainer Type: Thru-hole

• Special Features: Titanium hammercase
• Standards/Certifications: Iso 11148-6, Cagi B186, Iso 28927-2, Iso 15744

• Tool Type: Full-size
• Vanes: 7
• Vibration Level (m/s2): 14.2
• Vibration Uncertainy K* (m/s2): 2
• Warranty: 1-year

• Accessories: SK8H9TN

• Lubrication: 10G
• Lubrication: 10P
• Lubrication: 10Z4
• Parts: 2940-726
• Parts: 3940-TK1
