GRACO INC. S10595

GRACO INC. S10595 branded products

View as Grid List

Sort by

MERKUR BELLOWS SYSTEM, PUMP, 150CC, STD

GG G15B59

MERKUR BELLOWS SYSTEM, PUMP, 150CC, STD

Merkur™ Bellows 15:1 Ratio Pump Package with Wall Mount & V-Packing The gentle pumping action of the Merkur Bellows Pump, combined with reduced sealing surfaces, provides superior handling of shear-sensitive materials, including UV coatings and waterborne materials. Highest technology air motor on the market Low air consumption for increased efficiency Simple air motor design and minimal parts reduces repair time Easy-to-flush design allows for fast color changes and reduced material waste 300 series stainless steel pump construction provides long-lasting durability Fewer parts and online replacement bellows seal means improved serviceability, lower cost of ownership and reduced downtime

$9,780.00

MERKUR SYSTEM, PUMP, 15:1, 25CC, CART, STD

GG G15C07

MERKUR SYSTEM, PUMP, 15:1, 25CC, CART, STD

Graco G15C07 15:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Cart Mount, PerformAA 15 Gun, Pump Air Controls, Gun Air/Fluid Hose, Suction Hose

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Convertible: Non-Convertible
Fluid Inlet Size (cm): 1.27
Fluid Inlet Size (in): 1/2
Fluid Inlet Size (mm): 12.7
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.9525
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 9.525
Fluid Outlet Thread Type: NPT
Gun Included: 1
Gun Model: PerformAA 15 Air Assist
Gun Technology: Air-Assisted
Gun Type: Air-Assisted
Hose Inlet Diameter (cm): 0.4763
Hose Inlet Diameter (in): 0.1875
Hose Inlet Diameter (mm): 5
Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose
Maximum Flow Rate (GPM): 0.4
Maximum Hose Length (ft): 25
Maximum Hose Length (m): 7.6
Maximum Working Pressure (bar): 103
Maximum Working Pressure (kPa): 10300
Maximum Working Pressure (MPa): 10.3
Maximum Working Pressure (psi): 1500
Motor Type: Pneumatic
Mount Type: Cart Mount
Number of Guns: 1
Power Source: Air
Pressure Type: High Pressure
Product Type: Spray Package
Pump Ratio: 15:1
Pump Type: Pneumatic Piston Pump

$5,520.00

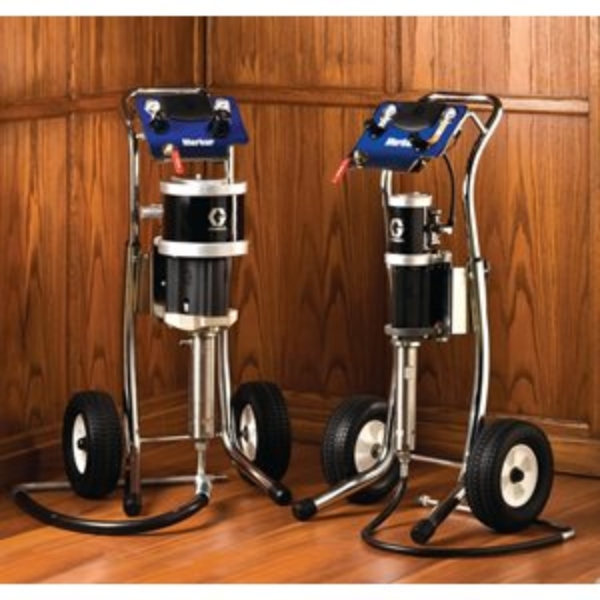

MERKUR SYSTEM, PUMP, 15:1, 25CC, 1LEG, STD

GG G15T03

MERKUR SYSTEM, PUMP, 15:1, 25CC, 1LEG, STD

Graco G15T03 15:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Stand Mount, PerformAA 15 Gun, Pump Air Controls, Gun Air/Fluid Hose, Suction Hose

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Convertible: Non-Convertible
Fluid Inlet Size (cm): 1.27
Fluid Inlet Size (in): 1/2
Fluid Inlet Size (mm): 12.7
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.9525
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 9.525
Fluid Outlet Thread Type: NPT
Gun Included: 1
Gun Model: PerformAA 15 Air Assist
Gun Technology: Air-Assisted
Gun Type: Air-Assisted
Hose Inlet Diameter (cm): 0.4763
Hose Inlet Diameter (in): 0.1875
Hose Inlet Diameter (mm): 5
Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose
Maximum Flow Rate (GPM): 0.4
Maximum Hose Length (ft): 25
Maximum Hose Length (m): 7.6
Maximum Working Pressure (bar): 103
Maximum Working Pressure (kPa): 10300
Maximum Working Pressure (MPa): 10.3
Maximum Working Pressure (psi): 1500
Motor Type: Pneumatic
Mount Type: Stand Mount
Number of Guns: 1
Power Source: Air
Pressure Type: High Pressure
Product Type: Spray Package
Pump Ratio: 15:1
Pump Type: Pneumatic Piston Pump

$5,780.00

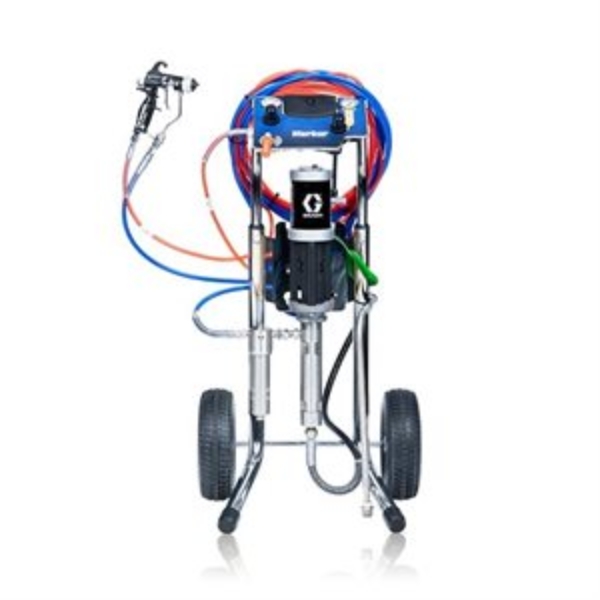

MERKUR SYSTEM, PUMP, 15:1, 25CC, CART, STD

GG G15C09

MERKUR SYSTEM, PUMP, 15:1, 25CC, CART, STD

15:1 Merkur AA Package, 0.4 gpm (1.5 lpm) fluid flow, Cart Mount, PerformAA 15 Gun, Pump/Gun Air Controls, Gun Air/Fluid Hose, Fluid Filter Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications. Proven to outperform and outlast other pumps in their class Highest technology air motor on the market Low air consumption for increased efficiency External valve access allows for easy servicing and online replacement to minimize downtime

$6,050.00

XHD RAC TIP, SPRAY, CYLINDER, 727

GG XHD727

XHD RAC TIP, SPRAY, CYLINDER, 727

XHD RAC SwitchTip, .727

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures. Saves time – no screwdriver required, change tip sizes in seconds For heavy-duty applications up to 7250 psi (500 bar) Recommended for use with Xtreme Sprayers and XTR Guns Heavy-duty carbide tip

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 725

GG XHD725

XHD RAC TIP, SPRAY, CYLINDER, 725

Graco XHD725 XHD RAC SwitchTip, .725

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.

Saves time – no screwdriver required, change tip sizes in seconds
For heavy-duty applications up to 7250 psi (500 bar)
Recommended for use with Xtreme Sprayers and XTR Guns

Model: XHD RAC
Series: SwitchTip

Compatible Material: Solvent borne Paints, Water-Based Paint
For Use With: Xtreme Sprayers, XTR Airless Spray Guns
Maximum Fan Width (cm): 40.6
Maximum Fan Width (in): 16
Maximum Fan Width (mm): 406
Maximum Flow Rate (GPM): 0.67
Maximum Flow Rate (L/min): 2.54
Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (psi): 7250
Minimum Fan Width (in): 14
Minimum Fan Width (mm): 356
Orifice Diameter (in): 0.025

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 815

GG XHD815

XHD RAC TIP, SPRAY, CYLINDER, 815

XHD RAC SwitchTip, .815

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 771

GG XHD771

XHD RAC TIP, SPRAY, CYLINDER, 771

XHD RAC SwitchTip, .771

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 817

GG XHD817

XHD RAC TIP, SPRAY, CYLINDER, 817

XHD RAC SwitchTip, .817

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 819

GG XHD819

XHD RAC TIP, SPRAY, CYLINDER, 819

Graco XHD819 XHD RAC SwitchTip, .819

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.

Saves time – no screwdriver required, change tip sizes in seconds
For heavy-duty applications up to 7250 psi (500 bar)
Recommended for use with Xtreme Sprayers and XTR Guns

Model: XHD RAC
Series: SwitchTip

Compatible Material: Solvent borne Paints, Water-Based Paint
For Use With: Xtreme Sprayers, XTR Airless Spray Guns
Maximum Fan Width (cm): 45.7
Maximum Fan Width (in): 18
Maximum Fan Width (mm): 457
Maximum Flow Rate (GPM): 0.38
Maximum Flow Rate (L/min): 1.44
Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (psi): 7250
Minimum Fan Width (in): 16
Minimum Fan Width (mm): 406
Orifice Diameter (in): 0.019

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 821

GG XHD821

XHD RAC TIP, SPRAY, CYLINDER, 821

Graco XHD821 XHD RAC SwitchTip, .821

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.

Saves time – no screwdriver required, change tip sizes in seconds
For heavy-duty applications up to 7250 psi (500 bar)
Recommended for use with Xtreme Sprayers and XTR Guns

Model: XHD RAC
Series: SwitchTip

Compatible Material: Solvent borne Paints, Water-Based Paint
For Use With: Xtreme Sprayers, XTR Airless Spray Guns
Maximum Fan Width (cm): 45.7
Maximum Fan Width (in): 18
Maximum Fan Width (mm): 457
Maximum Flow Rate (GPM): 0.47
Maximum Flow Rate (L/min): 1.78
Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (psi): 7250
Minimum Fan Width (in): 16
Minimum Fan Width (mm): 406
Orifice Diameter (in): 0.021

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 825

GG XHD825

XHD RAC TIP, SPRAY, CYLINDER, 825

XHD RAC SwitchTip, .825

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 827

GG XHD827

XHD RAC TIP, SPRAY, CYLINDER, 827

XHD RAC SwitchTip, .827

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 831

GG XHD831

XHD RAC TIP, SPRAY, CYLINDER, 831

Graco XHD831 XHD RAC SwitchTip, .831

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.

Saves time – no screwdriver required, change tip sizes in seconds
For heavy-duty applications up to 7250 psi (500 bar)
Recommended for use with Xtreme Sprayers and XTR Guns

Model: XHD RAC
Series: SwitchTip

Compatible Material: Solvent borne Paints, Water-Based Paint
For Use With: Xtreme Sprayers, XTR Airless Spray Guns
Maximum Fan Width (cm): 45.7
Maximum Fan Width (in): 18
Maximum Fan Width (mm): 457
Maximum Flow Rate (GPM): 1.03
Maximum Flow Rate (L/min): 3.90
Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (psi): 7250
Minimum Fan Width (in): 16
Minimum Fan Width (mm): 406
Orifice Diameter (in): 0.031

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 861

GG XHD861

XHD RAC TIP, SPRAY, CYLINDER, 861

XHD RAC SwitchTip, .861

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 867

GG XHD867

XHD RAC TIP, SPRAY, CYLINDER, 867

XHD RAC SwitchTip, .867

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 923

GG XHD923

XHD RAC TIP, SPRAY, CYLINDER, 923

XHD RAC SwitchTip, .923

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

Motor, Xl3400, Saleable

GG XL34L0

Motor, Xl3400, Saleable

$7,590.00

Motor, Xl6500

gg XL65D0

Motor, Xl6500

Call for pricing

XM SPRAYER SYSTEM, XM50, R, IS

GG XM5N00

XM SPRAYER SYSTEM, XM50, R, IS

Graco XM5N00 XM50 System, Hazardous Location, 240V, Alternator Power, No Heaters, No Junction Box, No Feed System, Remote Manifold

Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials.

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

Variable ratio system - handles material ratios from 1:1 to 10:1
Dosing technology assures accurate, on-ratio mixing for better yield and less waste
Advanced, intuitive user controls provide real-time display and adjustment of ratio
Supports multiple spray guns for added productivity

Model: XM
Series: 50

Air Inlet Size (in): 3/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT
Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
Maximum Air Inlet Pressure (bar): 10.3
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.4
Maximum Fluid Temperature (°C): 71
Maximum Fluid Temperature (°F): 160
Maximum Fluid Viscosity (cP): 20000
Maximum Fluid Temperature (°C): 71
Maximum Fluid Temperature (°F): 160
Maximum Fluid Viscosity (cP): 20000
Maximum Mix Ratio: 10:1
Maximum Operating Temperature (°C): 54
Maximum Operating Temperature (°F): 130
Maximum Working Pressure (bar): 358
Maximum Working Pressure (MPa): 35.8
Maximum Working Pressure (psi): 5200
Minimum Flow Rate (GPM): 0.25
Minimum Flow Rate (L/min): 0.95
Minimum Mix Ratio: 1:1
Mix Accuracy (%): 5%
Power Source: Alternator
Primary Fluid Heater Included: No

$71,260.00

XM SPRAYER SYSTEM, XM70, R, 480, JB, WP, 25, E

GG XM7H2E

XM SPRAYER SYSTEM, XM70, R, 480, JB, WP, 25, E

XM70 Skid System, Non-Hazardous, With Electric Heated Hose and 25 Gallon Heated Hoppers, 480V Engineered to handle the toughest protective coatings, the Graco XM plural-component sprayer provides precise ratio control, allows users to download historical spraying data, and handles a wide range of two-component materials. Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job. Variable ratio system - handles material ratios from 1:1 to 10:1 Dosing technology assures accurate, on-ratio mixing for better yield and less waste Advanced, intuitive user controls provide real-time display and adjustment of ratio USB port lets you easily access and download historical spraying data Supports multiple spray guns for added productivity

$131,940.00

XM SPRAYER SYSTEM, XM70, R, 480, JB, IS, 25, E

GG XM7K2E

XM SPRAYER SYSTEM, XM70, R, 480, JB, IS, 25, E

Graco XM7K2E XM70, 480V, Alternator, EX Viscon HF Heaters, EX Junction Box, Heated Tanks, Agitators, Feed Pumps, Remote, Electric Hose Control

Application: Ideally suited for marine, bridge, rail and wind energy applications, the Graco XM is fully configurable for your specific coatings job.

Variable ratio system - handles material ratios from 1:1 to 10:1
Dosing technology assures accurate, on-ratio mixing for better yield and less waste
Advanced, intuitive user controls provide real-time display and adjustment of ratio
Supports multiple spray guns for added productivity

Model: XM
Series: 70

Air Inlet Size (in): 3/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Fluid Inlet Size (in): 1-1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT
Maximum Air Consumption (m3/min): 1.96 m3/min per lpm at 100psi
Maximum Air Consumption (SCFM): 70 scfm/gpm at 100psi
Maximum Air Inlet Pressure (bar): 10.3
Maximum Air Inlet Pressure (psi): 150
Maximum Flow Rate (GPM): 3
Maximum Flow Rate (L/min): 11.4
Maximum Fluid Temperature (°C): 71
Maximum Fluid Temperature (°F): 160
Maximum Fluid Viscosity (cP): 20000
Maximum Fluid Temperature (°C): 71
Maximum Fluid Temperature (°F): 160
Maximum Fluid Viscosity (cP): 20000
Maximum Mix Ratio: 10:1
Maximum Operating Temperature (°C): 54
Maximum Operating Temperature (°F): 130
Maximum Working Pressure (bar): 435
Maximum Working Pressure (MPa): 43.5
Maximum Working Pressure (psi): 6300
Minimum Flow Rate (GPM): 0.25
Minimum Flow Rate (L/min): 0.95
Minimum Mix Ratio: 1:1
Mix Accuracy (%): 5%
Power Source: Alternator
Primary Fluid Heater Included: Yes

$207,030.00

XDX SERIES 20 REEL, HOSE

GG XNL65D

XDX SERIES 20 REEL, HOSE

Graco XNL65D XDX™ 20, Air/Water/Antifreeze/WWS, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, No Guide Arms, Black

Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame, steel spool, sealed components and innovative swivel design for high-quality performance in the most demanding applications.

Application: Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks.

Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models)
Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

Series: 20

Application: Air, Water, Antifreeze, WWS
Color: Black
Dry Weight (lb): 64
Frame Type: Dual Pedestal
Hose Inside Diameter (in): 1/2
Hose Inside Diameter (mm): 12.7
Hose Length (ft): 75
Hose Length (m): 23
Hose Reel Type: Reel with Hose
Includes Hose: Yes
Inlet Size (in): 1/2
Inlet Size (mm): 12.7
Inlet Thread Gender: Male
Inlet Thread Type: NPSM
Maximum Temperature (°C): 87
Maximum Temperature (°F): 190
Maximum Working Pressure (psi): 300
Outlet Size (in): 1/2
Outlet Size (mm): 12.7
Outlet Thread Gender: Male
Outlet Thread Type: NPT
Overall Height (in): 25.2
Overall Height (mm): 640
Overall Length (in): 21
Overall Length (mm): 533
Overall Width (in): 7.5
Overall Width (mm): 191
Recommended Environment: Indoor, Outdoor
Recommended Fluid Type: Air, Water, Antifreeze, WWS

Call for pricing

Kit, Mix Module, Rnd., Polyurea.

GG XR2323

Kit, Mix Module, Rnd., Polyurea.

Call for pricing

Retainer, Oring

GG SN713006

Retainer, Oring

$475.00

Retainer, O-ring

GG SN713007

Retainer, O-ring

$175.00

Nozzle, Assy, 713, 1/2in Ballnose, 078, Std 669

GG SN713-1A-078-669

Nozzle, Assy, 713, 1/2in Ballnose, 078, Std 669

$9,480.00

LSR (Liquid, Silicone, Rubber) Injector, Assembly, Color

GG SN751-1A

LSR INJECTOR,ASSY,COLOR

$3,480.00

Lsr Injector, Screw, Color, Injector

GG SN750002

Lsr Injector, Screw, Color, Injector

$165.00

SANIFORCE AODD PUMP, 15903A.PS02ASSASSPTEOEP21

GG SP15.0103

SANIFORCE AODD PUMP, 15903A.PS02ASSASSPTEOEP21

SaniForce 1590, 1.5" 3A SST Pneumatic Diaphragm Pump, SS Center, SS Seats, PT Balls, EO Diaphragms Graco's SaniForce 1590, 1.5-inch air-operated double diaphragm (AODD) pump provides a hygienic solution for customers needing to pump flow rates up to 105 gpm. It offers a quick knock-down design for easy cleaning and a low cost of ownership. Ideal for food processing and personal care markets. Common applications include high volume evacuation of liquid concentrates from holding vessels or repackaging of fluids from the original container to smaller receptacles. Suitable to pump products like flavorings, purees, sauces and other low to medium viscosity materials. 1.5 inch sanitary pump with flow rates up to 105 gpm (397.5 lpm) and pressures up to 120 psi (8 bar) Seal-less diaphragm pump design eliminates leaking and failures due to run-dry pump conditions Graco double diaphragm pumps stall under pressure preventing pump failures from clogged lines or closed valves Externally serviceable air valves deliver leading efficiency and reduce downtime. Equipped with inlet and outlet tri-clamp connections, offering a quick knockdown design for easy cleanability and a swift maintenance process EPDM overmolded diaphragm design reduces areas that harbor bacteria while improving wear and diaphragm life with no exposed diaphragm plate on the fluid side Equipped with leak sensor to notify users when processes may be compromised 316L stainless steel wetted section All fluid contact materials are FDA-Compliant and meet the United States Code of Federal Regulations (CFR) Title 21 Pass solids up to 0.5 in. (12.7 mm) Single piece manifolds reduce tri-clamps and gaskets creating a cleaner fluid path and design

$15,760.00

Seal Kit, For Color Injector

GG SN751K

Seal Kit, For Color Injector

$82.50

Bumper, Pump, Slave

GG SSP-119

Bumper, Pump, Slave

$18.00

Tube Colorant, Mounting 0897

GG SP415007

Tube Colorant, Mounting 0897

$580.00

Bracket, Y

GG SSP-120

Bracket, Y

$170.00

Lsr Piston, Colorant, Nylon, 0897-4

GG SP415010

Lsr Piston, Colorant, Nylon, 0897-4

$90.00

Cylinder, Pump, Slave

GG SSP-133

Cylinder, Pump, Slave

$830.00

Shaft, Pump

GG SSP-122

Shaft, Pump

$210.00

Knob, Pivot

GG SSP-159

Knob, Pivot

$210.00

Slider, Slave

GG SSP-114

Slider, Slave

Call for pricing

Lock, Slave

GG SSP-161

Lock, Slave

$440.00

Insert, Slider

GG SSP-164

Insert, Slider

$645.00

Handle, Pivot

GG SSP-163

Handle, Pivot

$340.00

Spring, Compression

GG SSP-162

Spring, Compression

$78.00

Lock, Slider

GG SSP-165

Lock, Slider

Call for pricing

Handle, Clamping

GG SSP-166

Handle, Clamping

$102.00

HUSKY PUMP, 515P-PP01AP3PPTPTPPT0

GG D52955

HUSKY PUMP, 515P-PP01AP3PPTPTPPT0

Graco D52955 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, TPE Balls & TPE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options.
No mechanical seals to cause fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Delivery up to 15 gpm (56.7 lpm)
Easy-to-service air valve and ball checks
Reliable air valve for years of dependable performance

Model: Husky
Series: 515

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: TPE (Hytrel)
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
Connection Type: Threaded
Diaphragm Compatible Material: TPE
Diaphragm Material: TPE (Hytrel)
Fluid Inlet Size (cm): 1.27
Fluid Inlet Size (in): 1/2
Fluid Inlet Size (mm): 12.7
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.27
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 12.7
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Polypropylene
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Polypropylene
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 15
Maximum Flow Rate (L/min): 56.8
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Overal

$921.00

HUSKY PUMP, 515P-PP01AP3PPSSTPPT0

GG D52935

HUSKY PUMP, 515P-PP01AP3PPSSTPPT0

Graco D52935 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, SS Balls & TPE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options.
No mechanical seals to cause fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Delivery up to 15 gpm (56.7 lpm)
Easy-to-service air valve and ball checks
Reliable air valve for years of dependable performance

Model: Husky
Series: 515

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: 316 Stainless Steel
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
Connection Type: Threaded
Diaphragm Compatible Material: TPE
Diaphragm Material: TPE (Hytrel)
Fluid Inlet Size (cm): 1.27
Fluid Inlet Size (in): 1/2
Fluid Inlet Size (mm): 12.7
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.27
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 12.7
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Polypropylene
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Polypropylene
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 15
Maximum Flow Rate (L/min): 56.8
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40

Call for pricing

HUSKY PUMP, 515P-PP01AP3PPBNBNPT0

GG D52977

HUSKY PUMP, 515P-PP01AP3PPBNBNPT0

Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, BN Balls & BN Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance

$1,015.00

HUSKY PUMP, 515P-PP01AP3PPSPSPPT0

GG D52966

HUSKY PUMP, 515P-PP01AP3PPSPSPPT0

Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm.

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options. No mechanical seals to cause fluid leaks or failures. Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels. Easy-to-service air valve and ball checks. Operates on as little as 20 psi (1.4 bar, 0.14 MPa). Split manifold option to pump multiple fluids without mixing. Delivery up to 15 gpm (56.7 lpm). Reliable air valve for years of dependable performance.

$860.00

HUSKY PUMP, 515P-PP01AP3UD0SP-0

GG D52D06

HUSKY PUMP, 515P-PP01AP3UD0SP-0

Husky 515 1/2 in NPT PP Pump, PP Center Section, Urethane Duckbill Seats & SP Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

$887.00

HUSKY PUMP, 515P-PP01AP3PPFKFKPT0

GG D52988

HUSKY PUMP, 515P-PP01AP3PPFKFKPT0

Graco D52988 Husky 515 PP 1/2 in NPT Standard Pump, PP Center Section, PP Seats, FKM Balls & FKM Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options.
No mechanical seals to cause fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Delivery up to 15 gpm (56.7 lpm)
Easy-to-service air valve and ball checks
Reliable air valve for years of dependable performance

Model: Husky
Series: 515

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Fluoroelastomer
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
Connection Type: Threaded
Diaphragm Compatible Material: FKM
Diaphragm Material: Fluoroelastomer
Fluid Inlet Size (cm): 1.27
Fluid Inlet Size (in): 1/2
Fluid Inlet Size (mm): 12.7
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.27
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 12.7
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Polypropylene
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Polypropylene
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 15
Maximum Flow Rate (L/min): 56.8
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40

$1,320.00

HUSKY PUMP, 716A-PP01AA1ACPTPTPT0

GG D53211

HUSKY PUMP, 716A-PP01AA1ACPTPTPT0

Graco D53211 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, PTFE Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$1,345.00

HUSKY PUMP, 716A-PP01AA1ACTPTPPT0

GG D53255

HUSKY PUMP, 716A-PP01AA1ACTPTPPT0

Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, TPE Ball, and TPE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks

$1,165.00

HUSKY PUMP, 716A-PP01AA1ACSPSPPT0

GG D53266

HUSKY PUMP, 716A-PP01AA1ACSPSPPT0

Husky 716 AL Air Operated Double Diaphragm Metal Pump with Open Downward Port

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

$1,165.00

HUSKY PUMP, 716A-PP01AA1ACFKFKPT0

GG D53288

HUSKY PUMP, 716A-PP01AA1ACFKFKPT0

Graco D53288 Husky 716 Al (3/4 in. NPT) Standard Pump, PP Center Section, AC Seats, FKM Balls & FKM Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Fluoroelastomer
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: FKM
Diaphragm Material: Fluoroelastomer
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Overall Height (in): 10.43
Power Source: Air

$1,415.00

HUSKY PUMP, 716A-PP01AA1ACBNBNPT0

GG D53277

HUSKY PUMP, 716A-PP01AA1ACBNBNPT0

Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, Buna Ball, & Buna Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

$1,095.00

Husky Pump, 716A-PP01AA1SSPTPTPT0

GG D53311

Husky Pump, 716A-PP01AA1SSPTPTPT0

Graco D53311 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, SS Seat, PTFE Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

$1,670.00

HUSKY PUMP, 716A-PP01AA1SSSSBNPT0

GG D53337

HUSKY PUMP, 716A-PP01AA1SSSSBNPT0

Graco D53337 Husky 716 AL (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, SS Balls & BN Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: 316 Stainless Steel
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: Buna
Diaphragm Material: Buna-N
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Overall Height (in): 10.43
Power Source: Air

$1,255.00

Husky Pump, 716A-PP01AA1SSSSPTPT0

GG D53331

Husky Pump, 716A-PP01AA1SSSSPTPT0

Graco D53331 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, SS Seat, SS Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: 316 Stainless Steel
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$1,470.00

HUSKY PUMP, 716A-PP01AA1SSTPTPPT0

GG D53355

HUSKY PUMP, 716A-PP01AA1SSTPTPPT0

Graco D53355 Husky 716 AL (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, TPE Balls & TPE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: TPE (Hytrel)
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: TPE
Diaphragm Material: TPE (Hytrel)
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Overall Height (in): 10.43
Power Source: Air

$1,185.00

HUSKY PUMP, 716A-PP01AA1SSSPSPPT0

GG D53366

HUSKY PUMP, 716A-PP01AA1SSSPSPPT0

Graco D53366 Husky 716 AL (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, SP Balls & SP Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Santoprene
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Overall Height (in): 10.43
Power Source: Air

$1,205.00

HUSKY PUMP, 716A-PP01AA1SSBNBNPT0

GG D53377

HUSKY PUMP, 716A-PP01AA1SSBNBNPT0

Graco D53377 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, SS Seat, Buna Ball, & Buna Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Buna-N
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: Buna
Diaphragm Material: Buna-N
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$1,115.00

HUSKY PUMP, 716A-PP01AA1PPPTPTPT0

GG D53911

HUSKY PUMP, 716A-PP01AA1PPPTPTPT0

Graco D53911 Husky 716 AL AODD Metal Pump with NPT Standard Air Valve, PP Seat, PP Ball, & PP Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

$1,375.00

HUSKY PUMP, 716A-PP01AA1PPTPTPPT0

GG D53955

HUSKY PUMP, 716A-PP01AA1PPTPTPPT0

Graco D53955 Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, PP Seat, TPE Ball, & TPE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: TPE (Hytrel)
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: TPE
Diaphragm Material: TPE (Hytrel)
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$1,105.00

HUSKY PUMP, 716A-PP01AA1PPBNBNPT0

GG D53977

HUSKY PUMP, 716A-PP01AA1PPBNBNPT0

Husky 716 AL Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, PP Seat, Buna Ball, & Buna Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

$1,105.00

HUSKY PUMP, 716A-PP01AA1PPSPSPPT0

GG D53966

HUSKY PUMP, 716A-PP01AA1PPSPSPPT0

Graco D53966 Husky 716 AL AODD Metal Pump with NPT Standard Air Valve, PP Seat, SP Ball, & SP Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Santoprene
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$1,105.00

LDX SERIES REEL, HOSE, 1/2" X 50', OIL

GG HEM004

LDX SERIES REEL, HOSE, 1/2" X 50', OIL

LDX™ Series, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT Graco’s industrial-grade LDX hose reel offers incredible value for cost-conscious workshops. Its all-metal frame and specially crafted, long-lasting components provide consistent release and retraction. Designed for smaller garages, independent repair facilities and industrial manufacturing environments. Dual Pedestal Frame - Ribbed metal for increased stability and robustness. External Swivel Housing - Quickly access swivel seal for faster repairs. Ball Bearing Swivel - Swivel designed with internal ball bearings reduces friction and ensures smooth operation. Adjustable Arm - Easily change to one of six arm positions to fit your application. Large Hose Capacity with Small Profile - Compact design accommodates up to a 50 foot (15 meter) hose to meet a wide variety of application requirements.

$650.00

XD SERIES 30 REEL, 3/8 X 75, GREASE, BLUE

GG HSHB7B

XD SERIES 30 REEL, 3/8 X 75, GREASE, BLUE

XD30™, Grease, 1/2 in. (13 mm) Inlet, 3/8 in. X 75 ft. (10 mm X 23 m) Hose, NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

$2,400.00

PRO XP GUN, ES, AUTO BOTTOM, SMT, AA

GG HA2M10

PRO XP GUN, ES, AUTO BOTTOM, SMT, AA

Pro Xp Auto Air-Assist Electrostatic Spray Gun, smart model, with bottom manifold, 85 kV, includes AEM or AEF tip of choice Pro Xp Auto Air-Assist has an 85 kV power supply and internal power so there’s no electrical cord to damage or replace. Smart gun models connect to a control module for kV control and displaying gun performance. Ideal for high pressure spraying designed to improve transfer efficiency and deliver a high quality finish. Versatile product line gives you more models to choose from and greater spraying flexibility with air spray, air assist and waterborne guns Manifold style fits almost any systems requirement - back manifold is ideal for stationary and reciprocator systems and bottom manifold is ideal for robot mounting 85 kV power supply and internal power so there's no electrical cord to worry about damaging or replacing Higher transfer efficiency equals less waste, saving you money on material Durable components reduce cost of ownership, supported by a three year warranty

$16,900.00

XD SERIES 30 REEL, 3/4 X 50, A/W, BLUE

GG HSLD5B

XD SERIES 30 REEL, 3/4 X 50, A/W, BLUE

Graco HSLD5B XD30™, Air/Water/Antifreeze/WWS, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue

Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF).

Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid
Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models)
Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

Model: XD
Series: 30

Application: Air, Water, Antifreeze, WWS
Color: Metallic Blue
Dry Weight (lb): 98
Frame Type: Dual Pedestal
Hose Inside Diameter (in): 3/4
Hose Inside Diameter (mm): 19.05
Hose Length (ft): 50
Hose Length (m): 15
Hose Reel Type: Reel with Hose
Includes Hose: Yes
Inlet Size (in): 3/4
Inlet Size (mm): 19.05
Inlet Thread Type: NPSM
Maximum Working Pressure (psi): 300
Mount Location: Truck Mount, Bench Mount
Outlet Size (in): 3/4
Outlet Size (mm): 19.05
Overall Height (in): 23.10
Overall Height (mm): 588.00
Overall Length (in): 22.12
Overall Length (mm): 561.73
Overall Width (in): 9.0
Overall Width (mm): 229
Recommended Environment: Indoor, Outdoor
Recommended Fluid Type: Air, Water, Antifreeze, WWS

$1,825.00

QUANTM PUMP, QHD-FGFF1SSCWSPEPS130021

GG HE80-0003

QUANTM PUMP, QHD-FGFF1SSCWSPEPS130021

QUANTM h80, 1.5" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, CW Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Graco food-grade pumps are our most popular series for general food transfer. With their all-stainless-steel construction and 125 Ra surface finish, the groundbreaking new QUANTM food-grade electric pumps are certified to handle a wide range of food and beverage products and meet certification requirements for some personal care applications as well. From dressings, sauces, oils, syrups to soaps, creams and solvents, QUANTM electric food-grade pumps are a workhorse for almost any hygienic food-grade application. The powerful new electric motor delivers up to 8x more continuous torque at low speeds than conventional motors and the fast, easy plug-and-play installation allows you to easily replace existing pumps without additional investment or infrastructure rework. Revolutionary Design

Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

FEP coated aluminum electric drive
240 VAC 1Ph motor with 15 ft cord and NEMA L15-20plug
Non-hazardous

Materials of Construction

125 Ra surface finish 316 stainless steel fluid section with tri-clamp center port
Internal components include 316L stainless steel seat, polychloroprene weighted ball, Santoprene diaphragm and EPDM manifold o-ring
EN 2.1 material certification

$8,860.00

PRO XP GUN, ES, 60KV, AA, WB

GG H60T18

PRO XP GUN, ES, 60KV, AA, WB

Graco H60T18 Pro Xp60 AA WB Manual Air-Assist Spray Gun, 60 kV, standard display, for waterborne coatings

Excellent, air assisted pattern control eliminates defects for a fine finish with waterborne material.

Application: For spraying conductive, waterborne fluids with an isolation system

This 60 kV model is the smallest and lightest air assist gun on the market.
Air-assist aircaps use less air, lowering your energy bill.
Made in the USA
Fan adjust pattern control reduces overspray by changing the fan pattern width according to the size of the part – improving quality and saving you money
Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco&prime, s requirements

Model: Pro Xp
Series: 60

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Gender: Male
Air Inlet Thread Type: NPSM
Application: Electrostatic, Waterborne
Applicator Type: Manual
Coating Type: Waterborne
Compatible Paint Type: Epoxy, High Solids, Lacquers, Latex, Plural Component Materials, Polyurethanes, Urethanes, UV Curing, Varnishes, Waterborne
Display Type: Standard
Fluid Inlet Size (in): 1/4
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPSM
Gun Activation: Manual
Gun Type: Electrostatic
Gun Weight (g): 660
Gun Weight (kg): 0.66
Gun Weight (lb): 1.46
Gun Weight (oz): 23.28
Includes: Tip Guard Air Cap, Tip of Choice, Tool Kit, Gun Cover, Exhaust Tube
Maximum Fluid Pressure (bar): 210
Maximum Fluid Pressure (kg/cm²): 214.14
Maximum Fluid Pressure (kPa): 21000
Maximum Fluid Pressure (MPa): 21
Maximum Fluid Pressure (psi): 3000
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Fluid Pressure (bar): 210
Maximum Fluid Pressure (kg/cm²): 214.14
Maximum Fluid Pressure (kPa): 21000
Maximum Fluid Pressure (MPa): 21
Maximum Fluid Pressure (psi): 3000
Maximum Fluid Temperature (°C): 48
Maximum Fluid Temperature (°F): 120
Maximum Paint Resistivity (megohm/cm): 1
Minimum Paint Resistivity (megohm/cm): 0
Overall Length (cm): 24.64
Overall Length (in): 9.7
Overall Length (mm): 246.4

$9,670.00

PRO XP GUN, ES, 60KV, AA

GG H60T10

PRO XP GUN, ES, 60KV, AA

Pro Xp60 Air Assist Manual Electrostatic Gun, 60 kV, with standard display, standard coatings, includes AEM or AEF tip of choice Pro Xp60 kV air-assist gun is the smallest and lightest electrostatic air-assist gun on the market – delivering a consistent, high quality finish every time you spray. Pro Xp60 AA gun line includes Standard, Smart and Waterborne models. High quality spray performance with a one-piece aircap and variety of spray tips Transfer efficiency is improved over conventional air-assist guns Made in the USA The smallest profile gun with internal power supply on the market – 1 inch (2.5 cm) shorter and 4 oz (110 g) lighter Fan adjust pattern control reduces overspray by changing the fan pattern width according to the size of the part – improving quality and saving you money Every gun is tested and delivered with a certificate indicating the spray pattern, mechanical performance and electrical performance meets Graco's requirements

$8,880.00

PRO XP GUN, ES, AUTO REAR, SMT, AA, WB

GG HA1M18

PRO XP GUN, ES, AUTO REAR, SMT, AA, WB

Pro Xp Auto Waterborne Air-Assist Electrostatic Spray Gun, smart model, with rear manifold, 60 kV. Use with isolation systems. Pro Xp Auto waterborne air-assist guns are ideal for high pressure spraying with an isolation system including the WB3000. Versatile product line gives you more models to choose from and greater spraying flexibility Back manifold is ideal for a variety of systems 60 kV power supply and internal power so there’s no electrical cord to worry about damaging or replacing Higher transfer efficiency equals less waste, saving you money on material Made in the USA Durable components reduce cost of ownership, supported by a three year warranty

$16,590.00

QUANTM H80, 1.5" Tri-clamp, 3A SST Electric Diaphragm Pump 200-240 V FEP AL SS PT PS

GG HE80-0102

QUANTM H80, 1.5" Tri-clamp, 3A SST Electric Diaphragm Pump 200-240 V FEP AL SS PT PS

$15,720.00

XD SERIES 30 REEL, 3/4 X 50, OIL, BLUE

GG HSMD5B

XD SERIES 30 REEL, 3/4 X 50, OIL, BLUE

XD30™, Oil, 3/4 in. (19 mm) Inlet, 3/4 in. X 50 ft. (19 mm X 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue Graco’s XD30 Series Hose Reels are used in applications requiring longer-range dispense and higher capacity than the standard XD10 and XD20 Series. The Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (9.1-22.8 meters) hose capacity for a wide variety of applications. Typical fluids handled include: Petroleum- and synthetic-based oils, diesel fuel, air, water, antifreeze, windshield washer fluid, pressure wash, waste oil and diesel exhaust fluid (DEF). Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (HS models) or without (HN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 30-75 foot (91-228 meters) hose capacity for a wide variety of applications

$2,000.00

Control Box, 2000C, Mikron

GG HV-2000C-S102

Control Box, 2000C, Mikron

Call for pricing

ADVANJET VALVE, HV-2000

GG HV-2000

ADVANJET VALVE, HV-2000

Graco HV-2000 Advanjet HV-2000 Jet Valve

The Advanjet HV-2000 jet valve provides non-contact jet dispensing for the successful application of fluids in the electronic, semiconductor, industrial and life science markets. A single, easily replaceable diaphragm eliminates dynamic fluid seals common in all other jets. No need to disassemble, clean and replace worn seals, saving time and money. The diaphragm allows fast cycle rates because of its very small mass. There is no large sliding valve stem slowing down the process. With this novel diaphragm design, the energy needed to eject a drop can be adjusted providing wider process windows.

Application: The Easiest to Clean Non-Contact Jet Dispenser

Easy to Clean
Only two parts contact the fluid making it easy to exchange and replace parts.
Easy to Maintain
Unlike complicated piezo jets, the jet valve can be maintained within your factory with low-cost maintenance kits.
Easy to Integrate
The HV-9500 valve is a drop in replacement for existing operations. No external controller box required.
Features:
Up to 300 drops/sec
Outstanding repeatability
Viscosities up to 400K cps
Drops as small as 10 nl
No fluid seals to clean or replace
Integral heater with minimal fluid heated
Tungsten carbide internal components for long life

Model: AdvanJet

Application: Bonding, Sealing, Gasketing, Potting, Encapsulation, Spray, Underfill, Metering
Component Type: Single Component
Container Type: Cartridge
Maximum Working Pressure (bar): 6
Maximum Working Pressure (kg/cm²): 6
Maximum Working Pressure (kPa): 620
Maximum Working Pressure (MPa): 0.6
Maximum Working Pressure (psi): 90
Power Type: Pneumatic

$8,920.00

Adapter, Jic(04)X3/8Npt, M, Ss

GG J6900040

Adapter, Jic(04)X3/8Npt, M, Ss

$170.00

XDX SERIES 20 REEL, HOSE

GG XDM65F

XDX SERIES 20 REEL, HOSE

XDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in X 50 ft (13 mm X 15 m) Hose, NPT, Truck/Bench Mount, Yellow Graco’s heavy-duty XDX hose reel features a heavy-gauge, robust, dual-pedestal metal frame; steel spool; sealed components and innovative swivel design for high-quality performance in the most demanding applications. Ideal for rugged indoor and outdoor use in heavy-duty truck dealerships, fleet maintenance, mining maintenance, public works garages, construction vehicle maintenance, agriculture and service trucks. Spring Adjustment - Increase or decrease spring tension while reel is pressurized with fluid Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop Optional Adjustable Arm - Easily change the arm position for your application, order with arm (XD models) or without (XN models) Durable Finish - Baked-on enamel finish protects reel from corrosion Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces and can accommodate 35-65 foot (107-198 meters) hose capacity for a wide variety of applications

$1,460.00

XHD RAC TIP, SPRAY, CYLINDER, 211

GG XHD211

XHD RAC TIP, SPRAY, CYLINDER, 211

XHD RAC SwitchTip, .211

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

Kit, Pump, 30: 1, 75Cc, Ss, Std

GG W30CAS

KIT, PUMP, 30: 1, 75CC, SS, STD

Graco W30CAS Merkur Wet Cup Pump Assembly, 30:1, 75 cc Lower, 3 UHMWPE/2 PTFE Packings with Chromex, No Data Monitoring, Low Noise, SST

$4,320.00

XHD RAC TIP, SPRAY, CYLINDER, 115

GG XHD115

XHD RAC TIP, SPRAY, CYLINDER, 115

XHD RAC SwitchTip, .115

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

XHD RAC TIP, SPRAY, CYLINDER, 139

GG XHD139

XHD RAC TIP, SPRAY, CYLINDER, 139

Graco XHD139 XHD RAC SwitchTip, .139

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.

Saves time – no screwdriver required, change tip sizes in seconds
For heavy-duty applications up to 7250 psi (500 bar)
Recommended for use with Xtreme Sprayers and XTR Guns

Model: XHD RAC
Series: SwitchTip

Compatible Material: Solvent borne Paints, Water-Based Paint
For Use With: Xtreme Sprayers, XTR Airless Spray Guns
Maximum Fan Width (cm): 10.2
Maximum Fan Width (in): 4
Maximum Fan Width (mm): 102
Maximum Flow Rate (GPM): 1.63
Maximum Flow Rate (L/min): 6.17
Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (psi): 7250
Minimum Fan Width (in): 2
Minimum Fan Width (mm): 51
Orifice Diameter (in): 0.039

$116.50

Kit, Pump, 3:1, 125Cc, Ss, Std

GG W03EAS

Kit, Pump, 3:1, 125Cc, Ss, Std

$6,460.00

Kit, Pump, 15:1, 50Cc, Ss, Std

GG W15BAS

Kit, Pump, 15:1, 50Cc, Ss, Std

$4,070.00

IQ TIP SEAL VALVE, 25, 1.7/T, 060, ADJ/RM, AMB

GG V25GT060DA

IQ TIP SEAL VALVE, 25, 1.7/T, 060, ADJ/RM, AMB

Graco V25GT060DA iQ Dispense Valve, Tip-Seal, Ambient, 0.067in (1.7mm) Tip, 2.36in (60mm) Nozzle, Remote Mount Solenoid

The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.

Maximize dispense time while minimizing maintenance costs and effort
Delivers precise, consistent dispensing with clean starts and stops
Ideal for low to high viscosity materials
Easy repeatable mounting for robotic and automated applications.
60mm nozzle is compatible with 60mm focal length vision systems

Air Inlet Size (in): 1/8
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Ambient/Warm Melt/Hot Melt: Ambient
Applicator Type: Tip-Seal
Component Type: Single Component
Fluid Inlet Size (in): 1/4
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Gun Activation: Automatic
Maximum Air Pressure (bar): 8.3
Maximum Air Pressure (MPa): 0.83
Maximum Air Pressure (psi): 120
Maximum Fluid Pressure (bar): 276
Maximum Fluid Pressure (MPa): 28
Maximum Fluid Pressure (psi): 4000
Maximum Fluid Pressure (bar): 276
Maximum Fluid Pressure (MPa): 28
Maximum Fluid Pressure (psi): 4000
Mount Location: Remote Mount Solenoid
Nozzle Size (in): 0.067
Nozzle Size (mm): 1.7
Outlet Block Length (in): 2.4
Outlet Block Length (mm): 60

Call for pricing

XHD RAC TIP, SPRAY, CYLINDER, 217

GG XHD217

XHD RAC TIP, SPRAY, CYLINDER, 217

XHD RAC SwitchTip, .217

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

$116.50

RAC X WIDE RAC TIP, SPRAY, 1227

GG WR1227

RAC X WIDE RAC TIP, SPRAY, 1227

RAC X Wide RAC SwitchTip, 1227 The Reverse-A-Clean (RAC) 1227 RAC X Wide RAC SwitchTip produces a 24 inch fan and has a 0.027 inch orifice. Reverse the SwitchTip to easily clear clogs. RAC X - Wide RAC

The Wide RAC covers double the area in the same time - increased flow rate ensures the proper mil build
Wide RAC tips are made for high production, new construction applications which may require larger airless sprayers

Superior Tip Design

Locking tab ensures tip stays securely in guard
“Snaps” tip in spray or reverse position
OneSeal tip installs with no tools
Solvent seal available when using extremely hot solvents

Easy to Identify Tip Size

Large raised tip size numbers are always legible - even when covered with paint

$71.50

THERM-O-FLOW SUPPLY UNIT, 68:1HCM, D200-200H, 480V, A

GG WMC82G2

THERM-O-FLOW SUPPLY UNIT, 68:1HCM, D200-200H, 480V, A

68:1 TOFw Check-Mate MaxLife, Heated, 55 Gal (200L) D200, 16 Gal (60L) Platen, Aluminum Platen, EPDM, 480V, ADM Designed with more heat zones, the Therm-O-Flow Bulk Warm Melt Supply Pumps deliver superior temperature control and application flexibility. Bulk unloader for warm applied materials and temperature conditioning applications. Designed specifically for sealants or adhesives applications that require a warm applied material for process controls up 158°F (70°C). With an heated pump and platen, you can heat up 3 heated hoses and 3 end of hose devices. Primary unit with ADM can be configured as a tandem system. Add one zone expansion kit to add 4 heated hoses and 4 end of hose devices or 8 heated accessories per TOFw pump Add a second heat zone expansion kit for up to 14 heated hoses and 14 heated end of hose devices on a tandem system for a total of 32 heated zones. Featuring the Graco Advanced Display Module ꟷ an easy-to-use HMI with graphic-based control screens. Complete integration possibilities through Ethernet/IP, PROFINET, PROFIBUS and DeviceNet or simple integration through discrete I/O.

$44,160.00

IQ TIP SEAL VALVE, 25, 1.7/T, 200, ADJ/RM, AMB

GG V25GT200DA

IQ TIP SEAL VALVE, 25, 1.7/T, 200, ADJ/RM, AMB

Graco V25GT200DA iQ Dispense Valve, Tip-Seal, Ambient, 0.067in (1.7mm) Tip, 7.87in (200mm) Nozzle, Remote Mount Solenoid

The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.

Maximize dispense time while minimizing maintenance costs and effort
Delivers precise, consistent dispensing with clean starts and stops
Ideal for low to high viscosity materials
Easy repeatable mounting for robotic and automated applications.
200mm nozzle is compatible with 200mm focal length vision systems

Air Inlet Size (in): 1/8
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT

Call for pricing

XHD RAC TIP, SPRAY, CYLINDER, 121

GG XHD121

XHD RAC TIP, SPRAY, CYLINDER, 121

Graco XHD121 XHD RAC SwitchTip, .121

With its Reverse-A-Clean (RAC) Tip, it’s easy to clear clogs. The Switch Tip design lets you change tip sizes in seconds – without removing the tip guard and housing.

Application: High-Pressure Airless Spray Tip for XTR and XHF Guns. Designed for spraying high-solids coatings at high pressures.

Saves time – no screwdriver required, change tip sizes in seconds
For heavy-duty applications up to 7250 psi (500 bar)
Recommended for use with Xtreme Sprayers and XTR Guns

Model: XHD RAC
Series: SwitchTip

Compatible Material: Solvent borne Paints, Water-Based Paint
For Use With: Xtreme Sprayers, XTR Airless Spray Guns
Maximum Fan Width (cm): 10.2
Maximum Fan Width (in): 4
Maximum Fan Width (mm): 102
Maximum Flow Rate (GPM): 0.47
Maximum Flow Rate (L/min): 1.78
Maximum Working Pressure (bar): 500
Maximum Working Pressure (kPa): 50000
Maximum Working Pressure (psi): 7250
Minimum Fan Width (in): 2
Minimum Fan Width (mm): 51
Orifice Diameter (in): 0.021

$116.50

QUANTM PUMP, QTD-ALFC1BNBNBN--A100

GG TE80-0012

QUANTM PUMP, QTD-ALFC1BNBNBN--A100

QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, BN Seat, BN Ball, BN Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design

Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous

Materials of Construction

Aluminum fluid section with NPT end port
Internal components include Buna-N seat, Buna-N ball, Buna-N diaphragm and Buna-N manifold o-ring

$4,500.00

QUANTM PUMP, QTD-ALFC1SSSDPSPTA100

GG TE80-0020

QUANTM PUMP, QTD-ALFC1SSSDPSPTA100

QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, SD Ball, PS Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons. Revolutionary Design

Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous

Materials of Construction

Aluminum fluid section with NPT end port
Internal components include 316 stainless steel seat, 440C stainless steel ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

$5,560.00

QUANTM PUMP, QTD-SSFC1SPSPSPPTS100

GG TE80-0024

QUANTM PUMP, QTD-SSFC1SPSPSPPTS100

QUANTM i80, 1.5"NPT, Stainless Steel Electric Diaphragm Pump, 200-240 V, AL Center, SP Seat, SP Ball, SP Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. The stainless-steel fluid section is designed to provide a high level of abrasion and corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this electric pump is an energy-saving workhorse that also delivers lower lifetime costs than less efficient pump technologies and is ideal for applications involving materials that are highly abrasive, paints, solvents or heated materials. This additional resilience means less downtime, which in turn provides a new opportunity to improve your bottom line. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Revolutionary Design

Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous

Materials of Construction

Stainless steel fluid section with NPT end port
Internal components include Santoprene seat, Santoprene ball, Santoprene diaphragm and PTFE manifold o-ring

$7,830.00

QUANTM PUMP, QTD-PPFC1PPPTPOPTP200

GG TE80-0025

QUANTM PUMP, QTD-PPFC1PPPTPOPTP200

QUANTM i80, 1.5"Flange, Polypropylene Electric Diaphragm Pump, 200-240 V, AL Center, PP Seat, PT Ball, PO Diaphragm QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump. Designed with a chemical-resistant polypropylene fluid section that provides high corrosion resistance, this groundbreaking electric pump is built to efficiently handle fluid transfer applications involving most chemicals and detergents, sump evacuation applications, as well as applications involving high and low pH materials. With up to 8x more continuous torque at low speeds than conventional motors, this powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Revolutionary Design

Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O

Efficient Electric Motor

Powder-coated aluminum electric drive
240 VAC 3Ph motor with 15 ft cord and NEMA L15-20 plug
Non-hazardous

Materials of Construction

Polypropylene fluid section with end flange
Internal components include polypropylene seat, PTFE ball, PTFE Overmold diaphragm and PTFE manifold o-ring

$7,670.00

QUANTM I80, 1.5 Inch Flange, Poly Electric Diaphragm Pump, 200-240 Volt, AL Center, PP Seat, BN Ball and Diaphragm

GG TE80-0051

Quantm I80, 1.5 Inch Flange, Poly Electric Diaphragm Pump, 200-240 Volt, AL Center, PP Seat, BN Ball and Diaphragm

$6,310.00

QUANTM PUMP, QTD-SSFC3SSPTPSPTS100

GG TE80-0120

QUANTM PUMP, QTD-SSFC3SSPTPSPTS100

Graco TE80-0120 QUANTM i80, 1.5"NPT, Stainless Steel Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, PT Ball, PS Diaphragm

QUANTM isn’t just another electric pump: it’s a game-changer. QUANTM features a revolutionary electric motor design that will reduce operational costs and delivers the reliability to keep your production lines running. With multiple fluid path options containing different materials of construction, QUANTM is ideal for most fluid applications as a highly reliable drop-in replacement for your current less-efficient pneumatic pumps or a perfect fit for greenfield construction. The unique self-priming, seal-less design delivers smooth and steady flow and is the only electric diaphragm pump on the market that stalls under pressure to reduce downtime caused by pump failures from clogged lines or closed valves. QUANTM is engineered to be quieter, more efficient and ultra-dependable while delivering energy savings that will go a long way to reinforcing your sustainability reputation. It’s time to rethink your pump strategy and elevate your bottom line by converting to a QUANTM electric pump.

Application: The stainless-steel fluid section is designed to provide a high level of abrasion and corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this electric pump is an energy-saving workhorse that also delivers lower lifetime costs than less efficient pump technologies and is ideal for applications involving materials that are highly abrasive, paints, solvents or heated materials. This additional resilience means less downtime, which in turn provides a new opportunity to improve your bottom line. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework.

Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric MotorPowder-coated aluminum electric drive240 VAC 3φ motor with 15 ft flying leadsCID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval
Materials of ConstructionStainless steel fluid section with NPT end portInternal components include 316 stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

Model: QUANTM
Series: i80

Application: Chemical Processing, Paints and Coatings, Waste Water, General Fluid Transfer
Ball Material: PTFE
Center Section Material: Aluminum
Connection Type: NPT
Cord Length (ft): 15
Cord Length (m): 4.57
Diaphragm Material: PTFE/Santoprene 2-Piece
Fluid Inlet Size (in): 1.5
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 1.5
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid O

$9,150.00

QUANTM PUMP, QTD-ALFC3SSPTPSPTA100

GG TE80-0121

QUANTM PUMP, QTD-ALFC3SSPTPSPTA100

Graco TE80-0121 QUANTM i80, 1.5"NPT, Aluminum Electric Diaphragm Pump, 200-240 V, AL Center, SS Seat, PT Ball, PS Diaphragm

Application: The all-aluminum fluid section is specifically designed to be abrasion-resistant while also providing mild corrosion resistance. With up to 8x more continuous torque at low speeds than conventional motors, this general-purpose electric pump is an energy-saving workhorse that is ideal for sump evacuation applications as well as applications involving the evacuation of petroleum products (new and waste oils) and evacuation of solvents. This powerful new pump delivers a higher level of reliability to minimize downtime while the plug-and-play design makes it easy to drop into any production line without additional investment or infrastructure rework. Not for use with halogenated hydrocarbons.

Revolutionary Design
Replace existing air operated pumps with electric pump technology that stalls under pressure and includes AutoPrime feature
Compact and efficient electric drive removes the gearbox providing a comparable footprint to a pneumatic diaphragm pump
Up to 80% reduction in energy consumption compared to pneumatic pumps, reducing operating costs and providing a quick investment payback
Quiet operation reduces plant noise and improves employee safety and health
Smart pump control provides more accurate flow set points and built-in I/O
Efficient Electric MotorPowder-coated aluminum electric drive240 VAC 3φ motor with 15 ft flying leadsCID1 Groups C,D,T4 Zone 1 AEx d b IIB T4 Gb hazardous location approval
Materials of ConstructionAluminum fluid section with NPT end portInternal components include 316 stainless steel seat, PTFE ball, PTFE/Santoprene 2-piece diaphragm and PTFE manifold o-ring

Model: QUANTM
Series: i80

$5,210.00

PROMIX 3KS PROPORTIONER

GG TK1000

PROMIX 3KS PROPORTIONER

ProMix 3KS Proportioner, G3000 Meter, Single Color ProMix 3KS offers precision mixing of a broad range of three component materials, even tough acid catalysts. It accurately reduces your material to the correct spray viscosity as conditions change with the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material. Purchase with a ProMix 2KS system or upgrade an existing 2KS system Advanced web interface provides consolidated system management and reporting Intrinsically safe fluid panels easily integrate into hazardous areas Simple programming allows fast set up and efficient process control

$26,240.00
