GRACO INC. S10595
GRACO INC. S10595 branded products
P2 GUN
GG GCP2R0
GG GCP2R0
P2 GUN
Graco GCP2R0 Probler P2 Gun Assembly with 00 Mix Chamber Kit
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Application: For high output spray polyurethane foam and polyurea applications.- Easy daily maintenance
- Responsive trigger action
- Easy-to-replace mix chamber insert
- Ergonomic handle and balanced design
- Model: P2
- Series: Standard
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4-18
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Applicator Type: Manual
- Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.11125
- Component B Inlet Size (in): 7/16-18
- Component B Inlet Size (mm): 11.1125
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.074
- Fluid Orifice Size (in): 0.029
- Fluid Orifice Size (mm): 0.74
- For Use With: Reactor Plural Component Proportioner, Reactor Spray Foam and Coatings Equipment
- Gun Activation: Manual
- Gun Included: 1
- Gun Series: Standard
- Gun Type: Air-Purge
- Gun Weight (g): 1770
- Gun Weight (kg): 1.77
- Gun Weight (lb): 3.9
- Gun Weight (oz): 32.4
- Maximum Air Inlet Pressure (bar): 7.6
- Maximum Air Inlet Pressure (kPa): 760
- Maximum Air Inlet Pressure (MPa): 0.76
- Maximum Air Inlet Pressure (psi): 110
- Maximum Air Pressure (bar): 7.6
- Maximum Air Pressure (kPa): 760
- Maximum Air Pressure (MPa): 0.76
- Maximum Air Pressure (psi): 110
- Maximum Flow Rate (kg/min): 18
- Maximum Flow Rate (lb/min): 40
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 241
- Maximum Fluid Working Pressure (MPa): 24.1
- Maximum Fluid Working Pressure (psi): 3500
- Minimum Air Inlet Pressure (bar): 6.2
- Minimum Air Inlet Pressure (kPa): 620
- Minimum Air Inlet Pressure (MPa): 0.62
- Minimum Air Inlet Pressure (psi): 90
- Minimum Flow Rate (kg/min): 1.4
- Minimum Flow Rate
$4,630.00
P2 GUN
GG GCP2R1
GG GCP2R1
P2 GUN
Probler P2 Gun Assembly with 01 Mix Chamber KitThe Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
For high output spray polyurethane foam and polyurea applications. Easy daily maintenance Responsive trigger action Easy-to-replace mix chamber insert Anti-crossover design virtually eliminates possibility of material entering the air piston Ergonomic handle and balanced design
$4,630.00
P2 GUN
GG GCP2R3
GG GCP2R3
P2 GUN
Probler P2 Gun Assembly with 03 Mix Chamber KitThe Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
For high output spray polyurethane foam and polyurea applications. Easy daily maintenance Responsive trigger action Easy-to-replace mix chamber insert Anti-crossover design virtually eliminates possibility of material entering the air piston Ergonomic handle and balanced design
$4,630.00
P2 GUN
GG GCP2RA
GG GCP2RA
P2 GUN
Graco GCP2RA Probler P2 Gun Assembly with AA Mix Chamber Kit
The Probler P2 Gun is lightweight and easy to maneuver - even in difficult spraying positions. Its double piston design provides more than 300 pounds (136 kg) of triggering force - much more than a smaller piston diameter. The Probler P2 reduces maintenance, increases spraying uptime and is easy to use.
Application: For high output spray polyurethane foam and polyurea applications.- Easy daily maintenance
- Responsive trigger action
- Easy-to-replace mix chamber insert
- Ergonomic handle and balanced design
- Model: P2
- Series: Standard
- Air Inlet Size (cm): 0.635
- Air Inlet Size (in): 1/4-18
- Air Inlet Size (mm): 6.35
- Air Inlet Thread Gender: Male
- Air Inlet Thread Type: NPSM
- Compatible Material: Adhesives, Polyurethane, Roof Coating, Polyurea, Polyurethane Coating
- Component A Inlet Size (cm): 1.27
- Component A Inlet Size (in): 1/2-20
- Component A Inlet Size (mm): 12.7
- Component A Inlet Thread Type: UNF
- Component B Inlet Size (cm): 1.11125
- Component B Inlet Size (in): 7/16-18
- Component B Inlet Size (mm): 11.1125
- Component B Inlet Thread Type: UNF
- Component Type: Plural-Component
- Fluid Orifice Size (cm): 0.091
- Fluid Orifice Size (in): 0.036
- Fluid Orifice Size (mm): 0.91
- Gun Activation: Manual
- Gun Series: Standard
- Gun Type: Air-Purge
- Gun Weight (g): 1770
- Gun Weight (kg): 1.77
- Gun Weight (lb): 3.9
- Gun Weight (oz): 32.4
- Maximum Air Inlet Pressure (bar): 7.6
- Maximum Air Inlet Pressure (kPa): 760
- Maximum Air Inlet Pressure (MPa): 0.76
- Maximum Air Inlet Pressure (psi): 110
- Maximum Air Pressure (bar): 7.6
- Maximum Air Pressure (kPa): 760
- Maximum Air Pressure (MPa): 0.76
- Maximum Air Pressure (psi): 110
- Maximum Flow Rate (kg/min): 18
- Maximum Flow Rate (lb/min): 40
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Pressure (bar): 241
- Maximum Fluid Pressure (kPa): 24100
- Maximum Fluid Pressure (MPa): 24.1
- Maximum Fluid Pressure (psi): 3500
- Maximum Fluid Temperature (°C): 93
- Maximum Fluid Temperature (°F): 200
- Maximum Fluid Working Pressure (bar): 221
- Maximum Fluid Working Pressure (MPa): 22.1
- Maximum Fluid Working Pressure (psi): 3200
- Minimum Air Inlet Pressure (bar): 6.2
- Minimum Air Inlet Pressure (kPa): 620
- Minimum Air Inlet Pressure (MPa): 0.62
- Minimum Air Inlet Pressure (psi): 90
- Minimum Flow Rate (kg/min): 1.4
- Minimum Flow Rate (lb/min): 3
- Mix Chamber: AA (0.036)
- Overall Height (cm): 12.1
- Overall Height (in): 4.75
- Overall Height (mm): 121
$4,630.00
PROMIX 2KS PROPORTIONER AUTO SYSTEM
GG AE100N
GG AE100N
PROMIX 2KS PROPORTIONER AUTO SYSTEM
Graco AE100N ProMix 2KS Auto Wall Panel System, EasyKey, G3000 (A, B) Meter, Single Catalyst
Easy to use electronic proportioner for a broad range of Solvent borne, waterborne, and acid catalyzed materials. The ProMix 2KS offers the highest degree of ratio assurance for superior quality on both manual and automatic applications. Efficient tracking and reporting along with effective color changes reduces wasted material.
- Optional flow control is cleanly integrated without incorporating a mixed material line meter. Pressure and flow loops provide fast step changes with superior closed loop control.
- Fluid manifold design reduces material volume and streamlines fluid porting for cleaner flushing
- Intrinsically safe fluid panels easily integrate into hazardous areas
- Advanced web interface provides consolidated system management and reporting
- Model: ProMix
- Series: 2KS
- Air Inlet Size (cm): 0.9525
- Air Inlet Size (in): 3/8
- Air Inlet Size (mm): 9.525
- Air Inlet Thread Gender: Female
- Air Inlet Thread Type: NPT
- Amperage (A): 2
- Applicator Type: Automatic
- Component Type: Two Component
- Fluid Inlet Size (cm): 0.635
- Fluid Inlet Size (in): 1/4
- Fluid Inlet Size (mm): 6.35
- Fluid Inlet Thread Gender: Female
- Fluid Inlet Thread Type: NPT
- Fluid Outlet Size (in): 1/4
- Fluid Outlet Thread Gender: Female
- Fluid Outlet Thread Type: NPT
- Flush Type: Air/Solvent
- Frequency (Hz): 50/60
- Gun Activation: Automatic
- Material Type: Two Component
- Maximum Flow Rate (cc/min): 3790
- Maximum Flow Rate (GPM): 1
- Maximum Flow Rate (L/min): 3.79
- Maximum Fluid Viscosity (cP): 3000
- Maximum Fluid Viscosity (cP): 3000
- Maximum Mix Ratio: 50:1
- Maximum Number of Colors: Up to 3
- Maximum Working Pressure (bar): 275.8
- Maximum Working Pressure (kPa): 27580
- Maximum Working Pressure (MPa): 27.6
- Maximum Working Pressure (psi): 4000
- Measuring Type: Meter
- Meter Type: G3000
- Minimum Flow Rate (cc/min): 75
- Minimum Flow Rate (GPM): 0.02
- Minimum Flow Rate (L/min): 0.075
- Minimum Fluid Viscosity (cP): 20
- Minimum Mix Ratio: 0.1:1
- Mix Accuracy (%): 1
- Number of Catalysts: 1
- Number of Color Valves: No Valves
- Number of Colors: 1
- Number of Resin Colors: Up to 30
- Power Source: Electric
- Proportioner Type: Automatic Wall
- Proportioning Type: Automatic Electronic
$73,990.00
Tip, Pre- Orifice, Es
GG AEF712
GG AEF712
TIP,PRE-ORIFICE,ES
Graco AEF712 AEF Fine Finish Pre-Orifice Spray Tips, 0.012 inch (0.305 mm) Orifice Size, 14-16 inches (350-400 mm) Fan Width
$232.50
Tip, ES, AA
GG AEM411
GG AEM411
TIP,MANUAL,ES
Graco AEM411 AEM Fine Finish Spray Tips, 0.011 inch (0.279 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
$206.50

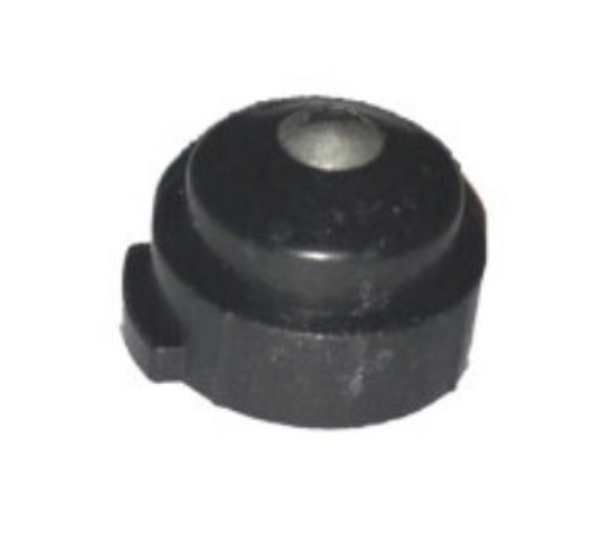

Tip, AA
GG AEM413
GG AEM413
TIP,MANUAL,ES
Graco AEM413 AEM Fine Finish Spray Tips, 0.013 inch (0.330 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
$206.50
Tip, AA, ES, (015), 8-10in Pattern
GG AEM415
GG AEM415
TIP,MANUAL,ES
Graco AEM415 AEM Fine Finish Spray Tips, 0.015 inch (0.381 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
$206.00

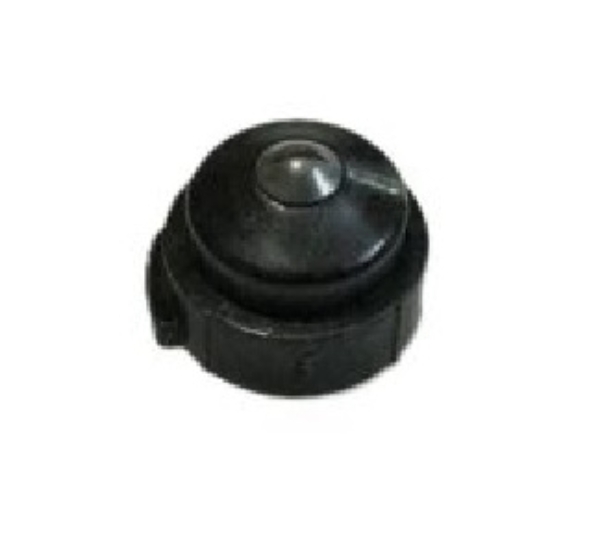

AA Tip, 011, 10 in pattern
GG AEM511
GG AEM511
TIP,MANUAL,ES
Graco AEM511 AEM Fine Finish Spray Tips, 0.011 inch (0.279 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
$206.50
AA Tip, 013, 10in Pattern
GG AEM513
GG AEM513
TIP,MANUAL,ES
Graco AEM513 AEM Fine Finish Spray Tips, 0.013 inch (0.330 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
$206.50
AA Tip .015, 10 in pattern
GG AEM515
GG AEM515
TIP,MANUAL,ES
Graco AEM515 AEM Fine Finish Spray Tips, 0.015 inch (0.381 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
$206.50
AA Tip .017, 10 in pattern
GG AEM517
GG AEM517
TIP,MANUAL,ES
Graco AEM517 AEM Fine Finish Spray Tips, 0.017 inch (0.432 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
- Coating Type: Abrasive, Metallic, High Conductivity, High Wear
- Compatible Paint Type: Automotive, Base Coat, Clear Coat, Enamels, High Solids, Metallics, Plural Component Materials, Primers, Solventborne, Urethanes
$206.50
EME Fine Finish Spray Tips, .021, 10 in pattern
GG AEM521
GG AEM521
EME Fine Finish Spray Tips, .021, 10 in pattern
$209.00
TIP, MANUAL, ES
GG AEM611
GG AEM611
TIP, MANUAL, ES
Graco AEM611 AEM Fine Finish Spray Tips, 0.011 inch (0.279 mm) Orifice Size, 12-14 inches (300-350 mm) Fan Width
$206.00
Tip, Manual, ES
GG AEM613
GG AEM613
TIP,MANUAL,ES
Graco AEM613 AEM Fine Finish Spray Tips, 0.013 inch (0.330 mm) Orifice Size, 12-14 inches (300-350 mm) Fan Width
- Coating Type: Standard
- Compatible Paint Type: Epoxy, High Solids, Lacquers, Plural Component Materials, Polyurethanes, Solventborne, Urethanes, UV Curing, Varnishes,
$206.00

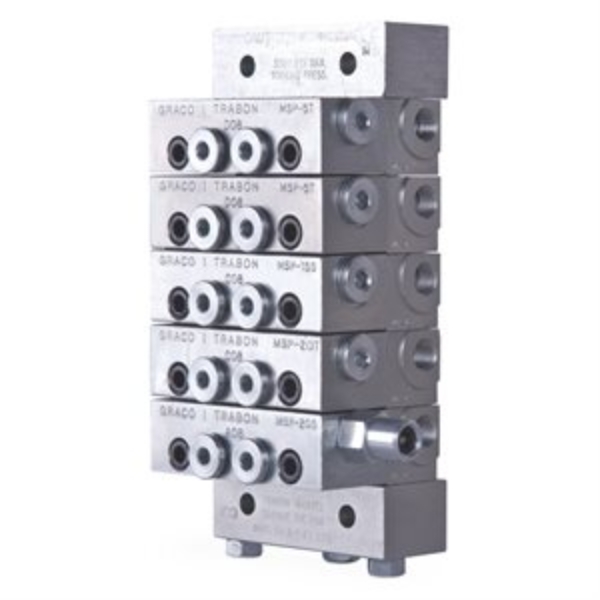

MSP VALVE, ASSY IND MSP 30S
GG 562731
GG 562731
MSP VALVE, ASSY IND MSP 30S
Graco 562731 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-30S - 0.060 in³ (0.98 cm³)
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-100-755
- Model: Trabon
- Series: MSP
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Cycle Indicator: Cycle Indicator
- Discharge Per Piston Stroke (in³): 0.060
- Divider Valve Series: MSP
- Material: Carbon Steel
- Maximum Cycle Rate (cycles/min): 60
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 176
- Maximum Operating Temperature (°F): 350
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Minimum Working Pressure (bar): 14
- Minimum Working Pressure (psi): 200
- Number of Outlets: 1
$137.00

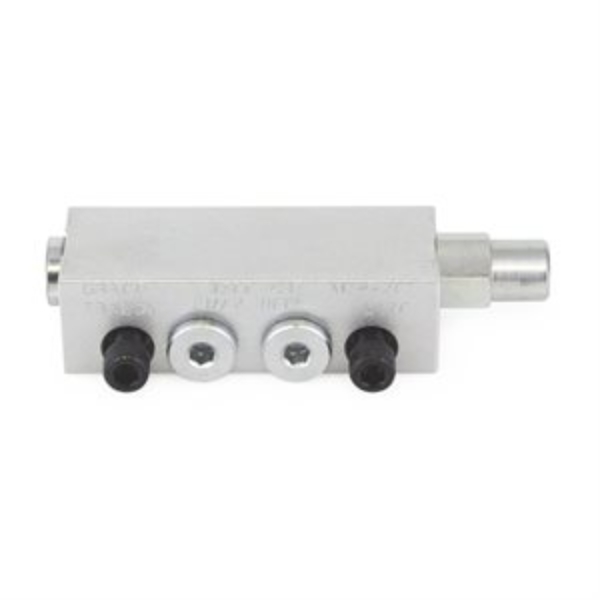

MSP VALVE, ASSY IND MSP 20S
GG 562729
GG 562729
MSP VALVE, ASSY IND MSP 20S
Graco 562729 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-20S - 0.040 in³ (0.66 cm³)
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-100-735
- Model: Trabon
- Series: MSP
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Cycle Indicator: Cycle Indicator
- Discharge Per Piston Stroke (in³): 0.040
- Divider Valve Series: MSP
- Material: Carbon Steel
- Maximum Cycle Rate (cycles/min): 60
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 176
- Maximum Operating Temperature (°F): 350
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Minimum Working Pressure (bar): 14
- Minimum Working Pressure (psi): 200
- Number of Outlets: 1
$137.00

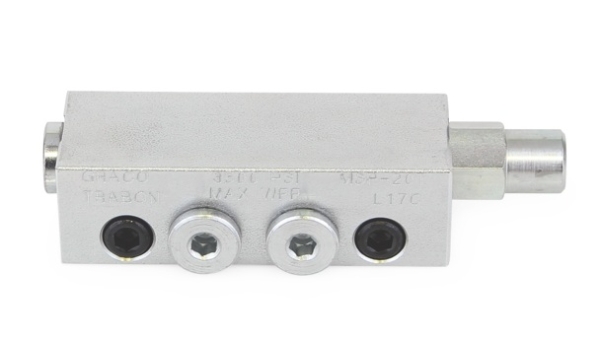

MSP VALVE, ASSY IND MSP 20T
GG 562739
GG 562739
MSP VALVE, ASSY IND MSP 20T
Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-20T - 0.020 in³ (0.33 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-935
$137.00
MSP VALVE, ASSY MSP 25S
GG 562715
GG 562715
MSP VALVE, ASSY MSP 25S
Trabon® MSP Modular Divider Valve - MSP-25S - 0.050 in³ (0.82 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-055
$58.00

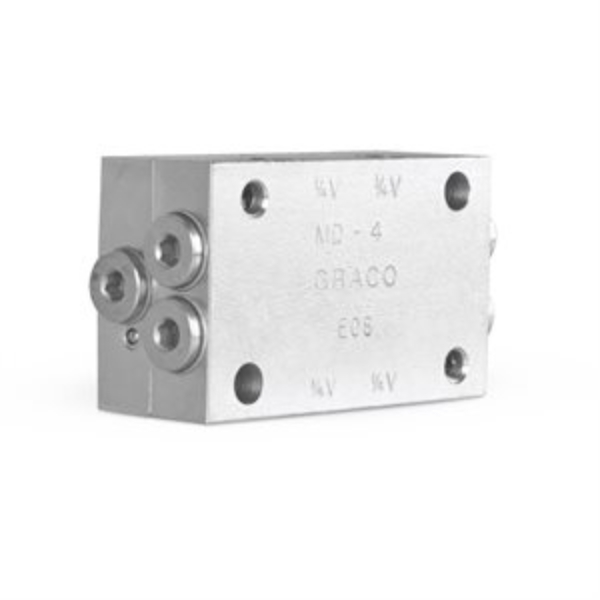

MD VALVE, FEEDER, 4
GG 562658
GG 562658
MD VALVE, FEEDER, 4
Trabon® MD Mono Block Divider Valve - MD-4The Trabon MD Series is the most compact series progressive solution making it a perfect fit for tight spaced applications
4 outlets Easy to install on new or existing equipment Use our cycle indicator pin models to provide positive assurance of a successful lube event Fluoroelastomer seals for high temperature applications or synthetic lubricants Lubriquip part number 103-000-151
$361.00

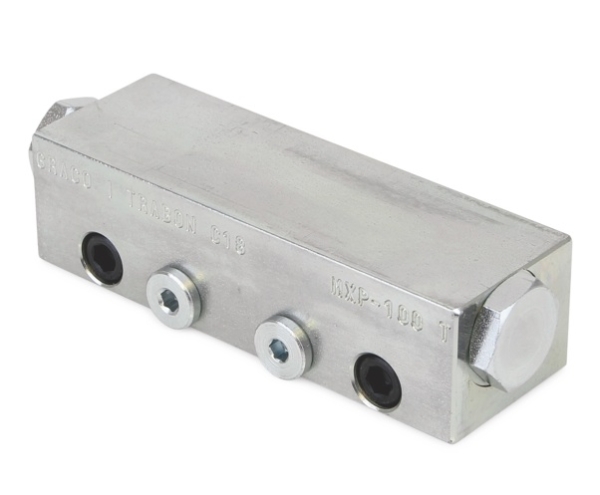

MXP VALVE, TWIN 100T
GG 562816
GG 562816
MXP VALVE, TWIN 100T
Trabon® MXP Modular Divider Valve - MXP-100T - 0.100 in³ (1.64 cm³)The Trabon MXP Series offers the largest output available in a series progressive system. Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
Ideal for heavy-duty and large bearing applications with wide temperature variations and high volume requirements. Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Robust design is virtually indestructible and built to perform in extreme environments Lubriquip part number 106-300-040
$237.00

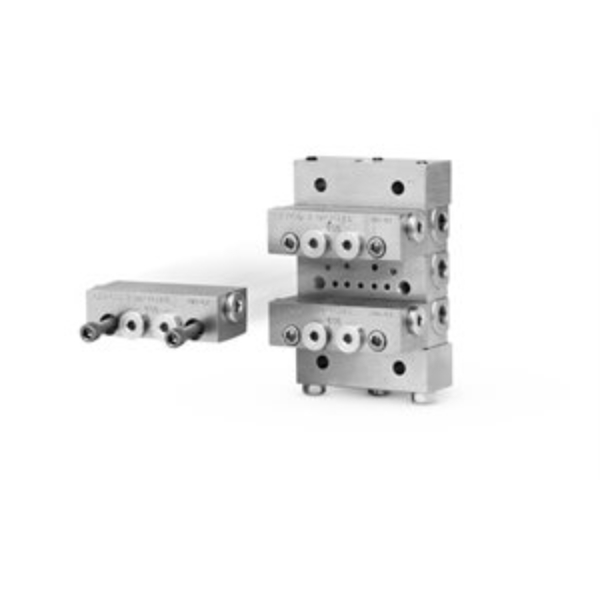

MHH VALVE, ASSY 12T
GG 562687
GG 562687
MHH VALVE, ASSY 12T
Graco 562687 Manzel® MHH Modular Divider Valve .012 Twin
Same capable design as the Trabon MSP Series, with even tighter and more exacting tolerances.
Application: The Manzel MHH Series delivers highly accurate lube delivery for demanding high pressure grease and oil applications.- Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime
- Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-000-615
- Model: Manzel
- Series: MHH
- Application: In-Plant Machinery, Compressor Equipment
- Compatible Material: Oil, Grease
- Cycle Indicator: Cycle Pin
- Discharge Per Piston Stroke (in³): 0.012
- Divider Valve Series: MHH
- Inlet Size (in): 1/4 - 18, 7/16 - 20
- Inlet Thread Gender: Female
- Inlet Thread Type: NPS, SAE
- Material: Steel
- Maximum NLGI Grade: #2
- Maximum Working Pressure (bar): 517
- Maximum Working Pressure (kPa): 51700
- Maximum Working Pressure (psi): 7500
- Number of Outlets: 2
- Outlet Size (in): 1/8 - 27, 7/16 - 20
- Outlet Thread Gender: Female
- Outlet Thread Type: NPS, SAE
$108.50
MSP VALVE, ASSY IND MSP 40T
GG 562743
GG 562743
MSP VALVE, ASSY IND MSP 40T
Graco 562743 Trabon® MSP Modular Divider Valve with Right Cycle Pin - MSP-40T - 0.040 in³ (0.66 cm³)
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-100-975
- Model: Trabon
- Series: MSP
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Cycle Indicator: Cycle Indicator
- Discharge Per Piston Stroke (in³): 0.040
- Divider Valve Series: MSP
- Material: Carbon Steel
- Maximum Cycle Rate (cycles/min): 60
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 176
- Maximum Operating Temperature (°F): 350
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Minimum Working Pressure (bar): 14
- Minimum Working Pressure (psi): 200
- Number of Outlets: 2
$137.00

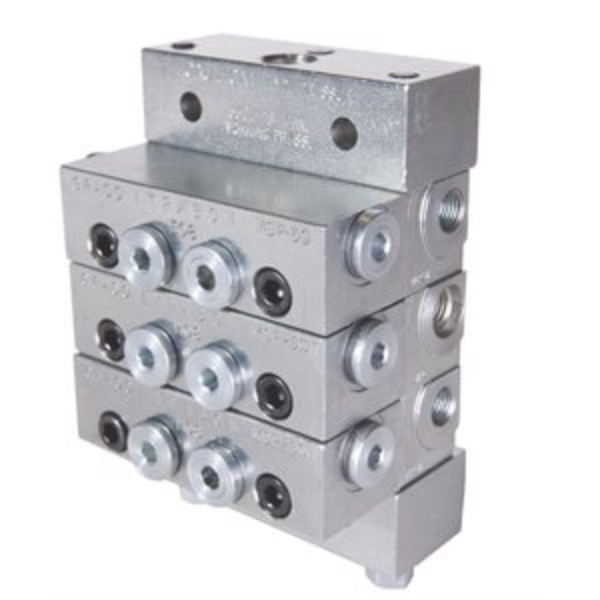

MSP VALVE, ASSY MSP 15T
GG 562722
GG 562722
MSP VALVE, ASSY MSP 15T
Graco 562722 Trabon® MSP Modular Divider Valve - MSP-15T - 0.015 in³ (0.26 cm³)
The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
- Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime
- Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event.
- Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
- Lubriquip part number 106-100-195
- Model: Trabon
- Series: MSP
- Application: On-Road Vehicles, Off-Road Equipment, In-Plant Machinery
- Compatible Material: Oil, Grease
- Cycle Indicator: None
- Discharge Per Piston Stroke (in³): 0.015
- Divider Valve Series: MSP
- Material: Carbon Steel
- Maximum Cycle Rate (cycles/min): 200
- Maximum NLGI Grade: #2
- Maximum Operating Temperature (°C): 176
- Maximum Operating Temperature (°F): 350
- Maximum Working Pressure (bar): 241
- Maximum Working Pressure (kPa): 24100
- Maximum Working Pressure (psi): 3500
- Minimum Working Pressure (bar): 14
- Minimum Working Pressure (psi): 200
- Number of Outlets: 2
$58.00

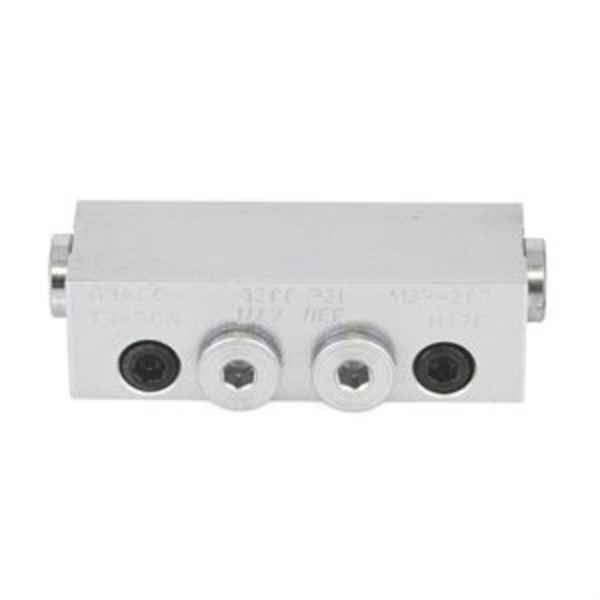

MSP VALVE, ASSY MSP 05T
GG 562720
GG 562720
MSP VALVE, ASSY MSP 05T
Trabon® MSP Modular Divider Valve - MSP-05T - 0.005 in³ (0.08 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-175
$58.00
MXP VALVE, SINGLE 50S
GG 562820
GG 562820
MXP VALVE, SINGLE 50S
Trabon® MXP Modular Divider Valve - MXP-50S - 0.100 in³ (1.64 cm³)The Trabon MXP Series offers the largest output available in a series progressive system. Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
Ideal for heavy-duty and large bearing applications with wide temperature variations and high volume requirements. Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Robust design is virtually indestructible and built to perform in extreme environments Lubriquip part number 106-300-080
$237.00

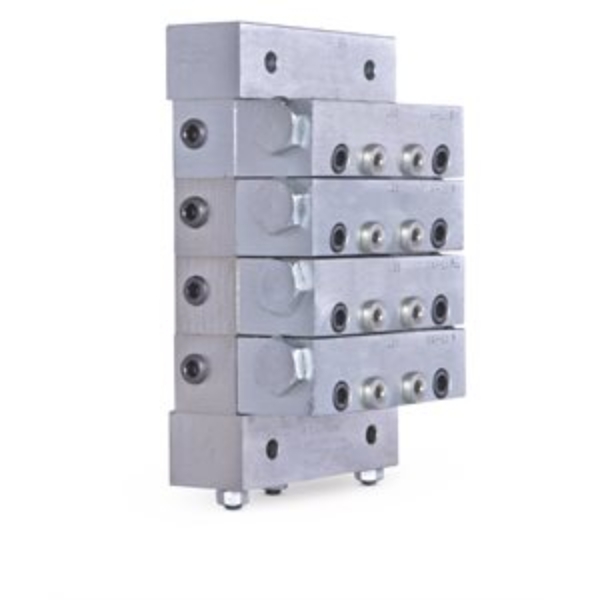

MXP VALVE, SINGLE 100S
GG 562822
GG 562822
MXP VALVE, SINGLE 100S
Trabon® MXP Modular Divider Valve - MXP-100S - 0.200 in³ (3.28 cm³)The Trabon MXP Series offers the largest output available in a series progressive system. Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
Ideal for heavy-duty and large bearing applications with wide temperature variations and high volume requirements. Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Robust design is virtually indestructible and built to perform in extreme environments Lubriquip part number 106-300-100
$237.00

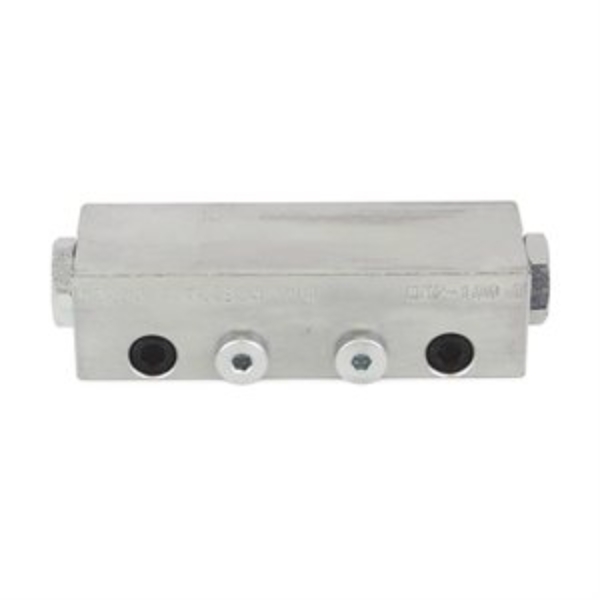

MXP VALVE, SINGLE 150S
GG 562824
GG 562824
MXP VALVE, SINGLE 150S
Trabon® MXP Modular Divider Valve - MXP-150S - 0.300 in³ (4.92 cm³)The Trabon MXP Series offers the largest output available in a series progressive system. Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
Ideal for heavy-duty and large bearing applications with wide temperature variations and high volume requirements. Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Robust design is virtually indestructible and built to perform in extreme environments Lubriquip part number 106-300-120
$237.00
MXP VALVE, SINGLE 150S W/IND
GG 562834
GG 562834
MXP VALVE, SINGLE 150S W/IND
Trabon® MXP Modular Divider Valve with Indicator - MXP-150S - 0.300 in³ (4.92 cm³)The Trabon MXP Series offers the largest output available in a series progressive system. Can be easily accessorized with magnetic and electronic proximity switch cycle indicators to provide positive assurance of a successful lube event.
Ideal for heavy-duty and large bearing applications with wide temperature variations and high volume requirements. Quick change valve sections can be removed from the base assembly without disturbing any lube lines–minimizing labor cost and maximizing your machine uptime Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Robust design is virtually indestructible and built to perform in extreme environments Lubriquip part number 106-300-220
$354.00

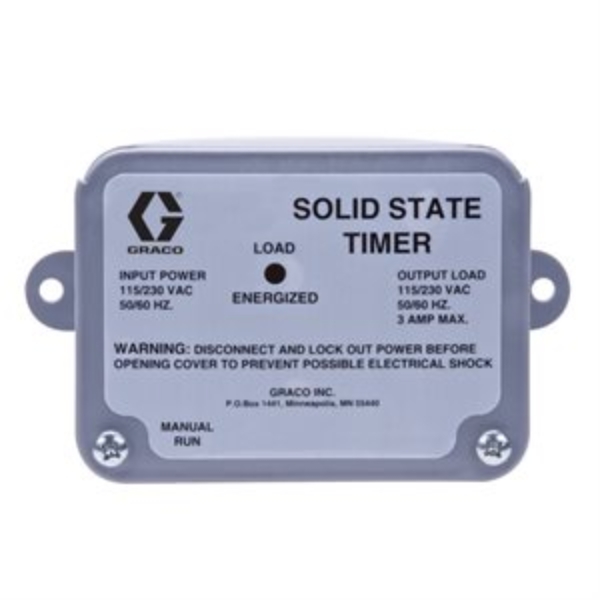

TIMER, SOLID STATE
GG 562872
GG 562872
TIMER, SOLID STATE
LubriSystem Solid State Timer - 115 VAC For use with LubriSystem® Pneumatic Pumps. Solid State Timer, 115 VAC Lubriquip part number 163-400-000
$652.00

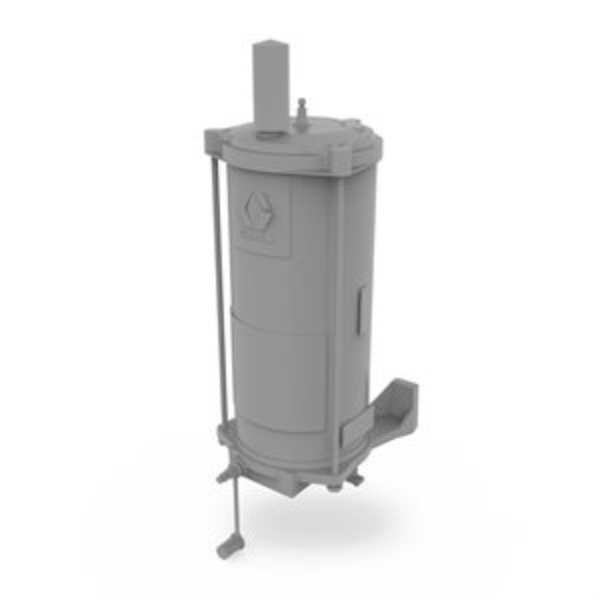

RESERVOIR, 12LB PLSTC GRS GPS
GG 562884
GG 562884
RESERVOIR, 12LB PLSTC GRS GPS
12 lb. (5.42 kg) Plastic Cylindrical Grease Reservoir For use with Modu-Flo and E-Series Pumps. 12 lb (5.42 kg) Plastic Cylindrical Reservoir Lubriquip part number 185-100-000
$884.00
5 Lb Plastic Cylindrical Grease Resevoir
GG 562888
GG 562888
5 Lb Plastic Cylindrical Grease Resevoir
$955.00
5 pt. (2.36 liter) Plastic Cylindrical Oil Reservoir
GG 562891
GG 562891
5 pt. (2.36 liter) Plastic Cylindrical Oil Reservoir
$907.00
RESERVOIR, PLSTC GRS LUBEMASTER 20L
GG 562897
GG 562897
RESERVOIR, PLSTC GRS LUBEMASTER 20L
Graco 562897 20 lb. Plastic Grease Reservoir
Application: For use with LubriSystem and Lube Master Pumps.
- 20 lb (9.06 kg) Reservoir
- Lubriquip part number 185-100-550
- Compatible Material: Grease
- Material: Plastic
$726.00

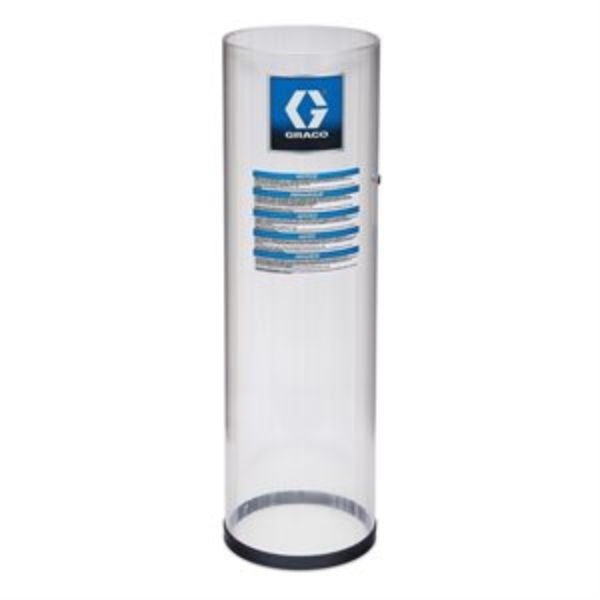

TUBE, RESV REPLACE 20LB PLSTC
GG 562903
GG 562903
TUBE, RESV REPLACE 20LB PLSTC
Graco 562903 Modu-Flo and E-Pump Spare Parts and Accessories - 20 pt./lb. Plastic Replacement Reservoir Assembly, 6 in OD x 20 in long
- Reservoir Repair Kits - Plastic tube with u-cup seal for part numbers 562893 and 562897
- Lubriquip part number 185-100-740
- Compatible Material: Oil, Grease
- Includes: Reservoir
- Material: Plastic
$505.00
MODEL 25 LUBRICATOR
GG 562920
GG 562920

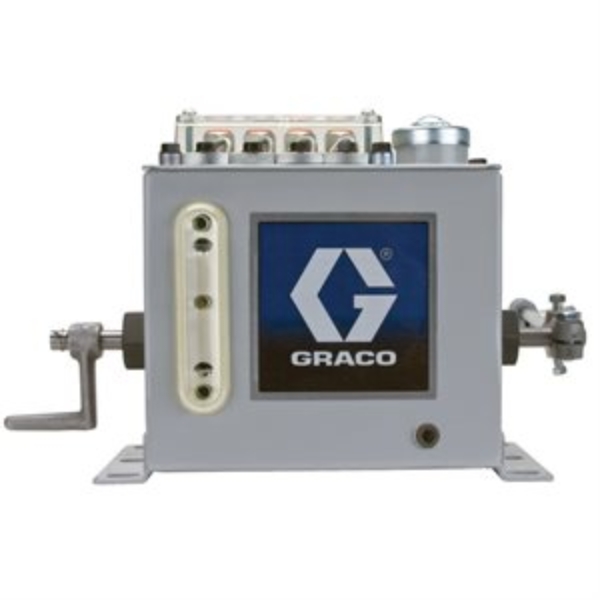

MODEL 25 LUBRICATOR
Graco 562920 Manzel® Model 25 Lubricator
Manzel Model 25 Force Feed Lubricators are economical, general purpose units of double plunger design for precise metering of lubricants (either mineral oil base or synthetics). All working parts are totally enclosed—away from dust, water and impurities—and self-lubricated at all times by the lubricant in the reservoir.
Application: They provide lubrication to cylinder walls, bearings and other moving parts of equipment such as sugar mills, steam engines, presses and general machinery.- General-Purpose Lubrication: automatic, precision metering for all types of machinery.
- Pressures: Up to 1000 psi (69 bar)
- Type Pumping Unit: Clear-Vue. Sight Feed Chamber functions at atmospheric pressure. Shows amount of lubricant being pumped.
- Unitized Construction: Contains complete feed regulating mechanism. Equipped with inlet strainer.
- Displacement, Output: 1/4 to 12 drops per stroke with 5/16 in plunger, 1/6 to 6 drops per stroke with 3/16 in plunger.
- Reservoirs: Single Compartment, sheet metal construction.
- Feed Regulator: External screw-type precisely adjustable while idle or in operation.
- Lubriquip part number 225-001-970
- Model: Manzel
- Series: Model 25
- Compatible Material: Oil
$6,100.00
FILTER, CANISTER 10
GG 563093
GG 563093
FILTER, CANISTER 10
Graco 563093 Replacement Element for Spin-On Oil Filters - 10 Micron
Application: For use with Spin-On Oil Filters.
- 10 micron Replacement Filter Element for assemblies 563092, 563095, 564343
- Lubriquip part number 473-000-262
- For Use With: Meter-Flo Pump Packages, Spin-On Oil Filters
$52.50
MSP VALVE, ASSY MSP 20S
GG 562714
GG 562714
MSP VALVE, ASSY MSP 20S
Trabon® MSP Modular Divider Valve - MSP-20S - 0.040 in³ (0.66 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-045
$58.00
FILTER, INLET RESTRICTOR, NPTF
GG 563074
GG 563074
FILTER, INLET RESTRICTOR, NPTF
Graco 563074 MSP Standard Zero Leak Inlet 90 micron Oil Filter/Restrictor, NPT
Application: For use with Inlet and In-Line Oil Filters.
- MSP Standard Zero Leak Inlet 90 micron Oil Filter/Restrictor, NPT
- Lubriquip part number 463-410-204
$73.75
FILTER, 10 MICRON
GG 563095
GG 563095
FILTER, 10 MICRON
Graco 563095 Spin-On Oil Filter Assembly with External 150 psi Relief Valve - 200 psi, 3/4 in. NPT, 10 Micron
- 10 micron Spin-On Filter Assembly, NPT, External 150 psi (10.3 bar) Relief
- Lubriquip part number 473-000-271
- Maximum Working Pressure (bar): 14
- Maximum Working Pressure (kPa): 1400
- Maximum Working Pressure (MPa): 140
- Maximum Working Pressure (psi): 200
- Port Size (cm): 1.905
- Port Size (in): 3/4
- Port Size (mm): 19.05
$149.00

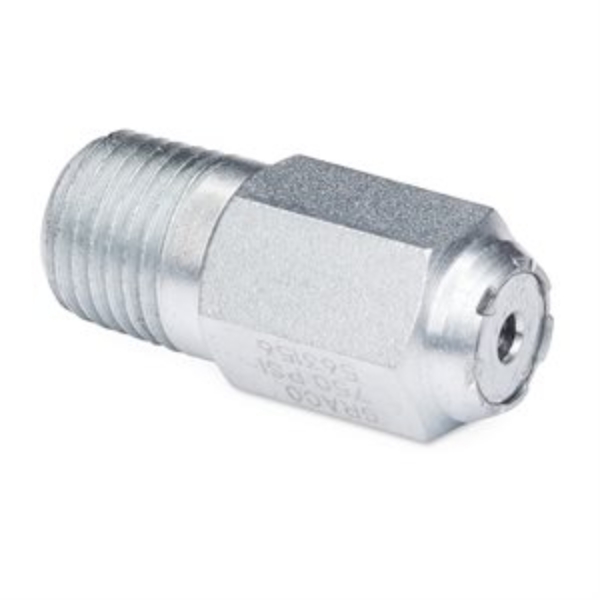

VALVE, RELIEF, 1/4 NPT, 750 PSI
GG 563156
GG 563156
VALVE, RELIEF, 1/4 NPT, 750 PSI
Graco 563156 Automatic Relief Indicator for MX Divider Valves, 750 psi (52 bar)
Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.
- No time or effort required for reset after blockage is cleared
- Easy information on blocked lines, high system pressure or blocked bearings
- Works with MSP, MX, MXP, MJ and MHH divider valves
- Model: Trabon
- Application: In-Plant Machinery, Off-Road Equipment, Compressor Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.25
- Indicator Type: Automatic Relief Indicators
- Maximum Working Pressure (bar): 51
- Maximum Working Pressure (kPa): 5100
- Maximum Working Pressure (MPa): 5
- Maximum Working Pressure (psi): 750
- Overall Length (cm): 3
- Overall Length (in): 1.37
- Overall Length (mm): 35
$30.20
MSP VALVE, ASSY MSP 10S
GG 562712
GG 562712
MSP VALVE, ASSY MSP 10S
Trabon® MSP Modular Divider Valve - MSP-10S - 0.020 in³ (0.33 cm³)The Trabon MSP Series sets the industry standard for quality, reliability, and ease of use features. It was the original modular-style series progressive divider valve and is still the best!
Quick change valve sections can be removed from the base assembly without disturbing any lube lines - minimizing labor cost and maximizing your machine uptime Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event. Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting Built-in outlet check valves ensure accurate lube delivery every time Lubriquip part number 106-100-025
$58.00

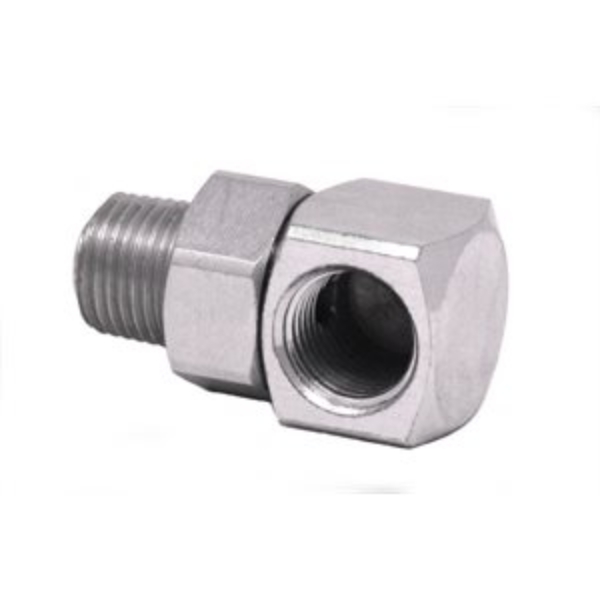

SWIVEL, 90 1/8 PORT NITRILE
GG 563148
GG 563148
SWIVEL, 90 1/8 PORT NITRILE
Compact 90º Angle Swivel - 1/8 inch, NitrileThe Trabon Straight and Angle Swivels are available in standard ball bearing or compact types. Primarily designed for medium to high pressure service in centralized oil and grease systems, these swivels provide a simple and inexpensive means of making line connections between either stationary, or oscillating surfaces.
90º Swivel Adapter - 1/8 inch (3.2 mm) NPT x 1/8 inch (3.2 mm) NPT Female Lubriquip part number 501-257-000 Trabon part number 1257
$37.50

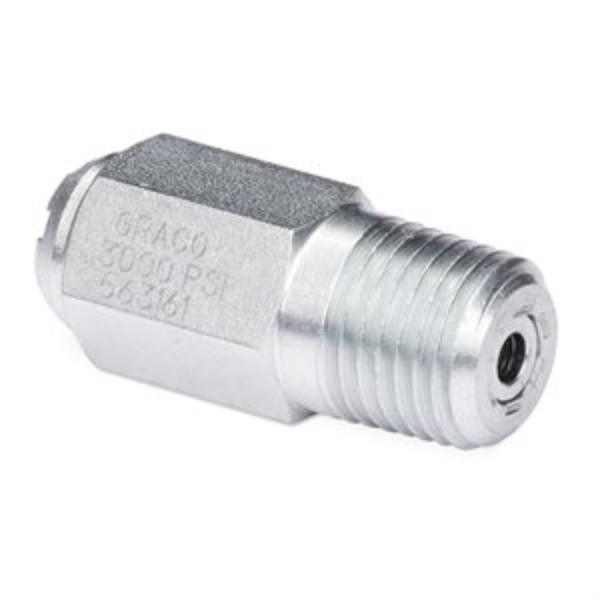

VALVE, RELIEF, 1/4 NPT, 3000 PSI
GG 563161
GG 563161
VALVE, RELIEF, 1/4 NPT, 3000 PSI
Graco 563161 Automatic Relief Indicator for MX Divider Valves, 3000 psi (207 bar)
Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.
- No time or effort required for reset after blockage is cleared
- Easy information on blocked lines, high system pressure or blocked bearings
- Works with MSP, MX, MXP, MJ and MHH divider valves
- Model: Trabon
- Application: In-Plant Machinery, Off-Road Equipment, Compressor Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.25
- Indicator Type: Automatic Relief Indicators
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 21
- Maximum Working Pressure (psi): 3000
- Overall Length (cm): 3
- Overall Length (in): 1.37
- Overall Length (mm): 35
$30.20

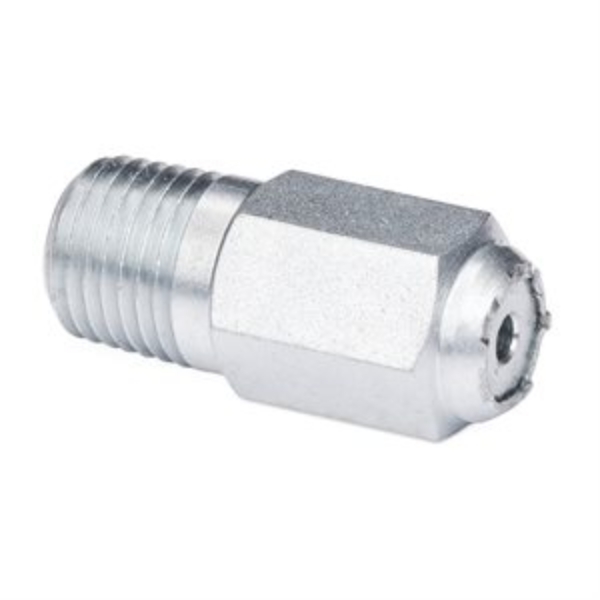

VALVE, RELIEF, 1/4 NPT, 2500 PSI
GG 563160
GG 563160
VALVE, RELIEF, 1/4 NPT, 2500 PSI
Graco 563160 Automatic Relief Indicator for MX Divider Valves, 2500 psi (172 bar)
Keep your machine running while lubrication gets to critical points. These performance indicators pinpoint lube line blockages but allow the lube system to continue to supply lubrication to points that are not blocked.
- No time or effort required for reset after blockage is cleared
- Easy information on blocked lines, high system pressure or blocked bearings
- Works with MSP, MX, MXP, MJ and MHH divider valves
- Model: Trabon
- Application: In-Plant Machinery, Off-Road Equipment, Compressor Equipment
- Compatible Material: Oil, Grease
- Connection Size (in): 0.25
- Indicator Type: Automatic Relief Indicators
- Maximum Working Pressure (bar): 172
- Maximum Working Pressure (kPa): 17200
- Maximum Working Pressure (MPa): 17
- Maximum Working Pressure (psi): 2500
- Overall Length (cm): 3
- Overall Length (in): 1.37
- Overall Length (mm): 35
$30.20

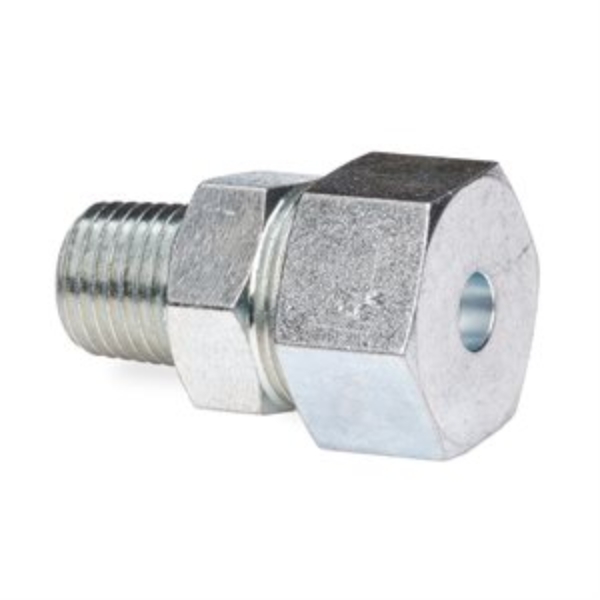

FITTING, BLOWOUT 1/4 NPTF 2350 PSI
GG 563184
GG 563184
FITTING, BLOWOUT 1/4 NPTF 2350 PSI
Graco 563184 Rupture-to-Atmosphere Indicators for MX Divider Valves - 2350 psi, 1/4 inch-18 inch NPT(f) - Grease
Application: Rupture-to-Atmosphere Indicators for use with MX Divider Valves.
- Used in conjunction with system pressure switch–can warn of a fault while allowing lube system to continue to deliver to critical bearings.
- Requires replacement of the rupture disc to restart the lube system.
- Easy information on blocked lines, high system pressure or blocked bearings.
- Trabon part number 9206-16
- Compatible Material: Grease
- Connection Size (in): 0.25
- Indicator Type: Rupture-to-Atmosphere Indicator
- Maximum Working Pressure (bar): 162
- Maximum Working Pressure (kPa): 16200
- Maximum Working Pressure (MPa): 16.2
- Maximum Working Pressure (psi): 2350
$38.50
BLOCK, SPINDL-GARD, .0030
GG 563131
GG 563131
BLOCK, SPINDL-GARD, .0030
High Speed Spindl-Gard (HSSG) Block - 0.0030 cu in displacement For use with Air Oil High Speed Spindl-Gard® Systems.0.0030 in3 displacement
Lubriquip part number 484-095-229
$517.00
FILTER, ASSY LUBE
GG 563091
GG 563091
FILTER, ASSY LUBE
In-Line Oil Filter - MSP Standard Inlet Filter, 3500 psi, 1/4-18 NPTF, 10 Micron; Lubriquip part number 473-000-234 For use with Trabon MSP divider valves. Installs into inlet port.MSP Standard Inlet 10 micron Oil Filter, NPT
Uses replacement filter element p/n 557134.
$383.00
MHH VALVE, CHECK, 1/8 NPT, REV, 5000
GG 563200
GG 563200
MHH VALVE, CHECK, 1/8 NPT, REV, 5000
Graco 563200 Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/8 in NPSF (F) x 1/8 in NPTF (M), Steel, 5,000 psi
- Lubriquip part number 509-355-030
- Trabon part number 9355-35
- Application: Compressor Equipment
- Ball Material: Steel
- Body Material: Steel
- Compatible Material: Oil, Grease
- Inlet Size (cm): 0.3175
- Inlet Size (in): 1/8
- Inlet Size (mm): 3.175
- Inlet Thread Gender: Female
- Inlet Thread Type: NPT
- Maximum Working Pressure (bar): 345
- Maximum Working Pressure (kPa): 34500
- Maximum Working Pressure (MPa): 34.5
- Maximum Working Pressure (psi): 5000
- Number of Balls: Single Ball
- Outlet Size (cm): 0.3175
- Outlet Size (in): 1/8
- Outlet Size (mm): 3.175
- Outlet Thread Gender: Female
- Outlet Thread Type: NPS
$52.00
VALVE, CHECK 1/8 250 PSI
GG 563198
GG 563198
VALVE, CHECK 1/8 250 PSI
Single Ball Check Valve - 250 psi Nominal Cracking Pressure, 1/8 in NPTF (M) x 1/8 in NPSF (F), Steel, 5,000 psiSingle Ball Check Valve
250 psi nominal cracking pressure
1/8 inch (3.2 mm) NPTF (M) x 1/8 inch (3.2 mm) NPSF (F)
steel body/ball
5,000 psi max
Lubriquip part number 509-350-250 Trabon part number 9350-250
$27.90
VALVE, CHECK, 1/4 NPT, 35
GG 563207
GG 563207
VALVE, CHECK, 1/4 NPT, 35
Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/4 in NPTF (M) x 1/4 in NPSF (F), Steel, 5,000 psiDouble Ball Check Valve
35 psi nominal cracking pressure
1/4 inch (6.4 mm) NPTF (M) x 1/4 inch (6.4 mm) NPSF (F)
steel body/ball
5,000 psi max
Lubriquip part number 509-360-030 Trabon part number 9360-35
$33.20

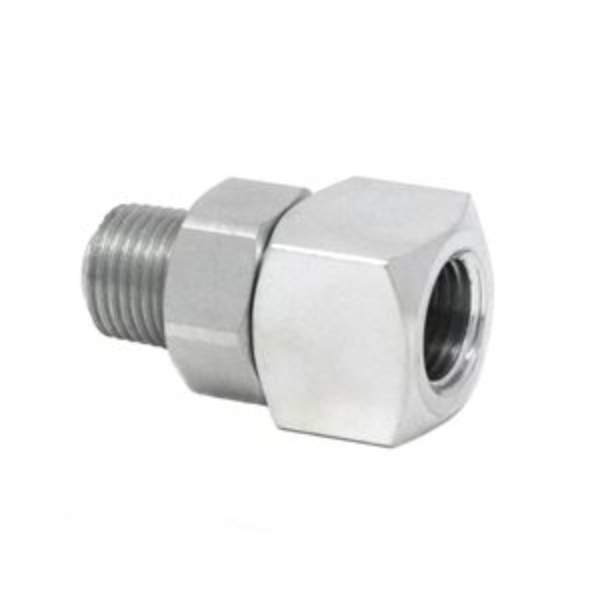

SWIVEL, 180 1/8 PORT NITRILE
GG 563150
GG 563150
SWIVEL, 180 1/8 PORT NITRILE
Compact 180º Straight Swivel - 1/8 inch, Nitrile180º Compact Swivel - 1/8 inch (3.2 mm)
Lubriquip part number 501-258-000 Trabon part number 1258
$39.00
FILTER, SPIN-ON 25 MICRON NPT
GG 563096
GG 563096
FILTER, SPIN-ON 25 MICRON NPT
Spin-On Filter Assembly - 25 Micron, NPT, External 150 psi Relief25 micron Spin-On Filter Assembly, NPT, External 150 psi (10.3 bar) Relief
Lubriquip part number 473-000-275
$178.50
Automatic Relief Indicator for MSP, MXP, MHH and MJ Divider Valves, 2000 PSI
GG 563167
GG 563167
Automatic Relief Indicator for MSP, MXP, MHH and MJ Divider Valves, 2000 PSI
$31.60

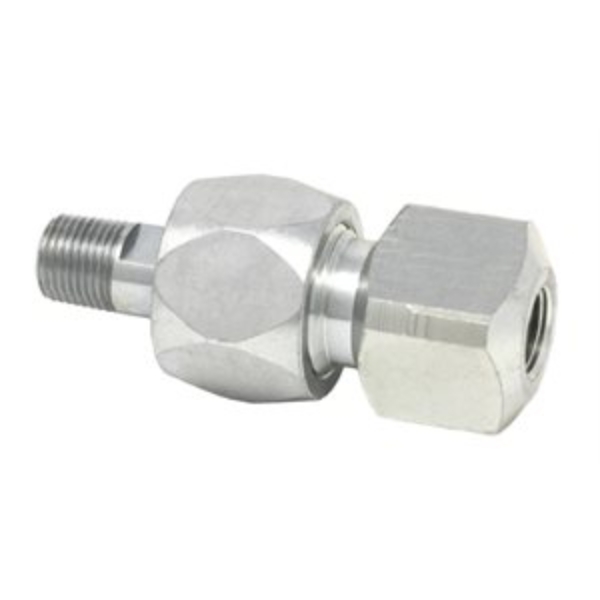

SWIVEL, BALL 1/8 180
GG 563213
GG 563213
SWIVEL, BALL 1/8 180
Graco 563213 180º Straight Swivel - 1/8 inch (3.2 mm)
- 180º Straight Swivel - 1/8 inch (3.2 mm)
- Lubriquip part number 509-402-000
- Trabon part number 9402
- Angle (°): 180
- Connection Type: Threaded
- For Use With: Pipe
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
$66.75

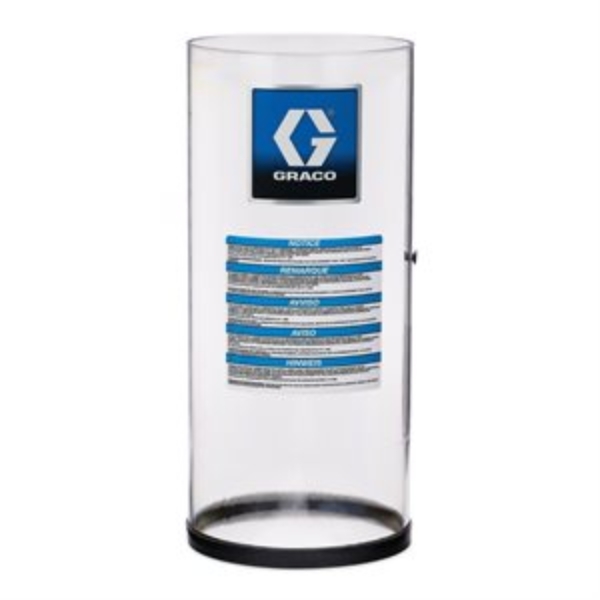

TUBE, RESV REPLACE 12LB PLSTC
GG 562902
GG 562902
TUBE, RESV REPLACE 12LB PLSTC
Modu-Flo and E-Pump Spare Parts and Accessories - 12 pt./lb. Plastic Replacement Reservoir Assembly, 6 in OD x 13 in longReservoir Repair Kits - Plastic tube with u-cup seal for part numbers 562892 and 562896
Lubriquip part number 185-100-730
$419.00
VALVE, CHECK REVERSE 1/4 35 PSI
GG 563211
GG 563211
VALVE, CHECK REVERSE 1/4 35 PSI
Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/4 in NPSF (F) x 1/4 in NPTF (M), Steel, 5,000 psiSingle Ball Check Valve
35 psi nominal cracking pressure
1/4 inch (6.4 mm) NPSF (F) x 1/4 inch (6.4 mm) NPTF (M)
steel body/ball
5,000 psi max
Lubriquip part number 509-365-030 Trabon part number 9365-35
$43.90

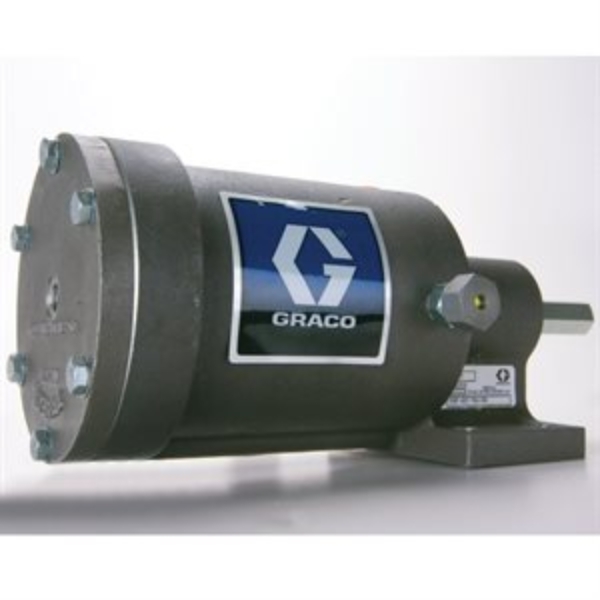

MSA-100 PUMP, ASSY
GG 562855
GG 562855
MSA-100 PUMP, ASSY
MSA-100™ Pneumatic PumpMSA Series products are used together with main lubrication supply lines where the pump is fed directly with no additional reservoir required. No reservoir makes the MSA Series ideal for locations that are difficult to reach or undesirable to enter. Use the MSA-100 when high operating pressures and larger outputs are required.
Ideal for applications where space is a premium Handles high pressure lubricant feed of direct line intake Used with or without a reservoir for the ultimate flexibility Lubriquip part number 140-000-171
$2,690.00

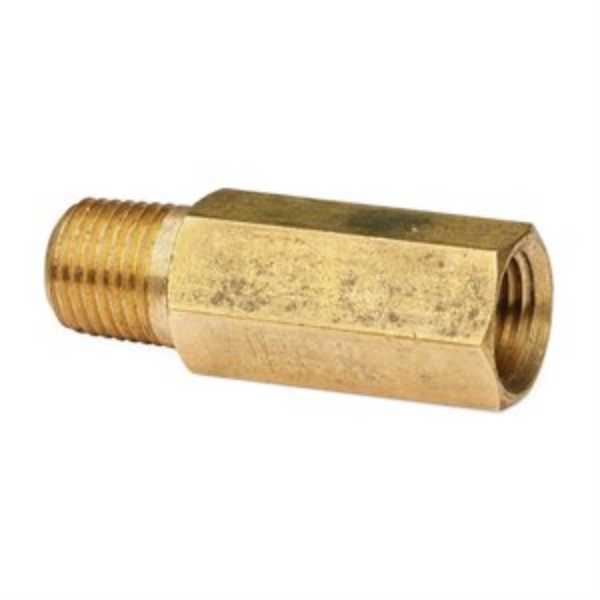

VALVE, RESTRICTOR VLV
GG 563072
GG 563072
VALVE, RESTRICTOR VLV
Graco 563072 Air Inlet Restrictor Valve for MSA-10 and MSA-100
Application: For use with MSA-10 and MSA-100 Pumps.
- Air Inlet Restrictor Valve
- Lubriquip part number 463-410-080
$151.00
VALVE, CHECK, 1/8 NPT, 5000
GG 563196
GG 563196
VALVE, CHECK, 1/8 NPT, 5000
Single Ball Check Valve - 35 psi Nominal Cracking Pressure, 1/8 in NPTF (M) x 1/8 in NPSF (F), Steel, 5,000 psiSingle Ball Check Valve
35 psi nominal cracking pressure
1/8 inch (3.2 mm) NPTF (M) x 1/8 inch (3.2 mm) NPSF (F)
steel body/ball
5,000 psi max
Lubriquip part number 509-350-030 Trabon part number 9350-35
$26.80

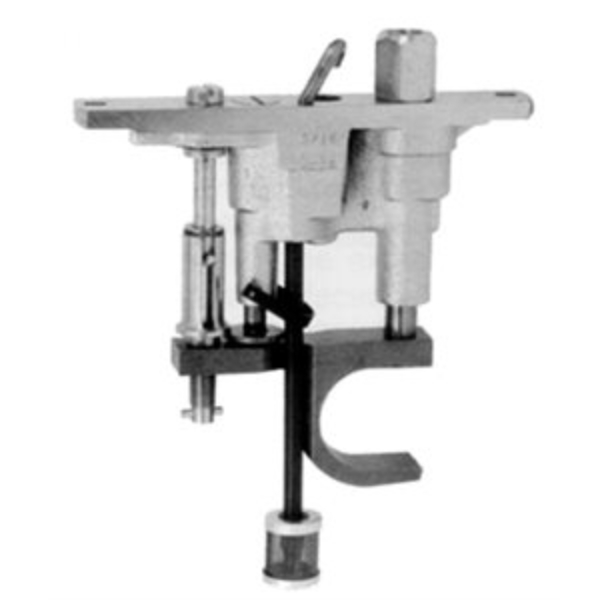

MODEL 25 PUMP, ASSY, .312, DIA
GG 562950
GG 562950
MODEL 25 PUMP, ASSY, .312, DIA
Graco 562950 Manzel® Model 25 Compressor Lubricator Replacement Pump, 5/16 in (7.9 mm), 1000 psi (69 bar)
Provide lubrication to cylinder walls, bearings and other moving parts of equipment such as sugar mills, steam engines, presses and general machinery.
- General-purpose lubrication: automatic, precision metering for all types of machinery
- Clear-Vue pumping unit shows amount of lubricant being pumped
- Self-contained, removable pumping unit. All units interchangeable - remove two pump screws and lift out
- Lubriquip part number 321-410-015
- Manzel part number 60050-B
- Model: Manzel
- Series: Model 25
- Compatible Material: Oil
- Drive Option: Direct Rotary
- Lubricator Feed Type: Force Feed
- Maximum Drive Speed (RPM): 60
- Maximum Fluid Viscosity (SUS): 5000
- Maximum Number of Drops Per Stroke (drops/stroke): 12
- Maximum Working Pressure (bar): 69
- Maximum Working Pressure (kPa): 6900
- Maximum Working Pressure (psi): 1000
- Minimum Drive Speed (RPM): 3
- Minimum Fluid Viscosity (SUS): 100
- Minimum Number of Drops Per Stroke (drops/stroke): 0.25
- Outlet Size (cm): 0.635
- Outlet Size (in): 1/4
- Outlet Size (mm): 6.35
- Outlet Thread Gender: Female
- Outlet Thread Type: NPS
- Overall Depth (cm): 65
- Overall Depth (in): 25.59
- Overall Depth (mm): 650
- Overall Height (cm): 21.6
- Overall Height (in): 8.50
- Overall Height (mm): 215.9
- Overall Width (cm): 15.24
- Overall Width (in): 6
- Overall Width (mm): 152.4
- Piston Size (cm): 0.79
- Piston Size (in): 0.31
- Piston Size (mm): 7.9
- Pump Size (cm): 0.8
- Pump Size (in): 5/16
- Pump Size (mm): 8
$700.00

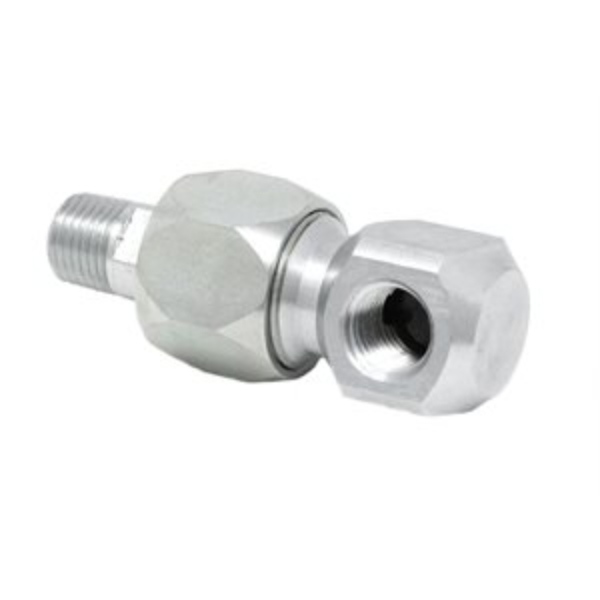

SWIVEL, BALL 1/4 90
GG 563214
GG 563214
SWIVEL, BALL 1/4 90
Graco 563214 90º Angle Swivel - 1/4 inch (6.4 mm)
- 90º Angle Swivel - 1/4 inch (6.4 mm)
- Lubriquip part number 509-405-000
- Trabon part number 9405
- Angle (°): 90
- Connection Type: Threaded
$69.75

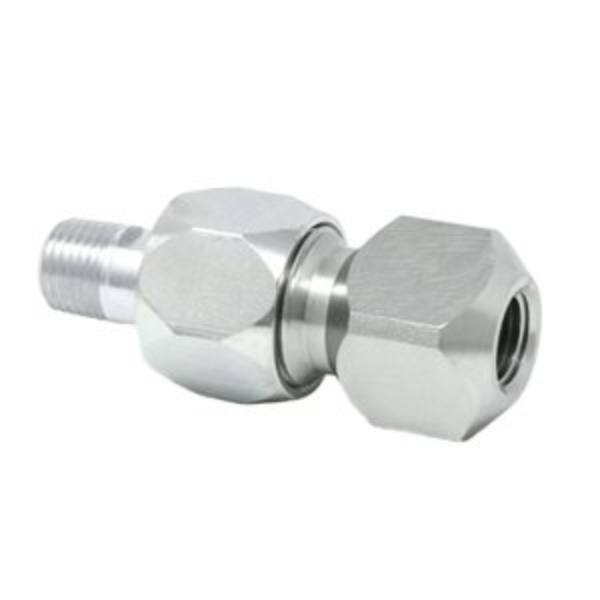

SWIVEL, BALL 1/4 180
GG 563215
GG 563215
SWIVEL, BALL 1/4 180
Graco 563215 180º Straight Swivel - 1/4 inch (6.4 mm)
- 180º Straight Swivel - 1/4 inch (6.4 mm)
- Lubriquip part number 509-406-000
- Trabon part number 9406
- Angle (°): 180
- Connection Type: Threaded
- For Use With: Pipe
- Maximum Working Pressure (bar): 207
- Maximum Working Pressure (kPa): 20700
- Maximum Working Pressure (MPa): 20.7
- Maximum Working Pressure (psi): 3000
$76.75
INDICATOR, RUPTURE PIN, 1/8 NPSF-ORB, 6400 PSI
GG 563226
GG 563226
INDICATOR, RUPTURE PIN, 1/8 NPSF-ORB, 6400 PSI
Trabon® Replacement Rupture Indicator, 1/8-27 NPSF with O-Ring, 6400 psi (441 bar)Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar).
High pressure from blockage causes a disc to rupture Lubricant forces an indicator pin to protrude, indicating the blockage High pressure backs up through the system and trips a switch to shut the system off When fault is corrected, disc must be replaced and pin reset Lubriquip part number 509-499-165
$75.75

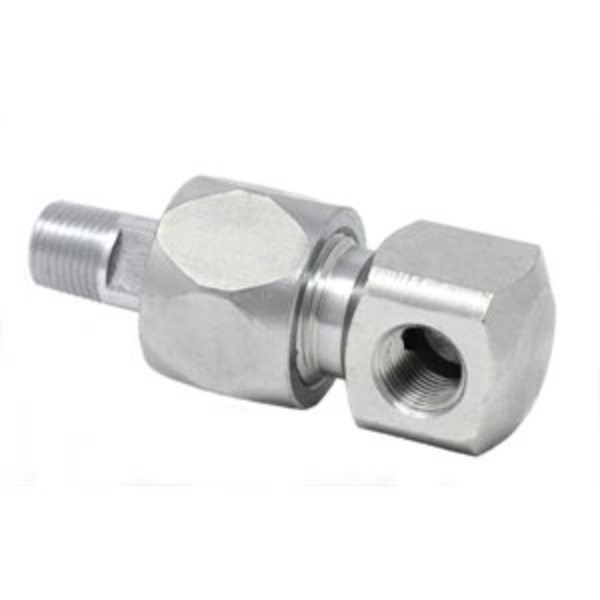

SWIVEL, BALL 1/8 90
GG 563212
GG 563212
SWIVEL, BALL 1/8 90
90º Angle Swivel - 1/8 inch (3.2 mm)90º Angle Swivel - 1/8 inch (3.2 mm)
Lubriquip part number 509-400-000 Trabon part number 9400
$62.75

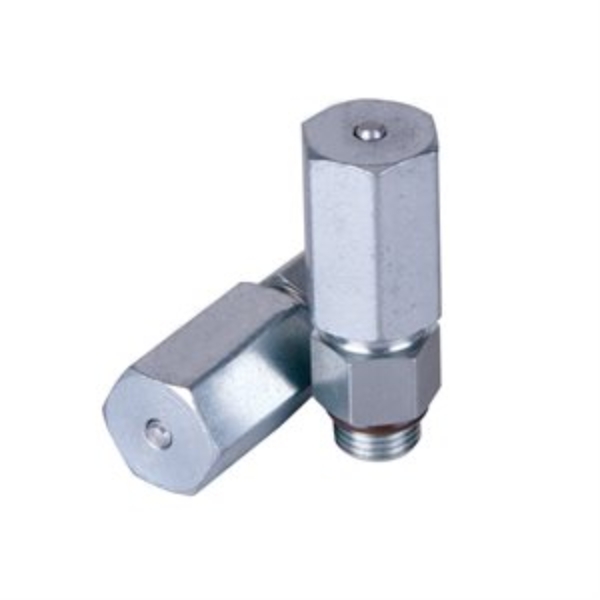

INDICATOR, RUPTURE PIN, 1/8 NPTF, 5500 PSI
GG 563223
GG 563223
INDICATOR, RUPTURE PIN, 1/8 NPTF, 5500 PSI
Trabon® Replacement Rupture Indicator, 1/8-27 NPTF, 5500 psi (379 bar)Trabon Performance Indicators are pressure-sensitive devices that pinpoint excessive pressure in Trabon series progressive lubricating systems. These devices, which are installed in the alternate outlet ports of divider valves, signal a fault either by causing an indicator pin to protrude or by releasing lubricant to the atmosphere. All Performance Indicators respond quickly to protect the lube system and locate lube line blockage.
Used on MH divider valve applications where lube system pressures exceed 2,500 psi (172 bar). High pressure from blockage causes a disc to rupture. Lubricant forces an indicator pin to protrude, indicating the blockage. High pressure backs up through the system and trips a switch to shut the system off. When fault is corrected, disc must be replaced and pin reset. Divider Valve Rupture Indicators w/Memory - 5,500 psi (379 bar) Lubriquip part number 509-499-140 Trabon part number 9499-14
$68.00
