GRACO INC. S10595

GRACO INC. S10595 branded products

View as Grid List

Sort by

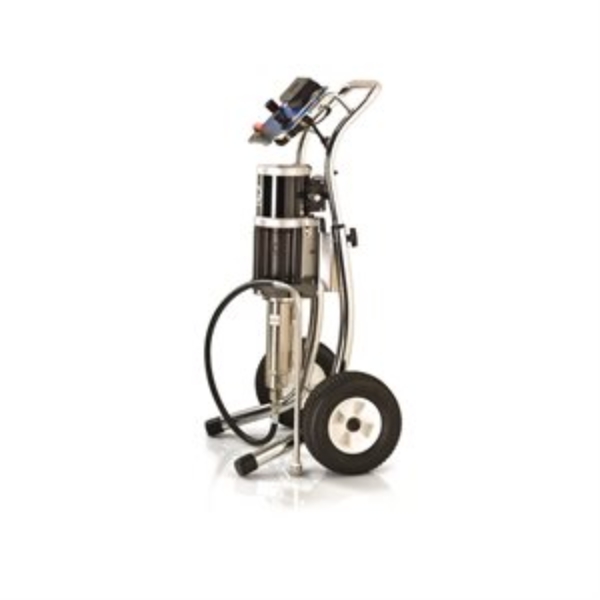

MERKUR SYSTEM, PUMP, 48:1, 75CC CT, STD

GG G48C01

MERKUR SYSTEM, PUMP, 48:1, 75CC CT, STD

48:1 Merkur Pump, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, Pump Air Controls, Suction Hose, Fluid Filter Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications. Proven to outperform and outlast other pumps in their class Highest technology air motor on the market Low air consumption for increased efficiency External valve access allows for easy servicing and online replacement to minimize downtime

$8,180.00

MERKUR SYSTEM, PUMP, 48:1, 75CC, CART, STD

GG G48C05

MERKUR SYSTEM, PUMP, 48:1, 75CC, CART, STD

Graco G48C05 Merkur 48:1 Cart-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, Fluid Filter, Drain Valve

The Merkur Airless Sprayer for protective coatings is ideal for touch-ups or other smaller projects. Its light weight and portability make it a great mobile auxiliary system to finish up a job in tight areas. Ideal for coatings that don’t require the pressure and flow of a larger sprayer.

Compact – fits into tight areas
Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
Stainless steel option allows for waterborne coatings

Model: Merkur
Series: Standard

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Air Motor Displacement (cm³/stroke): 1800
Compatible Material: Protective Coating
Compatible Replacement Pump: W48CBS
Control Type: Fixed Ratio
Convertible: Non-Convertible
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Male
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 3/8, 1/4
Fluid Outlet Size (mm): 9.525, 6.35
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
Frame Configuration: Cart Mount
Hose Inlet Diameter (cm): 0.635
Hose Inlet Diameter (in): 1/4
Hose Inlet Diameter (mm): 6.35
Includes: XTR-5 Spray Gun, 512 XHD Tip, Fluid Hose, Fluid Filter
Inlet Paint Strainer: 8 Mesh, 16 Mesh
Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter,Drain Valve
Material Application: Paints, Primers
Maximum Air Consumption (SCFM): 26
Maximum Air Inlet Pressure (psi): 100
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (psi): 100
Maximum Flow Rate (GPM): 1.2
Maximum Flow Rate (L/min): 4.5
Maximum Fluid Working Pressure (psi): 4800
Maximum Sound Pressure Level (dB(A)): 68.9
Maximum Tip Size (in): 0.025
Maximum Working Pressure (bar): 331
Maximum Working Pressure (kPa): 33100
Maximum Working Pressure (MPa): 33.1
Maximum Working Pressure (psi): 4800
Mix Ratio: 48:1
Motor Type: Pneumatic Motor
Mount Type: Cart Mount
Number of Guns: 1
Outlet Paint Filter: 60 Mesh Stainless Steel Screen
Package Options: XTR-5 Gun, 1/4 in. x 25 ft. (7.6 m) Hose
Power Source: Air
Pressure Control Type: Air Regulator
Product Type: Single Leg
Pump Pressure Ratio: 48:1
Pump Rod Type: Carbon Steel
Pump Sleeve Material: Stainless Steel
Pump Type: Pneumatic Piston Pump

$8,690.00

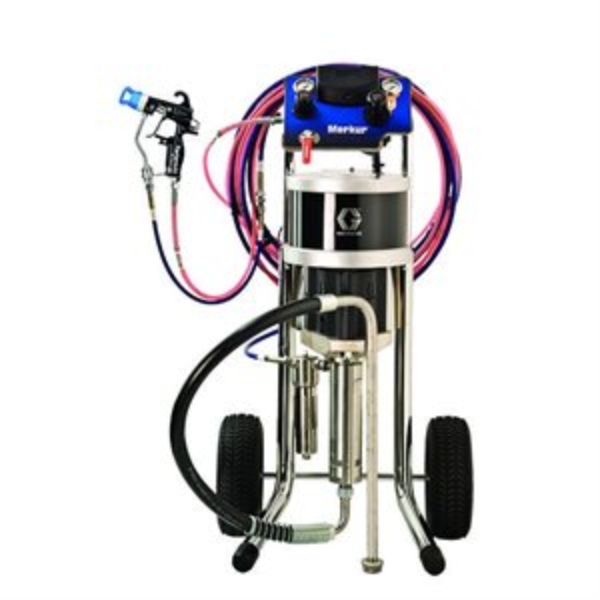

MERKUR SYSTEM PUMP 48:01 75CC CART STD

GG G48C11

MERKUR SYSTEM PUMP 48:01 75CC CART STD

Graco G48C11 48:1 Merkur AA Package, 1.2 gpm (4.5 lpm) fluid flow, Cart Mount, PerformAA 50 Gun, Pump Air Controls, Gun Air/Fluid Hose, Fluid Filter

Designed to improve productivity, reduce costs, lower emissions and provide consistent, high quality finishes for all of your demanding applications.

Proven to outperform and outlast other pumps in their class
Highest technology air motor on the market
Low air consumption for increased efficiency

Model: Merkur

Convertible: Non-Convertible
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 0.9525
Fluid Outlet Size (in): 3/8
Fluid Outlet Size (mm): 9.525
Fluid Outlet Thread Type: NPT
Gun Included: 1
Gun Model: PerformAA 50 Air Assist
Gun Technology: Air-Assisted
Gun Type: Air-Assisted
Hose Inlet Diameter (cm): 0.5
Hose Inlet Diameter (in): 0.1968
Hose Inlet Diameter (mm): 5
Includes: Pump and Gun Air Controls, Gun Hose, Suction Hose, Fluid Filter
Maximum Flow Rate (GPM): 1.2
Maximum Flow Rate (L/min): 4.54
Maximum Hose Length (cm): 701.04
Maximum Hose Length (ft): 23
Maximum Hose Length (m): 7
Maximum Hose Length (mm): 7010.4
Maximum Working Pressure (bar): 276
Maximum Working Pressure (kg/cm²): 337.47
Maximum Working Pressure (kPa): 27600
Maximum Working Pressure (MPa): 27.6
Maximum Working Pressure (psi): 4000
Motor Type: Pneumatic
Mount Type: Cart Mount
Number of Guns: 1
Power Source: Air
Pressure Type: High Pressure
Product Type: Spray Package
Pump Ratio: 48:1
Pump Type: Pneumatic Piston Pump

$9,380.00

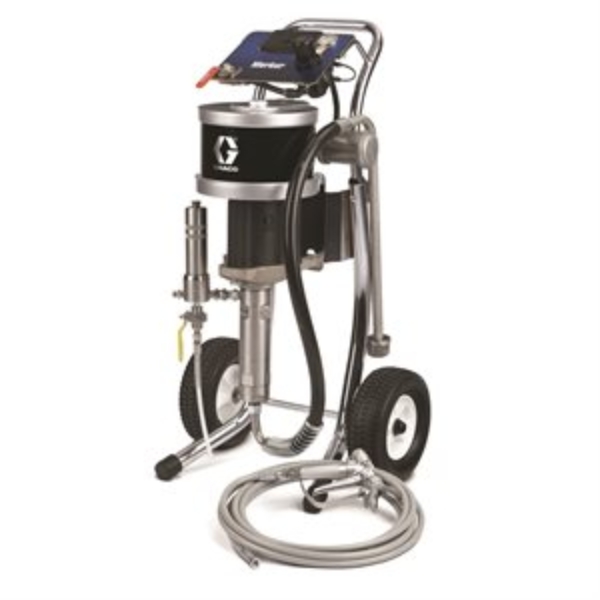

MERKUR SYSTEM, PUMP, 48:1, 75CC, CART, SMT

GG G48C06

MERKUR SYSTEM, PUMP, 48:1, 75CC, CART, SMT

Graco G48C06 Merkur 48:1 Cart-Mount Airless Spray Package, XTR-5 Gun, 519 XHD Tip, 25 ft (7.6 m) Fluid Hose, Fluid Filter, DataTrak, Drain Valve

Compact – fits into tight areas
Sprays medium to higher solids coatings – up to 4800 psi (331 bar)
Ideal for applications such as steel fabrication, marine, rail, industrial and structural steel
Stainless steel option allows for waterborne coatings

Model: Merkur
Series: Standard

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Compatible Material: Protective Coating
Compatible Replacement Pump: W48CAS
Control Type: Fixed Ratio
Convertible: Non-Convertible
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (in): 3/8, 1/4
Fluid Outlet Size (mm): 9.525, 6.35
Fluid Outlet Thread Gender: Male
Fluid Outlet Thread Type: NPT
Frame Configuration: Cart Mount
Hose Inlet Diameter (cm): 0.635
Hose Inlet Diameter (in): 1/4
Hose Inlet Diameter (mm): 6.35
Includes: XTR-5 Spray Gun, 512 XHD Tip, Fluid Hose, Fluid Filter
Inlet Paint Strainer: 8 Mesh, 16 Mesh
Lower Configuration: Stainless Steel, 3/4 in. Inlet, Fluid Filter,Drain Valve
Material Application: Paints, Primers
Maximum Air Inlet Pressure (psi): 100
Maximum Flow Rate (GPM): 1.2
Maximum Flow Rate (L/min): 4.5
Maximum Fluid Working Pressure (psi): 4800
Maximum Sound Pressure Level (dB(A)): 68.9
Maximum Tip Size (in): 0.025
Maximum Working Pressure (bar): 331
Maximum Working Pressure (kPa): 33100
Maximum Working Pressure (MPa): 33.1
Maximum Working Pressure (psi): 4800
Mix Ratio: 48:1
Motor Type: Pneumatic Motor
Mount Type: Cart Mount
Number of Guns: 1
Outlet Paint Filter: 60 Mesh Stainless Steel Screen
Package Options: XTR-5 Gun, 1/4 in. x 25 ft. (7.6 m) Hose
Power Source: Air
Pressure Control Type: Air Regulator
Product Type: Single Leg
Pump Pressure Ratio: 48:1
Pump Rod Type: Carbon Steel
Pump Sleeve Material: Stainless Steel
Pump Type: Displacement Pump, Pneumatic Piston Pump

$9,770.00

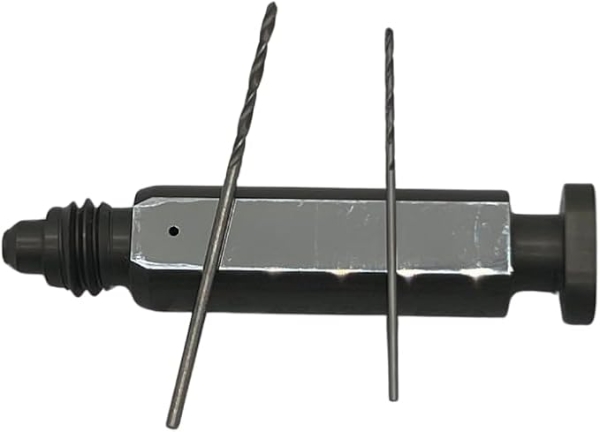

Tool, Drill, Hi-Speed, .035

GG GC0080

Tool, Drill, Hi-Speed, .035

$7.45

Tool, Drill, Hi-Speed, .049

GG GC0083

Tool, Drill, Hi-Speed, .049

$7.45

BALL, 1/4 DIA, 302 SST

GG GC0259

BALL, 1/4 DIA, 302 SST

1/4 in Diameter 302 Stainless Steel Ball

$3.00

Fitting, ELBW, SW, 1/8 NPTM X 1/4 TUBE

GG GC0490

Fitting, ELBW, SW, 1/8 NPTM X 1/4 TUBE

$305.00

Shaft, Pump

GG GC0624

Shaft, Pump

$759.00

Spring

GG GC0625

Spring

$18.50

Guide, Piston

GG GC0627

Guide, Piston

$95.50

HUSKY PUMP, 716S-PP01AS1ACPTPTPT0

GG D54211

HUSKY PUMP, 716S-PP01AS1ACPTPTPT0

Husky 716 SS Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, AC Seat, PTFE Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting No mechanical seals which causes fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks 3/4 in (19.05 mm) center- and end-porting No seals to leak or fail Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks

$2,770.00

HUSKY PUMP, 716S-PP01AS1SSSSPTPT0

GG D54331

HUSKY PUMP, 716S-PP01AS1SSSSPTPT0

Graco D54331 Husky 716 SS Air Operated Double Diaphragm Metal Pump with NPT Standard Air Valve, SS Seat, SS Ball, PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: 316 Stainless Steel
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Stainless Steel
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$2,950.00

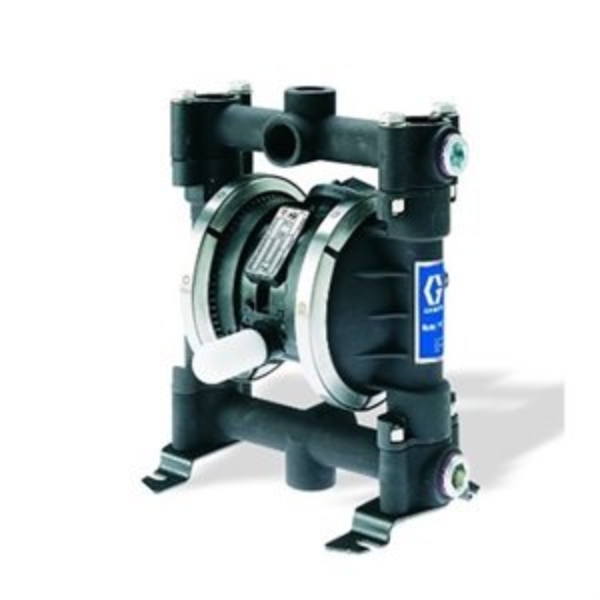

HUSKY PUMP, 716S-PP01AS1SSPTPTPT0

GG D54311

HUSKY PUMP, 716S-PP01AS1SSPTPTPT0

Husky 716 SS Air Operated Double Diaphragm Metal Pump

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

$2,760.00

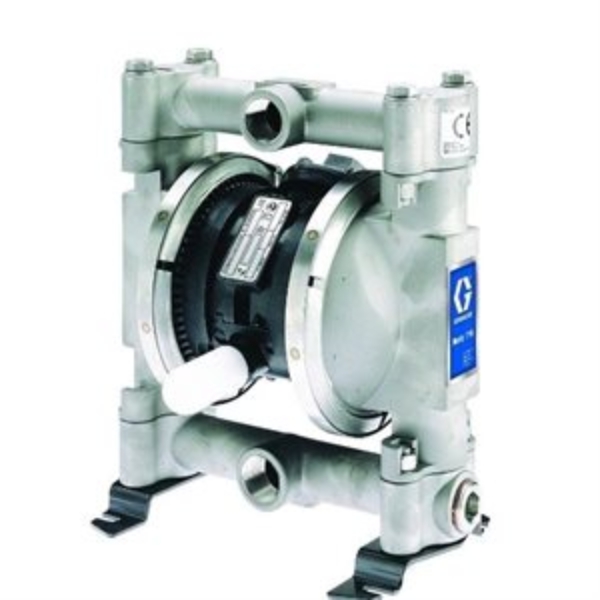

HUSKY PUMP, 716S-PP01AS1SSSSSPPT0

GG D54336

HUSKY PUMP, 716S-PP01AS1SSSSSPPT0

Husky 716 SS (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, SS Balls & SP Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

$2,880.00

HUSKY PUMP, 716S-PP01AS1SSSPSPPT0

GG D54366

HUSKY PUMP, 716S-PP01AS1SSSPSPPT0

Husky 716 SS (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, SP Balls & SP Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

$2,520.00

HUSKY PUMP, 716S-PP01AS1SSFKPTPT0

GG D54381

HUSKY PUMP, 716S-PP01AS1SSFKPTPT0

Husky 716 SS (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, FKM Balls & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

$2,710.00

HUSKY PUMP, 716S-PP01AS1SSFKFKPT0

GG D54388

HUSKY PUMP, 716S-PP01AS1SSFKFKPT0

Graco D54388 Husky 716 SS (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, FKM Balls & FKM Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Fluoroelastomer
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: FKM
Diaphragm Material: Fluoroelastomer
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Stainless Steel
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Overall Height (in): 10.43
Power Source: Air

$2,830.00

HUSKY PUMP, 716S-PP01AS1PPPTPTPT0

GG D54911

HUSKY PUMP, 716S-PP01AS1PPPTPTPT0

Husky 716 SS (3/4 in. NPT) Standard Pump, PP Center Section, SS Seats, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

$2,760.00

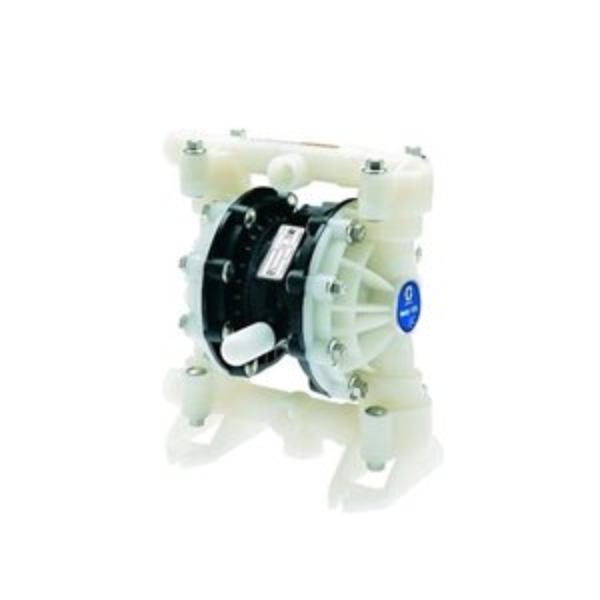

HUSKY PUMP, 515F-PP01AF3PVPTSPPT0

GG D55A16

HUSKY PUMP, 515F-PP01AF3PVPTSPPT0

Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & SP Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options. No mechanical seals to cause fluid leaks or failures Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels Easy-to-service air valve and ball checks Operates on as little as 20 psi (1.4 bar, 0.14 MPa) Split manifold option to pump multiple fluids without mixing Delivery up to 15 gpm (56.7 lpm) Easy-to-service air valve and ball checks Reliable air valve for years of dependable performance

$1,945.00

HUSKY PUMP, 515F-PP01AF3PVPTPTPT0

GG D55A11

HUSKY PUMP, 515F-PP01AF3PVPTPTPT0

Graco D55A11 Husky 515 PVDF 1/2 in NPT Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options.
No mechanical seals to cause fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Delivery up to 15 gpm (56.7 lpm)
Easy-to-service air valve and ball checks
Reliable air valve for years of dependable performance

Model: Husky
Series: 515

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.27
Fluid Inlet Size (in): 1/2
Fluid Inlet Size (mm): 12.7
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 1.27
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 12.7
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: PVDF (Kynar)
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: PVDF
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 15
Maximum Flow Rate (L/min): 56.8
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Overall Hei

$2,020.00

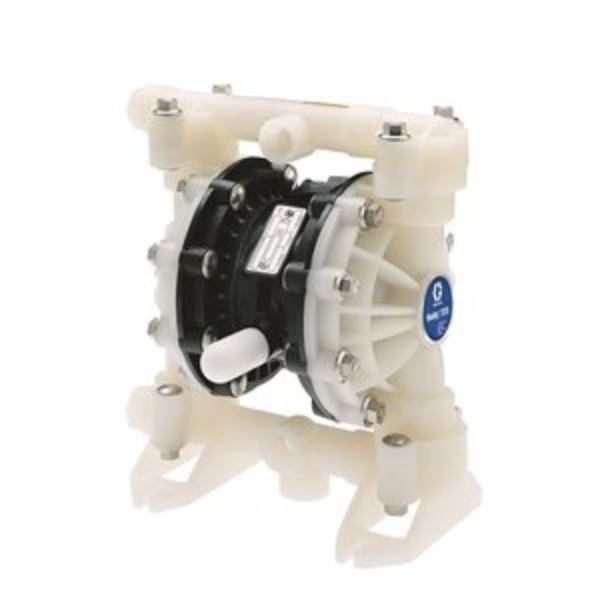

HUSKY PUMP, 515AC-PP01AAC4ACPTPTPT0

GG D5A211

HUSKY PUMP, 515AC-PP01AAC4ACPTPTPT0

Husky 515 AC 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, AC Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

$1,505.00

HUSKY PUMP, 1590A-PA01AA1SSSDPTPT

GG DB3341

HUSKY PUMP, 1590A-PA01AA1SSSDPTPT

Graco DB3341 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, Hardened SS Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: 440C Stainless Steel
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

$3,940.00

HUSKY PUMP, 1590A-PA01AA1TPACTP

GG DB3525

HUSKY PUMP, 1590A-PA01AA1TPACTP

Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, TPE Seats, AC Balls & TPE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class Expanded material offering to handle endless applications Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump Offered in ATEX configuration. 1-1/2 in. (38.1 mm) ANSI end-porting High flow - 100 gpm (378 lpm) in a compact, portable size Fluid pressure to 120 psi (8.4 bar, 0.84 MPa) Lube-free operation Available in polypropylene, aluminum and stainless steel Epoxy-coated air section for tough environmental conditions

$1,980.00

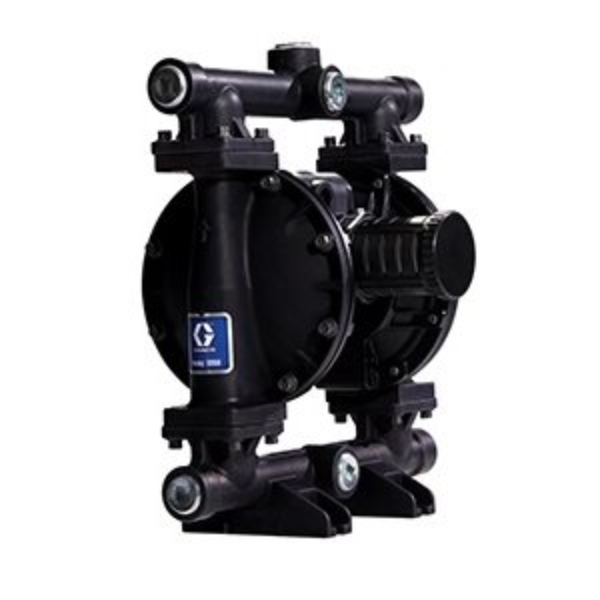

Aluminum Diaphragm Pump, 1 Inch, Teflon, Acetal, Teflon

GG D73525

Aluminum Diaphragm Pump, 1 Inch, Teflon, Acetal, Teflon

$1,775.00

HUSKY PUMP, 1590P-PA01AP2PPPTPTPT

GG DB2911

HUSKY PUMP, 1590P-PA01AP2PPPTPTPT

Graco DB2911 Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, PP/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Section Material: Polypropylene
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Polypropylene
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8.27
Maximum Air Pressure (kPa): 827
Maximum Air Pressure (MPa): 0.827
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

$5,160.00

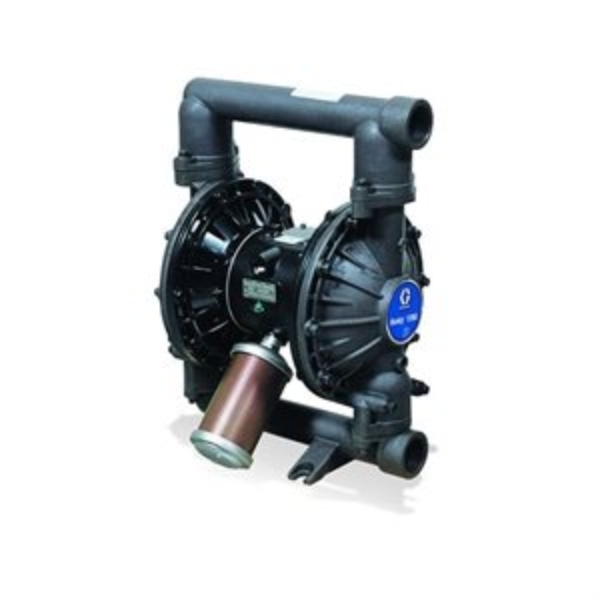

HUSKY PUMP, 1590A-PA01AA1SSPTPTPT

GG DB3311

HUSKY PUMP, 1590A-PA01AA1SSPTPTPT

Graco DB3311 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 82
Maximum Operating Temperature (°F): 180
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Overall Height (in): 19.6
Power Source:

$3,110.00

HUSKY PUMP, 1590P-PA01AP2PPSPSPPT

GG DB2966

HUSKY PUMP, 1590P-PA01AP2PPSPSPPT

Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$4,740.00

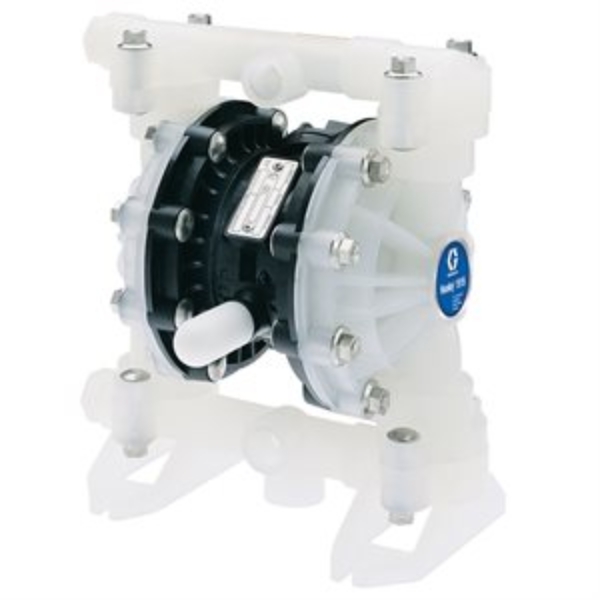

HUSKY PUMP, 515P-PP01AP4PPSPSPPT0

GG D5B966

HUSKY PUMP, 515P-PP01AP4PPSPSPPT0

Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

$922.00

HUSKY PUMP, 716A-PP01AA2SSPTPTPT0

GG D5C311

HUSKY PUMP, 716A-PP01AA2SSPTPTPT0

Graco D5C311 Husky 716 AL Air Operated Double Diaphragm Metal Pump with BSP Standard Air Valve, SS Seat, PTFE Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Aluminum
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$1,775.00

HUSKY PUMP, 1590P-PA01AP2SPSPSPPT

GG DB2666

HUSKY PUMP, 1590P-PA01AP2SPSPSPPT

Husky 1590 PP 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$4,740.00

HUSKY PUMP, 515P-PP01AP4PPPTPTPT0

GG D5B911

HUSKY PUMP, 515P-PP01AP4PPPTPTPT0

Husky 515 PP 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

$1,240.00

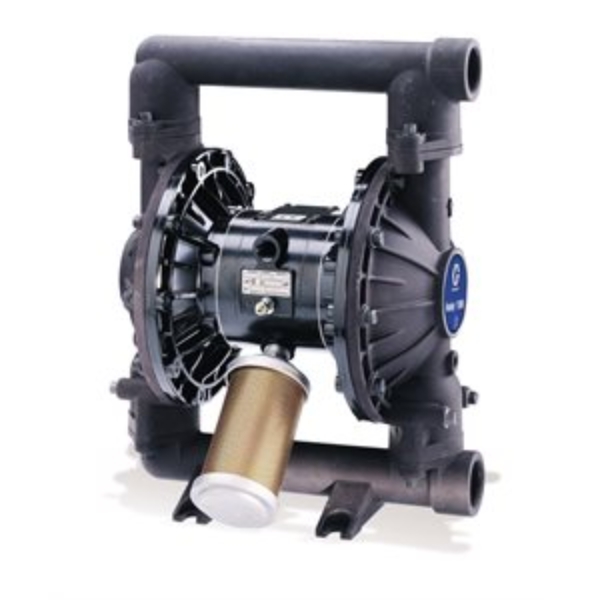

HUSKY PUMP, 1590P-PA01AP2SSBNBNPT

GG DB2377

HUSKY PUMP, 1590P-PA01AP2SSBNBNPT

Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, SS/BN/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$4,620.00

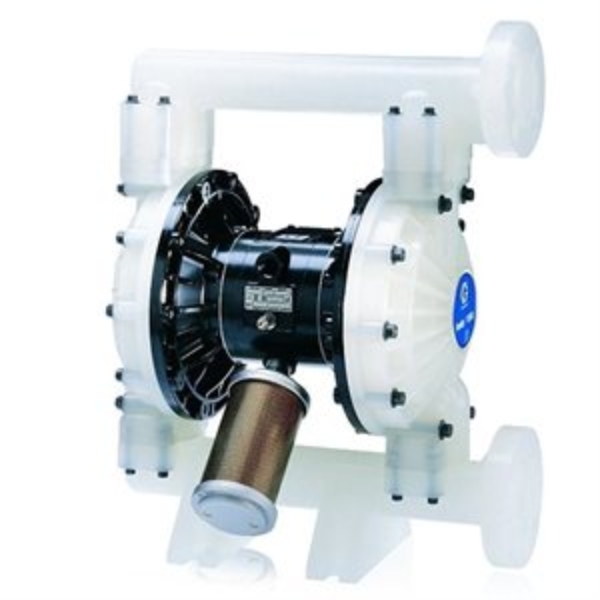

HUSKY PUMP, 1590P-PA01AP2SSPTPTPT

GG DB2311

HUSKY PUMP, 1590P-PA01AP2SSPTPTPT

Graco DB2311 Husky 1590 PP Air Operated Double Diaphragm Plastic Pump, SS/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Call for pricing

HUSKY PUMP, 1590A- PA01AA1PPPTPTPT

GG DB3911

HUSKY PUMP, 1590A- PA01AA1PPPTPTPT

Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$3,150.00

Husky Pump, 1040A-Pa01Aa1Sssdpt0

GG D73811

Husky Pump, 1040A-Pa01Aa1Sssdpt0

Call for pricing

HUSKY PUMP, 515F-PP01AF4PVPTPTPT0

GG D5EA11

HUSKY PUMP, 515F-PP01AF4PVPTPTPT0

Graco D5EA11 Husky 515 PVDF 1/2 in. (13 mm) BSP Standard Pump, PP Center Section, PVDF Seats, PTFE Balls & PTFE Diaphragm

The Husky 515 air-operated double diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

The bolt through fluid cover design eliminates leaks and makes the Husky safer with higher reliability.

Center and end porting options.
No mechanical seals to cause fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Operates on as little as 20 psi (1.4 bar, 0.14 MPa)
Split manifold option to pump multiple fluids without mixing
Delivery up to 15 gpm (56.7 lpm)
Easy-to-service air valve and ball checks
Reliable air valve for years of dependable performance

Model: Husky
Series: 515

Air Exhaust Port Size (in): 3/8
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Resin, Polymers, Motor Oil, Grease & Oil, Hydraulic Fluid, Transmission Fluid, Cutting Oil, Water - Wastewater Treatment, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.27
Fluid Inlet Size (in): 1/2
Fluid Inlet Size (mm): 12.7
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 1.27
Fluid Outlet Size (in): 1/2
Fluid Outlet Size (mm): 12.7
Fluid Outlet Thread Type: BSPT
Fluid Section Material: PVDF (Kynar)
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: PVDF
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 7
Maximum Air Pressure (kPa): 700
Maximum Air Pressure (MPa): 0.7
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 15
Maximum Flow Rate (L/min): 56.8
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 7
Maximum Fluid Pressure (kPa): 700
Maximum Fluid Pressure (MPa): 0.7
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 104
Maximum Operating Temperature (°F): 220
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Overall Height (in): 10.63
Power Source: Air

$2,120.00

HUSKY PUMP, 1590A-PA01AA1BNBNBN

GG DB3777

HUSKY PUMP, 1590A-PA01AA1BNBNBN

Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, BN Seats, BN Balls & BN Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$1,975.00

HUSKY PUMP, 1590A-PA01AA1FKFKFK

GG DB3888

HUSKY PUMP, 1590A-PA01AA1FKFKFK

Graco DB3888 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, FKM Seats, FKM Balls & FKM Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Fluoroelastomer
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: FKM
Diaphragm Material: Fluoroelastomer
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

$3,100.00

Husky Pump, 1040A-Pa01Aa1Sssdpt0

GG D73331

Husky Pump, 1040A-Pa01Aa1Sssdpt0

$2,400.00

1In Dia Pump, Alu, Sst/tef/tef

GG D73311

1In Dia Pump, Alu, Sst/tef/tef

$2,400.00

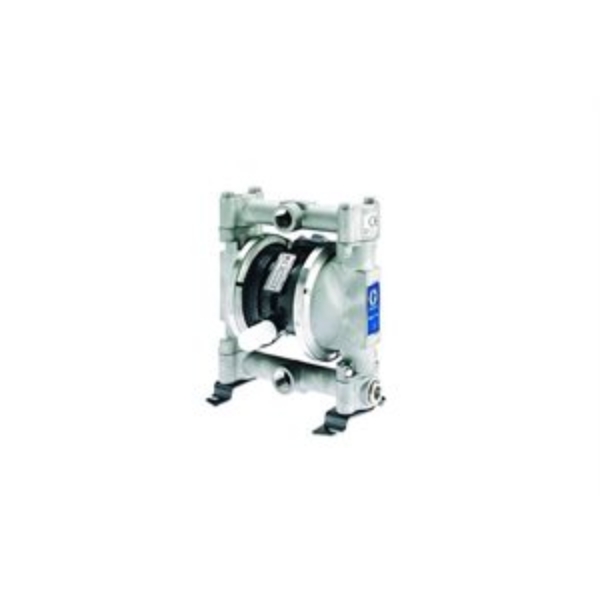

HUSKY PUMP, 716S-PP01AS2SSPTPTPT0

GG D5D311

HUSKY PUMP, 716S-PP01AS2SSPTPTPT0

Graco D5D311 Husky 716 SS Air Operated Double Diaphragm Metal Pump with BSP Standard Air Valve, SS Seat, PTFE Ball, & PTFE Diaphragm

The Husky 716 air operated diaphragm pump features an external controller for remote control capabilities.

Center- and end-porting
No mechanical seals which causes fluid leaks or failures
Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
3/4 in (19.05 mm) center- and end-porting
No seals to leak or fail
Quiet running less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels
Easy-to-service air valve and ball checks

Model: Husky
Series: 716

Air Inlet Size (in): 1/4
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Polypropylene
Compatible Material: Antifreeze, Detergents, Motor Oil, Grease & Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Treatment, Water, Ink
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 1.905
Fluid Outlet Size (in): 3/4
Fluid Outlet Size (mm): 19.05
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Stainless Steel
Manifold Configuration: Center Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Maximum Air Consumption (SCFM): 28
Maximum Air Pressure (bar): 6.9
Maximum Air Pressure (kPa): 690
Maximum Air Pressure (MPa): 0.69
Maximum Air Pressure (psi): 100
Maximum Cycle Rate (CPM): 400
Maximum Flow Rate (GPM): 16
Maximum Flow Rate (L/min): 60.6
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Fluid Pressure (bar): 6.9
Maximum Fluid Pressure (kPa): 690
Maximum Fluid Pressure (MPa): 0.69
Maximum Fluid Pressure (psi): 100
Maximum Operating Temperature (°C): 107
Maximum Operating Temperature (°F): 225
Maximum Solid Size (cm): 0.2383
Maximum Solid Size (in): 0.09375
Maximum Solid Size (mm): 2.4
Minimum Operating Temperature (°C): 4
Minimum Operating Temperature (°F): 40
Power Source: Air

$2,760.00

HUSKY PUMP, 1590A-PA01AA1SPSPSPPT

GG DB3666

HUSKY PUMP, 1590A-PA01AA1SPSPSPPT

Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$2,090.00

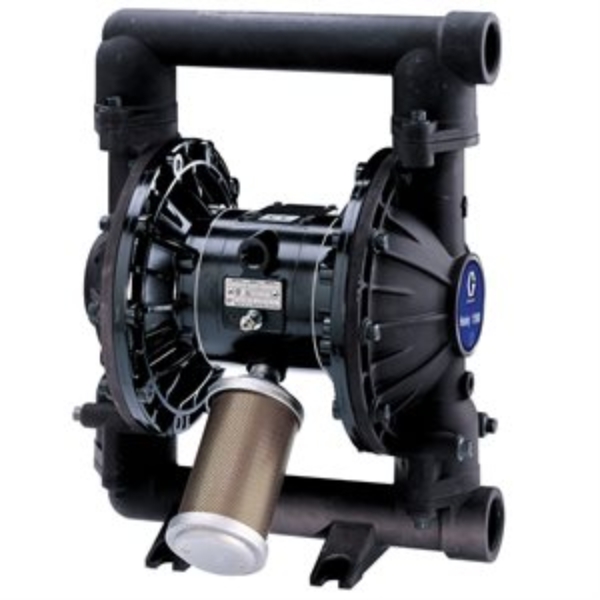

HUSKY PUMP, 1590A-PA01AA1PPSPSPPT

GG DB3966

HUSKY PUMP, 1590A-PA01AA1PPSPSPPT

Graco DB3966 Husky 1590 AL 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, PP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Santoprene
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Santoprene
Diaphragm Material: Santoprene
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

Call for pricing

HUSKY PUMP, 1590S-PA01AS1SSPTPTPT

GG DB4311

HUSKY PUMP, 1590S-PA01AS1SSPTPTPT

Graco DB4311 Husky 1590 SS Air Operated Double Diaphragm Metal Pump, SS/PT

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Gender: Female
Fluid Outlet Thread Type: NPT
Fluid Section Material: Stainless Steel
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Stainless Steel
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8.27
Maximum Air Pressure (kPa): 827
Maximum Air Pressure (MPa): 0.827
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8.27
Maximum Fluid Pressure (kPa): 827
Maximum Fluid Pressure (MPa): 0.827
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Power Source: Air

$7,130.00

HUSKY PUMP, 1590A, SS/PT/PT/PT

GG DBC311

HUSKY PUMP, 1590A, SS/PT/PT/PT

Graco DBC311 Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, SP with FKM Seal Seats, SS Seats, PTFE Balls & PTFE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: PTFE
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: PTFE
Diaphragm Material: PTFE/EPDM 2-Piece
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 82
Maximum Operating Temperature (°F): 180
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Overall Height (in): 19.6
Power Source: Air

$3,310.00

HUSKY PUMP, 1590S-PA01AS1SPSPSPPT

GG DB4666

HUSKY PUMP, 1590S-PA01AS1SPSPSPPT

Husky 1590 SS 1-1/2 in. (38.1 mm) NPT Standard Pump, AL Center Section, SP Seats, SP Balls & SP Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$6,260.00

HUSKY PUMP, 1590A-PA01AA2GEGEGEPT

GG DBCGGG

HUSKY PUMP, 1590A-PA01AA2GEGEGEPT

Graco DBCGGG Husky 1590 AL 1-1/2 in. (38.1 mm) BSP Standard Pump, AL Center Section, GE Seats, GE Balls & GE Diaphragm

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Up to 5 times longer diaphragm life compared to other air operated diaphragm pumps in its class
Expanded material offering to handle endless applications
Fewer parts than industry peers, the air valve is externally accessible so it can be serviced quickly and easily without uninstalling the diaphragm pump
1-1/2 in. (38.1 mm) ANSI end-porting
High flow - 100 gpm (378 lpm) in a compact, portable size
Fluid pressure to 120 psi (8.4 bar, 0.84 MPa)
Lube-free operation
Available in polypropylene, aluminum and stainless steel
Epoxy-coated air section for tough environmental conditions

Model: Husky
Series: 1590

Air Exhaust Port Size (in): 3/4
Air Exhaust Port Thread Gender: Female
Air Exhaust Port Thread Type: NPT
Air Inlet Size (in): 1/2
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Application: Industrial
Ball Material: Geolast
Center Section Material: Aluminum
Compatible Material: Antifreeze, Detergents, Motor Oil, Hydraulic Fluid, Cutting Oil, Water - Wastewater Transfer
Connection Type: Threaded
Diaphragm Compatible Material: Geolast
Diaphragm Material: Geolast
Fluid Inlet Size (cm): 3.81
Fluid Inlet Size (in): 1-1/2
Fluid Inlet Size (mm): 38.1
Fluid Inlet Thread Type: BSPT
Fluid Outlet Size (cm): 3.81
Fluid Outlet Size (in): 1-1/2
Fluid Outlet Size (mm): 38.1
Fluid Outlet Thread Type: BSPT
Fluid Section Material: Aluminum
Manifold Configuration: End Port
Manifold O-Ring Material: PTFE
Material: Aluminum
Maximum Air Consumption (SCFM): 125
Maximum Air Pressure (bar): 8
Maximum Air Pressure (kPa): 800
Maximum Air Pressure (MPa): 0.8
Maximum Air Pressure (psi): 120
Maximum Cycle Rate (CPM): 200
Maximum Flow Rate (GPM): 100
Maximum Flow Rate (L/min): 379
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Fluid Pressure (bar): 8
Maximum Fluid Pressure (kPa): 800
Maximum Fluid Pressure (MPa): 0.8
Maximum Fluid Pressure (psi): 120
Maximum Operating Temperature (°C): 66
Maximum Operating Temperature (°F): 150
Maximum Solid Size (cm): 0.4763
Maximum Solid Size (in): 0.1875
Maximum Solid Size (mm): 4.763
Overall Height (in): 19.6
Power Source: Air

$2,090.00

HUSKY PUMP, 1590S-PA01AS5-1SSPTPTPT

GG DBR311

HUSKY PUMP, 1590S-PA01AS5-1SSPTPTPT

Husky 1590 SS AODD Metal Pump with AL Air Motor, Standard Air Valve, 316 SS Seat

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed center air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

$7,770.00

Kit, Rpr, Flat, Air Purge 00

GG AF2929

Kit, Rpr, Flat, Air Purge 00

$257.50

Kit, Repair, Flat, Air Purge

GG AF2942

Kit, Repair, Flat, Air Purge

$285.50

Kit, Rpr, Flat, Air Purge 01

GG AF4242

Kit, Rpr, Flat, Air Purge 01

$257.50

REACTOR 2 H-40 SYSTEM, 230V, 20KW, ELITE, AP

GG AHH144

REACTOR 2 H-40 SYSTEM, 230V, 20KW, ELITE, AP

Graco AHH144 Reactor 2 H-40 Elite Proportioner Package, Fusion AP Gun, (6) Heated Hoses with Xtreme-Wrap, 20 kW, 230 V, 3PH

Graco&prime, s hydraulic Reactor H-40 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects - applies up to 52 lb (23.6 kg) per minute. Graco&prime, s line of hydraulic Reactors brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.

What a hydraulic system can do for you:
Dependability - robust, durable, longest life spray system
Reduce downtime - allows for longer time in between required maintenance
Increase daily productivity - capable of extremely high duty cycle
Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 model
Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
Sacrificial surge protector
Protects your electronics against excessive power spikes
Three-year warranty
Covers user display and control modules
One of the best in the industry

Model: Reactor 2
Series: H-40
Product Series: Elite

Amperage (A): 95
Application: Spray Foam
Applicator Type: Manual
Compatible Material: Plural Components
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion AP
Hose Length (ft): 50, 10
Hose Length (m): 15.2, 3
Hose Package: Multi-Hose
Includes: Proportioner, Fusion AP Gun, Heated Hose with Scuff Guard, Heated Whip Hose, Graco Insite, Fluid Inlet Sensors
Material Application: Polyurethane Foam
Maximum Flow Rate (kg/min): 20.41
Maximum Flow Rate (lb/min): 45
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Mix Ratio: 1:1
Overall Depth (cm): 53
Overall Depth (in): 20.88
Overall Depth (mm): 530
Overall Height (cm): 160.8
Overall Height (in): 63.3

$73,360.00

Motor, Air, 5" Borex4" Strk, Norg

GG AM-500-02

Motor, Air, 5" Borex4" Strk, Norg

$8,040.00

REACTOR 2 E-30 SYSTEM, 10KW, AP

GG AP2010

REACTOR 2 E-30 SYSTEM, 10KW, AP

Graco AP2010 Reactor 2 E-30 Proportioner Package, Fusion AP Gun, Heated Hose with Xtreme-Wrap, 10 kW, 230/400 V

Each feature in the Reactor 2 was strategically designed to help your business, with innovations that help your operation run smoothly. Software and hardware enhancements for better spray performance. And new technologies that add to your bottom line.

Application: Next generation technology for spray foam insulation and polyurea.

Reactor 2 E-30 gives you:
Compact footprint - more room in your spray rig
Ergonomic design - easier to service
Advanced control modules
Better spraying performance compared to traditional electric Reactor systems
Troubleshooting made quick and easy with QR codes
Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
Easy to reach, conveniently-placed electronics
Advanced control modules
Handles power fluctuations
Sacrificial surge protector
Protects your electronics against excessive power spikes
Smooth, consistent spray performance - similar to hydraulic systems
Three-year warranty
Covers user display module, control modules and electric motor
One of the best in the industry

Model: Reactor 2
Series: E-30
Product Series: Non-Elite

Amperage (A): 34 @ 350 to 415 V ac (3-Phase WYE), 50 @ 200 to 240 V ac (3-Phase Delta), 78 @ 200 to 240 V ac (1-Phase)
Application: Spray Foam
Applicator Type: Manual
Compatible Material: Plural Components
Component A Inlet Size (in): 1/2
Component A Inlet Size (mm): 12.7
Component A Thread Type: JIC
Component B Inlet Size (mm): #10
Component B Outlet Size (in): 5/8
Component B Outlet Size (mm): 15.875
Component B Thread Type: JIC
Component Type: Two Component
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion AP
Hose Length (ft): 50, 10
Hose Length (m): 15, 3
Hose Package: Single Hose
Includes: P

$42,530.00

REACTOR 2 E-XP2 SYSTEM, AP

GG AP2012

REACTOR 2 E-XP2 SYSTEM, AP

Graco AP2012 Reactor 2 E-XP2 Proportioner, Fusion AP Gun, Heated Hose with Xtreme-Wrap, 230/400 V

Count on the Reactor 2 E-XP2 proportioner for advanced technology in applying fast-curing polyurea coatings. Because it&prime, s a Reactor 2 series proportioner, it offers software and hardware enhancements for better spray performance, plus technologies that add to your bottom line. The Reactor 2 E-XP2 is engineered to process and spray polyurea and other coatings that require high pressures. The hybrid heater and heated hose condition the materials to the right viscosity prior to mixing. Quick knockdown lower pump for easy maintenance, easy-to-use controls, and rugged design make the Reactor the preferred choice for coatings applications.

Application: Next generation technology for polyurea coatings.

Reactor 2 E-XP2 gives you:
Compact footprint - more room in your spray rig
Ergonomic design - easier to service
Advanced control modules
Better spraying performance compared to traditional electric Reactor systems
Troubleshooting made quick and easy with QR codes
Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
Advanced control modules
Handles power fluctuations
Sacrificial surge protector
Protects your electronics against excessive power spikes
Smooth, consistent spray performance - similar to hydraulic systems
Three-year warranty
Covers user display module, control modules and electric motor
One of the best in the industry

Model: Reactor 2
Series: E-XP2
Product Series: Non-Elite

Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 62 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
Application: Protective Coatings
Applicator Type: Manual
Compatible Material: Plural Components
Component A Inlet Size (in): 1/2
Component A Inlet Size (mm): 12.7
Component A Thread Type: JIC
Component B Inlet Size (mm): #10
Component B Outlet Size (in): 5/8
Component B Outlet Size (mm): 15.875
Component B Thread Type: JIC
Component Type: Two Component
Fluid Inlet Size (cm): 1.905
Fluid Inlet Size (in): 3/4
Fluid Inlet Size (mm): 19.05
Fluid Inlet Thread Gender: Female
Fluid Inlet Thread Type: NPT
Flush Type: Solvent

$47,900.00

REACTOR A-25 SYSTEM, FUSION AP

GG AP2614

REACTOR A-25 SYSTEM, FUSION AP

Graco AP2614 Reactor A25 Proportioner Package, Fusion AP Gun, Wheels, DataTrak, 230/400 V

The Reactor A-25 is a Graco-engineered spray foam proportioner that gives you the reliability you expect on the jobsite. It maintains consistent temperature control, even when you&prime, re spraying at maximum flow rates - resulting in better quality foam.

Application: For spraying foam insulation - applies up to 25 lb (11.4 kg) per minute.

Maintains temperature setpoints for better yield
Maintains consistent output pressure for uniform spray pattern
Easy to operate and maintain
DataTrak Control
Resettable counter tracks material usage
Three Heat Zones
Three independent heat zones – ISO, resin and hose heat
Provide accurate heat control for reliable spraying to handle different chemical viscosities
Digital temperature controls
Recirculation Manifold
A quick, easy way to balance system pressures
NXT Air Motor
Low air consumption for increased efficiency
Muffler provides low operating noise levels
Air valve provides smooth and rapid changeover
Quick Knockdown Lower Pumps
For easy disassembly and maintenance
ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft
ISO Pump Lube System
Prevents isocyanate crystallization on the pump seal and shaft

Model: Reactor
Series: A-25

Air Inlet Size (cm): 1.27
Air Inlet Size (in): 1/2
Air Inlet Size (mm): 12.7
Air Inlet Thread Gender: Female
Air Inlet Thread Type: NPT
Amperage (A): 18.5 @ 380 V ac (3-Phase WYE), 32 @ 230 V ac (3-Phase Delta), 40 @ 230 V ac (1-Phase)
Application: Spray Foam
Applicator Type: Manual
Compatible Material: Plural Components
Component A Inlet Size (in): 3/4
Component A Inlet Size (mm): 19.05
Component A Thread Gender: Female
Component A Thread Type: NPT
Component B Inlet Size (in): 3/4
Component B Inlet Size (mm): 19.05
Component B Thread Gender: Female
Component B Thread Type: NPT
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion AP
Hose Length (ft): 50, 10
Hose Length (m): 15, 3
Includes: Proportioner, Fusion AP Gun, Heated Hose, Wheels, DataTrak
Material Application: Polyurethane Foam
Maximum Air Consumption (SCFM): 28 scfm at 1500 psi
Maximum Air Inlet Pressure (bar): 8.62
Maximum Air Inlet Pressure (kPa): 862
Maximum Air Inlet Pressure (psi): 125
Maximum Flow Rate (kg/min): 11.4
Maximum Flow Rate (lb/min): 25
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Fluid

$27,390.00

REACTOR E-10 SYSTEM, CMPLT, 120V, 2X15A, HTD

GG AP9570

REACTOR E-10 SYSTEM, CMPLT, 120V, 2X15A, HTD

Graco AP9570 Reactor E-10 Proportioner Package, Fusion AP Gun, 120 V, 1PH

Graco&prime, s Reactor E-10 is a small, ready-to-use system that helps you get in and get smaller jobs done fast without sacrificing performance. The Reactor E-10 sprayers are ideal for plural-component spray, joint-fill jobs and touch-ups. With smart controls that are easy to setup and simple to operate, the E-10 is a natural complement to any proportioning equipment line-up.

Application: For smaller polyurethane foam or polyurea projects or touch-ups.

Small size
Ideal for on-site portability and hard-to-reach areas
Cost Savings
One-person operation saves time and money
Extent your spray business
Use as an add-on to your existing spray business
Material savings
Saves 30% on material costs compared to disposable foam systems
Electric power
Low draw and plugs into standard outlets
Single Knob Operation
Intuitive start, stop and digital temperature display with single knob operation
Easily balancing
Pressure balance valves give you quick and easy balancing of system pressures
Balanced proportioning eliminates pressure fluctuations to give you a consistent spray pattern
Easy-to-service fluid section
Reduces maintenance and increases productivity
Electric motor
Improves performance and reduces operating costs
Spray on-ratio
Self-contained translucent material tanks show you that you are spraying on-ratio
Pre-heat material
Heaters and hose give you up to 2000 watts to pre-heat circulating material

Model: Reactor
Series: E-10

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Inlet Thread Type: Quick-Disconnect Pin
Air Outlet Size (cm): 0.635
Air Outlet Size (in): 1/4
Air Outlet Size (mm): 6.35
Air Outlet Thread Type: NPSM
Amperage (A): 15
Application: Spray Foam
Applicator Type: Manual
Compatible Material: Plural Components
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion AP
Hose Length (ft): 35
Hose Length (m): 10.7
Hose Package: Includes Hose
Includes: Proportioner, Fusion AP Gun, Unheated Hose
Material Application: Polyurethane Foam
Maximum Flow Rate (kg/min): 5.44
Maximum Flow Rate (lb/min): 12
Maximum Fluid Temperature (°C): 71
Maximum Fluid Temperature (°F): 160
Maximum Fluid Temperature (°C): 71
Maximum Fluid Temperature (°

$27,620.00

REACTOR 2 H-30 SYSTEM, 10KW, AP

GG APH031

REACTOR 2 H-30 SYSTEM, 10KW, AP

Graco APH031 Reactor 2 H-30 Proportioner Package, Fusion AP Gun, Heated Hose with Xtreme-Wrap, 10 kW, 230/400 V

Graco&prime, s hydraulic Reactor H-30 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.

Application: For medium to high-output foam applications and roofing projects – applies up to 28 lb (12.3 kg) per minute.

What a hydraulic system can do for you:
Dependability - robust, durable, longest life spray system
Reduce downtime - allows for longer time in between required maintenance
Increase daily productivity - capable of extremely high duty cycle
Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
Sacrificial surge protector
Protects your electronics against excessive power spikes
Three-year warranty
Covers user display and control modules
One of the best in the industry

Model: Reactor 2
Series: H-30
Product Series: Non-Elite

Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 46 @ 200 to 240 V ac (3-Phase Delta), 79 @ 200 to 240 V ac (1-Phase)
Application: Spray Foam
Applicator Type: Manual
Compatible Material: Plural Components
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion AP
Hose Length (ft): 50, 10
Hose Length (m): 15, 3
Hose Package: Single Hose
Includes: Proportioner, Fusion AP Gun, Heated Hose with Scuff Guard, Heated Whip Hose
Material Application: Polyurethane Foam
Maximum Flow Rate (kg/min): 12.7
Maximum Flow Rate (lb/min): 28
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Mix Ratio: 1:1
Maximum Working Pressure (bar): 138
Maximum Working Pressure (kPa): 13800
Maximum Working Pressure (MPa): 13.8
Maximum Working Pressure (psi): 2000
Overall Depth (cm): 53
Overall Depth (in): 20.88
Overall Depth (mm): 530

$48,210.00

REACTOR 2 H-XP2 SYSTEM, SEL, 15KW, AP

GG APH062

REACTOR 2 H-XP2 SYSTEM, SEL, 15KW, AP

Graco APH062 Reactor 2 H-XP2 Proportioner Package, Fusion AP Gun, Heated Hose, 15 kW, 230/400V

Graco&prime, s hydraulic Reactor H-XP2 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.

Application: For coatings that require high-pressures - applies up to 1.5 gal (5.7 liters) per minute. Graco&prime, s line of hydraulic Reactors brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.

What a hydraulic system can do for you:
Dependability - robust, durable, longest life spray system
Reduce downtime - allows for longer time in between required maintenance
Increase daily productivity - capable of extremely high duty cycle
Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
Sacrificial surge protector
Protects your electronics against excessive power spikes
Three-year warranty
Covers user display and control modules
One of the best in the industry

Model: Reactor 2
Series: H-XP2
Product Series: Non-Elite

Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
Application: Protective Coatings
Applicator Type: Manual
Compatible Material: Plural Components
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion AP
Hose Length (ft): 50, 10
Hose Length (m): 15, 3
Hose Package: Single Hose
Includes: Fusion AP Gun, Heated Hose, Whip Hose
Material Application: Polyurea
Maximum Flow Rate (cc/min): 5680
Maximum Flow Rate (GPM): 2
Maximum Flow Rate (L/min): 5.7
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Mix Ratio: 1:1
Maximum Working Pressure (bar): 241
Maximum Working Pressure (kPa): 24100
Maximum Working Pressure (MPa): 24.1
Maximum Worki

$54,160.00

REACTOR 2 H-XP2 SYSTEM, SEL, 15KW, ELITE, AP

GG APH162

REACTOR 2 H-XP2 SYSTEM, SEL, 15KW, ELITE, AP

Graco APH162 Reactor 2 H-XP2 Elite Proportioner Package, Fusion AP Gun, Heated Hose, 15 kW, 230/400V

Graco&prime, s hydraulic Reactor H-XP2 brings increased yield and high output spraying. Ideal for in-plant OEM&prime, s or applicators that spray at high volumes.

What a hydraulic system can do for you:
Dependability - robust, durable, longest life spray system
Reduce downtime - allows for longer time in between required maintenance
Increase daily productivity - capable of extremely high duty cycle
Reactor Connect : Communication and Control at your Fingertips
Control your Reactor using your phone
Improve productivity and yield by optimizing spray parameters and never having to go back to your rig
Monitor your rigs/crews using the multi-system dashboard
Troubleshoot an issue quickly using real-time data
Provide documentation to a customer
Use reports to better manage your business
Saves all your spray data to the cloud
Utilize account management to better manage your equipment and crews
Reactor Connect comes standard with all Reactor 2 models
Advanced control technology
Tracks, monitors and saves project data
Data can be saved and downloaded onto a USB drive
Stores up to 24 chemical recipes
Drum level indicators
Sacrificial surge protector
Protects your electronics against excessive power spikes
Three-year warranty
Covers user display and control modules
One of the best in the industry
Elite Models
Graco InSite included
Inlet pressure and temperature sensors (interfaces with Graco InSite)
Xtreme-Wrap Scuff Guard on heated hoses when ordered as a package

Model: Reactor 2
Series: H-XP2
Product Series: Elite

Amperage (A): 35 @ 350 to 415 V ac (3-Phase WYE), 59 @ 200 to 240 V ac (3-Phase Delta), 100 @ 200 to 240 V ac (1-Phase)
Application: Protective Coatings
Applicator Type: Manual
Compatible Material: Plural Components
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion AP
Hose Length (ft): 50, 10
Hose Length (m): 15, 3
Hose Package: Single Hose
Includes: Fusion AP Gun, Heated Hose with Xtreme-Wrap, Heated Hose, Elite Kit
Material Application: Polyurea
Maximum Flow Rate (cc/min): 5680
Maximum Flow Rate (GPM): 2
Maximum Flow Rate (L/min): 5.7
Maximum Fluid Temperature (°C): 88
Maximum Fluid Temperature (°F): 190
Maximum Fluid Temperature (°C): 88
Maxi

$57,160.00

REACTOR E-10HP SYSTEM, CMPLT, 120V

GG APT100

REACTOR E-10HP SYSTEM, CMPLT, 120V

Graco APT100 Reactor E-10 HP Proportioner Package, Fusion AP Gun, 120 V

The Reactor E-10hp is an ideal entry-level system and is great for coating projects such as balconies, pools, waterproofing and bedliner applications. It&prime, s a smart, affordable investment that will help your business grow

Application: Entry-level system for pure and hybrid polyurea coatings.

Digital heat controls
Allows you to enter the exact temperatures you need
Uses the same circuit boards as a standard Reactor
Single knob motor operation
Intuitive, easy to use
Insulated tanks
Double-wall insulated to retain heat
Smooth interior lining for easy cleaning
Improved seal design on lid for better moisture control
Boost heat
Directs unused power from the motor circuit to additional heater rods
Additional heater power brings material to desired temperatures faster during recirculation mode
Robust hybrid heater
More power, faster material heating means more uptime
Motor
Offers 50% more power than the Reactor E-10
Provides improved spray performance with reduced pressure drop
Quick knockdown lower pumps
Easy disassembly and maintenance
Temperature gauges in Y-strainers
Provides accurate tank temperature readings
Portable
Fits through standard doorways
Plugs into standard 120V or 230V outlets
Rugged wheels for extreme jobsites
No need for generator
Wide tank opening
Easy material loading and easy to clean

Model: Reactor
Series: E-10hp

Air Inlet Size (cm): 0.635
Air Inlet Size (in): 1/4
Air Inlet Size (mm): 6.35
Air Outlet Size (cm): 0.635
Air Outlet Size (in): 1/4
Air Outlet Size (mm): 6.35
Air Outlet Thread Type: NPSM
Amperage (A): 20
Application: Protective Coatings
Applicator Type: Manual
Compatible Material: Plural Components
Component Type: Two Component
Flush Type: Solvent
Frequency (Hz): 50/60
Gun Type: Fusion AP
Hose Length (ft): 35
Hose Length (m): 10.7
Includes: Proportioner, Fusion AP Gun, Unheated Hose
Material Application: Polyurea
Maximum Flow Rate (cc/min): 3790
Maximum Flow Rate (GPM): 1
Maximum Flow Rate (L/min): 3.79
Maximum Fluid Temperature (°C): 77
Maximum Fluid Temperature (°F): 170
Maximum Fluid Temperature (°C): 77
Maximum Fluid Temperature (°F): 170
Maximum Mix Ratio: 1:1
Maximum Spray Pressure (bar): 151.7

$34,950.00

Kit, Rpr, Air Purge, Round 00

GG AR2929

GG GC2495

Kit, Seal Housing, P2

$105.50

Kit, Insert, Mix Chamber, 02

GG GC2512

Kit, Insert, Mix Chamber, 02

$42.20
